SXO-SPV2SPHERO 2

Product Information Guide Thi s Important Product Information Gui de contains safety, handling, disposal, recycling, and regulatory information as well as the limited warranty for Sphero. Read all safety information and operating instructions before using Sphero to avoid injury or harm. For a downloadable version of the Sphero User and Product Guides, visit www.gosphero.com/manuals. IMPORTANT SAFETY AND HANDLING INFORMATION Read the following warning before you or your child play with Sphero. Fai l i ng to do so may cause injury. CAUT I O N: To reduce the risk of damage or injury, do not attempt to remove Sphero's shell; please refer all non-routine servicing questions to Orbotix. No user-serviceable part s are contained inside. CALIFORNIA PROPOSITION 65 WARNING: THIS PRODUCT CONTAINS CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHE R REPRODUCTIVE HARM. ​ Gener al Read all safety and operating instructions before operating Sphero. Retain the safety and operating instructions for future reference. Fol l ow all operating and use instructions. Do not attempt to service Sphero yourself. Refer all non-routine servicing to Orboti x . Seizure, Blackouts and Eyestrain A small percentage of people may be susceptible to blackouts or seizures (ev en if they have never had one before) when exposed to flashing lights or light patterns such as when playing games or watching video. If you have experienced seizures or blackouts or have a family history of such occurrences, you should consult a physician before playing video games or watching videos. Discontinue use of Sphero and your smart device controller and consult a physician if you experience headaches, blackouts, seizures, convulsion, eye or muscle twitching, loss of awareness, involuntary movement, or disorientation. To reduce ri s k of headaches, blackouts, seizures, and eyestrain, avoid prolonged use, hold your smart device controller some distance from your eyes, use Sphero in a well-lit room, and take frequent breaks. Repetitive Injury When you perform repetitive activities such as playing games on your smart device controller, you may experience occasional discomfort in your hands, arms, shoulders, neck, or other parts of your body. Avoid excessive play. It is recommended that parents monitor their children for appropriate play. Take frequent breaks and if you have discomfort during or after such use, stop use and see a physician. • • • • WARNING: Choking Hazards Sphero has small parts inside its shell, which may present a choking hazard to small children and pets. Keep Sphero and its accessories away from small children. Keeping Sphero Within Acceptable Temperatures Operate and store Sphero in a place where the temperature is between 0º and 40º C (32º to 104º F). Low- or high-temperature conditions might temporarily shorten battery life or cause Sphero to temporarily stop working properly. Avoid dramatic changes in temperature or humidity when using Sphero, as condensation may form on or within Sphero. Don’t leave Sphero in your car, because temperatures in parked cars can exceed this range. When you’re using Sphero or charging the battery, it is normal for Sphero to get warm. The exterior of Sphero functions as a cooling surface that transfers heat from inside the unit to the cooler air outside. Use and Maintenance WARNING: Sphero is not suitable for use by children under 8 years of age. Never: Abuse, throw, drop, puncture, violently kick or step on Sphero. Thi s can dam- age the robot and compromise its safe operation. Operate Sphero in dangerous, hazardous or public areas where use is not per- mitted (hi gh voltage power lines, train stations, airports, trains). Check whether use of Sphero is permitted before using it in public areas or public transport.​ • • Always: Keep Sphero in sight at all times when operating it to avoid injuries or damages to people, animals or property. Ensure that no one is standing nearer than 1 yard (1 meter) from Sphero when in operation and that you keep a safe distance between the ball and people, animals and property. Periodically examine Sphero for potential hazards such as cracked, damaged or otherwise broken parts. In the event of such damage, do not use Sphero until it can be replaced or repaired. Drive Sphero on suitable surfaces. Although Sphero can drive on a variety of surfaces, it works best on smooth, flat and hard surfaces (s uc h as carpet, tile wood floors, and concrete). Battery Warning Lithium Polymer batteries are extremely hazardous and liable to cause serious injuries to persons or property. The user accepts liability for the use of a Lithium Polymer battery. As the manufacturer and the distributor cannot ensure the battery is used correctly (c hargi ng, discharging, storage, etc.), they cannot be held liable for damages caused to persons or property. In the event of battery leakage, avoid the liquid coming into contact with skin and eyes. In case of contact with the skin, wash copiously with soap and water. In case of contact with the eyes, ri ns e copiously with cold water and consult a doctor. If you notice a suspicious smell or noise or observe smoke around the charger, disconnect it immediately. Non-compliance with the instructions below could result in gas being given off, fire, electric shock or an explosion. • • • • • • • Charging Examine the charger regularly for damage to the cord, plug, enclosure or other parts. The toy s hal l onl y be us ed wi th a transformer for toys. Never use a damaged charger or power adapter. Use only supplied Power Adapter; Model: PA1005-120DIB050 12vDC 500mA if misused can cause electrical shock. Never charge a leaky battery or one which has been damaged. Do not use the Sphero charger to charge any other battery than the provided rechargeable battery. Do not charge the battery near inflammable materials or on an inflammable surface (c arpet, wooden flooring, wooden furniture, etc.) or conducting surface. Do not lea…

Text truncated - open the document above for the full version.

1155 Canyon Blvd. Suite 210 Boulder, CO 80304 www.gosphero.com Kevin Hemmings Certification Engineer Orbotix, Inc. Tel: 1.928.242.4067 Email: [email protected] Subject: Attestation of compliancy to FCC provisions of 15.201(a) Statement We, the under signed, Orbotix Inc. declare that, our product “Sphero” FCC ID: T9J-RN42 and “Sphero 2” FCC ID: SXO-SPV2 utilize the same charging cradle. The charger marketed with these device is to be verified and is exempt from certification pursuant to the provisions of 15.201(a) devices operating below 490 kHz in which all emissions are at least 40 dB below the limits in § 15.209 shall be verified. The original test was conducted by Compliance Testing located at 3356 N. San Marcos Pl suite 107, Chandler AZ 85225 USA and the report no. is P11A0005 and it is in compliance with the requirements of FCC Rules Part 18. Kevin Hemmings Certification Engineer On Behalf of Orbotix Inc. Date: 22 October 2013

1155 Canyon Blvd. Suite 210 Boulder, CO 80304 www.gosphero.com Isaac Davenport VP Engineering Orbotix Inc. Tel: 1.303.859.5773 email: [email protected] Statement We, the under signed, Orbotix Inc. declared that, our product “Sphero” Model T9J-RN42 has been tested by Compliance Testing located in 3356 N. San Marcos Pl suite 107, Chandler AZ 85225 USA and the report no. is P11A0005 and It is in compliance with the requirements of FCC Rules Part 18. Both the old T9J-RN42 model of the ball and the new SXO-SPV2 model of the ball utilized a 125 kHz inductive charging frequency and a much lower power 3 kHz constant tone to allow the ball to sense whether it is in the charging cradle. Since the 3 kHz tone is a constant low level emission from the cradle we do not consider it a communications channel. Isaac Davenport VP Engineering On Behalf of Orbotix Inc. Date: 24 September 2013

Project: S003 Title: FCC Confidentiality Date: 09-05-2013 Confidential Request for Confidentiality Date: __09-05-2013______ Subject: Confidentiality Request for: ____ FCC ID: SXO-SPV2______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ___A Digital Copy Resides at the URL “www.gosphero.com/manuals”______ _Orbotix, Inc._____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___One Hundred Eighty Days ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TCB in the event information regarding the product or the product is made available to the public. TCB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: Kevin Hemmings (Signature/Title 2 ) (Print name)

Project: S003 Title: Authority to Act as Agent Date: 09-05-2013 Confidential Authority to Act as Agent Date: __09-05-2013______ To Whom It May Concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch and Hellen Wang in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch to act on our behalf in all matters relating to all processes required in FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: ___12 months_____ By: ___Kevin Hemmings_____ (Signature 1 ) (Print name) Title: __Electrical Engineer____________________ On behalf of: ________Orbotix, Inc.__________________ (Company Name) Telephone: _9282424067_________________ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

1 Photographs - EUT Constructional Details Test model No.: S003

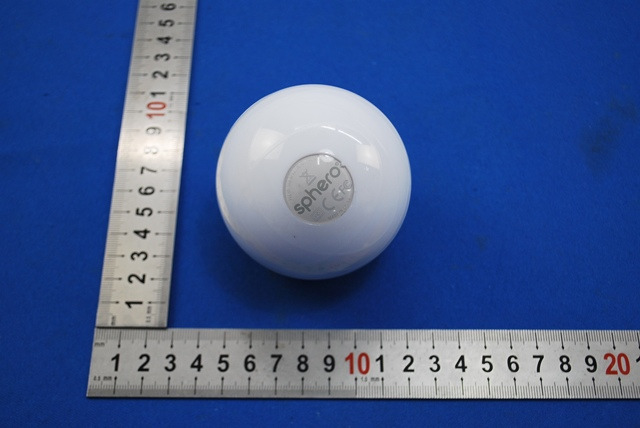

Label Location:

1 Photographs - EUT Constructional Details Test model No.: S003

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 W orkshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM130700370402 Page: 1 of 6 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page SAR Evaluation Report Application No.: SZEM1307003704RF Applicant: ORBOTIX, INC Manufacturer: JETTA (GUANGZHOU) INDUSTRIES CO.,LTD Factory: JETTA (GUANGZHOU) INDUSTRIES CO.,LTD Product Name: Sphero 2 Model No.(EUT): S003 Add Model No.: S003AP FCC ID: SXO-SPV2 Standards: 47 CFR Part 1.1307(2012) 47 CFR Part 2.1093 (2012) KDB447498D01 General RF Exposure Guidance v05 Date of Receipt: 2013-07-10 Date of Test: 2013-08-09 to 2013-08-15 Date of Issue: 2013-09-04 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM130700370402 Page: 2 of 6 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Contents Page 1 COVER PAGE ........................................................................................................................................ 1 2 CONTENTS ............................................................................................................................................ 2 3 GENERAL INFORMATION ..................................................................................................................... 3 3.1 CLIENT INFORMATION ............................................................................................................................. 3 3.2 GENERAL DESCRIPTION OF EUT ............................................................................................................. 3 3.3 TEST LOCATION .................................................................................................................................... 4 3.4 TEST FACILITY....................................................................................................................................... 5 3.5 DEVIATION FROM STANDARDS ................................................................................................................. 5 3.6 ABNORMALITIES FROM STANDARD CONDITIONS......................................................................................... 5 3.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER .............................................................................. 5 4 SAR EVALUATION ................................................................................................................................. 6 4.1 RF EXPOSURE COMPLIANCE REQUIREMENT .......................…
