SY5SMKSmart Key ECU

.Proprietary data, company confidential. All r ights reserved.Confié à titre de secret d'entrepr ise. Tous droits réservés.Comunicado como segr edo empr esarial. Reservados todos os direitos.Confidado como secreto industrial. Nos reservamos todos los derechos. .Weitergabe sowie Ver vielfältigung dieser Unterlage, Ver - wertung und Mitteilung ihres Inhalts nicht gestattet, soweitnicht ausdr ücklich zugestanden. Zuwiderhandlungen ver - pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe-sondere für den Fall der Patenterteilung oder GM-Eintragung SV SASCO Identification No. : Document : User Manual for Smart Key ECU Project : Smart Key ECU Project Code : Version: 0.1 Date: Aug. 10 '06 Engineering change order-No.: Design Freeze No.: Number of pages: 5 Filename: User Manual for SMK ECU_revised Editor : KK Ko Document name Project code ECO / DF No. Version: 0.5 Aug. 10. 2006 File: User Manual for SMK ECU_revised Identification No. : Document No. Page 2 / 5 .Proprietary data, company confidential. All r ights reserved.Confié à titre de secret d'entrepr ise. Tous droits réservés.Comunicado como segr edo empr esarial. Reservados todos os direitos.Confidado como secreto industrial. Nos reservamos todos los derechos. .Weitergabe sowie Ver vielfältigung dieser Unterlage, Ver - wertung und Mitteilung ihres Inhalts nicht gestattet, soweitnicht ausdr ücklich zugestanden. Zuwiderhandlungen ver - pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe-sondere für den Fall der Patenterteilung oder GM-Eintragung Operation Guide This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution ! Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. Editor : KK Ko Document name Project code ECO / DF No. Version: 0.5 Aug. 10. 2006 File: User Manual for SMK ECU_revised Identification No. : Document No. Page 3 / 5 .Proprietary data, company confidential. All r ights reserved.Confié à titre de secret d'entrepr ise. Tous droits réservés.Comunicado como segr edo empr esarial. Reservados todos os direitos.Confidado como secreto industrial. Nos reservamos todos los derechos. .Weitergabe sowie Ver vielfältigung dieser Unterlage, Ver - wertung und Mitteilung ihres Inhalts nicht gestattet, soweitnicht ausdr ücklich zugestanden. Zuwiderhandlungen ver - pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe-sondere für den Fall der Patenterteilung oder GM-Eintragung Contents list Page 1. System configulation 4 1.1 scope of SMART KEY SYSTEM 4 1.2 short description of the SYSTEM 4 1.2.1 General Definition of SMART KEY 4 1.2.2 Wireless Communication 4 1.2.3 concept Description 5 1.2.4 System Architecture 5 Editor : KK Ko Document name Project code ECO / DF No. Version: 0.5 Aug. 10. 2006 File: User Manual for SMK ECU_revised Identification No. : Document No. Page 4 / 5 .Proprietary data, company confidential. All r ights reserved.Confié à titre de secret d'entrepr ise. Tous droits réservés.Comunicado como segr edo empr esarial. Reservados todos os direitos.Confidado como secreto industrial. Nos reservamos todos los derechos. .Weitergabe sowie Ver vielfältigung dieser Unterlage, Ver - wertung und Mitteilung ihres Inhalts nicht gestattet, soweitnicht ausdr ücklich zugestanden. Zuwiderhandlungen ver - pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe-sondere für den Fall der Patenterteilung oder GM-Eintragung 1. System configulation 1.1 scope of SMART KEY SYSTEM The System offers the following features: • passive access for two doors, driver side and passenger side as well as trunk/tailgate • passive start after interior detection of the SMART KEY FOB (without interior trunk and hat shelf detection) • LF-RF communication (based on Siemens’ SMART KEY system) • passive access/locking of the two front doors via a toggle push button in the door handles • passive access trunk/tailgate via the trunk lid switch at the trunk • max. 2 SMART KEY FOBs can be handled by the system • immobilizer backup antenna driver integrated into MSL • communication to the engine management system via a single line interface • communication to the MSL via a single line interface • block of the steering column by the MSL device 1.2 short description of the SYSTEM 1.2.1 General Definition of SMART KEY The SMART KEY system is a system that allows the user to access and operate a vehicle in a very convenient way. To access the vehicle no traditional key or remote control unit is needed. The user carries a SMART KEY FOB which itself does not require any conscious actions by the user (e.g. operate a button). The SMART KEY system is triggered by pressing a push button in the door handle. After being triggered the vehicle sends out a request in a limited range. If the SMART KEY FOB receives this request, it automatically sends a response to the vehicle. Then the system decides whether to perform a particular action (unlocking, locking...) or remain inactive. In a similar manner the vehicle’s Mechatronic Steering Lock (MSL) is released. Again, a communication between the vehicle and the SMART KEY FOB is needed before any actions will be performed. 1.2.2 Wireless Communication Electromagnetic waves are used to exchange information between the vehicle and the SMART KEY FOB. Both, vehicle and SMART KEY FOB are equipped with a transmitter, a receiver and several antennas. Editor : KK Ko Document name Project code ECO / DF No. Version: 0.5 Aug. 10. 2006 File: User Manual for SMK ECU_revised Identification No. : Document No. Page 5 / 5 .Proprietary data, company confidential. All r ights reserved.Confié à titre de secret d'entrepr ise. Tous droits réservés.Comunicado como segr edo empr esarial. Reservados todos os direitos.C…

Text truncated - open the document above for the full version.

Siemens Automotive Systems 403-2, Saeum-dong, Ichon-city Corporation Kyungki-do, Korea If you have not received all pages, please call the direct phone number. FAX : 031-630-0891 TEL : 031-630-0820 Form# : QF0 00334A0 A4 Date: Feb. 2, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize SGS Testing Korea Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Testing Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). In authorizing SGS Testing Korea Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; Siemens Automotive Systems 403-2, Saeum-dong, Ichon-city Corporation Kyungki-do, Korea If you have not received all pages, please call the direct phone number. FAX : 031-630-0891 TEL : 031-630-0820 Form# : QF0 00334A0 A4 e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Shi-Hong Sung / Manager / Siemens Automotive

Siemens Automotive Systems 403-2, Saeum-dong, Ichon-city Corporation Kyungki-do, Korea If you have not received all pages, please call the direct phone number. FAX : 031-630-0891 TEL : 031-630-0820 Form# : QF0 00334A0 A4 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. We, Siemens Automotive Systems Corporation, would like the following documents regarding this submission for FCC ID: SY5SVISMKFNA04 to be kept confidential. 1. Schematics 2. Parts List 3. Operating description 4. Block diagram The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Shi-Hong Sung /Manager /Siemens Automotive

Helen Zhao Subject: FW: Siemens Automotive Systems Corporation, FCC ID: SY5SMK, Assessment NO.: AN06T6292, Notice#1 11/9/2006 From: Kwon, James (Gunpo) Sent: Thursday, November 09, 2006 4:01 AM To: Helen Zhao Subject: RE: Siemens Automotive Systems Corporation, FCC ID: SY5SMK, Assessment NO.: AN06T6292, Notice#1 Hi Helen, Pls find our reply on your findings at below. Thanks and have a nice day. James/SGS -----Original Message----- Sent: Tuesday, November 07, 2006 2:24 PM Subject: Siemens Automotive Systems Corporation, FCC ID: SY5SMK, Assessment NO.: AN06T6292, Notice#1 Question #1: The test report mentions 15.231 as one of applicable rule part, it even lists 15.231 requirements, which is incorrect. Please resubmit a test report to remove non-applicable sections. [James] I found that our engineer tried to combine some test items in one test report form. Sorry. We deleted all 15.231 related phrases from the test report, and uploaded it. Question #2: The test report mentions the fundamental field strength was measured with 6 antennas, please provide a test setup diagram to clearly indicate the location of the 6 antennas during the test. [James] We added detail antenna information to test set-up photo, and uploaded it. Also uploaded internal photos which is revised the antenna number also. Question #3: The test report does not indicate the spurious emission was investigated upto 1GHz. Based upon FCC15.33(a)(4), "If the intentional radiator contains a digital device, regardless of whether this digital device controls the functions of the intentional radiator or the digital device is used for additional control or function purposes other than to enable the operation of the intentional radiator, the frequency range shall be investigated up to the range specified in paragraphs (a)(1)-(a)(3) of this section or the range applicable to the digital device, as shown in paragraph (b)(1) of this Section, whichever is the higher frequency range of investigation." In your case, you need to test upto 1GHz for this 125KHz device. Please submit additional test data. [James] We added test data to test report. Question #4: The user manual includes some content of Operational description, and includes a block diagram, which request to be kept confidential. Since user manual can not be kept confidential, please remove all confidential content from the user manual. [James] I revised user manual and operation description, and uploaded it. Question #5: The test report does not show the test was performed in accordance with ANSI C63.4-2003, Please clarify whether test was performed with correct measurement procedure. If necessary, please update the test report. [James] We used ANSI C63.4-2003. We added the measurement procedure info to the test report. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

FCC ID : SY5SMK Report File No. : STROR-06-080 Page : 28 of 34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr Appendix B. Photos of the EUT Front View of EUT Rear View of EUT FCC ID : SY5SMK Report File No. : STROR-06-080 Page : 29 of 34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr Right View of EUT Left View of EUT

FCC ID LABEL 1. FCC ID label drawing 2. FCC ID label location Siemens Automotive Systems Corporation Model : SMK FCC ID : SY5SMK Made in Korea This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This devices may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation.

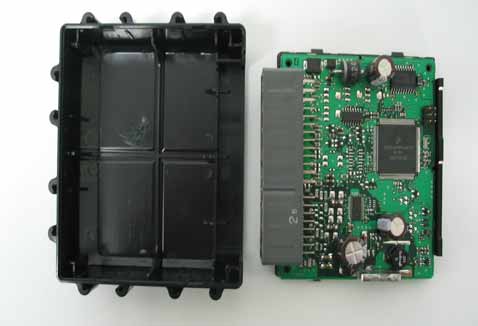

FCC ID : SY5SMK Report File No. : STROR-06-080 Page : 30 of 34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr Inner of EUT Top View of Main-board FCC ID : SY5SMK Report File No. : STROR-06-080 Page : 31 of 34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr Bottom View of Main-board View of Antenna(#1) FCC ID : SY5SMK Report File No. : STROR-06-080 Page : 32 of 34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr View of Antenna(#2) View of Antenna(#3) FCC ID : SY5SMK Report File No. : STROR-06-080 Page : 33 of 34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr View of Antenna(#4) View of Antenna(#5) FCC ID : SY5SMK Report File No. : STROR-06-080 Page : 34 of 34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr View of Antenna(#6)

FCC ID : SY5SMK Report File No. : STROR-06-080 Page : 1 of 34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr TEST REPORT OF FCC Part 15 Subpart C§15.209 FCC ID : SY5SMK Equipment Under Test :Smart Key ECU Model Name :SMK Serial No. :N/A Applicant :Siemens Automotive Systems Corporation Manufacturer :Siemens Automotive Systems Corporation Date of Test(s) :2006-10-11 ~ 2006-10-25 Date of Issue :2006-11-06 In the configuration tested, the EUT complied with the standards specified above. The above test certificate is the accredited test results by Korea Laboratory Accreditation Scheme, which signed the ILAC-MRA. Te s t e d B y : Date 2006-11-06 Feel Jeong Approved By Date 2006-11-06 Albert Lim FCC ID : SY5SMK Report File No. : STROR-06-080 Page : 2 of 34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr INDEX TABLE OF CONTENTS Page 1. General Information ----------------------------------------------------------------------- 3 2. Field Strength of Fundamental ----------------------------------------------------------- 6 3. Spurious Emission--------------------------------------------------------------------------- 16 4. Bandwidth of Operation Frequency----------------------------------------------------- 23 5. Transmission Time-------------------------------------------------------------------------- 25 Appendix A. Photo of Field Strength fundamental & Spurious Emission Test Appendix B. Photos of the EUT FCC ID : SY5SMK Report File No. : STROR-06-080 Page : 3 of 34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr 1. General Information 1.1. Testing Laboratory SGS Testing Korea Co., Ltd. Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-Si, Gyeonggi-do, Korea 435-040 www.sgstesting.co.kr Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2. Details of Applicant Applicant : Siemens Automotive Systems Corporation Address : 403-2, Saeum-dong, Ichon-city, Kyungki-do, Korea Contact Person : Sung Min Jang Phone No. : +82 +31 630 0864 Fax No. : +82 +31 630 0891 1.3. Description of EUT Kind of Product Smart Key ECU Model Name SMK Serial Number N/A Power Supply DC 12 V Frequency Range Tx: 125 kHz /Rx: 315 MHz Modulation Technique ASK(Tx) /FSK(Rx) Frequency Generation X-Tal Number of Channels 1 CH(Tx)/1 CH(Rx) Operating Conditions -20 ~ + 60 Antenna Type Fixed Type(Loop Coil Antenna) 1.4. Details of modification -N/A FCC ID : SY5SMK Report File No. : STROR-06-080 Page : 4 of 34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr 1.5. Test Equipment List EQUIPMENT MANUFACTURER MODEL CAL DUE. EQPT. USED Spectrum Analyzer Agilent E4440A May 2007 Spectrum Analyzer H.P 8565E Nov. 2006 Loop Antenna Rohde & Schwarz HFH2-Z2 Sep. 2007 Ultra-Broadband AntennaRohde & Schwarz HL562 Oct. 2007 Horn Antenna Schwarzbeck BBHA9120A Jul. 2007 Test Receiver Rohde & Schwarz ESHS10 Jun. 2007 Test Receiver Rohde & Schwarz ESVS10 May 2007 Test Receiver Rohde & Schwarz ESU26 Aug. 2007 Anechoic Chamber SY Corporation L WH 9.66.46.4 Jun. 2008 FCC ID : SY5SMK Report File No. : STROR-06-080 Page : 5 of 34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD:FCC Part15, Subpart C Standard Section Test Item Result 15.205(a) 15.209(a) Band Edge, Radiated emission, Spurious Emission and Field Strength of Fundamental Pass FCC ID : SY5SMK Report File No. : STROR-06-080 Page : 6 of 34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr 2. Field Strength of Fundamental 2.1. Test Setup The diagram below shows the test setup that is utilized to make the measurements for emission from 9 kHz to 30 MHz Emissions. The diagram below shows the test setup that is utilized to make the measurements for emission from 30 MHz to 1 GHz Emissions. FCC ID : SY5SMK Report File No. : STROR-06-080 Page : 7 of 34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr The diagram below shows the test setup that is utilized to make the measurements for emission from 1 GHz to 18 GHz Emissions. FCC ID : SY5SMK Report File No. : STROR-06-080 Page : 8 of 34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr 2.2. Limit Radiated emission limits, general requirements Except as provided elsewhere in this Subpart, the emissions from an intentional radiator shall not e…

Text truncated - open the document above for the full version.

FCC ID : SY5SMK Report File No. : STROR-06-080 Page : 27 of 34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr Appendix A. Photo of Field Strength & Spurious Emission Test ANT6 ANT5 ANT4 ANT3 ANT2 ANT1 EUT ANT Selector
