SYW-A19RGBWAGT2R2Self-Ballasted LED Lamps

RF exposure statement This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. This equipment meets the exemption from the routine evaluation limits in section 2.5 of RSS-102. It should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. Cet équipement est conforme à l'exemption des limites d'évaluation habituelle de la section 2.5 de la norme RSS-102. Il doit être installé et utilisé à une distance minimale de 20 cm entre le radiateur et toute partie de votre corps. FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IC WARNING This device contains licence-exempt transmitter(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Note: Bluetooth function will be turned off in the actual product. Bluetooth will be turned off when the product is working and will not be used

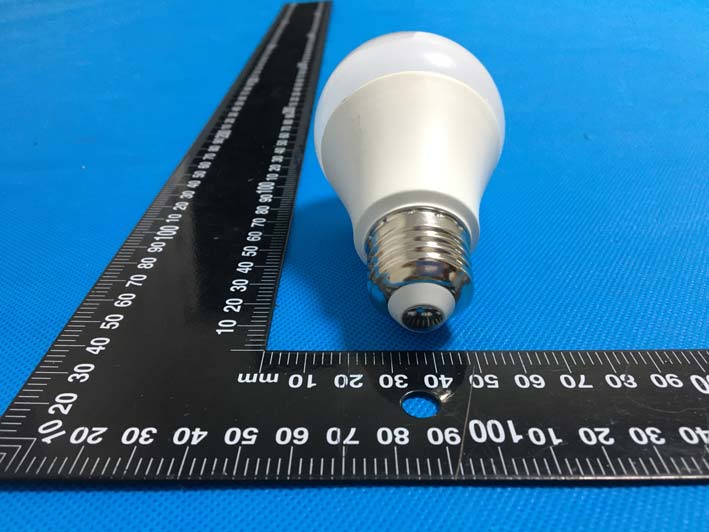

Reference No.: WTX21X04042176W-1 Page 2 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTX21X04042176W-1 Page 3 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTX21X04042176W-1 Page 4 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6

Reference No.: WTX21X04042176W-1 Page 1 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: SYW-A19RGBWAGT2R2 Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTX21X04042176W-1 Page 5 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Reference No.: WTX21X04042176W-1 Page 6 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 1 Solder Board-Component View 2 Reference No.: WTX21X04042176W-1 Page 7 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 3 Solder Board-Component View 4 Reference No.: WTX21X04042176W-1 Page 8 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 5 Antenna View

1. MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 General Information Client Information Applicant: Feit Electric Company Address of applicant: 4901 Gregg Road Pico Rivera, California 90660, United States Manufacturer: Zhejiang Future Lighting Co., Ltd Address of manufacturer: No.99, Jingfeng Road, Haining Warp Knitting Industrial Zone, Zhejiang General Description of EUT: Product Name: Self-Ballasted LED Lamps Trade Name: / Model No.: 112R800100M1-70 Adding Model(s): 112R800100M1-XX, 112R800090M1-XX, 112R800070M1-XX, 112R800060M1-XX, 112R800050M1-XX, 112R800040M1-XX, 112R800088M1-XX, 112R800072M1-XX, BPA800/RGBW/2 (P1), OM60/RGBW/CA/AG(P2), OM60/RGBW/CA/AG/3 (P1) ("XX" represents Ra, can be 70-100; "YYYY" represents the color temperature, can be 2000-6500) Rated Voltage: A120V/60Hz Power Adapter / FCC ID: SYW-A19RGBWAGT2R2 Equipment Type: Fixed device Technical Characteristics of EUT: Wi-Fi Support Standards: 802.11b, 802.11g, 802.11n Frequency Range: 2412-2462MHz for 802.11b/g/n(HT20) 2422-2452MHz for 802.11n(HT40) RF Output Power: 17.42dBm (Conducted) Type of Modulation: DBPSK,BPSK,DQPSK,QPSK,16QAM,64QAM Quantity of Channels: 11 for 802.11b/g/n(HT20); 7 for 802.11n(HT40) Channel Separation: 5MHz Type of Antenna: PCB Antenna Antenna Gain: 1.9dBi 1.2 Standard Applicable According to §1.1307(b)(1) and KDB 447498 D01 General RF Exposure Guidance v06, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. (a) Limits for Occupational / Controlled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 / / F/300 6 1500-100000 / / 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-100000 / / 1 30 Note: f = frequency in MHz: * = Plane-wave equivalents power density 1.3 MPE Calculation Method S = (30*P*G) / (377*R S = power density (in appropriate units, e.g., mw/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mw) G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor is normally numeric gain. R = distance to the center of radiation of the antenna (in appropriate units, e.g., cm) 1.4 MPE Calculation Result For Wi-Fi Maximum Tune-Up output power: 18(dBm) Maximum peak output power at antenna input terminal: 63.10(mW) Prediction distance: >20(cm) Prediction frequency: 2412 (MHz) Antenna gain: 1.9 (dBi) Directional gain (numeric gain): 1.55 The worst case is power density at prediction frequency at 20cm: 0.0194(mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) Result: Pass

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 64 TEST REPORT Reference No. ....................: WTX21X04042176W-1 FCC ID ............................... .: SYW-A19RGBWAGT2R2 Applicant .......................... .: Feit Electric Company Address ............................ .: 4901 Gregg Road Pico Rivera, California 90660, United States Product Name .................. .: Self-Ballasted LED Lamps Test Model. ....................... .: 112R800100M1-70 Standards ......................... .: FCC Part 15.247 Date of Receipt sample ... .: Apr. 30, 2021 Date of Test....................... .: Apr. 30, 2021 to Jun.01, 2021 Date of Issue .................... .: Jun.01, 2021 Test Result ........................ .: Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Tested by: Reviewed By: Approved & Authorized By: Mike Shi / Project Engineer Lion Cai / RF Manager Silin Chen / Manager Reference No.: WTX21X04042176W-1 Page 2 of 64 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 4 1.2 TEST STANDARDS ................................................................................................................................................... 6 1.3 TEST METHODOLOGY ............................................................................................................................................. 6 1.4 TEST FACILITY ....................................................................................................................................................... 6 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 7 1.6 MEASUREMENT UNCERTAINTY .............................................................................................................................. 8 1.7 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 9 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 11 3. ANTENNA REQUIREMENT ................................................................................................................................ 12 3.1 STANDARD APPLICABLE ....................................................................................................................................... 12 3.2 EVALUATION INFORMATION ................................................................................................................................ 12 4. POWER SPECTRAL DENSITY ........................................................................................................................... 13 4.1 STANDARD APPLICABLE ....................................................................................................................................... 13 4.2 TEST SETUP BLOCK DIAGRAM ............................................................................................................................. 1 3 4.3 TEST PROCEDURE ................................................................................................................................................. 13 4.4 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 13 5. DTS BANDWIDTH ................................................................................................................................................. 14 5.1 STANDARD APPLICABLE ....................................................................................................................................... 14 5.2 TEST SETUP BLOCK DIAGRAM ............................................................................................................................. 1 4 5.3 TEST PROCEDURE ................................................................................................................................................. 14 5.4 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 14 6. RF OUTPUT POWER ............................................................................................................................................ 15 6.1 STANDARD APPLICABLE ....................................................................................................................................... 15 6.2 TEST SETUP BLOCK DIAGRAM ............................................................................................................................. 1 5 6.3 TEST PROCEDURE ................................................................................................................................................. 15 6.4 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 15 7. FIELD STRENGTH OF SPURIOUS EMISSIONS ............................................................................................. 16 7.1 STANDARD…

Text truncated - open the document above for the full version.

Reference No.: WTX21X04042176W-1 Page 9 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (Below 30MHz) Reference No.: WTX21X04042176W-1 Page 10 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (1GHz to 18GHz) Reference No.: WTX21X04042176W-1 Page 11 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Radiation Emission Test Setup (Above 18GHz) ***** END OF REPORT *****
