SYW-PLUGWFWPSmart Wi-Fi Dual Outdoor Plug

TROUBLESHOOTING TIPS IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY IMPORTANT SAFETY INSTRUCTIONS When using electrical products, basic precautions should always be followed. THIS OUTDOOR SMART PLUG IS A "GROUNDED" DEVICE The male plug contains a ground pin and is only intended for use with a three-pronged grounded outlet. DO NOT ATTACH A DEVICE THAT EXCEEDS THE UNIT RATINGS CAUTION: RISK OF ELECTRIC SHOCK. 芦芦笃NT|NUITYMUST| 、 Power Button Manual Override: Push this button if you do not have your smart device and need to turn the plug ON or OFF Indicator Light Color Key: Red = Outlets are powered Blue = Device is connected Flashing Blue = Device is ready to connect Dual Outlets Both outlets operate in unison If you are having difficulty connecting: •Make sure the Wi-Fi network is a 2.4 GHz netwo『k and Bluetooth. Outdoor Smart Plug will not connect to a 5 GHz netwo『k. Test your Wi-Fi and bluetooth network with other devices such as your phone to make sure it is operating properly. The Wi-Fi and bluetooth connection may not have good coverage du『ing set up. Try moving the Outdoor Smart Plug closer to your Wi-Fi router and bluetooth. Your Wi-Fi and bluetooth network password is case sensitive, make sure you are entering co『rectly. D evices plugged into your O utdoor Smart Plug must be ON in order to be c ontrolled via the mobile app. Please also check the App User Guide for more information Supplier's Declaration of Conformity: 47 CFR § 2.1077 Compliance Information Responsible Party: Feit Electric Company 4901 Gregg Road, Pico Rivera, CA 90660, USA 562-463-2852 Unique Identifier: PLUGN./IFIN./P(N) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept an y interference r eceived, including interfe『ence that may cause undesi『ed ope『ation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to p『ovide reasonable protection against h armful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in acco『dance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that i nterference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving a ntenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced r adio/TVtechnician for help. Any changes or modifications not expressly approved by the manufacturer could vo id the user's authority to operate the equipment. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. LIMITED WARRANTY. T his prod uct is warrantied to be free from defects in workmanship and materials for up to 1 year from date of purchase. If the product fails within the wa『ranty period, please visit feit.com庙Ip f or instructions on replacement/refund or call 866.326.BULB. REPLACEMENT OR REFUND IS YOUR SOLE REMEDY. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. LIABILITY FOR INCIDENTAL O R CONSEQUENTIAL DAMAGES IS HEREBY EXPRESSLY EXCLUDED. Some states and provinces do not allow the exclusion of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province. MODEL: PLUG/WIFI/WP(N) s I n e m m 。 c u 。 s y n m 。 ． est ro uf t Q ar po . e hp u 0 S r e o i t re u v f p 。 P 1 urPelryO We mlh fo 2 O u c c it a b e yo nk eed ” IS a f v h r To 曼 Smart Wi-Fi Dual O u tdoor Plug | Quicklnstall Guide | 因 Works with Feit Electric a pp ELECTRICAL RATINGS: 125VAC, 60Hz 15A, Max. Resistive: 1875W SA, Max. Tungsten: 1000W Q 旦 Leetrle g Only supports 2.4GHz Wi-Fi networks FEIT ELECTRIC COMPANY P ico Rivera, CA, USA www.feit.com Bluetooth 2.4G Or be sure connect to a 2.4GHz BLE. Or you can prompted to enter you Bluetooth.

QA-FR-170-B Company: Feit Electric Company Add: 4901 Gregg Road, Pico Rivera, California 90660 United States Tel: (562) 463-285 2 Extension: 103 Fax: (562) 908-6360 E-mail: [email protected] m FCC Authorization Date: 2022.9.1 FEDE RAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Feit Electric Company, Hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. T his authorization is valid until further written notice from the applicant. Sincerely, Client’s signature Client’s name/ title: President Print Name: Aaron Feit

QA -FR-171-A Company: Feit Electric Company Add: 4901 Gregg Road, Pico Rivera, California 90660 United States Tel: (562) 463-285 2 Extension: 103 Fax: (562) 908-6360 E-mail: [email protected] m FCC Confidential Authorization D ate: 2022-9-1 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: SYW-PLUGWFWP In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Feit Electric Company hereby requests long-term confidential treatment of information accompanying this application as outlined below: •B lock Diagram •Schematics •Operation Description T he above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Client’s signature C lient’s name/ title : President Print Name: Aaron Feit

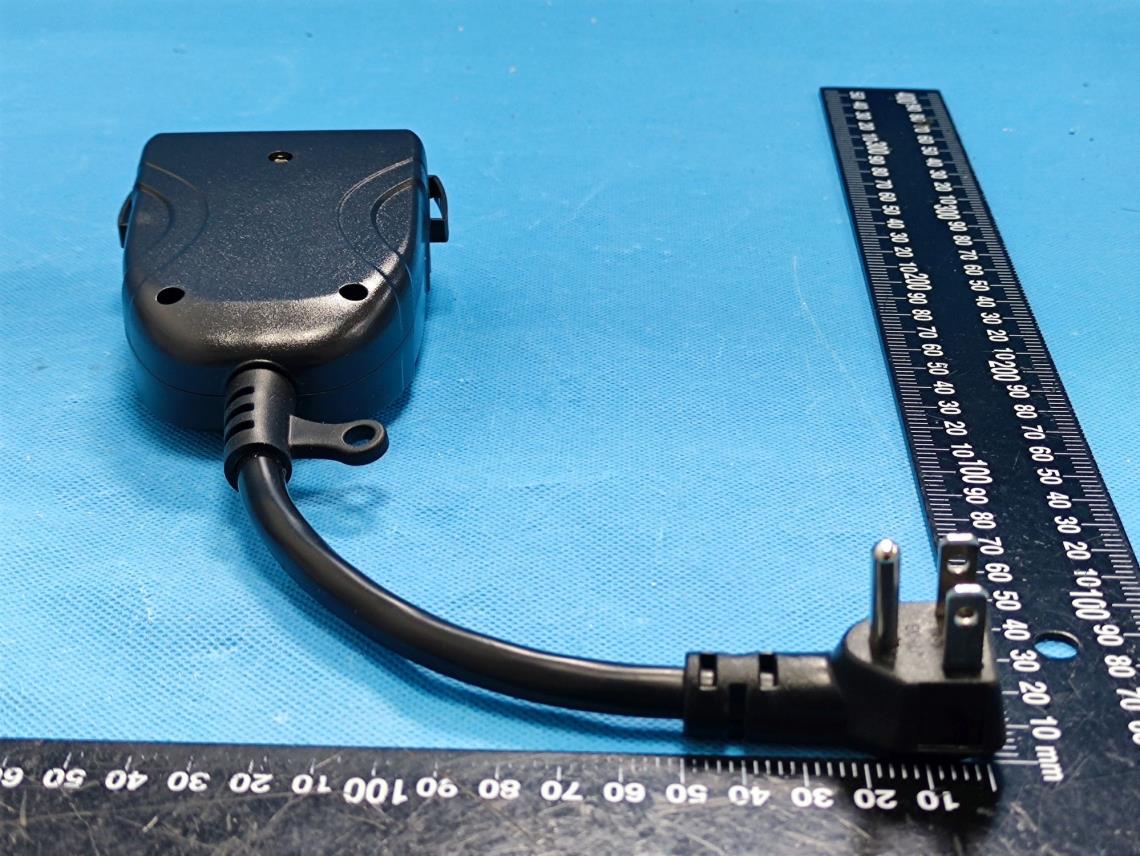

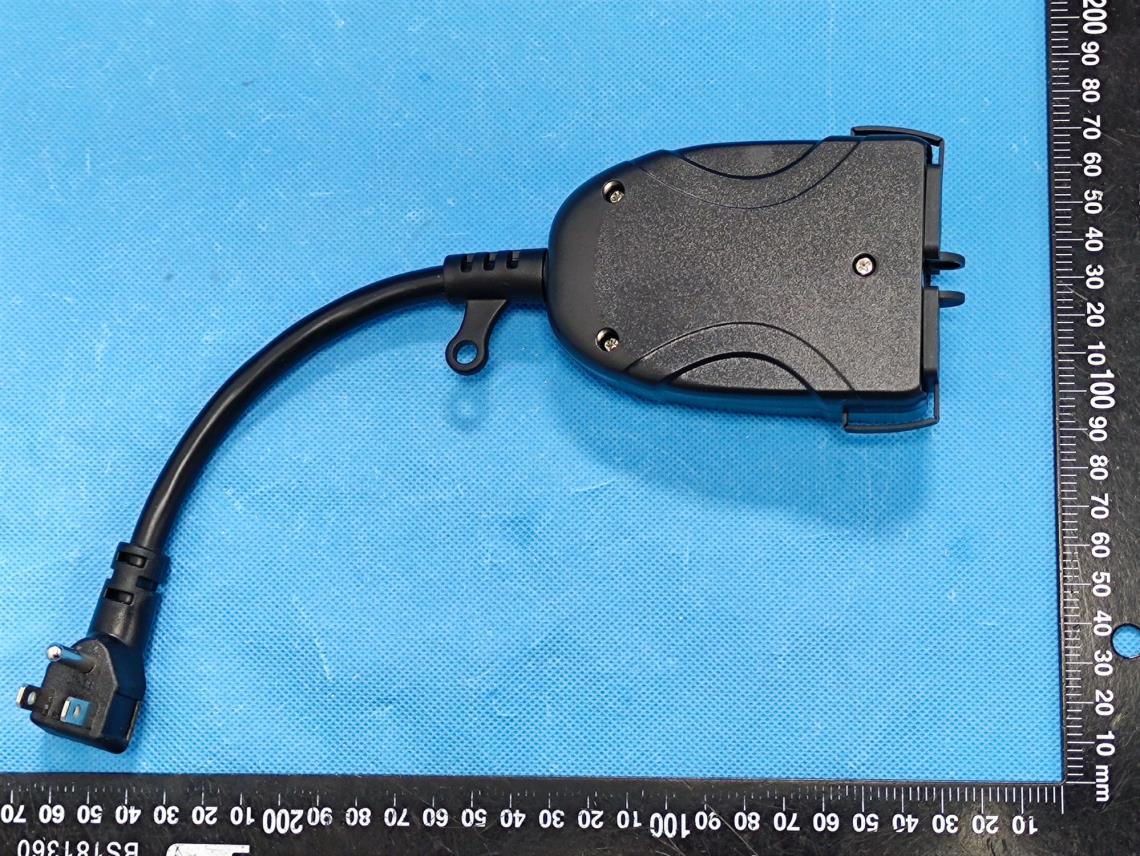

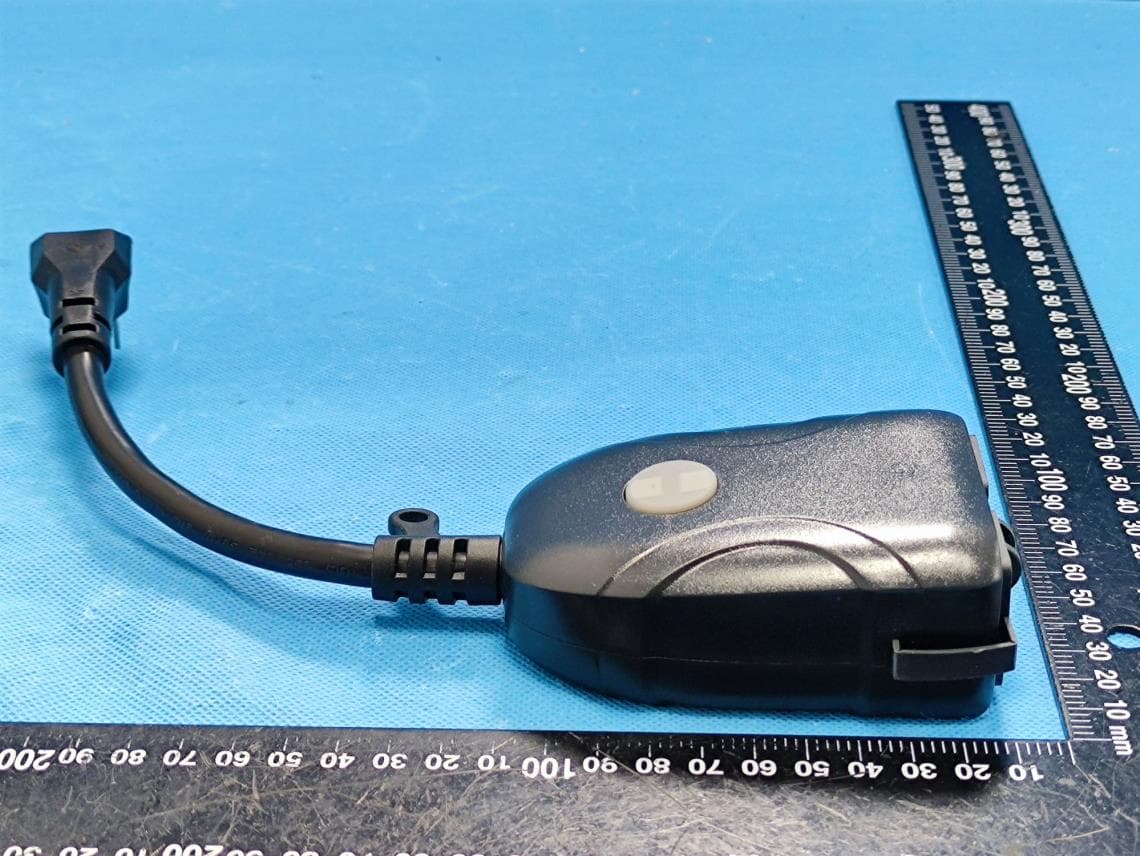

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Port

Label Label location

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Chip Antenna

China Certification ICT Co., Ltd (Dongguan) Report No.: CR22040017-00A Page 56 of 56 5. RF EXPOSURE EVALUATION 5.1 Applicable Standard FCC §15.247 (i) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §1.1307(b)(1) of this chapter. 5.2 Procedure According to §1.1307(b)(3)(i) (C) Or using Table 1 and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). Table 1 to § 1.1307(b)(3)(i)(C) - Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 . 1.34-30 3,450 R 2 /f 2 . 30-300 3.83 R 2 . 300-1,500 0.0128 R 2 f. 1,500-100,000 19.2R 2 . 5.3 Measurement Result Radio Frequency (MHz) λ/2 Π (mm) Distance (mm) Exemption ERP (mW) Maximum Conducted Power including Tune-up Tolerance (dBm) Antenna Gain (dBi) ERP MPE- Based Exemption dBm mW Wi-Fi 2412-2462 19.80 200 768 16 2.21 16.06 40.4 Compliant BLE 2402-2480 19.88 200 768 6 2.21 6.06 4.03 Compliant Result: The device compliant the MPE-Based Exemption at 20cm distances. ===== END OF REPORT =====

CBU Antenna test report Product Name: CBU Antenna Type: PCB antenna Writer: Yinhua Zhang Maximum Gain：2.21dBi Efficiency:32.96% CBU Antenna test report Version 1.0.0 Date：2020-11-24 NO：0000000001 Antenna Test Report Global Intelligent Platform CBU Antenna test report Content 1. General Description ...................................................................................................................... 2 2. Technical Information ................................................................................................................... 3 3. Test Standards ............................................................................................................................... 3 4. Test Item ........................................................................................................................................ 3 5. Test Photo ...................................................................................................................................... 4 Appendix A Antenna Dimension ....................................................................................................... 5 Appendix B S11/VSWR ................................................................................................................... 5 Appendix C Gain and Efficiency ...................................................................................................... 6 Appendix D Radiation Pattern(1D and 3D) ...................................................................................... 7 Appendix E Test Setup Photo ........................................................................................................... 9 1. General Description EUT Name CBU Antenna Wireless type WIFI+BLE CBU Antenna test report Antenna Type PCB antenna Dimensions Appendix A 2. Technical Information Frequency Range 2400 MHz -2484MHz Test Frequency 2400,2410......2500MHz 3. Test Standards Identity Document Title IEEE 149-1979 IEEE Standard Test Procedures for Antennas 4. Test Item Report Section Description CBU Antenna test report Appendix B S11/VSWR Appendix C Gain and Efficiency Appendix D Radiation Pattern（1D and 3D） 5. Test Photo Report Section Description Appendix E Test Setup Photo CBU Antenna test report Appendix A Antenna Dimension Appendix B S11/VSWR Frequency (MHz) 2400 2450 2500 Return Loss（dB） -8.73 -11.77 -11.21 VSWR 2.16 1.71 1.77 CBU Antenna test report Appendix C Gain and Efficiency Frequency (MHz) Efficiency(%) Gain（dBi） 2400 32.36 2.11 2410 32.3 2.18 2420 32.1 2.21 2430 32.4 2.06 2440 32.9 2.07 2450 30.9 1.91 2460 30.8 2.04 2470 30.7 2.09 2480 31.6 1.98 2490 30.6 1.91 2500 30.5 1.03 CBU Antenna test report Appendix D Radiation Pattern(1D and 3D) CBU Antenna test report CBU Antenna test report Appendix E Test Setup Photo

TEST REPORT Applicant: Feit Electric Company Address: 4901 Gregg Road, Pico Rivera, California, United States 90660 FCC ID: SYW-PLUGWFWP Product Name: Smart Wi-Fi Dual Outdoor Plug Model Number: PLUG/WIFI/WP(N) Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR22040017-00A Date Of Issue: 2022-08-31 Reviewed By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR22040017-00A Page 2 of 56 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR22040017-00A Page 3 of 56 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 1. GENERAL INFORMATION .................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 5 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 8 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 9 2. SUMMARY OF TEST RESULTS .......................................................................................... 10 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 11 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 11 3.1.1 Applicable Standard ..................................................................................................................................... 11 3.1.2 EUT Setup.................................................................................................................................................... 12 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 12 3.1.4 Test Procedure ............................................................................................................................................. 13 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 13 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 14 3.2.1 Applicable Standard ..................................................................................................................................... 14 3.2.2 EUT Setup.................................................................................................................................................... 14 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 15 3.2.4 Test Procedure ............................................................................................................................................. 15 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 15 3.3 6 DB EMISSION BANDWIDTH: ............................................................................................................ 16 3.3.1 Applicable Standard ..................................................................................................................................... 16 3.3.2 EUT Setup.........................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
