SYW-R56RGBAGR1LED Luminaires

95 Product description The product is a LED luminaire smart light, a Wi-Fi module is installed . The Wi-Fi module is connected to the chip of driver through the PWM, and the signal acquisition and control are carried out through radio frequency chip inside the wifi module, so as to realize the connection between the lamp circuit and wifi module, as well as using mobile APP to control the color temperature and brightness. Frequency Range: 2412-2462MHz 95 Description du produit Le produit est un luminaire LED intelligent, un module Wi-Fi est installé. Le module Wi-Fi est connecté à la puce du pilote via le PWM, et l'acquisition et le contr?le du signal sont effectués via une puce radiofréquence à l'intérieur du module wifi, afin de réaliser la connexion entre le circuit de la lampe et le module wifi, ainsi comme l'utilisation de l'application mobile pour contr?ler la température de couleur et la luminosité. Gamme de fréquence : 2412-2462MHz

Feit Electric Company 4901 Gregg Road, Pico Rivera, California, United States 90660 Tel: (562) 463-2852 ext. 103 Fax: (562) 908-6360 Email: [email protected] Date: 2022-2-7 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: The RF chip, BK7231N, which installed in our product LED Luminaires, Model: LEDR6/RGBW/AG (C1), FCC ID: SYW-R56RGBAGR1, supports 2.4G Wi-Fi and BLE function. For use in America and this chip will not support/enable BLE. The BLE function has been shielded by the manufacturer using the software. Sincerely, Signature: Aaron Feit President

Feit Electric Company 4901 Gregg Road, Pico Rivera, California, United States 90660 Tel: (562) 463-2852 ext. 103 Fax: (562) 908-6360 Email: [email protected] Product Similarity Declaration Dear Sir or Madam, FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, Feit Electric Company, hereby declare that we have a product named as LED Luminaires (Model number: LEDR6/RGBW/AG(C1), F CC ID: SYW-R56RGBAGR1 ) was tested by Shenzhen Accurate Technology Co., Ltd. Meanwhile, for our marketing purpose, we would like to list a series models (LEDR6/RGBW/AG, LEDR6/RGBW/AG/2) on reports and certificate. All of the models are electrically identical, but the difference among them is model name. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely Yours, Signature: Aaron Feit President

Feit Electric Company 4901 Gregg Road, Pico Rivera, California, United States 90660 Tel: (562) 463-2852 ext. 103 Fax: (562) 908-6360 Email: [email protected] FCC Confidential Authorization Date: 2022-2 -7 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: SYW-R56RGBAGR1 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Feit Electric Company hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operation Description As well as short-term confidential treatment of information accompanying this application for a period of 180 days after grant is issued as outlined below: Internal Photos User’s Manual External Photos Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Aaron Feit President

Feit Electric Company 4901 Gregg Road, Pico Rivera, California, United States 90660 Tel: (562) 463-2852 ext. 103 Fax: (562) 908-6360 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2022-2-7 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Feit Electric Company , the undersigned, hereby authorizes Shenzhen Accurate Technology Co., Ltd. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Shenzhen Accurate Technology Co., Ltd. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Aaron Feit President

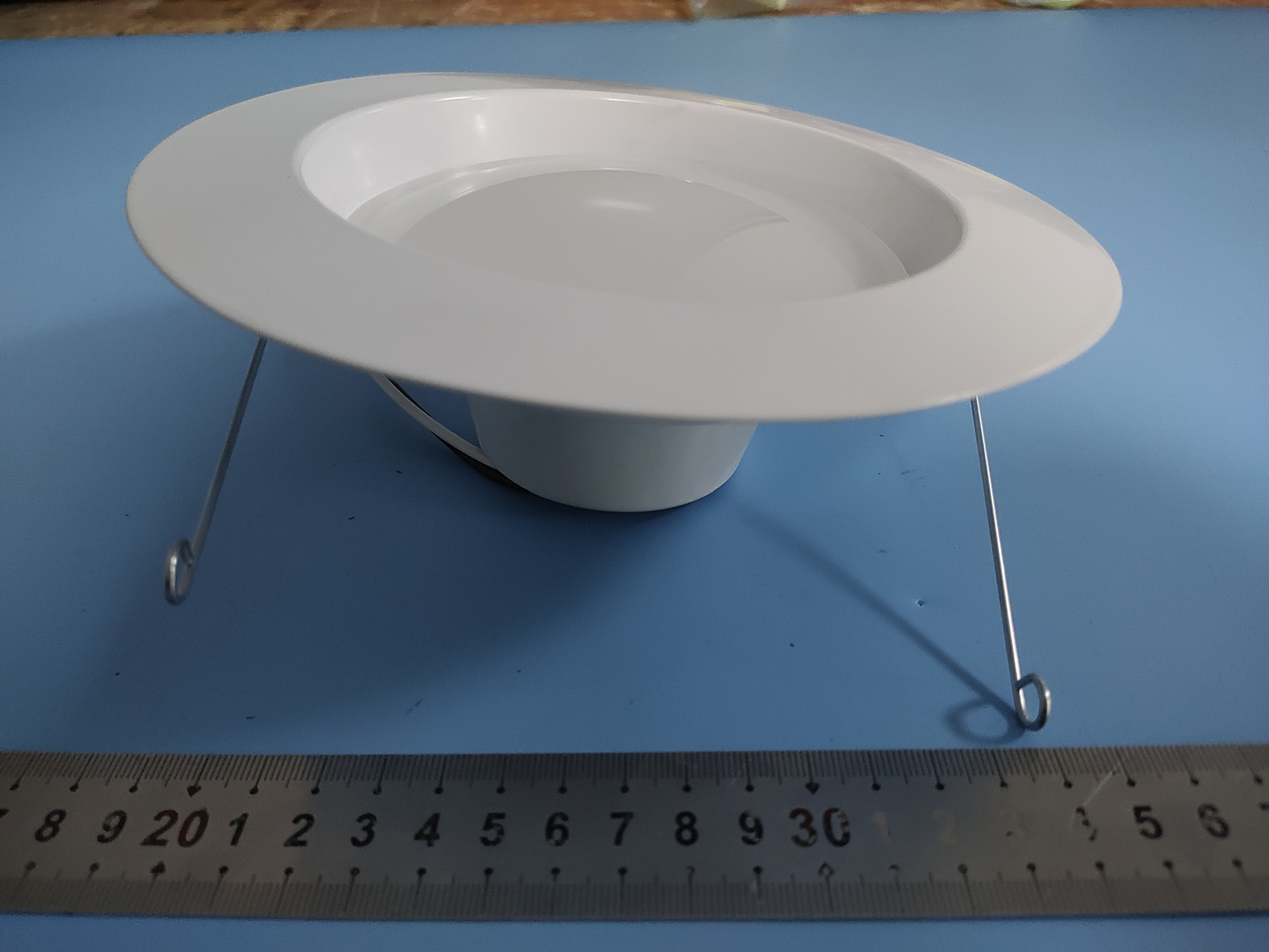

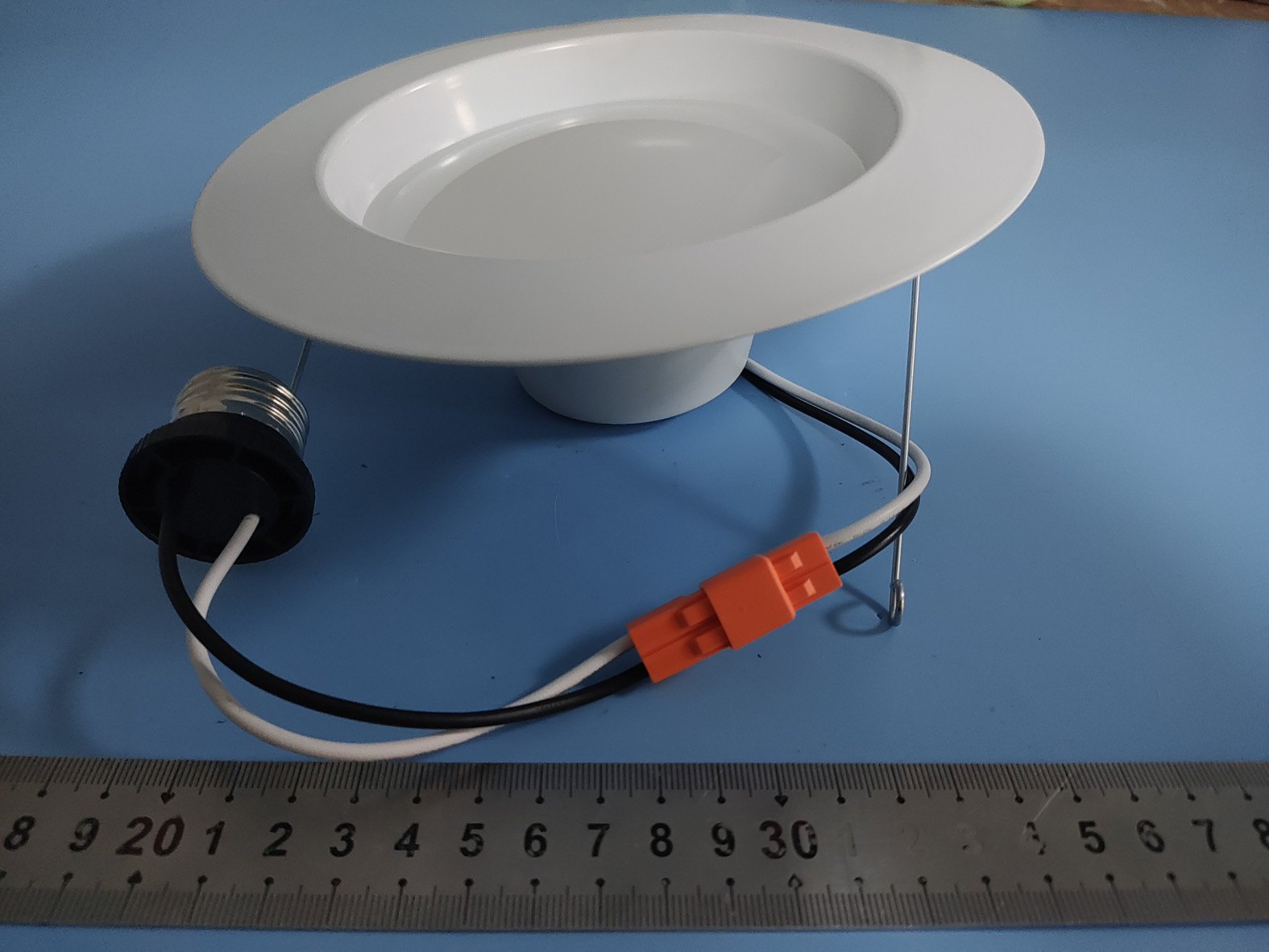

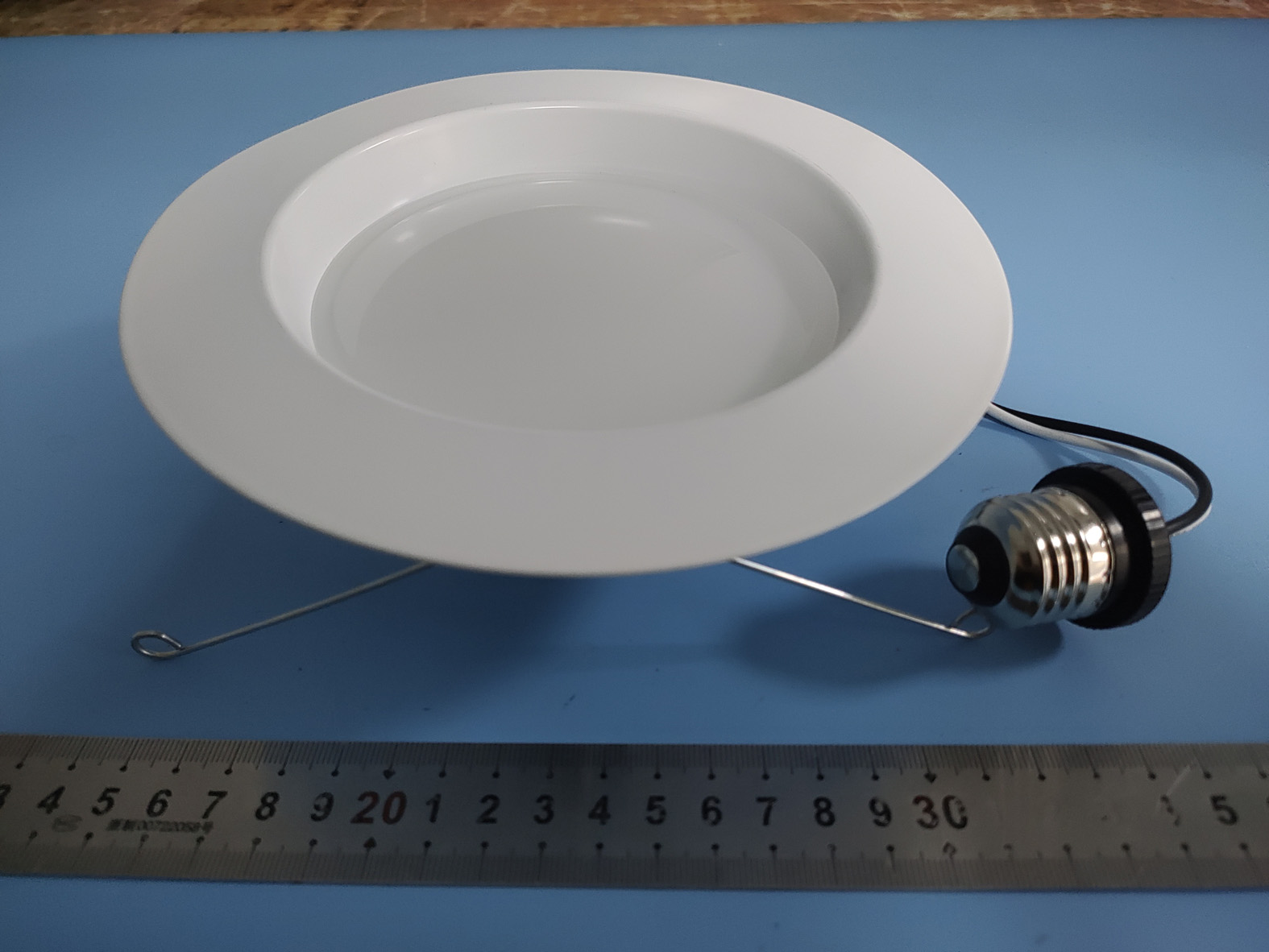

Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211231-68463E-RF External Photos Page 1 of 3 External Photos Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211231-68463E-RF External Photos Page 2 of 3 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211231-68463E-RF External Photos Page 3 of 3

Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211231-68463E-RF LABEL AND LOCATION Page 1 of 1 FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211231-68463E-RF Internal Photos Page 1 of 5 Internal photos Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211231-68463E-RF Internal Photos Page 2 of 5 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211231-68463E-RF Internal Photos Page 3 of 5 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211231-68463E-RF Internal Photos Page 4 of 5 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211231-68463E-RF Internal Photos Page 5 of 5

Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS211231-68463E-RF-00 Version 16: 2021-11-09 Page 14 of 58 FCC- 2.4G Wi-Fi FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247 (i) and subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density a) Result Calculated Formulary: Predication of MPE limit at a given distance S = 2 4R PG π S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Frequency (MHz) Antenna Gain Tune up conducted power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) 2412-2462 2.5 1.78 29.0 794.33 20 0.281 1 To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliant

Note: This report may contain data that are not covered by the A2LA accreditati ★ on and are marked with an asterisk “ ”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 16: 2021-11-09 Page 1 of 58 FCC- 2.4G Wi-Fi TEST REPORT Applicant Name : Feit Electric Company Address : 4901 Gregg Road, Pico Rivera, California, United States 90660 Report Number : SZNS211231-68463E-RF-00 FCC ID: SYW-R56RGBAGR1 Test Standard (s) FCC PART 15.247 Sample Description Product Type: LED Luminaires Model No.: LEDR6/RGBW/AG (C1) Multiple Model(s) No.: LEDR6/RGBW/AG, LEDR6/RGBW/AG/2 (Model Difference please refer to the DOS) Trade Mark: FEIT Date Received: 2021/12/31 Date of Test: 2022/01/17~2022/01/26 Report Date: 2022/01/29 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Black Ding Robert Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS211231-68463E-RF-00 Version 16: 2021-11-09 Page 2 of 58 FCC- 2.4G Wi-Fi TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 DUTY CYCLE ................................................................................................................................................................ 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 9 EXTERNAL I/O CABLE .................................................................................................................................................. 9 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 9 SUMMARY OF TEST RESULTS ............................................................................................................................. 11 TEST EQUIPMENT LIST ......................................................................................................................................... 12 FCC §15.247 (I) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ................................................... 14 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 15 FCC §15.207 (A) – AC LINE CONDUCTED EMISSIONS .................................................................................... 16 APPLICABLE STANDARD ............................................................................................................................................ 16 EUT SETUP ................................................................................................................................................................ 16 EMI TEST RECEIVER SETUP ....................................................................................................................................... 16 TEST PROCEDURE ...................................................................................................................................................... 16 TRANSD FACTOR & MARGIN CALCULATION.............................................................................................................. 17 TEST DATA ................................................................................................................................................................ 17 FCC §15.209, §15.205 & §15.247(D) - SPUR…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211231-68463E-RF Test Photos Page 1 of 2 Photo of Conducted Emission Measurement Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS211231-68463E-RF Test Photos Page 2 of 2 Photo of Radiated Emission Measurement (Below 1G) Photo of Radiated Emission Measurement (Above 1G)
