SYWFT0532CFL

User manual 1. Purpose Feit’s CFL has implement ed three phosphors together into one comp act fluorescent. It is a new type of li ght resource of green environment. The product’s applications are practical for supermarkets, shopping centers, retail stores, and gymnasium. 2. Characteristics Homelite’s CFL provides instant start, long-life and high lumen output. The lamp is designed to perform up to the industry st andards by using less electricity . Lamp can operate under -18 °C below zero degrees Celsius. From Homelite’ s testing results shows the self ballast lamp only uses 20% of the electricity and it is compared and equivalent to a regular incandescent bulb. 3. Directions 1) For Safety purposes, the lamp fixture must be powered of f before being installed, changed or being cleaned 2) This self ballast lamp cannot be operated with dimmer device. In order to keep the lamp’s high performance it should be used in defined voltage. 3) This Lamp can be performed under environmental areas in temperature from -18° C to 45° C, it cannot be used in enclosed fixture or wet areas. 4) Please check the power , voltage and contacts of the lamp incase the lamp performs abnormal signs such as the light blinking or the light turns off suddenly 5) Do not hold the tube by the hands while changing or cleaning the lamp. The proper way is to hold the lamp by the plastic housing. 4． Warnning： This device complies with Part 18 of the FCC Rules. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45–30 MHz. If this occurs, please change outlet or move the lamp far away from other appliance. Feit Electric Company 4901 Gregg Road Pico Rivera CA USA

Block diagram AD/DC LCR OSCILLATOR/ DC/AC 40KHz-60KHz LAMP Bulb AC Input

Feit Electric Company 49illl Gregg Road Pico Rivera CA USA " (FCC ID: SYWFT0532) POWER OF ATTORNEY DATE: 2013-04-26 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We" the undersigned, hereby authorize SEM.Test Compliance service Co., Ltd. Jan dy So on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by SEM.Test Compliance Service Co., Ltd. Jandy So on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Feit Electric Company, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Feit Electric Company -h~~ >#--~ -~-------------------- (Patricia Sandoval) (Manager)

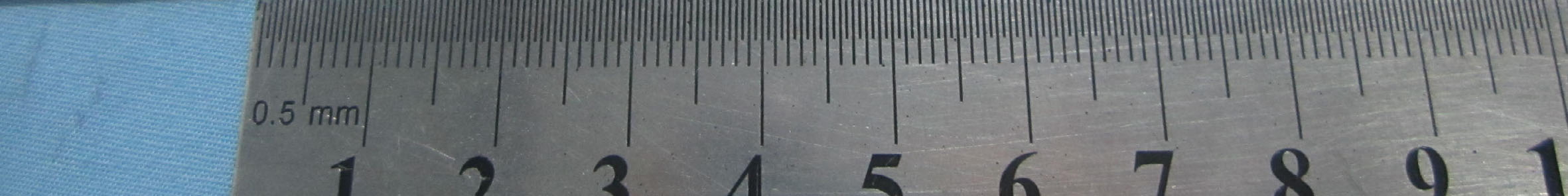

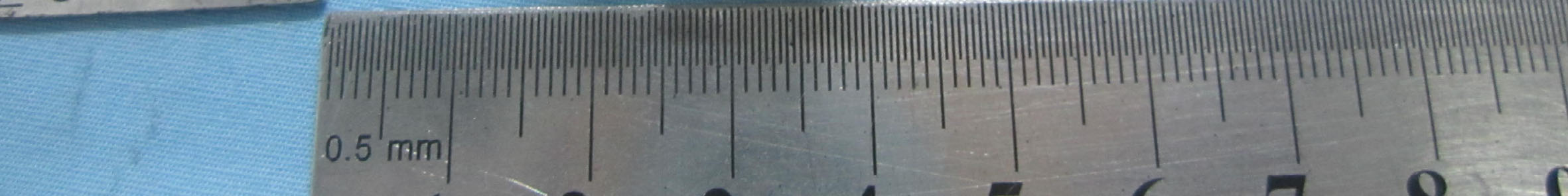

Feit Electric Company Model: ES23H REPORT NO.: STR13048387I FCC PART 18 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Feit Electric Company Model: ES23H REPORT NO.: STR13048387I FCC PART 18 EUT View 3 EUT View 3

Feit Electric Company Model: ES23H REPORT NO.: STR13048387I FCC PART 18 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: SYWFT0532 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Feit Electric Company Model: ES23H REPORT NO.: STR13048387I FCC PART 18 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: SYWFT0532 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

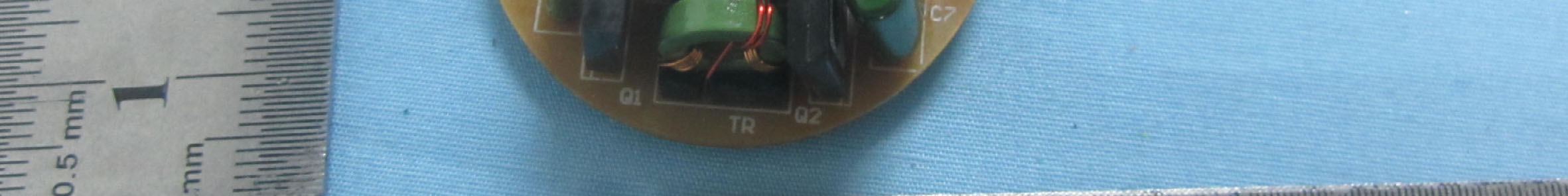

Feit Electric Company Model: ES23H REPORT NO.: STR13048387I FCC PART 18 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Feit Electric Company Model: ES23H REPORT NO.: STR13048387I FCC PART 18 Solder Board-Component View 2

Circuit Description L1\C1 and C2 is a filter, can prevent noise conducted to public AC power line, and the AC will become DC via D1 to D4 and C3, N1,N2,Q1,Q2 and it’s concern components form a oscillator, worked between 30kHz to 50kHz,translate the DC to high voltage AC and output to lamp, then the lamp work .

Feit Electric Company Model: ES23H REPORT NO.: STR13048387I PAGE 1 OF 10 FCC PART 18 FCC Part 18 Measurement and Test Report For Feit Electric Company 4901 Gregg Road Pico Rivera CA USA FCC ID: SYWFT0532 Test Standards: FCC Part 18 Product Description: CFL Tested Model: ES23H Report No.: STR13048387I Tested Date: 2013-04-20 to 2013-04-25 Issued Date: 2013-04-26 Tested By: Seven Song / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd Feit Electric Company Model: ES23H REPORT NO.: STR13048387I PAGE 2 OF 10 FCC PART 18 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................4 1.3 TEST METHODOLOGY.............................................................................................................................................4 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT SETUP AND OPERATION MODE......................................................................................................................5 2. SUMMARY OF TEST RESULTS ...........................................................................................................................6 3. CONDUCTED EMISSION.......................................................................................................................................7 3.1 STANDARD APPLICABLE.........................................................................................................................................7 3.2 MEASUREMENT UNCERTAINTY..............................................................................................................................7 3.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 3.4 TEST PROCEDURE...................................................................................................................................................7 3.5 BASIC TEST SETUP BLOCK DIAGRAM.....................................................................................................................8 3.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 3.7 TEST RECEIVER SETUP...........................................................................................................................................8 3.8 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................8 Feit Electric Company Model: ES23H REPORT NO.: STR13048387I PAGE 3 OF 10 FCC PART 18 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: Feit Electric Company Address of applicant: 4901 Gregg Road Pico Rivera CA USA Manufacturer: Feit Electric Company Address of manufacturer: 4901 Gregg Road Pico Rivera CA USA General Description of EUT Product Name: CFL Model No.: ES23H Adding Models: ES9H, ES13H, ES18H Note: The test data is gathered from a production sample, provided by the manufacturer. The appearance, model name and power of others models listed in the report are different from main-test model ES23H, but the circuit and the electronic construction do not change. Test data is gathered form the product which has a maximum power. Technical Characteristics of EUT Rated Voltage: AC120V, 60Hz Rated Current: / Operating Frequency: 40-60kHz Feit Electric Company Model: ES23H REPORT NO.: STR13048387I PAGE 4 OF 10 FCC PART 18 1.2 Test Standards The following report is prepared on behalf of Feit Electric Company in accordance with FCC Part 18, Subpart C, and section 18.307 and 18.311 of the Federal Communication Commissions rules. The objective is to determine compliance with FCC Part 18, Subpart C, and section 18.307 and 18.311 of the Federal Communication Commissions rules. Maintenance of compliance is the responsibility of the manufacturer. Any modification of the product, which result in lowering the emission, should be checked to ensure compliance has been maintained. 1.3 Test Methodology All measurements contained in this report were conducted with ANSI C63.4-2003, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz. 1.4 Test Facility • FCC – Registration No.: 994117 SEM.Test Compliance Services Co., Ltd. EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files and the Registration is 994117. • Industry Canada (IC) Registration No.: 7673A The 3m Semi-anechoic chamber of SEM.Test Compliance Services Co., Ltd. has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 7673A. • CNAS Registration No.: L4062 Shenzhen SEM.Test Electronics Service Co., Ltd. is a testing organization accredited by China …

Text truncated - open the document above for the full version.

Feit Electric Company Model: ES23H REPORT NO.: STR13048387I FCC PART 18 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup
