SYXVUI00Vehicle User Interface RFID Reader

BMI TECHNOLOGIES INC. #405, 1333 – 8 th Street SW, Calgary, Alberta T2R 1M6 Toll-free: 1-800-563-8867 Tel: (403) 244-3901 Fax: (403) 229-0135 G FORCE PLUS & G FORCE PLUS RF Powered Industrial Vehicle Fleet Management Systems INSTRUCTION MANUAL Document #RF1 Rev. 2 DRAFT G FORCE PLUS & G FORCE PLUS RF Instruction Manual TABLE OF CONTENTS Doc #RF1 Rev.2 i Nov 2005 INTRODUCTION .......................................................................................................................... 3 SYSTEM DIAGRAM.............................................................................................................. 3 SYSTEM FEATURES ........................................................................................................... 3 PARTS LIST.......................................................................................................................... 4 FCC AND IC REGULATORY DECLARATIONS ................................................................... 4 Special Accessories ...................................................................................................... 4 Interference ...................................................................................................................4 Component Changes or Modifications .......................................................................... 4 RF Exposure Warning ................................................................................................... 5 DATA LOGGER TUTORIAL ................................................................................................. 5 VEHICLE AND SOFTWARE INTERFACE TECHNIQUES ................................................... 6 Vehicle Interface and Cards .......................................................................................... 6 Vehicle Interface and Data Logger ................................................................................ 6 Software Interface and Cards........................................................................................ 6 Software Interface and Data Logger.............................................................................. 7 QUICK-START .................................................................................................................. 7 INSTALLATION INSTRUCTIONS................................................................................................ 9 VEHICLE MONITOR AND INTERFACE ............................................................................... 9 Component Overview .................................................................................................... 9 Electrical Description ..................................................................................................... 9 Installation Steps ......................................................................................................... 10 SOFTWARE AND INTERFACE .......................................................................................... 13 System Requirements ................................................................................................. 14 Software Interface Installation ..................................................................................... 14 Software Installation .................................................................................................... 14 RF TRANSCEIVERS (G FORCE PLUS RF ONLY)............................................................ 14 Component Overview .................................................................................................. 15 Installation Steps ......................................................................................................... 15 SYSTEM SETUP ........................................................................................................................ 17 SOFTWARE ........................................................................................................................17 Starting the Software ................................................................................................... 17 Navigation ................................................................................................................... 17 System Settings .......................................................................................................... 18 Authorization Groups................................................................................................... 19 Add an Authorization Group.............................................................................................. 19 Create a Vehicle Inspection Checklist .............................................................................. 20 Edit the Custom Checklist ................................................................................................. 22 Edit an Authorization Group .............................................................................................. 22 Vehicles .......................................................................................................................23 Add a Vehicle .................................................................................................................... 23 Edit a Vehicle .................................................................................................................... 23 Employees................................................................................................................... 24 Add an Employee.............................................................................................................. 24 Define Vehicle Access for an Operator............................................................................. 25 Edit an Employee .............................................................................................................. 26 Transceivers (G FORCE PLUS RF only) ....................................…

Text truncated - open the document above for the full version.

NATIONAL TECHNICAL SYSTEMS, INC. www.ntscorp.com 5151 47 th Street NE • Calgary, Alberta T2E 3R2 (403)295-5134 • • (403) 295-4190 fax December 13, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: SYXVUI00 IC #: 6205A-VUI00 Please be advised pursuant to 47CFR 0.459 that the following information is to be held permanently confidential on behalf of BMI Technologies Inc • Internal Photographs • Schematics • Detailed Block Diagram • Operational Diagram This application contains technical information that BMI Technologies Inc deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the marketplace. Thank you for your attention to this matter. Sincerely, Glen Moore EMC Manager NTS On Behalf of BMI Technologies Inc

NATIONAL TECHNICAL SYSTEMS, INC. www.ntscorp.com 5151 47 th Street NE • Calgary, Alberta T2E 3R2 (403)295-5134 • • (403) 295-4190 fax February 07, 2006 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: SYXVUI00 Dear Ladies and/or Gentlemen, The signal in question is the fundamental of the already approved Aerocomm spread spectrum transceiver which is used with this system at a distance greater than 20 cm (The FCC ID is KQLAC4490-100 as per the application form 731). Please advise if you have any further questions or concerns Thank you, Sincerely, Glen Moore EMC Manager NTS On Behalf of BMI Technologies Inc

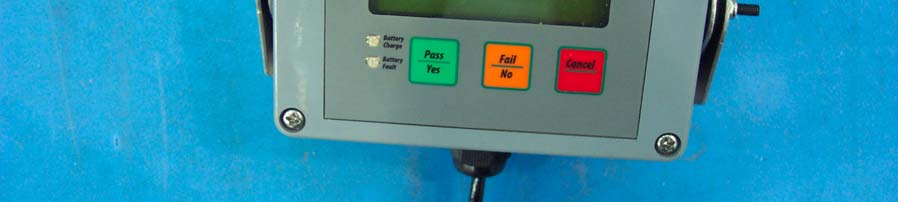

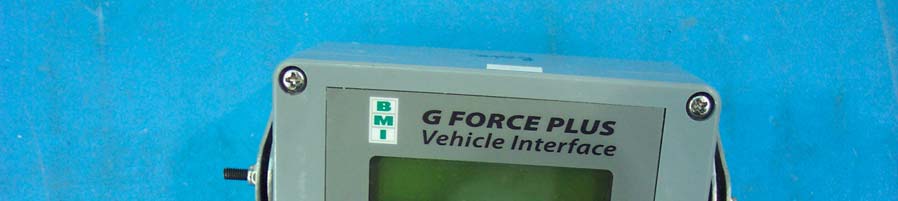

BMI Technologies Inc CG-159 FCC ID: SYXVUI00 IC Number: 6205A-VUI00 Date: November 14, 2005 Revision #:0 External Photographs VUI +VM Module Top View of VUI (RFID Reader) BMI Technologies Inc CG-159 FCC ID: SYXVUI00 IC Number: 6205A-VUI00 Date: November 14, 2005 Revision #:0 Bottom of VUI

Label Sample and Location

Confidentiality Statement: This report and the information contained herein represent the results of testing articles/products identified and selected by the client. The tests were performed to specifications and/or procedures approved by the client. National Technical Systems (“NTS”) makes no representations expressed or implied that such testing fully demonstrates efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article or similar products for a particular purpose. This document shall not be reproduced except in full without written approval from National Technical Systems (“NTS”) and the customer. Product Integrity Laboratory 5151-47 th Street, NE Calgary, Alberta T3J 3R2 Tel: (403) 568-6605 Fax : (403) 568-6970 Certification Test Report CFR 47 FCC Part 15, Subpart C Section 15.225 Industry Canada RSS 210, Issue 6 VUI RFID Reader FCC ID # SYXVUI00 IC ID # 6205A-VUI00 Project Code CG-159 (Report CG-159-0) Revision: 1 December 13, 2005 Prepared for: Microlynx Systems Inc./BMI Technologies Inc Author: Kuganesan Pararajasingam EMC Engineer Approved by: Nick Kobrosly Director of Operations CG-159 Rev:1 Model: VUI RFID Reader Emissions Test Report Microlynx Systems Inc. FCC ID # SYXVUI00 IC ID # 6205A-VUI00 The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 2 of 22 December 13, 2005 Report Summary NTS Canada Product Integrity Laboratory 5151-47 th Street, N.E. Calgary Alberta T3J 3R2 Accreditation Numbers: FCC 101386 IC 46405-3978 File # IC3978-2 Standards Council of Canada Accredited Laboratory No. 440 Performed For: Microlynx Systems Inc. #240, 6715 - 8th Street N.E. Calgary, AB, T2E 7H7 Canada Customer Representative: Luc De Vocht Email: [email protected] Tel: (403) 275-7346 Fax: (403) 275-9501 EUT Description: EUT Description Manufacturer Model Revision Serial Number Vehicle monitoring RFID BMI TECHNOLOGIES INC. G Force Plus VUI RFID Reader NA 01 CG-159 Rev:1 Model: VUI RFID Reader Emissions Test Report Microlynx Systems Inc. FCC ID # SYXVUI00 IC ID # 6205A-VUI00 The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 3 of 22 December 13, 2005 Test Summary Deviations* from: Appendix Test/Requirement Description Base Standard Test Basis NTS Procedure Pass / Fail Applicable Rule Parts A Radiated H-Field Emissions 9 kHz – 30 MHz No No No PASS FCC 15.209 , 15.225, RSS 210 B Radiated E-Field Emissions 30 MHz – 10 GHz No No No PASS FCC 15.209, RSS 210 Test Result: The product presented for testing complied with test requirements as shown above. Prepared By: ______________________ Kuganesan Pararajasingam EMC Engineer Checked By: ______________________ Glen Moore EMC Manager CG-159 Rev:1 Model: VUI RFID Reader Emissions Test Report Microlynx Systems Inc. FCC ID # SYXVUI00 IC ID # 6205A-VUI00 The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 4 of 22 December 13, 2005 Table of Contents REPORT SUMMARY ................................................................................................................................................2 TEST SUMMARY.......................................................................................................................................................3 REGISTER OF REVISIONS .....................................................................................................................................5 1.0 INTRODUCTION ...........................................................................................................................................6 1.1 PURPOSE.........................................................................................................................................................6 2.0 EUT DESCRIPTION ......................................................................................................................................6 2.1 CONFIGURATION............................................................................................................................................6 2.2 MODE OF OPERATION.....................................................................................................................................6 APPENDICES..............................................................................................................................................................7 APPENDIX A: RADIATED H-FIELD EMISSIONS 9 KHZ - 30 MHZ ................................................................8 APPENDIX B: RADIATED EMISSIONS 30 MHZ – 10 GHZ .............................................................................14 APPENDIX C: IC 99% OCCUPIED BW ....................................................................................…

Text truncated - open the document above for the full version.

Microlynx Systems Ltd. REPORT VUI Frequency Stability Report Document No.: RPT-00045-04 Version: 1v0 Author: Jeffery Wu Date: Nov. 9, 2005 BMI G-Force Plus CONFIDENTIAL Title: VUI Frequency Stability Report Microlynx Systems. Ltd. 240, 6715 – 8 Str NE Calgary AB T2E 7H7 Doc. No.: RPT-00045-04 Version.: 1V1 Date: 2005-10-20 Page 2 of 7 Contents 1. INTRODUCTION 4 2. SPECTRUM ANALYZER SETTING 4 3. EUT DESCRIPTION 4 4. TEST DATE 4 5. TEST METHOD 4 6. TEST RESULT 4 7. TEST EQUIPMENT LIST 5 8. TEST SET UP PHOTO 6 BMI G-Force Plus CONFIDENTIAL Title: VUI Frequency Stability Report Microlynx Systems. Ltd. 240, 6715 – 8 Str NE Calgary AB T2E 7H7 Doc. No.: RPT-00045-04 Version.: 1V1 Date: 2005-10-20 Page 3 of 7 Proprietary Information Notification This document contains information, technical and cost data, and/or specifications that are proprietary to Microlynx Systems Ltd. and/or to clients of Microlynx Systems Ltd. and may not be copied or otherwise communicated to a third party without the expressed written consent of Microlynx Systems Ltd. The data contained within this document is “COMPANY CONFIDENTIAL” and is only to be released externally from Microlynx Systems Ltd. under duly executed non-disclosure agreement. Revision History Version Date Author Reviewed Approved Description 1v0 Nov. 9, 05 Jeffery Wu Initial Draft 1v1 Nov. 15, 05 Jeffery Wu Add Glen Moore Comments BMI G-Force Plus CONFIDENTIAL Title: VUI Frequency Stability Report Microlynx Systems. Ltd. 240, 6715 – 8 Str NE Calgary AB T2E 7H7 Doc. No.: RPT-00045-04 Version.: 1V1 Date: 2005-10-20 Page 4 of 7 1. Introduction This report is the VUI RFID fundamental frequency stability measurement from –30C to +60C. 2. Spectrum Analyzer Setting Model No: IFR 2390A Atten: 30dB REF: 10.0dB RBW: 30Hz VBW: 100KHz Sweep: 50mS Span: 200Hz/Div 3. EUT Description Model Number: G-Force Plus, VM + VUI Serial Number: VM-04, VUI-04 Test Set up: 10V, 12V and 14V DC input for VM, VUI connected to VM, Accelerometer connected to VM. 4. Test Date Nov. 15 th , 2005 5. Test Method The unit is allowed to stabilize at each temperature for 30 minutes. After the 30 minutes has elapsed, power up the test units for 60 seconds, the measurement tests are undertaken to determine that the equipment complies with operational standard. 6. Test Result The table only shows the measurement reading data. Temperature ( C ) Frequency( Mhz ) Power Input 10.0V Frequency( Mhz ) Power Input 12.0V Frequency( Mhz ) Power Input 14.0V Level( dBm) at Power Input 12.0V Note: The output level is for reference only -30 13.559176 13.559176 13.559176 -25.1 -25 13.559300 13.559300 13.559300 -25.1 -20 13.559321 13.559321 13.559321 -25.1 BMI G-Force Plus CONFIDENTIAL Title: VUI Frequency Stability Report Microlynx Systems. Ltd. 240, 6715 – 8 Str NE Calgary AB T2E 7H7 Doc. No.: RPT-00045-04 Version.: 1V1 Date: 2005-10-20 Page 5 of 7 -15 13.559338 13.559338 13.559338 -24.2 -10 13.559351 13.559351 13.559351 -25.4 -5 13.559356 13.559356 13.559356 -25.1 0 13.559356 13.559356 13.559356 -25.4 5 13.559356 13.559356 13.559356 -25.4 10 13.559356 13.559356 13.559356 -25.4 15 13.559356 13.559356 13.559356 -25.4 20 13.559356 13.559356 13.559356 -25.4 25 13.559356 13.559356 13.559356 -25.4 30 13.559356 13.559356 13.559356 -25.4 35 13.559352 13.559352 13.559352 -26.4 40 13.559352 13.559352 13.559352 -26.4 45 13.559360 13.559360 13.559360 -26.4 50 13.559378 13.559378 13.559378 -26.4 55 13.559412 13.559412 13.559412 -26.4 60 13.559450 13.559450 13.559450 -26.0 7. Test Equipment List Spectrum Analyzer: q Model IFR 2390A. q Manufacturer: IFR. q Calibrated by using IFR2032 Signal Generator at test date. Offset frequency –1Hz at 13.560000MHz input. Signal Generator: q Model IFR 2032. q Manufacturer: IFR. q Calibration Date: Apr. 13, 2005; Due Date: Apr. 13, 2007 Temperature Chamber: q Model: Tenney Jr. q Manufacturer: Tenney Engineering INC BMI G-Force Plus CONFIDENTIAL Title: VUI Frequency Stability Report Microlynx Systems. Ltd. 240, 6715 – 8 Str NE Calgary AB T2E 7H7 Doc. No.: RPT-00045-04 Version.: 1V1 Date: 2005-10-20 Page 6 of 7 Temperature Controller: q Model: CNI16D22-EI q Manufacturer: Omega Engineering INC q Purchased on March. 2005, calibrated by manufacturer, still under warranty. DC Power supply: q Model: GPS-3030 q Manufacturer: Good Will Instrument Multi-Meter: q Model: Fluke 77 q Manufacturer: Fluke q Calibration Date: Feb. 11, 2005; Due Date: Feb. 11, 2006 8. Test Set up Photo BMI G-Force Plus CONFIDENTIAL Title: VUI Frequency Stability Report Microlynx Systems. Ltd. 240, 6715 – 8 Str NE Calgary AB T2E 7H7 Doc. No.: RPT-00045-04 Version.: 1V1 Date: 2005-10-20 Page 7 of 7

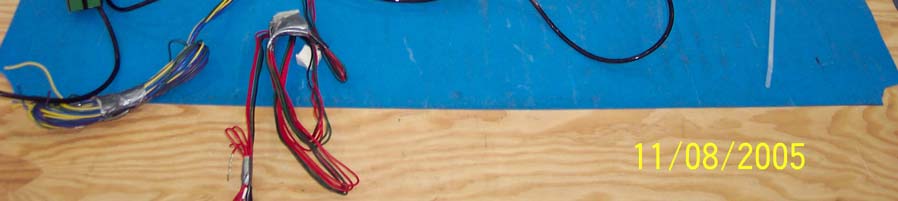

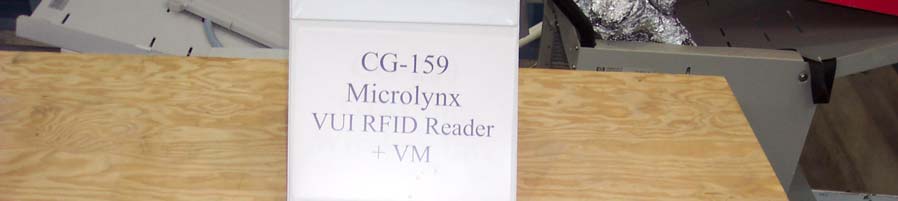

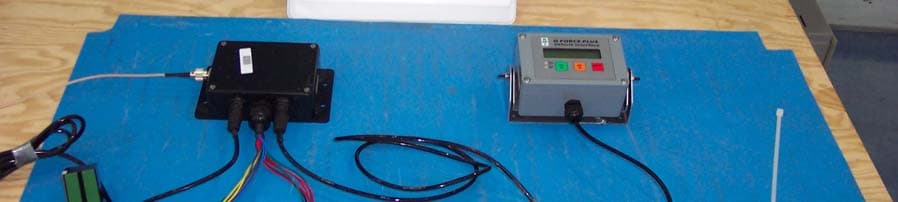

Applicant Name NTS Project Number: CG-159 FCC ID: SYXVUI00 IC Number: 6205A-SYXVUI00 Date:November 17, 2005 Revison #0 Test Photographs Figure 1 Radiated Emissions Test Photograph NOTE: Frequency Stability photograph is included with the separate frequency stability report provided by the customer
