SZ810000DC RADIO PROGRAMMER

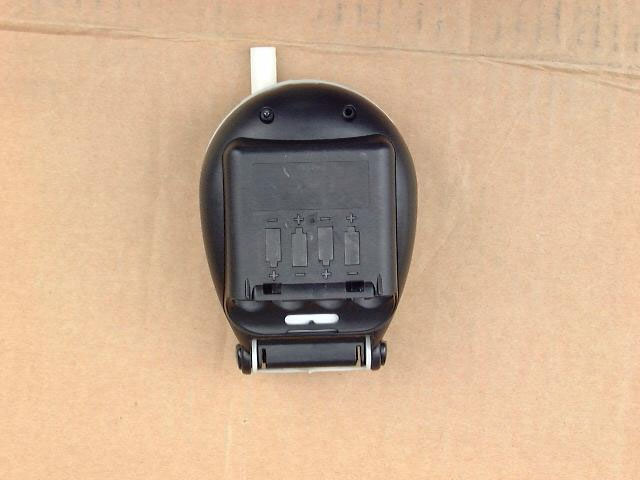

External Photographs of Tested E.U.T. Figure 1 Top View Figure 2 Bottom View Figure 3 Rear View Figure 4 Open Unit

Label Location on EUT Label Location

Internal Photographs of Tested E.U.T. Figure 1 Keypad Figure 2 PCB In Case Figure 3 PCB 1 Side 1 Figure 4 PCB Side 1 Side 2 Figure 5 PCB 2 Side 1 Figure 6 PCB 2 Side 2

Theory of Operation The user sets and saves irrigation programs in the Programmer using the keyboard and the LCD. The program can be sent to the Controller via the RF link. Once the Controller gets the program, the valve connected to the Controller, will be opened and closed according the received program. The user can get the Controller status via the RF link, displaying it on the Programmer LCD. The RF Transceiver based on single chip for RF transceiver for narrow band link. The clock frequency is 14.7456 MHz, while the local oscillator is the CW (916MHz) minus 207 kHz.

Cert. No. 1152.01 Electrical (EMC) Test Report E58571.00 Galcon Galil Control Page 1 of 43 ITL FCCMASVE 1.25 26 March 2003 DATE: 13 March 2005 I.T.L. (PRODUCT TESTING) LTD. FCC Test Report for Galcon Galil Control Equipment under test: DC Radio Programmer (For Transmitter Section) 10,000 Written by:_____________________________ D. Shidlowsky, Documentation Approved by: _____________________________ E. Pitt, Test Engineer Approved by: _____________________________ I. Raz, EMC Laboratory Manager This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Cert. No. 1152.01 Electrical (EMC) Test Report E58571.00 Galcon Galil Control Page 2 of 43 ITL FCCMASVE 1.25 26 March 2003 Measurement/Technical Report for Galcon Galil Control Equipment under test: DC Radio Programmer (For Transmitter Section) FCC ID: SZ810000 DATE: 13 March 2005 This report concerns:Original Grant x Class II change ___ Class B verification Class A verification Class I change ____ Equipment type: Radio Telemetry Transmitter Request Issue of Grant: x Immediately upon completion of review Limits used: CISPR 22 Part 15 x Measurement procedure used is ANSI C63.4-2003. Application for Certification Applicant for this device: prepared by:(different from "prepared by") Ishaiahou RazShay Shtekelmacher ITL (Product Testing) Ltd.Galcon Galil Control POB 211Kibbutz Kfar Blum Or Yehuda 60251D.N. 12150 IsraelIsrael Tel: +972-3-533-9022Tel: +972-4-690-0222 Fax: +972-3-533-9019Fax: +972-4-690-2727 Email: [email protected]: [email protected] Test Report E58571.00 Galcon Galil Control Page 3 of 43 ITL FCCMASVE 1.25 26 March 2003 TABLE OF CONTENTS 1.GENERAL INFORMATION ------------------------------------------------------------------------------- 4 1.1Administrative Information.................................................................................4 1.2List of Accreditations .........................................................................................5 1.3Product Description ...........................................................................................6 1.4Test Methodology..............................................................................................6 1.5Test Facility .......................................................................................................6 1.6Measurement Uncertainty .................................................................................6 2.PRODUCT LABELING ------------------------------------------------------------------------------------ 7 3.SYSTEM TEST CONFIGURATION--------------------------------------------------------------------- 8 3.1Justification........................................................................................................8 3.2EUT Exercise Software .....................................................................................8 3.3Special Accessories ..........................................................................................8 3.4Equipment Modifications ...................................................................................8 3.5Configuration of Tested System ........................................................................8 4.BLOCK DIAGRAM------------------------------------------------------------------------------------------ 9 4.1Schematic Block/Connection Diagram..............................................................9 4.2Theory of Operation ..........................................................................................9 5.FIELD STRENGTH OF FUNDAMENTAL ------------------------------------------------------------10 5.1Test Specification ............................................................................................10 5.2Test Procedure................................................................................................10 5.3Measured Data................................................................................................10 5.4Test Instrumentation Used, Field Strength of Fundamental ...........................13 6.RADIATED MEASUREMENT PHOTOS -------------------------------------------------------------14 7.SPURIOUS RADIATED EMISSION DATA ----------------------------------------------------------15 7.1Spurious Radiated Emission 9kHz-1000 MHz, Below 1GHz..........................15 7.2Measured Data................................................................................................16 7.3Test Instrumentation Used, Radiated Measurements ....................................21 7.4Field Strength Calculation ...............................................................................22 8.SPURIOUS RADIATED EMISSION ABOVE 1 GHZ ----------------------------------------------23 8.1Spurious Radiated Emission Above 1 GHz ....................................................23 8.2Test Data .........................................................................................................24 8.3Test Instrumentation Used, Spurious Radiated Measurements Above 1 GHz..............................................................................................................27 9.PHOTOGRAPHS OF TESTED E.U.T. ----------------------------------------------------------------28 10.APPENDIX A - CORRECTION FACTORS ----------------------------------------------------------33 10.1 Correction factors for CABLE .........................................................................33 10.2 Correction factors for CABLE .........................................................................34 10.3 Correction factors for CABLE .........................................................................35 10.4 Correction factors for CABLE .........................................................................36 10.5 Correction factors for CABLE .........................................................................37 10.6 Correction fact…

Text truncated - open the document above for the full version.

Radiated Measurement Photo Figure 1. Radiated Emission Test.
