SZPVC-3010XRF Locator

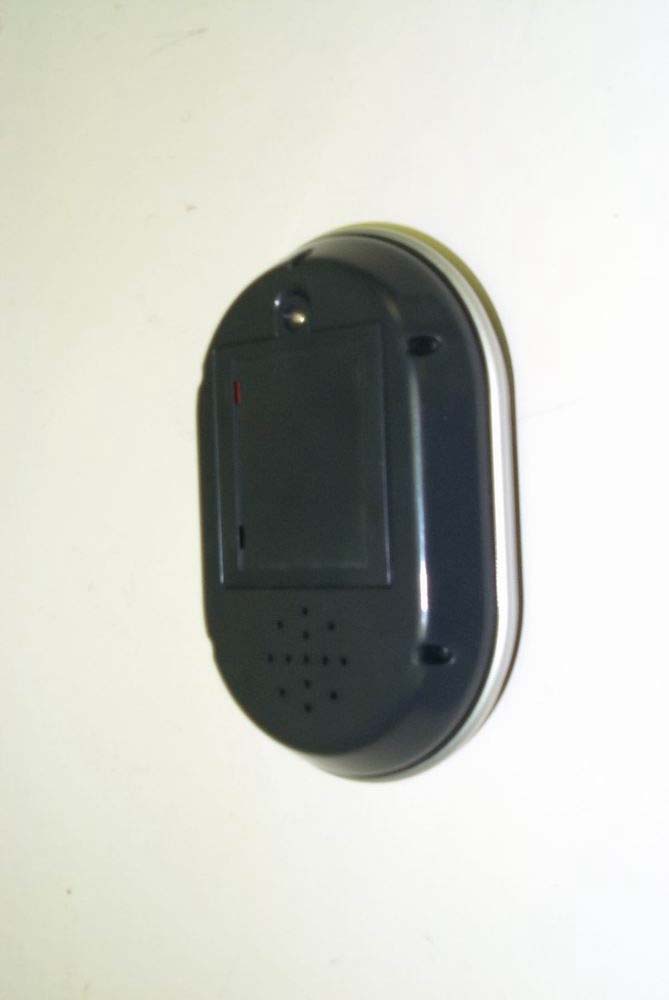

FCC ID: SZPVC-3010X ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 17 Front View FCC ID: SZPVC-3010X ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 18 Rear View

FCC ID: SZPVC-3010X ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 8 2. PRODUCT LABELING Figure 2.1 FCC ID Label Figure 2.2 Location of Label on the Side of EUT FCC ID: SZPVC-3010X This device complies with part 15 of the FCC Rules. Operating is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Figure 2.1 FCC ID Label Figure 2.2 Location of the Label FCC Label

FCC ID: SZPVC-3010X ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 19 Open View FCC ID: SZPVC-3010X ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 20 Component Side FCC ID: SZPVC-3010X ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 21 Foil Side

VC-3010X Operational Circuit Description In Tx: The PD2 pin of the HT6612 is the Tx output signal. When the user presses the any ID key, the PD2 pin will be output corresponding code. This code will be mix with 433MHz carrier in Q8 transistor. After the signal will across the Q9 to amplifier and emission by antenna. In Rx: The signal code will be received from the antenna. This signal will be enter to O-Amp to amplifier and go to NT66P20 MCU’s PA0. In the PA0 of the MCU , the receiving signal will be decoding. After the decoding of Rx, The unit will be sound-on under the signal in suitable. VCC and Ground AA A battery x 4pcs are the power supply for the transmitter only. CR2032 x 1pcs is use for receiver.

1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 16 16 17 17 18 18 19 19 20 20 21 21 22 22 23 23 24 24 25 25 26 26 27 27 28 28 29 29 30 30 31 31 32 32 33 33 34 34 35 35 36 36 37 37 38 38 39 39 40 40 41 41 42 42 43 43 44 44 45 45 46 46 47 47 48 48 49 49 50 50 51 51 52 52 HT6612 U2HT6612 156473 2 R15100K C9 104 REST +3V REST VDD PA1 PA2 PA3 B132768HZ C1415PFC1815PF R1710KR1810K J7J14 PA2PA3 R1910K Q73906 R24470R R25100K/1% D4RED VDD R2625K1% Q10L6 R2010K PD0 PD2PD1PD0 PD1 PD2 R2168K C24102 C2512P X2 433.92MHz L123T Q8BFS17 R22100R C264PF C276PF C281PF C20103 L84T +3V R2327K C29102 Q9PRF947 L97T C21 103 C3015PF PD2 L1122nHL106TL73T C234PFC224PF PCB ANT1 1 C32104 C31 10UF +3V J15 ID1 J16 ID2 J17 ID3 J18 ID4 J19 ID5 J20 ID6 J21 ID7 J22 ID8 J23TIMER ON/OFF J24MAIN UNIT PA0 PA0 BAUD RATE 1024204816382703 J13OPENOPENSHORTSHORT J12OPENSHORTOPENSHORT IC Substrate muste be connected with GND 8

ELECTROMAGNETIC EMISSION COMPLIANCE REPORT of RF LOCATOR MODEL: VC-3010X FCC ID: SZPVC-3010X February 25, 2005 This report concerns (check one): Original grant x Class II change Equipment type: Low Power Intentional Radiator Deferred grant requested per 47 CF 0.457(d)(1)(ii)? yes no x If yes, defer until: (date) Company agrees to notify the Commission by (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? yes no x If no, assumed Part 15, Subpart B for unintentional radiators - the new 47 CFR [10-1-90 Edition] provision. Report prepared for: V-CARE DEVELOPMENT Report prepared by: Advanced Compliance Lab Report number: 0048-050215-01 The test result in this report IS supported and covered by the NVLAP accreditation 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Advanced Compliance Laboratory FCC ID: SZPVC-3010X ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 2 Table of Contents Report Cover Page .........................................................................................................1 Table of Contents ...........................................................................................................2 Figures.............................................................................................................................3 1. GENERAL INFORMATION ...................................................................................4 1.1 Verification of Compliance .........................................................................4 1.2 Equipment Modifications............................................................................5 1.3 Product Information....................................................................................6 1.4 Test Methodology.........................................................................................6 1.5 Test Facility ..................................................................................................6 1.6 Test Equipment ............................................................................................6 1.7 Statement of the Document Use..................................................................7 2. PRODUCT LABELING............................................................................................8 3. SYSTEM TEST CONFIGURATION ......................................................................9 3.1 Justification ..................................................................................................9 3.2 Special Accessories.......................................................................................9 3.3 Configuration of Tested System .................................................................9 4. SYSTEM SCHEMATICS .........................................................................................12 5. RADIATED EMISSION DATA ...............................................................................13 5.1 Field Strength Calculation ..........................................................................13 5.2 Test Methods and Conditions .....................................................................13 5.3 Test Data .......................................................................................................13 5.4 Occupied Bandwidth ...................................................................................14 6. PHOTOS OF TESTED EUT ....................................................................................16 FCC ID: SZPVC-3010X ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 3 Figures Figure 2.1 FCC ID Label...............................................................................................8 Figure 2.2 Location of Label on Back of the EUT ......................................................8 Figure 3.1 Radiated Test Setup, Position 1..................................................................10 Figure 3.2 Radiated Test Setup, Position 2..................................................................10 Figure 3.3 Radiated Test Setup, Position 3..................................................................11 Figure 4.1 EUT Schematics ...........................................................................................12 Figure 5.1 Occupied Bandwidth ...................................................................................15 Figure 6.1 Front View....................................................................................................17 Figure 6.2 Rear View .....................................................................................................18 Figure 6.2 Inside View, Cover Opened ........................................................................19 Figure 6.3 Component Side ...........................................................................................20 Figure 6.4 Foil Side ........................................................................................................21 FCC ID: SZPVC-3010X ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 4 1. GENERAL INFORMATION 1.1 Verification of Compliance EUT: RF LOCATOR Model: VC-3010X Applicant: V-CARE DEVELOPMENT. RM 2701, 27/F.,TREND CENTRE 29-31 CHEUNG LEE ST. CHAI WAN, HONG KONG Test Type: FCC Part 15C CERTIFICATION Result: PASS Tested by: ADVANCED COMPLIANCE LABORATORY Test Date: February 23, 2005 Report Number: 0048-050215-01 The above equipment was tested by Compliance Laboratory, Advanced Technologies, Inc. for compliance with the requirement set forth in the FCC rules and regulations Part 15 subpart C. This said equipment in the confi…

Text truncated - open the document above for the full version.

FCC ID: SZPVC-3010X ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 10 Figure 3.1 Radiated Test Setup, position 1 Figure 3.2 Radiated Test Setup, position 2 FCC ID: SZPVC-3010X ——————————————————————————————————————————————— Advanced Compliance Lab, 6 Randolph Way, Hillsborough, NJ 08844 Tel: (908) 927-9288 Fax: (908) 927-0728 11 Figure 3.3 Radiated Test Setup, position 3
