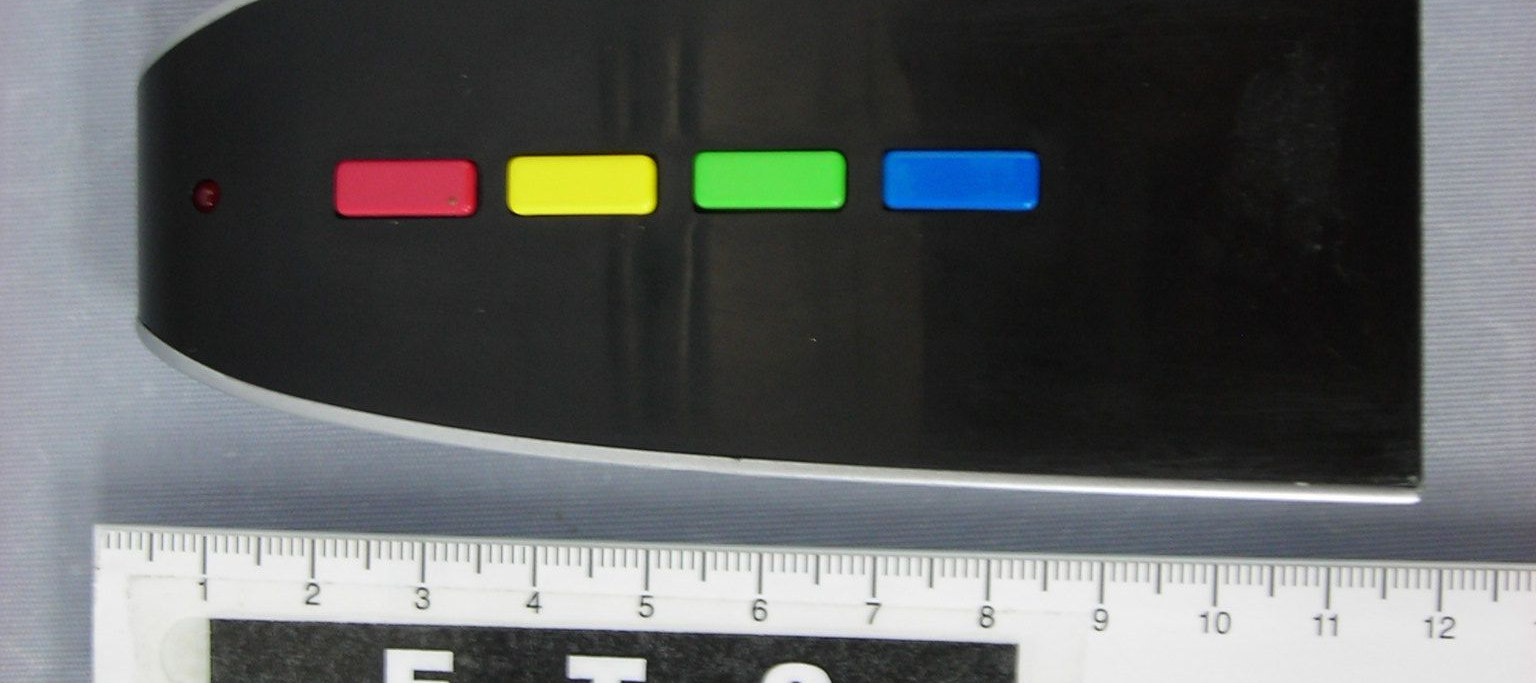

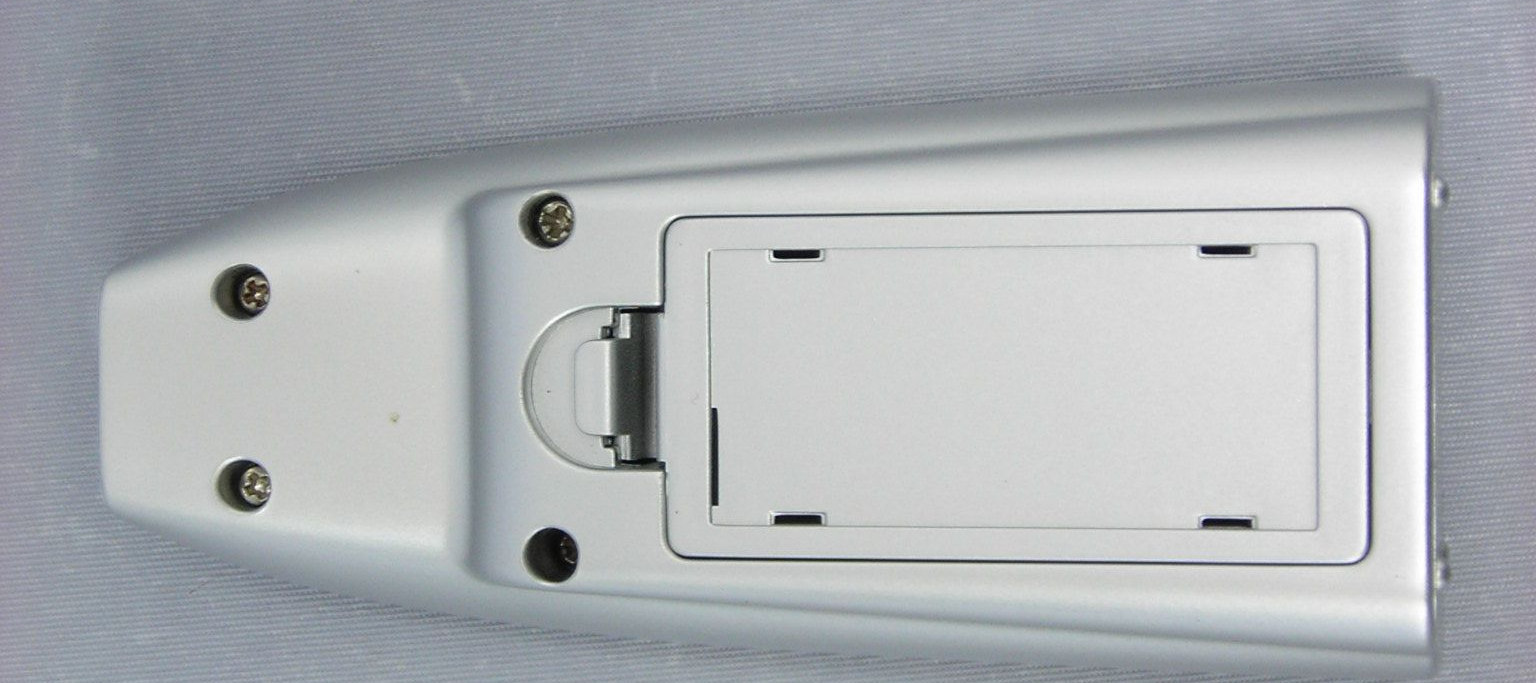

__________________________________________________________________________________________ ETS PRODUCT SERVICE AGRegistration number: H1M20606-016900-C-1Appendix A Appendix A. Pictures __________________________________________________________________________________________ ETS PRODUCT SERVICE AGRegistration number: H1M20606-016900-C-1Appendix A __________________________________________________________________________________________ ETS PRODUCT SERVICE AGRegistration number: H1M20606-016900-C-1Appendix A __________________________________________________________________________________________ ETS PRODUCT SERVICE AGRegistration number: H1M20606-016900-C-1Appendix A __________________________________________________________________________________________ ETS PRODUCT SERVICE AGRegistration number: H1M20606-016900-C-1Appendix A

ETS PRODUCT SERVICE AG TEST - REPORT FCC RULES 47CFR PART 15 / SUBPART C (Section 15.231) Test report no.: H1M20606-016900-C-1 FCC ID:SZPVC-3011X CERTIFICATE #1983-01 ETS PRODUCT SERVICE AG STORKOWER STRASSE 38C D-15526 REICHENWALDE B.BERLIN ETS PRODUCT SERVICE AG Registration number: H1M20606-016900-C-1 Page 1 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Test Procedure 3 Test Results 3.1 Field strength of the Fundamental Wave 3.2 Correction for Pulse Operation (Duty Cycle) 3.3 Radiated Spurious Emissions 3.4 Emission bandwidth 3.5 Automatically deactivation ETS PRODUCT SERVICE AG Registration number: H1M20606-016900-C-1 Page 2 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS PRODUCT SERVICE AG. Tester: 16.08.2006 F. Schulz Date ETS-Lab. Name Signature Technical responsibility for area of testing: 16.08.2006 F. Kuss Date ETS Name Signature ETS PRODUCT SERVICE AG Registration number: H1M20606-016900-C-1 Page 3 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location Name : ETS Product Service AG Street : Storkower Strasse 38c Town : D-15526 Reichenwalde b. Berlin Country : Germany Telephone : +49 33631 888 00 Fax : +49 33631 888 66 1.2.2 Details of accreditation status Accredited testing laboratory DAR-registration number: DAT-P-201/96 Accredited Competent Body DAR-registration number: BPT-ZE-026/96-00 FCC filed test laboratory Reg. No. 96970 A2LA Accredited Certification No.1983-01 Bluetooth Qualification Test Facility (BQTF) Accredited by Bluetooth Qualification Review Board Industry Canada filed test laboratory Reg. No. IC 3470 1.3 Details of approval holder Name : V-Care Development Ltd. Street : Rm. 2701, 27/F., Trend Centre, 29-31 Cheung Lee St. Town : Chai Wan Country : Hong Kong Telephone : +852 2690 0916 Fax : +852 2436 9282 Contact : Mr. Savio, C.K. Lam Telephone : +852 2690 0916 ETS PRODUCT SERVICE AG Registration number: H1M20606-016900-C-1 Page 4 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application : 08.08.2006 Date of receipt of test item : 08.08.2006 Date of test : 27.07.2006 1.5 Test item Description of test item: RF LOCATOR Type identification: VC-3011X Serial number: Test sample without serial number Transmitting frequency: 433.868 MHz Operation mode: simplex Transmitting mode: L1D Voltage supply: 3 V DC (2x1.5V battery) Antenna: integral antenna Photos: see Annex Manufacturer: Name : V-Care Development Ltd. Street : Rm. 2701, 27/F., Trend Centre, 29-31 Cheung Lee St. Town : Chai Wan Country : Hong Kong Additional information : ./. ETS PRODUCT SERVICE AG Registration number: H1M20606-016900-C-1 Page 5 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6 Test standards Technical standard: FCC RULES 47CFR PART 15 / SUBPART C (Section 15.231), Section §15.35(c) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course
of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests  performed. 2.2 Test environment Temperature : 23 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 3 V DC (2x1.5V battery) ETS PRODUCT SERVICE AG Registration number: H1M20606-016900-C-1 Page 6 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0001 ESD Gun SESD 30000 Schlöder ETS 0002 Test receiver ESVP Rohde & Schwarz ETS 0003 Diode power sensor NRV-Z2 Rohde & Schwarz ETS 0004 Spectrum and network analyzer FSMS 26 Rohde & Schwarz ETS 0005 Test receiver SMV 11 MEB ETS 0006 Test receiver system SME 12 MEB ETS 0007 Horn antenna AT 4004 ar ETS 0008 Antenna Loop antenna Siemens ETS 0009 Antenna ARA 2 MEB ETS 0010 Antenna Loop antenna MEB ETS 0011 Antenna van Veen/ Frame Rohde & Schwarz ETS 0012 Antenna HK 116 Rohde & Schwarz ETS 0013 Antenna HL 223 Rohde & Schwarz ETS 0014 Antenna HL 025 Rohde & Schwarz ETS 0015 Antenna HL 025 Rohde & Schwarz ETS 0016 Precision antenna kit VHAP Schwarzbeck ETS 0017 Precision antenna kit UHAP Schwarzbeck ETS 0018 Horn antenna BBHA 9120 D Schwarzbeck ETS 0019 Horn antenna BBHA 9120 D Schwarzbeck ETS 0020 Antenna DP 21 MEB ETS 0021 Antenna DP 3 MEB ETS 0022 Antenna SAS-200/ 521 A.H. Systeme+D65 ETS 0023 Antenna DP 1 MEB ETS 0024 Antenna mast AF 2 MEB ETS 0025 Antenna mast AF 2 MEB ETS 0026 Tripod Heinrich Deisel ETS 0027 Tripod Heinrich Deisel ETS 0028 Tripod STA 2 C. Lorenz AG ETS 0029 Tripod Berlebach ETS 0030 Antenna HK 116 Rohde & Schwarz ETS 0031 Turn table DS 412 Heinrich Deisel ETS 0032 Controller HD 050 Heinrich Deisel ETS PRODUCT SERVICE AG Registration number: H1M20606-0169…
