T2R-VTA311VERA T ASSET TAG, VTA 311 AND VTA 331 TRANSMITTER

Installation/Usage Guide: Vera-T™ Family PRELIMINARY CONTENT ONLY Installation_Guide(VeraT)_V2.1.doc 2/15/07 Copyright © 2005-2006, Exavera Technologies Incorporated All rights reserved. Patents pending. No part of this documentation may be reproduced in any form without written permission from Exavera Technologies Incorporated 2 Installation_Guide(VeraT + Spinner)_V2.2.doc 2/15/07 Exavera Technologies Incorporated reserves the right to revise this documentation and to make changes without notification of such revision or change. THE SYSTEM, DOCUMENTATION AND SERVICES ARE PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND. EXAVERA TECHNOLOGIES INCORPORATED DOES NOT WARRANT THAT THE SYSTEM WILL MEET CUSTOMER'S REQUIREMENTS, OR THAT THEIR OPERATION WILL BE UNINTERRUPTED OR ERROR-FREE, OR THAT ANY ERRORS CAN OR WILL BE FIXED. COMPANY HEREBY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, ORAL OR WRITTEN, WITH RESPECT TO THE SYSTEM AND SERVICES INCLUDING, WITHOUT LIMITATION, ALL IMPLIED WARRANTIES OF TITLE, NON-INFRINGEMENT, INTEGRATION, MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE AND ALL WARRANTIES ARISING FROM ANY COURSE OF DEALING OR PERFORMANCE OR USAGE OF TRADE. EXAVERA TECHNOLOGIES INCORPORATED SHALL NOT BE LIABLE CONCERNING THE SYSTEM OR SUBJECT MATTER OF THIS DOCUMENTATION, REGARDLESS OF THE FORM OF ANY CLAIM OR ACTION (WHETHER IN CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHERWISE), FOR ANY (A) MATTER BEYOND ITS REASONABLE CONTROL, (B) LOSS OR INACCURACY OF DATA, LOSS OR INTERRUPTION OF USE, OR COST OF PROCURING SUBSTITUTE TECHNOLOGY, GOODS OR SERVICES, (C) INDIRECT, PUNITIVE, INCIDENTAL, RELIANCE, SPECIAL, EXEMPLARY OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF BUSINESS, REVENUES, PROFITS OR GOODWILL, OR (D) DIRECT DAMAGES, IN THE AGGREGATE, IN EXCESS OF THE FEES PAID TO IT HEREUNDER FOR THE SYSTEM OR SERVICE GIVING RISE TO SUCH DAMAGES DURING THE 12-MONTH PERIOD PRIOR TO THE DATE THE CAUSE OF ACTION AROSE, EVEN IF COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THESE LIMITATIONS ARE INDEPENDENT FROM ALL OTHER PROVISIONS OF THIS AGREEMENT AND SHALL APPLY NOTWITHSTANDING THE FAILURE OF ANY REMEDY PROVIDED HEREIN. All Exavera Technologies products are furnished under a license agreement included with the product. If you are unable to locate a copy of the license agreement, please contact Exavera Technologies Incorporated. Exavera® is a registered trademark owned and licensed by Exavera Technologies Incorporated. Vera-T™ is a trademark owned and licensed by Exavera Technologies Incorporated. All other company and product names are or may be trademarks of the respective companies with which they are associated. 3 Installation_Guide(VeraT + Spinner)_V2.2.doc 2/15/07 Regulatory Compliance All Exavera devices are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required. Any changes or modifications to Exavera Technologies equipment, not expressly approved by Exavera Technologies, could void the user's authority to operate the equipment. When Exavera's devices are professionally installed, the Radio Frequency Output Power will not exceed the maximum allowable limit for the country of operation. Antennas: Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could cause damage and may violate regulations. Country Approvals Regulatory markings are applied to the device signifying the radio(s) are approved for use in the following countries: United States, Canada. Operation of the device without regulatory approval is illegal. Health and Safety Recommendations Warnings for the use of Wireless Devices Please observe all warning notices with regard to the usage of wireless devices Potentially Hazardous Atmospheres You are reminded to observe restrictions on the use of radio devices in fuel depots, chemical plants etc. and areas where the air contains chemicals or particles (such as grain, dust, or metal powders) and any other area where you would normally be advised to turn off your vehicle engine. Safety in Hospitals Wireless devices transmit radio frequency energy and may affect medical electrical equipment. When installed adjacent to other equipment, it is advised to verify that the adjacent equipment is not adversely affected. FCC / EU RF Exposure Guidelines Reducing RF Exposure—Use Properly It is advisable to use the device only in the normal operating position. Power Supply Use only an Exavera approved power supply 4 Installation_Guide(VeraT + Spinner)_V2.2.doc 2/15/07 Radio Frequency Interference Requirements—FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help. 5 Installation_Guide(VeraT + Spinner)_V2.2.doc 2/15/07 Introduction Audience and Objectives This document has been created for individuals responsible for maintaining Exavera’s eShepherd location and identification systems. Product Overview In conjunction with Exavera’s RF reading de…

Text truncated - open the document above for the full version.

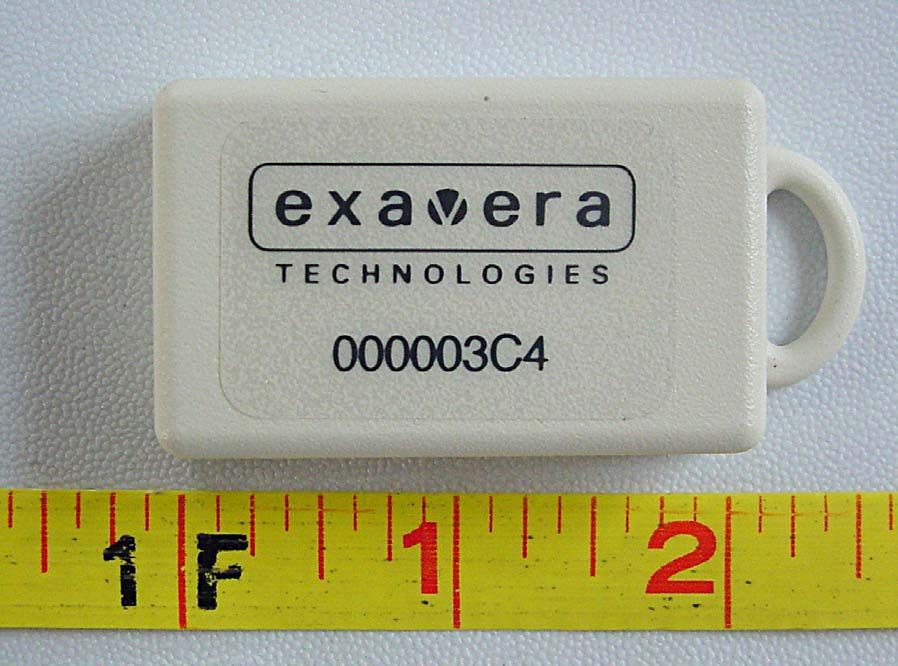

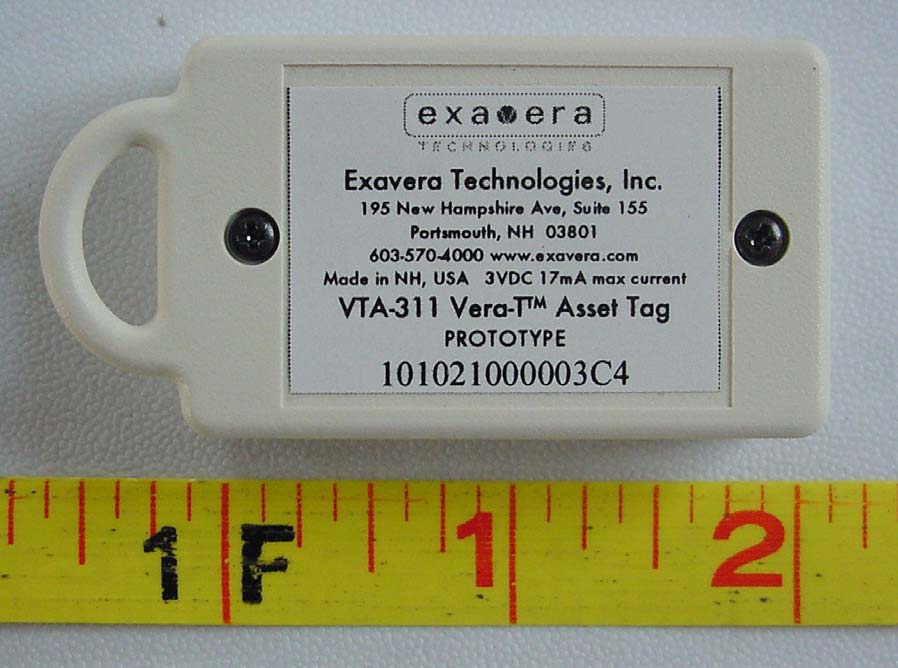

Exterior Photos: Fisher Cat VTA 311 Top Bottom Front Side:

Interior Photos: Fishercat VTA 311 Case Top – Open: Circuit board bottom: Circuit Board Top:

Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.complianceworldwide.com COMPLIANCE WORLDWIDE INC. TEST REPORT 106-07 In Accordance with the Requirements of Industry Canada RSS 210, Issue 6 Federal Communications Commission CFR Title 47 Part 15.249, Subpart C Low Power License-Exempt Radio Communication Devices Intentional Radiators Issued to Exavera Technologies, Inc. 195 New Hampshire Ave. Suite155 Portsmouth, NH 03801 Tel: (603) 570-4000 Fax:(603) 570-4001 for Vera-T Asset Tag (Fishercat VTA 311 and Spinner VTA 331) Transmitters FCC ID: T2R-VTA311 Report Issued on January 26, 2007 This test report shall not be reproduced, except in full, without written permission from Compliance Worldwide, Inc. Test Number: 106-07 Issue Date: 01/26/2007 Page 2 of 18 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com Table of Contents 1. Scope .................................................................................................................................. 3 2. Product Details.................................................................................................................... 3 2.1. Manufacturer ..............................................................................................................3 2.2. Model Number............................................................................................................ 3 2.3. Serial Number ............................................................................................................ 3 2.4. Description ................................................................................................................. 3 2.5. Power Source............................................................................................................. 3 2.6. EMC Modifications ..................................................................................................... 3 3. Product Configuration ......................................................................................................... 3 3.1. Operational Characteristics & Software ..................................................................... 3 3.2. Block Diagram ............................................................................................................ 3 4. Measurements Parameters................................................................................................. 3 4.1. Measurement Equipment Used to Perform Test ........................................................ 4 4.2. Measurement & Equipment Setup ............................................................................. 4 4.3. Measurement Procedure............................................................................................ 4 5. Measurement Summary...................................................................................................... 5 6. Measurement Data.............................................................................................................. 6 6.1. Radiated Field Strength of Fundamental ................................................................... 6 6.2. Radiated Field Strength of Harmonics ....................................................................... 8 6.3 Occupied Bandwidth ................................................................................................... 9 6.4 99% Bandwidth ......................................................................................................... 11 6.5. Band Edge Measurements....................................................................................... 12 6.6. Spurious Radiated Emissions, 30 MHz to EUT 10 th Harmonic ................................ 14 6.7 Determination of Average Factor .............................................................................. 17 7. Test Site Description ......................................................................................................... 18 Test Number: 106-07 Issue Date: 01/26/2007 Page 3 of 18 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com 1. Scope This test report certifies that the Exavera Technologies, Inc. Vera-T Asset Tag (Fishercat VTA 311 and Spinner VTA 331) Transmitter, as tested, meets the RSS 210 Rules and FCC Part 15, Subpart C requirements. The scope of this test report is limited to the test sample provided by the client, only in as much as that sample represents other production units. If any significant changes are made to the unit, the changes shall be evaluated and a retest may be required. 2. Product Details 2.1. Manufacturer: Exavera 2.2. Model Number: Vera-T Asset Tag Fishercat VTA 311 (represents transmitte r models Fishercat VTA 311 and Spinner VTA 331) 2.3. Serial Number: 101021000003C4 2.4. Description: The Exavera Vera-T Asset Tag (Fishercat VTA 311 and Spinne r VTA 331) is part of a complete suite of intelligent RFID devices to maximize safety and optimize workflow in secure environments. The product dimensions are 2.1 in. x 1.3 in. x .57 in. and the product weight is .7 oz. It can be operated over five programmable frequencies: 905.25 MHz, 910.25 MHz, 915.25 MHz, 920.25 MHz, and 925.25 MHz. 2.5. Power Source: 3 Volt DC integral, non-customer replaceable battery 2.6. EMC Modifications: None 3. Product Configuration 3.1. Operational Characteristics & Software The Exavera Vera-T Asset Tag (Fishercat VTA 311 and Spinner VTA 331) can be operated over five programmable frequencies as outlined in the product description. The sample provided was tested at the lowest, middle and highest operating frequencies. In addition, the sample provided was programmed to constantly transmit. Under normal operating conditions, the product would transmit for a short time period (approximately 6 milliseconds) followed by several seconds of being idle. All operation…

Text truncated - open the document above for the full version.

Test Set Up Photos: Fisher VTA 311 Radiated Front: Radiated Back:
