T3V7752e-DEER

EUT EXTERIOR PHOTO Applicant: primos hunting calls FCC ID: T3V7752

Applicant: primos hunting calls FCC ID: T3V7752 FCC ID: T3V7752 This device complies with part 15 the FCC rules. Operation is subject to the following two condition: (1). This device may not case harmful interference, (2).This device must accept any interference received, including interference that may cause undesired operation The label must not be a stick-on paper label. The label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location On EUT EUT Bottom View/Proposed FCC ID LABEL location

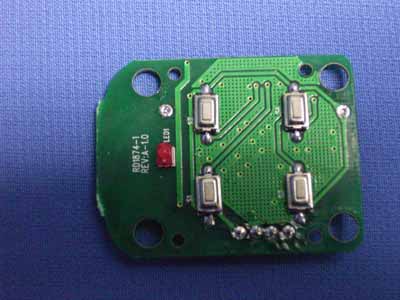

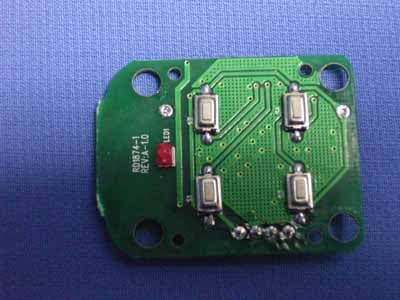

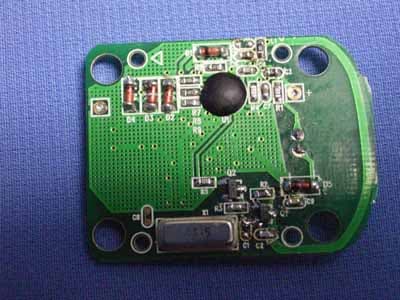

EUT INSIDE PHOTO Applicant: Satow Electronic Co., Ltd. FCC ID: T3V7752

Working principle ATS302T is a CMOS LSP chip on RF transmitter it’s designed for remote control toys. ATS302T turns off automatically. It works when function input pin connect Ground, then SO and SC will transmit code by continually RF type (with carrier) and IR type (without carrier) respectively, whereas it will enter wait mode when a compete code has been transmitted and the button opens.

A B C D : : PCB : : : PCB : PCB : : : : : : : A B C ( ) , . , , . S4 TD-19XA S3 TD-19XA S2 TD-19XA S1 TD-19XA Q2 2SC3356R25 LED1 182SAD L1 2.2uH R2 33K R3 NC R4 120K C2 2.5P C1 12P C5 102P BAT1 23A 12V X1 SR315 V+ TXDATA V+ C6 104P RD1874 RD1874-1 2005/9/12 D4 1N4148 D3 1N4148 D2 1N4148 D1 1N4148 V+ R1 3.3K C7 104P REV:1.4 1.0mm FR4 GRUNT 01 RATTLE 03 BLEAT 02 SNORT WHEEZE 04 LED GRUNT 01BLEAT 02 RATTLE 03 SNORT WHEEZE 04 RIGHT 1 NC 2 GND 3 BACK 4 FOR 5 TUR 6 SC 7 SO 8 VDD 9 PC 10 OSCO 11 OSCI 12 NC 13 LEFTB 14 U1 ATS302T C4 33P VCC D5 1N4148 VCC R6 10K R7 10K R8 10K R9 10K C3 104P Q2 2SC3904 R5 33K OR 2SC4269

FCC 47 CFR PART 15 SUBPART C TEST REPORT For PRIMOS HUNTING CALLS e-DEER Model: 7752 Tra d e Na me: PRI M OS Prepared for PRIMOS HUNTING CALLS 604 FRIST STREET, FOLRA,MS 39071 Prepared by SINTEK LABORATORY CO., LTD. No. 7, Xinshidai Industrial, Guantian Village, Shiyan Town, Bao`an District, Shenzhen,Guangdong, P.R.C. TEL: 86-755-27604866 FAX: 86-755-27608359 Note: This report shall not be reproduced except in full, without the written approval of Sintek Laboratory Co.,Ltd. This document may be altered or revised by Sintek Laboratory Co.,Ltd. personnel only, and shall be noted in the revision section of the document. Page 1 of 69 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.............................................................................................3 2. EUT DESCRIPTION....................................................................................................................4 3. TEST METHODOLOGY.............................................................................................................5 3.1 EUT CONFIGURATION...................................................................................................................5 3.2 EUT EXERCISE...............................................................................................................................5 3.3 GENERAL TEST PROCEDURES........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS...................................................6 3.5 DESCRIPTION OF TEST MODES......................................................................................................6 4. INSTRUMENT CALIBRATION.................................................................................................7 5. FACILITIES AND ACCREDITATIONS...................................................................................8 5.1 FACILITIES 8 5.2 EQUIPMENT...................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING.............................................................................8 6. SETUP OF EQUIPMENT UNDER TEST..................................................................................9 6.1 SETUP CONFIGURATION OF EUT....................................................................................................9 6.2 SUPPORT EQUIPMENT............................................................................................................9 7. FCC PART 15.231 REQUIREMENTS......................................................................................10 7.1 BANDWIDTH OF EMISSION......................................................................................................10 7.2 POWERLINE CONDUCTED EMISSIONS..........................................................................................19 Page 2 1. TEST RESULT CERTIFICATION Applicant: Primos hunting calls 604 first street, flora, MS 39071 Equipment Under Test: e-DEER Tra de Na me: Primos Model: 7752 Date of Test: March 9 ~ 12, 2006 Report No. : ST0603003 FCC ID : T3V7752 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by SINTEK laboratory co., ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2001 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.231. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Page 3 2. EUT DESCRIPTION Product e-DEER Tra de Na me Primos Model Number 7752 Model Discrepancy N/A Power Supply DC 12V by Battery Frequency Range 315 MHz Number of Channels 1 Channels Antenna Specification N/A Note: This submittal(s) (test report) is intended for FCC ID: T3V7752 filing to comply with Section 15.231 of the FCC Part 15, Subpart C Rules. Page 4 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, and 15.231. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.231 under the FCC Rules Part 15 Subpart C. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 13.1.4.1 of ANSI C63.4: 2001, Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and average detector modes. Radiated Emissions The EUT is placed on a turn table, which is 0.8 m above ground plane. The turntable shall rotate 360 degrees to determine the position of maximum emission level. EUT is set 3m away from the receiving antenna, which varied from 1m to 4m to find out the highest emission. And also, each emission was to be maximized by changing the polarization of receiving antenna both horizontal and vertical. In order to find out the max emission, the relative positions of this hand-held transmitter (EUT) were rotated through three orthogonal axes according to the requirements in Section 13.1.4.1 of ANSI C63.4: 2001. Page 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS Except as shown in paragraph (d) of this section, only spurious emissions are permitted in any of th…

Text truncated - open the document above for the full version.

TEST SETUP PHOTO Applicant: primos hunting calls FCC ID: T3V7752
