T3YNZLED Light

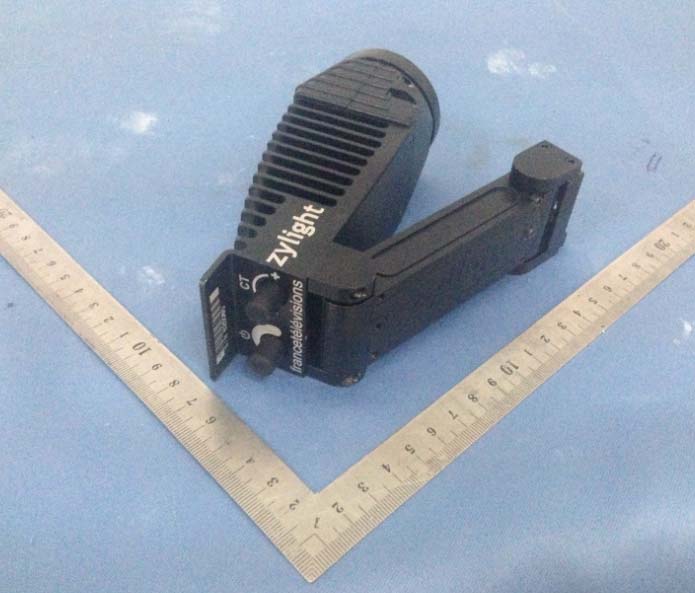

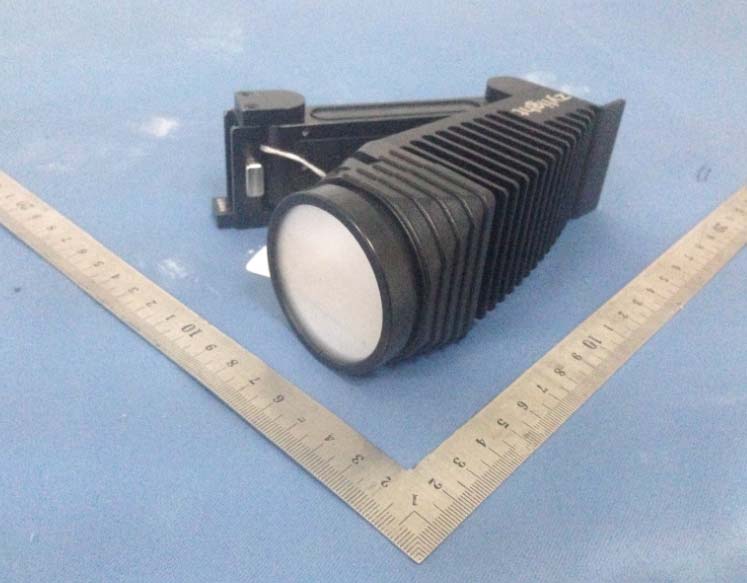

OWNER’S MANUAL ENGLISH V.1.7 C ongratulations on the purchase of your Zylight LED Newz light. Be sure to read this manual in its entirety before using your fixture as this document contains information and important notes regarding the use of this product. Please refer to this manual for any questions you may have in the operation and care of your new fixture. Each Newz light contains the following: (1) 25-03002 - Newz Light Head with integrated articulated arm (1) 25-03001 – ZX Camera Base assembly with ¼-20 stud & D-Tap cable (1) 19-01008 – ZX Collapsible barn doors Optional Equipment (sold separately) (1) 19-02051 - Integrated hot shoe DSLR strobe plate (1) 26-02030 - AC Worldwide power supply w/ Female DTAP (1) 18-02034 - Female DTAP to male 4 pin XLR adaptor cable (1) 19-02027 - D-Pro baby pin to 1/4-20 fricition mount Customer Support: Zylight provides customer support via phone and email for any questions you may have during your set up or initial operation. Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m. Eastern Standard Time. You may also visit us on the web at www.zylight.com with any comments or suggestions. Voice/Fax (In English): (978) 244-0011 E-mail: [email protected] Caution! There are no user serviceable parts inside this unit. In the unlikely event your unit may require service please contact Zylight customer support. Do not attempt any repairs yourself; doing so will void your manufacturer’s warranty. CARE FOR YOUR INSTRUMENT: Store your Newz away from heat and vibration. After use, make sure your Newz is turned off. Do not place your Newz near combustible or volatile solvents to avoid the risk of fire. page 1 Your Newz can be cleaned with a soft, dry cloth. In case of heavy soiling, moisten a cloth with soap solution, then dry the unit with a dry cloth. DO NOT USE DETERGENT, ALCOHOL OR SOLVENT. This fixture has an IP rating of 54 which protects it from reasonable exposure to dust and moisture. It is not waterproof and cannot be exposed to extended heavy rain, moisture, or submerged in water. Please take care to avoid prolonged exposure to moisture or water. USE & OPERATION: MOUNTING THE NEWZ: The included Camera Base can be mounted to your camera by means of the ¼-20 knurled thumbscrew. Connect the D-Tap plug to your battery, camera D-Tap socket (min. 15W capacity), or optional Zylight worldwide AC Adapter (P/N 26-02030). Mount the fixture to the Base by first aligning the base’s mounting plate with the corresponding grove plate on the bottom of the arm. Slide until the release tab ‘clicks’ and locks the fixture into place. SEPARATING THE FIXTURE FROM THE BASE PLATE: To remove the light from the Base press down firmly on the Base’s metal release tab and slide the light sideways, as shown below. page 2 POWER ON/OFF AND BRIGHTNESS: On the rear of the fixture press & release the left knob to turn power ON or OFF. Turn this knob to adjust the brightness (0 to 100%). SETTING THE COLOR TEMPERATURE: Turn the right knob to adjust the color temperature from tungsten to daylight. The display on the articulating arm shows the color temperature readout as a scale. The Newz is capable of memorizing one preset color temperature. To set a given color temperature, press in and hold the right “CT” knob for 5 seconds. The display will show “SAVED.” you may now adjust the CT knob to any other desired color temperature. To recall your saved preset, simply push and quickly release the “CT” knob. Turning the knob again, will change the color temperature back to wherever the knob was in its last position. ADJUSTING THE ARM: The integrated articulating arm has two built-in friction hinges. To adjust the position of the light simply grasp the light head and move it to the desired position. Page 3 ATTACHING THE BARNDOORS: To attach the Barndoors, push them on to the face of the fixture as shown below. The two retention tabs will expand slightly and snap into the groove around the front of the fixture. REMOVING THE BARNDOORS: To remove the Barndoors gently pull up on one of the two retention tabs until it disengages from the groove. Rotate the Barndoors downward and remove them from the light head. Be careful not to over extend the retention tabs. FOLDING THE BARNDOORS: The Barndoor Leaves must be folded in a certain order for proper stowage. Begin by closing the Leaf adjacent to the word ‘First’, then continue folding the remaining Leaves in counter-clockwise order. ADDITIONAL DIFFUSION: There is one translucent barn door leaf included as part of the Newz Light. This leaf can be used over the face of the light to further diffuse the light output for a softer lighting effect. page 4 ZyLink TM WIRELESS CONTROL OVERVIEW: Each Zylight fixture may be connected to another Zylight fixture using the integrated ZyLink wireless control. There is no network to configure, no routers to set - it’s wireless, it’s automatic and it’s built into every Zylight. Zylight instruments linked together on the same channel act in concert as if they were one unified source. Adjustments made to one light will change all lights in the group. A group can support as many Zylight instruments lights as you wish. Some Zylight instruments may be operated independently and others operated in one or more groups. Any independent Zylight instrument may be associated with a group. Wireless settings are saved when power is removed from an instrument allowing breaks during filming or lighting plan changes without losing settings. ZyLink OPERATION: Press and hold in the wireless button for 3 seconds on the side of the articulating arm to enable or disable ZyLink. The display will show the ZyLink wireless icon when it is active. The Newz can be connected to one of 10 ZyLink channels. To set or change the ZyLink channel, press and quickly release the wireless button to toggle through channels 1-10. page 5 STROBE OPERATION: The Newz includes a Strobe function to allow the fixture to act as a photo strobe for still photog…

Text truncated - open the document above for the full version.

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 02.01.2012 Datum: 00.00.0000 Seite 1 von 1 Long/Short-term Confidentiality Request PHOENIX TESTLAB GmbH Date: 23 December 2015 Product Certification Königswinkel 10 D 32825 Blomberg FCC ID: T3YNZ To Whom it may concerns, Pursuant to sections 0.457(d) and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, we hereby requests long-term confidential treatment of information accompanying this application as outlined below: Schematics Parts List Block Diagram Tune-Up Info Operational Description In addition we hereby request the following exhibits contained in this application to be temporarily (short-term confidentilality) withheld from the public disclosure for an initial period of days until: 4/24/2016 not applicable External Photos Test Setup Photos Internal Photos Users Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457(d), disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this application. Thank you for your attention in this matter. Zylight LLC 10718 McCune Avenue Los Angeles, CA 90034 Signature : ____________________________ Job Title and Dept. : Engineering Director

Zylight LLC • 10718 McCune Avenue • Los Angeles • CA • 90034 • 978-244-0011 • www.zylight.com October 7, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern, We, the undersigned, hereby authorize Shanghai Morlab Communications Technology Co., Ltd. (Mr. Hongfei Wu) to act on our behalf, as our agent, in the following matters related to FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Shanghai Morlab Communications Technology Co., Ltd. within the scope of this authorization shall have the same affect as our own. This authorization shall expire 12 months from original date. Sincerely, James Collias Engineering Director Zylight LLC

Report No.SH15100017W01 Page 2 of 32 DIRECTORY 1. General Information ......................................................................................................... 4 1.1 Applicant ............................................................................................................................. 4 1.2 Manufacturer ....................................................................................................................... 4 1.3 Description of EUT ............................................................................................................. 4 2. Facilities and Accreditations ............................................................................................ 5 2.1 Test Facility ......................................................................................................................... 5 2.2 Environmental Conditions .................................................................................................. 5 2.3 Measurement Uncertainty ................................................................................................... 5 2.4 List of Equipments Used ..................................................................................................... 6 3. Test Standards and Results .............................................................................................. 7 4. 47 CFR Part 15C ............................................................................................................... 8 4.1 Antenna requirement ........................................................................................................... 8 5. Test Result .......................................................................................................................... 9 5.1 Peak Output Power .............................................................................................................. 9 5.2 Average Power .................................................................................................................. 12 5.3 6dB & 20dB Bandwidth .................................................................................................... 13 5.4 Conducted Spurious Emissions and Band Edge ............................................................... 17 5.5 Power Spectral Density(PSD) ........................................................................................... 20 5.6 Band Edge ......................................................................................................................... 22 5.7 Conducted Emission ......................................................................................................... 24 5.8 Radiated Emission ............................................................................................................. 27 Annex A Photos of the EUT ........................................................................................................... 30 Annex B Photos of Setup ................................................................................................................ 31 Report No.SH15100017W01 Page 3 of 32 Change History Issue Date Reason for change 1.0 Nov.4,2015 First edition Report No.SH15100017W01 Page 4 of 32 1. General Information 1.1 Applicant Zylight, LLC 10718 McCune Ave., Los Angeles, CA. 90034 1.2 Manufacturer Zylight, LLC 10718 McCune Ave., Los Angeles, CA. 90034 1.3 Description of EUT EUT Name ............................ : Newz Model Name ......................... : Newz Brand Name .......................... : Zylight Trade Name .......................... : Newz Hardware Version ................. : 4 Software Version .................. : 1.11 Modulation Type .................. : DSSS Frequency Range .................. : 2.405GHz - 2.450GHz (at interval of 5MHz) Channel Number ................... : 10 EUT Stage ............................ : Production Unit Antenna Type ........................ : PCB Antenna Antenna Gain ........................ : -5 dBi Power Supply ....................... : 100-240V, 50-60Hz NOTE 1: The EUT is a LED light. The EUT contains Zigbee Module operating at 2.4GHz ISM band; the frequencies allocated for the Zigbee Module is F(MHz)=2400+5*n (1<=n<=10). The lowest, middle, highest channel numbers of the Zigbee Module used and tested in this report are separately 1 (2405MHz), 5 (2425MHz) and 10 (2450MHz). NOTE 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacture. Report No.SH15100017W01 Page 5 of 32 2. Facilities and Accreditations 2.1 Test Facility Shanghai Morlab Communications Technology Co., Ltd. Morlab Laboratory is a third party testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L6644. A 9*6*6(m) fully anechoic chamber was used for the radiated spurious emissions test. 2.2 Environmental Conditions Ambient temperature: 15~35°C Relative humidity: 30~60% Atmosphere pressure: 86-106kPa 2.3 Measurement Uncertainty The uncertainty is calculated using the methods suggested in the "Guide to the Expression of Uncertainty in Measurement" (GUM) published by ISO. Uncertainty of Conducted Emission: ±1.76dB Uncertainty of Radiated Emission: ±3.16dB Report No.SH15100017W01 Page 6 of 32 2.4 List of Equipments Used Description Manufacturer Model Serial No. Cal. Date Cal. Due Service Simulator Anritsu MT8852A 6K00002788 2015.9.22 1year Spectrum Analyzer R&S FSU26 200880 2015.2.25 1year Power Splitter Weinschel 1506A NW521 (n.a.) (n.a.) Power Splitter Mini-Circuits ZFRSC-183-S+ 765001016 (n.a.) (n.a.) Attenuator 1 Resnet 10dB (n.a.) (n.a.) (n.a.) Attenuator 2 Resnet 3dB (n.a.) (n.a.) (n.a.) Full/Semi-Anechoie Chamber Albatross 9m*6m*6m (n.a.) 2015.9.14 3year EMI Test Receiver R&S ESCI 101351 2015.8.5 1year Antenna Schwarzbeck BBHA 9120C 9120C-384 2015.7.25 1year Antenna R&S HL562 10…
