T3ZBK-PODZ-RXWireless rechargeable speakers

podz ™ wireless rechargeable speakers with auto-tuning working name FPO BETTER BY BROOKSTONE ® We believe that exacting standards are the core of our success. The PODZ ™ Wireless Rechargeable Speakers with Auto-Tuning have been thoroughly tested to be certain they meet our rigorous quality control criteria. We stand behind every Brookstone ® product, promising 100% satisfaction, 100% of the time. With our PODZ ™ Wireless Rechargeable Speakers with Auto-Tuning, you’ll have portable sound—anywhere you want it. Just attach the transmitter to your audio source, turn on the speakers and take your music with you anywhere—inside or out! The 900 MHz technology transmits through walls, floors, and ceilings up to 150 feet away from the transmitter. podz ™ wireless rechargeable speakers with auto-tuning 1 2 WARNING 1. Do not try to disassemble the speakers. 2. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 3. Do not place speakers near heat sources such as radiators and heating vents. 4. Do not store speakers in extreme temperatures. 5. Turn the transmitter and speaker power off when not in use. 6. Do not place speakers where there is moisture, rain, vibration, shock or excessive dust. 3 FCC INFORMATION This equipment has been tested and found to comply with the limits for a class B digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the distance between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. 4 This equipment complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This equipment may not cause harmful interference. 2. This equipment must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for any audio or television interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. 5 LOCATION OF CONTROLS TRANSMITTER 1. TRANSMITTER POWER INDICATOR 2. CHANNEL/OFF/1/2/3 3. DC 9V 4. R/L LINE IN 5. MONO/STEREO SPEAKERS 5. POWER INDICATOR 6. 7. 8. 9. SPEAKER BOTTOM 10. CHANNEL 3/2/1 11. REAR COVER 1 2 3 4 6 5 10 11 8 9 7 Top View 5 ACCESSORIES 12. CHARGING BASE (2) POWER ADAPTERS/CABLES 13. TRANSMITTER POWER ADAPTER 14. CHARGING BASE POWER ADAPTER (2) 15. DUAL RCA CABLE 16. Y ADAPTER 3.5MM CABLE TRANSMITTER OPERATION CONNECTING THE TRANSMITTER TO AN AUDIO SOURCE The transmitter may be connected two ways depending on your audio source. If your audio source has left and right RCA output jacks, you will only use the DUAL RCA CABLE. If your audio source does not have left and right RCA output jacks, but rather a stereo headphone jack, you will use both the Y ADAPTER 3.5MM CABLE and the DUAL RCA CABLE. LEFT AND RIGHT RCA OUTPUT JACKS 1. Insert one end of the TRANSMITTER POWER ADAPTER into DC 9V on the transmitter, and the other end into an electrical outlet. 2. Insert one end of the DUAL RCA CABLE into the appropriately colored R/L LINE IN jacks on the transmitter, and the other end into your audio source’s left and right audio output jacks. 76 13141516 12 SPEAKER OPERATION CHARGING THE SPEAKERS Charging time is approximately 10 hours. 1. Insert one end of the CHARGING BASE POWER ADAPTER into the CHARGING BASE’s cord and the other end into an electrical outlet. 2. Place the SPEAKER BOTTOM on the CHARGING BASE. A red indicator light illuminates inside the speaker. USING THE SPEAKERS You can leave the speakers connected to the CHARGING BASE, or you can remove them and use the rechargeable battery power. 1. Turn on the power to your audio source. Note: • If the transmitter is connected to your audio source’s variable-level output jacks, you may adjust the volume on your audio source. If the transmitter is connected to your audio source’s fixed-level output jacks, no volume adjustment is needed. Note: • If there are no fixed-level audio outputs on your audio source, connect the DUAL RCA CABLE to variable-level (HI-FI) audio outputs or refer to Headphone Jack for Y ADAPTER 3.5MM CABLE connection instructions. • Do not connect the DUAL RCA CABLE to speaker terminals on your audio source. This may damage the transmitter or your audio source. HEADPHONE JACK 1. Insert one end of the TRANSMITTER POWER ADAPTER into DC 9V on the transmitter and the other end into an electrical outlet. 2. Insert one end of the DUAL RCA CABLE into the appropriately colored R/L LINE IN jacks on the transmitter and the other end into the appropriately colored ends of the Y ADAPTER 3.5MM CABLE. 3. Insert the 1/8” single end of the Y ADAPTER 3.5MM CABLE into your audio source’s headphone jack. Note: If your audio source requires a 1/4” headphone plug, you will need a 1/4” adapter (not included). 98 Note: • The mono/stereo function maximizes the sound when using multiple speakers with the same transmitter. To use this fuction, slide MONO/ STEREO to the STEREO position. • If signal interference occurs, adjust the channel on the transmitter.• When not in use, press on the speaker to turn…

Text truncated - open the document above for the full version.

Left Channel Block Diagram (Receive Module) To Audio Power Amplifier (muting Control) To Audio Power Amplifier (10.7 MHz) 531AP X1 (Crystal of U4) 5.0 MHz FCC ID: T3ZBK-PODZ-RX 1 Right Channel Block Diagram (Receive Module) To Audio Power Amplifier (10.7 MHz) To Audio Power Amplifier (muting Control) 531AP X1 (Crystal of U4) 5.0 MHz FCC ID: T3ZBK-PODZ-RX 2

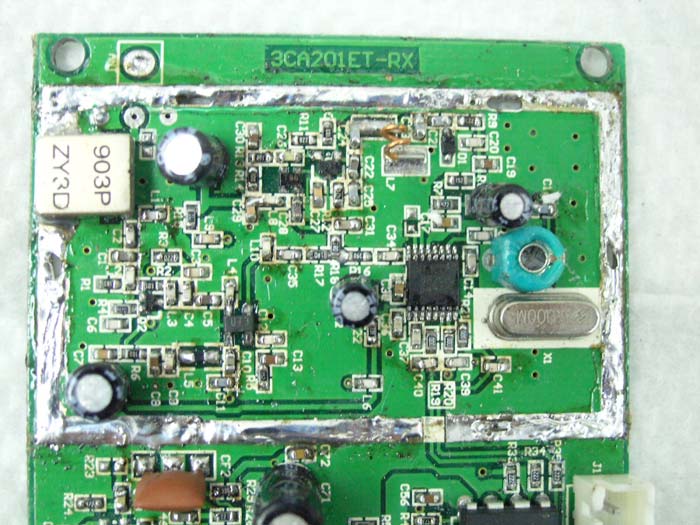

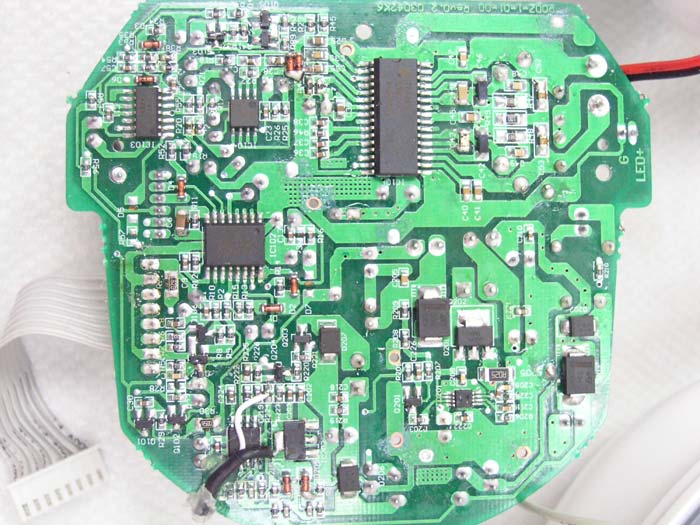

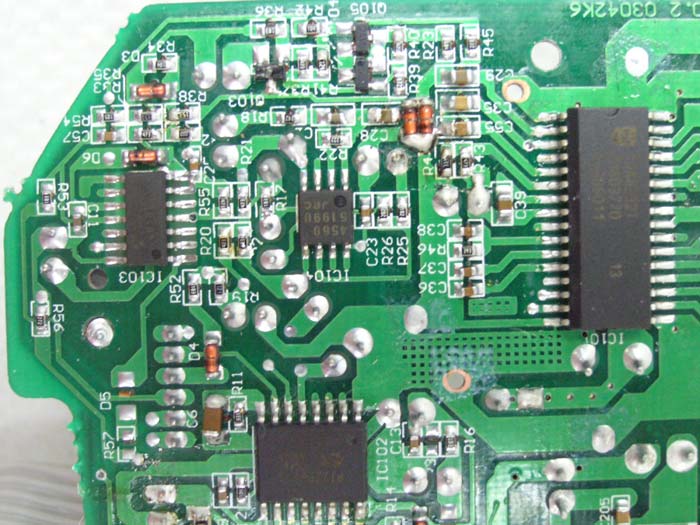

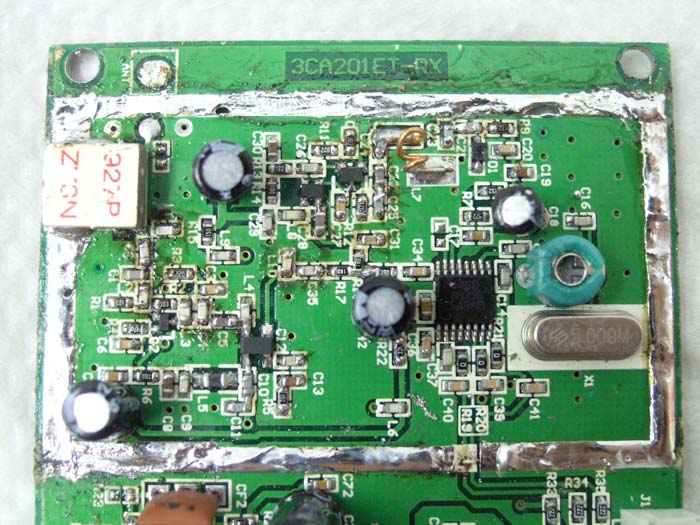

INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Let and Right Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Let and Right Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Let and Right Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Let and Right Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Let and Right Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Let and Right Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Let and Right Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Let and Right Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Left Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Left Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Left Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Right Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Right Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Right Channel) (Internal)

FCC ID Label and Location FCC ID: T3ZBK-PODZ-RX 1 FCC ID Label and Location FCC ID: T3ZBK-PODZ-RX 2

INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Let and Right Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Let and Right Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Let and Right Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Let and Right Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Let and Right Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Let and Right Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Let and Right Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Let and Right Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Left Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Left Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Left Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Right Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Right Channel) (Internal) INTERTEK TESTING SERVICE Report No.: 0606074 FCC ID: T3ZBK-PODZ-RX Equipment Photographs Model : Podz BL520 (Right Channel) (Internal)

Podz RF Modules Last revised on: 19 th April, 2006 Left Channel RECEIVER When the RF signal received from the antenna. The RF signal will be amplifier by the RF amplifier. Then the signal will be mixed in the mixer circuit with the local oscillation frequency that generated from the VCO circuit. (The local oscillator frequency is control by the PLL (IC MCD8825B) circuit and the MCU) After the signal is come to an ceramic IF filter (CF2) to remove all other un-want frequencies except the 10.7MHz and enter into the IF amplifier. An audio signal will be came out when the IF signal will pass into the De-modulator circuit. The de-modulation oscillator frequency uses 892.7 MHz (Channel 1), 891.9 MHz (Channel 2) and 893.5 MHz (Channel 3). Noted: The VCO frequency is controlled by MCU. If the MCU pin 3 is pull high, the left channel frequency is selected. Left Channel Block Diagram To Audio Power Amplifier (muting Control) To Audio Power Amplifier (10.7 MHz) 531AP X1 (Crystal of U4) 5.0 MHz FCC ID: T3ZBK-PODZ-RX 1 RF Amplifier is formed by SF1, C1~ C6, L1 ~ L4, R1 ~ R4 and Q2 MCU is 531AP (U1) and used a resistor (R44) to control the VCO frequency. VCO Circuit and PLL (IC MCD8825B) Circuit is formed by U4 and other passive components Q3, Q4, D1, C17~C31, R7 ~ R15, L8 and L9. De-modulation Circuit is formed by U3 (TA8187), L11, L12, C47 C49~C55 and R32. IF Amplifier is formed by Q5, CF2, R23 ~ R29, C44 ~ C47 and R23 ~ R29 Audio Amplifier is formed by U2 (LM 358) and other components C63 ~ C68, R46, R47 and R49 ~ R53. FCC ID: T3ZBK-PODZ-RX 2 Right Channel RECEIVER When the RF signal received from the antenna. The RF signal will be amplifier by the RF amplifier. Then the signal will be mixed in the mixer circuit with the local oscillation frequency that generated from the VCO circuit. (The local oscillator frequency is control by the PLL (IC MCD8825B) circuit and the MCU) Then the signal is come to an ceramic IF filter (CF2) to remove all other un-want frequencies except the 10.7MHz and enter into the IF amplifier. An audio signal will be came out when the IF signal will pass into the De-modulator circuit. The de-modulation oscillator frequency uses 915.9 MHz (Channel 1), 915.1 MHz (Channel 2) and 916.7 MHz (Channel 3) and controlled by MCU with a resistor (R44). Noted: The VCO frequency is controlled by MCU. If the MCU pin 3 is pull low, the right channel frequency is selected. Right Channel Block Diagram: To Audio Power Amplifier (muting Control) To Audio Power Amplifier (10.7 MHz) 531AP X1 (Crystal of U4) 5.0 MHz FCC ID: T3ZBK-PODZ-RX 3 FCC ID: T3ZBK-PODZ-RX 4 RF Amplifier is formed by SF1, C1~ C6, L1 ~ L4, R1 ~ R4 and Q2 MCU is 531AP (U1) VCO Circuit and PLL (IC MCD8825B) Circuit is formed by U4 and other passive components Q3, Q4, D1, C17~C31, R7 ~ R15, L8 and L9. De-modulation Circuit is formed by U3 (TA8187), L11, L12, C47 C49~C55 and R32. IF Amplifier is formed by Q5, CF2, R23 ~ R29, C44 ~ C47 and R23 ~ R29 Audio Amplifier is formed by U2 (LM 358) and other components C63 ~ C68, R46, R47 and R49 ~ R53. Antenna Location FCC ID: T3 ZBK-P O DZ-R X 5

L RX.sch-1 - Thu Apr 13 15:06:10 2006 L RX.sch-1 - Thu Apr 13 15:17:40 2006 123456 A B C D 654321 D C B A Title NumberRevisionSize C Date:24-Apr-2006Sheet of File:D:\STEPHEN\AAC PRODUCT\PODZ Wireless SPK\JOB File\PODZ(13-APRIL-2006(PP-Tooling).DDBDrawn By: AF/G 1 2 3 4 5 6 7 8 CN1 AF IN 8V Mute Gnd Q107 9014C R8 4K7 Q106 9014C R7 100K C8 100n R9 100K R6 47K R20 47K R22 2K7 R18 2K4 C21 560n 3 2 1 8 IC104A NJM4560 R17 10K R21 47K C27 10u C20 10u R47 10/0805 C58 10u C57 100n VSSD/HW 1 IN-1P 2 IN-1N 3 DIAG 4 ENGAGE 5 POWERUP 6 CGND 7 VDDA 8 VSSD/HW 17 DREF 18 HVP2 19 VDDP2 20 BOOT2 21 OUT2 22 VSSP2 23 STAB2 24 VSSA 9 OSCREF 10 HVPREF 11 IN2N 14 INREF 12 IN2P 15 TEST 13 VSSD/HW 16 STAB1 25 VSSP1 26 OUT1 27 BOOT1 28 VDDP1 29 HVP1 30 OSCIO 31 VSSD/HW 32 IC101 TDA8932T/N1 C46 100n/1206 C50 1u/63V PLM C44 15n/1206 4 ohm R40 47K 1 2 3 4 5 6 78 9 10 11 12 13 14 IC103 CD4013 1 2 3 4 5 6 7 89 10 11 12 13 14 15 16 IC102 PT2256V-S R14 2K7 C14100u C13 100n C10 0.47u R15 3K9 R12 100K R53 10K R13 10K R2 10K C3 470u C9 100n R11 33K C6 2u2/T-CAP S301 Power /Amber light S303 VR.UP S302 VR.DOWN C2 100u C1 100n R1 68/1206 R54 1M Q102 9014C R28*** C26 10u Q101 8550/C R29 2K2 R59 1K8 R27 15K Q103 9014/C C34 100u R39 4K7 R35 12K R38 15K R34 100K D3 IN4148 Q104 9014/C R36 18K R3747K R26 2K4 R25 1K C18 0.47u R24 10K 6 5 7 4 IC104D NJM4560(O/AMP) R52 6K8 R527K C7 500P PODZ MAIN .SCH C52 100n/1206 R49 10/1206 C53 100n/1206 C47 100n/1206 C48 470P/1206 C45 100n/0805 C43 15n/1206 C42 100n/1206 VP R48 10/0805 C49 470P/1206 L2 10uH(KM-P1014-100K) L1 10uH(KM-P1014-100K) C51 1u/63V PLM C41 100n/1206 C40 100n/0805 C37 100n C36 100n C38 100n/1% R46 39K1% R44 33K R43 47K C39 2u2/16V C28 470n/0805 C35 220n/0805 C22 100u 13V R19 120 C24 47u/16V C25 100n 1 2 3 4 5 6 CN301 6PINS 1 2 3 4 5 6 CN3 6PINS GND SYSout SYSin POW ON ind VR down VR up SP1 P1 SP2 P2 C19 10u C17 1u C23100n R45 27K R10 15K C4,5,15,16 C55 470n C206 100u/16V LESR D201 MBRD340 L201 10uH(CW9C-100K) 1 2 3 45 6 7 8 IC201 LM3478 C226 100n R207 10K R208 82K 1% R205 0.025/3216 C209 10n R209 6K8 1% R206 1K 12V5 Q201 9014/C R201 27K C205 100n/0805 R203 100K C211 22n 2 1 3 Q202 4N035 L205 2x3T C207 470u/16V C210100n SYS D202 MBR340 D203 MBR340 2 13 Q203 IRLML6402 C220 100u/16V D207 MBR120 Q204 9014/C R221 390 R220 1K R226 10K R225 10K R222 1K R223 10K 1 2 3 45 6 7 8 IC202 C219 1n L204 100uH(LF-2091) C217 100u/16V C218 100n R219 4K7 D206 MBR120 R216 1.0 1%0.5W C216 1n R217 51K 1% R218 82K 1% R213 1K R214 51K 1% R215 82K 1% R212 1K D205 IN4148 D204 IN4148 OUT GND IN IC203 S1117-5V C202 100n C203 100n C201 100u C204 220u C214 1n C215 1n R210 1K R211 560 C212100n L203 3.3uH(LF2086) C224 100n C223 2200u/16V C208 5n 1 2 CN501 2PINS 1 2 CN5 2P/LED(R) 1 2 3 4 5 6 CN202 6P/2.54 WF AD1 V+ AD2 GND LED1 RED 3mm R224 AT103-2 L202 3.3uH(LF2086) C213a 100u/16V LESR C221100nC222100n (DC Adaptor 9V/1A) C213 100u/16V LESR C225 100n R227 10 Ohm 0.5W C54 2200u/16V C29 470n/0805 R30 0.5/1206 D2 1N4148 D6 *** R16 18K C15 470u/16V D1 1N4148 C30 100n J1 DC JACK W/CABLE R3347K R42 100K R3*** Q105 9015/C R2347K 1 2 3 4 5 6 7 8 CN203A 1 1 2 2 3 3 4 4 SW201 1P3T CH. Select ch1 ch2 ch3 9V/150mA Adapter AF IN Transmit module Receive module DCJ401 2mm CH. Select 123 CN403A AFin 123 CN601 AFout 123 CN401A 3P 123 CN401 3P v+ Gnd center ch1 ch2 ch3 123 CN204A 2p/2.5mm 123 CN204 2p/2.5mm OFF 12 CN402A 12 CN402 2p/2.5mm LED401 3mm(Amber) R404 10K 1 2 CN404A 2P/2.5mm 1 2 CN404 2P/2.5mm 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 SW401 4P4TD Gnd SK601 RCA Socket R603 22K R604 22K R602 18K R405 33 SW601 1P2T R601 18K Stereo Mono 6V(Batteries pack) 1 2 3 4 5 6 CN202a 6P/ 2.54 D208 IN4148 R55 47K C56 100n C4 47u/16V R31 27K R61 1M R62 1M D4 1N4148 R63 3K9 R65 3K9 ZD02 9V1 JP3 STP C31100n C11 100n R50 JP D5 IN4148 R5715K D6IN4148 01 11

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Advance Audio Concepts, Limited Application For Certification (FCC ID: T3ZBK-PODZ-RX) Superheterodyne Receiver 0606074 TC/el April 26, 2006 INTERTEK TESTING SERVICES FCC ID: T3ZBK-PODZ-RX i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: T3ZBK-PODZ-RX ii MEASUREMENT / TECHNICAL REPORT Advance Audio Concepts, Limited − MODEL: BROOKSTONE Podz BL520 FCC ID: T3ZBK-PODZ-RX April 26, 2006 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Superheterodyne Receiver (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart B for unintentional radiator − the new 47 CFR [04-05-05 Edition] provision. Report prepared by: Lo Po Kong, Alfred Intertek Testing Services 2/F., Garment Center, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8545 Fax: 852-2371-0914 INTERTEK TESTING SERVICES FCC ID: T3ZBK-PODZ-RX iii Table of Contents 1.0 General Description......................................................................................... 2 1.1 Product Description................................................................................... 2 1.2 Related Submittal(s) Grants ...................................................................... 2 1.3 Test Methodology...................................................................................... 3 1.4 Test Facility ............................................................................................... 3 2.0 System Test Configuration............................................................................. 5 2.1 Justification ............................................................................................... 5 2.2 EUT Exercising Software .......................................................................... 5 2.3 Special Accessories .................................................................................. 5 2.4 Equipment Modification............................................................................. 6 2.5 Measurement Uncertainty ......................................................................... 6 2.6 Support Equipment List and Description ................................................... 6 3.0 Emission Results............................................................................................. 8 3.1 Field Strength Calculation ......................................................................... 9 3.2 Radiated Emission Configuration Photograph ........................................ 11 3.3 Radiated Emission Data.......................................................................... 12 3.4 Conducted Emission Configuration Photograph...................................... 15 3.5 Conducted Emission Data....................................................................... 16 4.0 Equipment Photographs............................................................................... 18 5.0 Product Labelling.......................................................................................... 20 6.0 Technical Specifications............................................................................... 22 7.0 Instruction Manual......................................................................................... 24 8.0 Miscellaneous Information........................................................................... 26 8.1 Discussion of Pulse Desensitization........................................................ 27 8.2 Calculation of Average Factor ................................................................. 28 8.3 Emissions Test Procedures .................................................................... 29 INTERTEK TESTING SERVICES FCC ID: T3ZBK-PODZ-RX iv List of attached file Exhibit Type File Description Filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.pdf Test Setup Photo Conducted Emission conducted photos.pdf Test Report Conducted Emission Test Result conducted.pdf External Photo External Photo external photos.pdf Internal Photo Internal Photo internal photos.pdf Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label / Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: T3ZBK-PODZ-RX 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: T3ZBK-PODZ-RX 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a 900MHz audio wireless speaker system with left (L) and right (R) channel for it associated transmitter. The main function of the EUT is used to receive the modulated signal that can be transmitting by its associated transmitter. There are three d…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 0606074 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : Podz BL520 Fig.1 FCC ID: T3ZBK-PODZ-RX INTERTEK TESTING SERVICE Report No: 0606074 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : Podz BL520 Fig.2 FCC ID: T3ZBK-PODZ-RX

INTERTEK TESTING SERVICE Report No: 0606074 FCC ID: T3ZBK-PODZ-RX i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model : Podz BL520 INTERTEK TESTING SERVICE Report No: 0606074 FCC ID: T3ZBK-PODZ-RX ii Configuration Photographs Worst-Case Line-Conducted Emissions (Back View) Model : Podz BL520 INTERTEK TESTING SERVICE Report No: 0606074 FCC ID: T3ZBK-PODZ-RX iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model : Podz BL520

Report No.: 0606074 Receive mode Left Speaker CH01 AC Mains Ctrl No.: NA PAGE 1 Tested By:Hong, Report No.:0606074 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 1 15 9k 30M EW0090 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30110 F15Q F15A Report No.: 0606074 Receive mode Left Speaker CH01 AC Mains Ctrl No.: NA Tested By:Hong, Report No.:0606074 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.15500 55.4 65.7 0.21000 49.1 63.2 0.29500 42.1 60.3 Frequency AV Level AV Limit MHz dBuV dBuV no Results * limit Report No.: 0606074 Receive mode Left Speaker CH03 AC Mains Ctrl No.: NA PAGE 1 Tested By:Hong, Report No.:0606074 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 1 15 9k 30M EW0090 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30110 F15Q F15A Report No.: 0606074 Receive mode Left Speaker CH03 AC Mains Ctrl No.: NA Tested By:Hong, Report No.:0606074 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.16000 55.4 65.5 0.21500 47.1 63.0 0.30000 41.5 60.2 Frequency AV Level AV Limit MHz dBuV dBuV no Results * limit Report No.: 0606074 Receive mode Right Speaker CH01 AC Mains Ctrl No.: NA PAGE 1 Tested By:Hong, Report No.:0606074 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 1 15 9k 30M EW0090 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30110 F15Q F15A Report No.: 0606074 Receive mode Right Speaker CH01 AC Mains Ctrl No.: NA Tested By:Hong, Report No.:0606074 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.16500 55.3 65.2 0.21000 47.1 63.2 0.29500 42.0 60.3 Frequency AV Level AV Limit MHz dBuV dBuV no Results * limit Report No.: 0606074 Receive mode Right Speaker CH03 AC Mains Ctrl No.: NA PAGE 1 Tested By:Hong, Report No.:0606074 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 1 15 9k 30M EW0090 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30110 F15Q F15A Report No.: 0606074 Receive mode Right Speaker CH03 AC Mains Ctrl No.: NA Tested By:Hong, Report No.:0606074 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.15500 55.8 65.7 0.21000 47.9 63.2 0.30000 41.6 60.2 Frequency AV Level AV Limit MHz dBuV dBuV no Results * limit
