T3ZBK-PODZ-TXWireless rechargeable speakers

Transmitter Block Diagram 531AP C2, C3, C74 ~ C78 L2, L10 C69 ~ 72, C79 ~ C81 L1, L9 Y1 (Clock of U11) 5.0 MHz KA358 KA358 FCC ID: T3ZBK-PODZ-TX 1

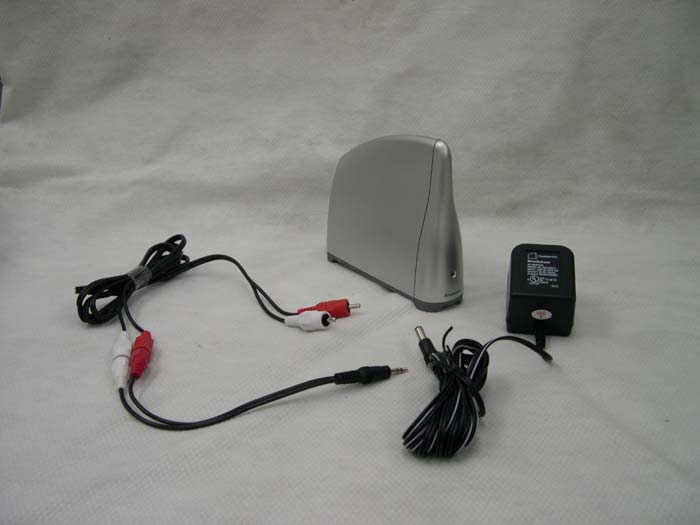

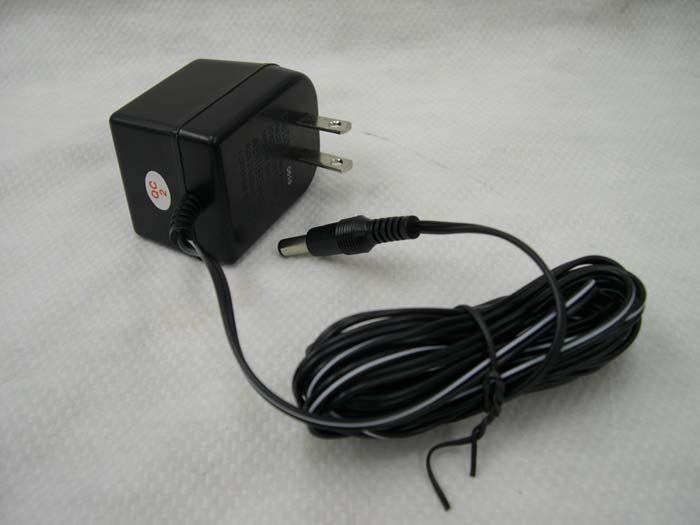

INTERTEK TESTING SERVICE Report No.: 0606069 FCC ID: T3ZBK-PODZ-TX Equipment Photographs Model : Podz BL520 (External) INTERTEK TESTING SERVICE Report No.: 0606069 FCC ID: T3ZBK-PODZ-TX Equipment Photographs Model : Podz BL520 (External) INTERTEK TESTING SERVICE Report No.: 0606069 FCC ID: T3ZBK-PODZ-TX Equipment Photographs Model : Podz BL520 (External)

FCC ID La bel and Location Size of label: 14 x 51 mm FCC ID: T3 ZBK-PODZ -TX 1

INTERTEK TESTING SERVICE Report No.: 0606069 FCC ID: T3ZBK-PODZ-TX Equipment Photographs Model : Podz BL520 (Internal) INTERTEK TESTING SERVICE Report No.: 0606069 FCC ID: T3ZBK-PODZ-TX Equipment Photographs Model : Podz BL520 (Internal) INTERTEK TESTING SERVICE Report No.: 0606069 FCC ID: T3ZBK-PODZ-TX Equipment Photographs Model : Podz BL520 (Internal) INTERTEK TESTING SERVICE Report No.: 0606069 FCC ID: T3ZBK-PODZ-TX Equipment Photographs Model : Podz BL520 (Internal) INTERTEK TESTING SERVICE Report No.: 0606069 FCC ID: T3ZBK-PODZ-TX Equipment Photographs Model : Podz BL520 (Internal) INTERTEK TESTING SERVICE Report No.: 0606069 FCC ID: T3ZBK-PODZ-TX Equipment Photographs Model : Podz BL520 (Internal) INTERTEK TESTING SERVICE Report No.: 0606069 FCC ID: T3ZBK-PODZ-TX Equipment Photographs Model : Podz BL520 (Internal) INTERTEK TESTING SERVICE Report No.: 0606069 FCC ID: T3ZBK-PODZ-TX Equipment Photographs Model : Podz BL520 (Internal) INTERTEK TESTING SERVICE Report No.: 0606069 FCC ID: T3ZBK-PODZ-TX Equipment Photographs Model : Podz BL520 (Internal)

Podz RF Modules Last revised on: 19 th April, 2006 TRANSMITTER Left and Right channel audio signal first passes to an Audio Filter and Amplifier, and then mixes the local oscillation frequency from VCO Circuit in Mixer. (The local oscillator frequency is controlled by PPL (IC MCD8825B) Circuit and MCU). Then the mixed signal passes though a RF Amplifier and L.C. Filtering Circuit. Finally the RF signal is transmitted though a specified antenna. For left channel modulation, the local oscillator frequency uses 903.4 MHz (Channel 1), 902.6 MHz (Channel 2) and 904.2 MHz (Channel 3). For right channel modulation, the local oscillator uses 926.6 MHz (Channel 1), 925.8 MHz (Channel 2) and 927.4 MHz (Channel 3). Transmitter Block Diagram 531AP C2, C3, C74 ~ C78 L2, L10 C69 - C72, C79 ~ C81 L1, L9 Y1 (Clock of U11) 5.0 MHz KA358 KA358 FCC ID: T3ZBK-PODZ-TX 1 MCU is U3 531AP. Left Channel Audio Filter and Amplifier is formed by U1, R1, R2, R4 ~ R8, R11, C1, C4 ~ C9, C17, C83, C84 and VR1 Left Channel Mixer, VCO Circuit and PPL (IC MCD8825B) Circuit is formed by Q4, Q6, D6, C26 ~ C40, L4, L11 and R29 ~ R38. Left RF Amplifier is formed by Q8 and C69 ~ C72. Left LC Filtering Circuit is formed C69 ~ C72, C79 ~ C81, L1 and L9. Right Channel Audio Filter and Amplifier is formed by U1, R9, R10, R12 ~ R15, R26, C10 ~ C14, C21, C24, C25, C85 and VR Right Channel Mixer, VCO Circuit and PPL (IC MCD8825B) Circuit is formed by Q7, Q5, D5, C41 ~ C55, L5, L12 and R40 ~ R50. Right RF Amplifier is formed by Q9 and C74 ~ C78. Right LC Filtering Circuit is formed C2, C3, C74 ~ C78, L2 and L10. FCC ID: T3ZBK-PODZ-TX 2 FCC ID: T3ZBK-PODZ-TX 3 Antenna Location

TX.sch-1 - Thu Apr 13 15:02:37 2006 TX.sch-2 - Thu Apr 13 15:03:03 2006

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Advance Audio Concepts, Limited Application For Certification (FCC ID: T3ZBK-PODZ-TX) Transmitter 0606069 TC/el April 26, 2006 INTERTEK TESTING SERVICES FCC ID: T3ZBK-PODZ-TX i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: T3ZBK-PODZ-TX ii MEASUREMENT / TECHNICAL REPORT Advance Audio Concepts, Limited − MODEL: BROOKSTONE Podz BL520 FCC ID: T3ZBK-PODZ-TX April 26, 2006 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [04-05-05 Edition] provision. Report prepared by: Lo Po Kong, Alfred Intertek Testing Services 2/F., Garment Center, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8545 Fax: 852-2371-0914 INTERTEK TESTING SERVICES FCC ID: T3ZBK-PODZ-TX iii Table of Contents 1.0 General Description......................................................................................... 2 1.1 Product Description................................................................................... 2 1.2 Related Submittal(s) Grants ...................................................................... 2 1.3 Test Methodology...................................................................................... 3 1.4 Test Facility ............................................................................................... 3 2.0 System Test Configuration ............................................................................. 5 2.1 Justification ............................................................................................... 5 2.2 EUT Exercising Software .......................................................................... 5 2.3 Special Accessories .................................................................................. 5 2.4 Equipment Modification............................................................................. 6 2.5 Measurement Uncertainty ......................................................................... 6 2.6 Support Equipment List and Description ................................................... 6 3.0 Emission Results ............................................................................................. 8 3.1 Field Strength Calculation ......................................................................... 9 3.2 Radiated Emission Configuration Photograph ........................................ 11 3.3 Radiated Emission Data.......................................................................... 12 3.4 Conducted Emission Configuration Photograph...................................... 15 3.5 Conducted Emission Data....................................................................... 16 4.0 Equipment Photographs ............................................................................... 18 5.0 Product Labelling .......................................................................................... 20 6.0 Technical Specifications ............................................................................... 22 7.0 Instruction Manual ......................................................................................... 24 8.0 Miscellaneous Information ........................................................................... 26 8.1 Measured Bandwidth.............................................................................. 27 8.2 Discussion of Pulse Desensitization........................................................ 28 8.3 Calculation of Average Factor ................................................................. 29 8.4 Emissions Test Procedures .................................................................... 30 INTERTEK TESTING SERVICES FCC ID: T3ZBK-PODZ-TX iv List of attached file Exhibit Type File Description Filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.pdf Test Setup Photo Conducted Emission conducted photos.pdf Test Report Conducted Emission Test Result conducted.pdf Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.pdf Internal Photo Internal Photo internal photos.pdf Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label / Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: T3ZBK-PODZ-TX 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: T3ZBK-PODZ-TX 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a 900MHz stereo wireless transmitter for it corresponding speakers and using two discrete (left and right channel) radio …

Text truncated - open the document above for the full version.

Band edge Plot Report: 0606069 FCC ID: T3ZBK-PODZ-TX 1 Input: 15kHz audio signal modulation

INTERTEK TESTING SERVICE Report No: 0606069 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : Podz BL520 Fig.1 FCC ID: T3ZBK-PODZ-TX INTERTEK TESTING SERVICE Report No: 0606069 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : Podz BL520 Fig.2 FCC ID: T3ZBK-PODZ-TX

INTERTEK TESTING SERVICE Report No: 0606069 FCC ID: T3ZBK-PODZ-TX i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model : Podz BL520 INTERTEK TESTING SERVICE Report No: 0606069 FCC ID: T3ZBK-PODZ-TX ii Configuration Photographs Worst-Case Line-Conducted Emissions (Back View) Model : Podz BL520 INTERTEK TESTING SERVICE Report No: 0606069 FCC ID: T3ZBK-PODZ-TX iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model : Podz BL520

Report No.: 0606069 Transmit mode CH01 AC Mains Ctrl No.: PAGE 1 Tested By:Hong, Report No.:0606069 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 1 15 9k 30M EW0090 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A NA Report No.: 0606069 Transmit mode CH01 AC Mains Ctrl No.: NA Tested By:Hong, Report No.:0606069 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.39500 30.0 57.9 0.41500 30.3 57.6 Frequency AV Level AV Limit MHz dBuV dBuV no Results * limit Report No.: 0606069 Transmit mode CH03 AC Mains Ctrl No.: NA PAGE 1 Tested By:Hong, Report No.:0606069 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 1 15 9k 30M EW0090 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report No.: 0606069 Transmit mode CH03 AC Mains Ctrl No.: NA Tested By:Hong, Report No.:0606069 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.38500 30.1 58.1 0.41500 30.6 57.6 Frequency AV Level AV Limit MHz dBuV dBuV no Results * limit
