T4520152RF Receiver

LDL Technology S.A.S. : Société par Actions Simplifiée au capital de 506 720 € Siège social : Parc Technologique du Canal- 3 rue Giotto – 31520 Ramonville Saint Agne – RCS Toulouse 477 592 794 – Siret 477 592 794 000 36 – APE 7112 B – N° TVA Intracommunautaire : FR27 477 592 794 REGULATORY NOTICES MODIFICATION STATEMENT LDL Technology do not approve any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. LDL Technology n’approuve aucune modification apportée à l’appareil par l’utilisateur, quelle qu’en soit la nature. Tout changement ou modification peut annuler le droit d’utilisation de l’appareil par l’utilisateur. INTERFERENCE STATEMENT This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. RADIATION EXPOSURE STATEMENT This device complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS 102 of ‐the IC radio frequency (RF) Exposure rules. The antenna should be installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Le présent appareil est conforme à l'exposition aux radiations FCC / IC définies pour un environnement non contrôlé et répond aux directives d'exposition de la fréquence de la FCC radiofréquence (RF) et RSS 102 de la fréquence radio (RF) IC règles d'exposition. L'antenne ‐doit être installée de façon à garder une distance minimale de 20 centimètres entre la source de rayonnements et votre corps. L'émetteur ne doit pas être colocalisé ni fonctionner conjointement avec une autre antenne ou un autre émetteur. FCC CLASS B DIGITAL DEVICE NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help.

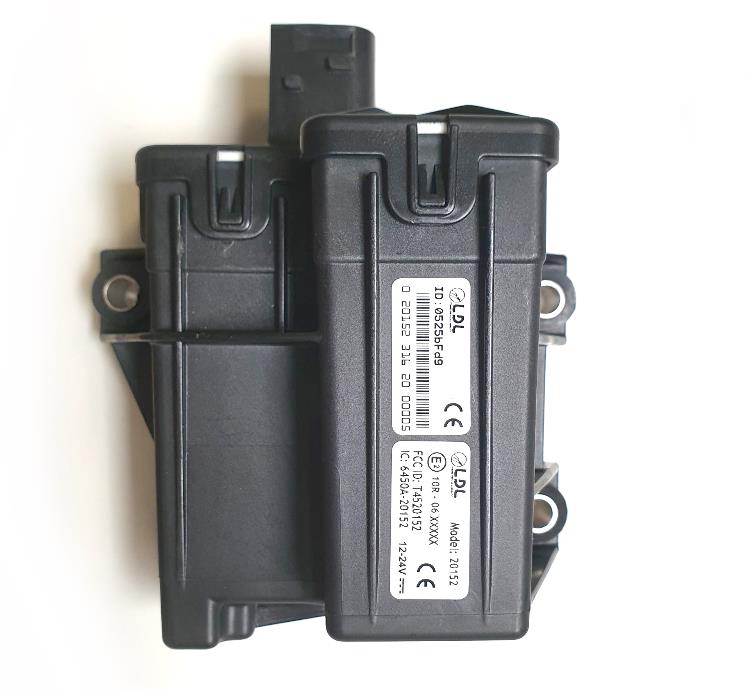

LABEL LOCATION

CONFIDENTIEL : Document propriété de LDL-Technology. Ne peut être reproduit ou transmis sans autorisation écrite CONFIDENTIAL: This document is the exclusive property of LDL-Technology. No content may be transmitted or reproduced without written permission

Trade Register Munich HRB 85742 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Managing Directors: Dr. Peter Havel (Sprecher / CEO) Dr. Jens Butenandt Patrick van Welij Phone: +49 (0) 9421 55 22-0 Fax: +49 (0) 9421 55 22-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany TÜV SÜD Product Service Report on the FCC and IC Testing of the LDL Technology S.A.S. RF Receiver Model: 20152 RCU Gen2 434 Autolocation S3P In accordance with FCC 47 CFR Part 15 C and ISED RSS-210 and ISED RSS-GEN Prepared for: LDL Technology S.A.S. Parc Technologique du Canal 3 rue Giotto 31520 Ramonville-Saint-Agne France FCC ID: T4520152 IC: 6450A-20152 COMMERCIAL-IN-CONFIDENCE Date: 2021-01-28 Document Number: TR-55559-02734-02 | Issue 2 RESPONSIBLE FOR NAME DATE SIGNATURE Project Management Alex Fink 2021-01-28 SIGN-ID 465040 Alex Fink Authorised Signatory Markus Biberger 2021-01-28 SIGN-ID 466136 Signatures in this approval box have checked this document in line with the requirements of TÜV SÜD Product Service document control rules. Engineering Statement: This measurement shown in this report were made in accordance with the procedures described on test pages. All reporded testing was carried out on a sample equipment to demonstrate limited compilance with with FCC 47 CFR Part 15 C and ISED RSS-210 and RSS-GEN. The sample tested was found to comply with the requirements defined in the applied rules. RESPONSIBLE FOR NAME DATE SIGNATURE Testing Alex Fink 2021-01-28 SIGN-ID 465040 Laboratory Accreditation DAkkS Reg. No. D-PL-11321-11-02 DAkkS Reg. No. D-PL-11321-11-03 Laboratory recognition Registration No. BNetzA-CAB-16/21-15 Industry Canada test site registration 3050A-2 Executive Statement: A sample of this product was tested and found to be compilant with FCC 47 CFR Part 15 C:2019 and ISED RSS-210:2020 and RSS-GEN:2019 DISCLAIMER AND COPYRIGHT This non-binding report has been prepared by TÜV SÜD Product Service with all reasonable skill and care. The document is confidential to the po- tential Client and TÜV SÜD Product Service. No part of this document may be reproduced without the prior written approval of TÜV SÜD Product Service. © 2021 TÜV SÜD Product Service. ACCREDITATION Our BNetzA Accreditation does not cover opinions and interpretations and any expressed are outside the scope of our BNetzA Accreditation. Document Number: TR-55559-02734-02 | Issue 2 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 1 of 39 Content 1 Report Summary.............................................................................................................................. 2 1.1 Modification Report .................................................................................................................. 2 1.2 Introduction .............................................................................................................................. 2 1.3 Brief Summary of Results ........................................................................................................ 3 1.4 Product Information ................................................................................................................. 4 1.5 EUT Modifications Record ....................................................................................................... 5 1.6 Test Location ........................................................................................................................... 5 2 Test Details ...................................................................................................................................... 6 2.1 Bandwidth of Momentary Signals ............................................................................................ 6 2.2 Periodic Operation Requirement ........................................................................................... 11 2.3 Temperature Stability ............................................................................................................ 15 2.4 Radiated emissions ............................................................................................................... 18 2.5 RF Exposure .......................................................................................................................... 30 3 Measurement Uncertainty ............................................................................................................. 38 Annex to Test Report TR-55559-02734-02 | Issue: 01 5 pages Document Number: TR-55559-02734-02 | Issue 2 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 2 of 39 1 Report Summary 1.1 Modification Report Alternations and additions of this report will be issued to the holders of each copy in the form of a com- plete document. Issue Description of changes Date of Issue 1 First Issue 2021-01-20 2 test results for 125 kHz transmitter added 2021-01-28 Table 1: Report of Modifications 1.2 Introduction Applicant LDL Technology S.A.S. Manufacturer LDL Technology S.A.S. Model Number(s) 20152 RCU GEN2 434 AUTOLOCATION S3P Serial Number(s) 0525bFba 0525bFbd Hardware Version(s) --- Software Version(s) --- Number of Samples Tested 1 Test Specification(s) / Issue / Date FCC 47 CFR Part 15 C: 2019 ISED RSS-210, Issue 10, Amendment 1: 2020 ISED RSS-GEN, Issue 5, Amendment 1: 2019 Test Plan/Issue/Date --- Order Number Date CD20982 2020-11-24 Date of Receipt of EUT 2020-12-03 Start of Test 2021-01-05 Finish of Test 2021-01-28 Name of Engineer(s) Alex Fink Related Document(s) ANSI C63.4: 2014 ANSI C63.10: 2013 FCC 47 CFR Part 2 J: 2019 KDB 558074 D01 V05R02 ISED RSS-102, Issue 5, 2015 Document Number: TR-55559-02734-02 | Issue 2 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 3 of 39 1.3 Brief Summary of Results A brief summary of the tests carried out in accordance with FCC 47 CFR Part 15 C, ISED RSS-210 and ISED RSS-GEN is shown below. Section Specification Clause Test De…

Text truncated - open the document above for the full version.

Test Setup +
