T5703020RF Toy

a b Ages 4+ Item no. 03020 Rocking RC Black Pearl Instructions Out of the Box: Remove Rocking RC Black Pearl from the box, carefully collecting and disposing of the packaging properly. Package Contents: - Rocking RC Black Pearl - Skull Remote - Jack Sparrow Figure - Barrel - Cannon Read instructions before use, and keep for future reference. IMPORTANT BATTERY INFORMATION: CAUTION: As with all small batteries, the batteries used with this toy should be kept away from small children. If they are swallowed, promptly see a doctor and have the doctor phone the poison control center. Make sure that batteries are inserted correctly and follow the toy and battery manufacturer's instructions. - The Rocking RC Black Pearl uses four (4) AA / LR6 1.5V batteries and the Skull Remote uses one (1) 9V/6LR61 9V battery. - When replacing, replace all four (4) of the RC Black Pearl’s batteries at the same time. - Do not mix old and new batteries. - Do not mix alkaline, standard or rechargeable batteries. - Do not dispose of used batteries in a fire. This could cause the batteries to explode. - Battery installation should be done by an adult. - Non-rechargeable batteries are not to be recharged. - Rechargeable batteries are to be removed from the toy before being charged (if removable). - Rechargeable batteries are only to be charged under adult supervision (if removable). - Different types of batteries or new and used batteries are not to be mixed. - Batteries are to be inserted with the correct polarity. - Exhausted batteries are to be removed from the toy. - The supply terminals are not to be short-circuited. - Replace with new batteries at the first sign of erratic operation. INFORMATION TO USER: Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Carrier frequency: 27.145 MHz, Field strength: 72.6dBuV/m at 3m. This radiocommunication device complies with all the requirements of Industry Canada Standard RSS-310. Ce dispositif de radiocommunication rencontre toutes les exigences de la norme CNR-310 d'Industrie Canada. Meets requirements of European Council Directives 99/5/EC.89/336/EEC,88/378/EEC, suitable for use in all EU member states. Battery Installation: Caution! Always have an adult perform the battery installation. 1) Using a Phillips head (cross-head) screwdriver, remove the battery covers located on the bottom of the ship and the back of the skull remote. 2) Insert 4 new AA/LR6 1.5V batteries (not included) into the ship and 1 9V/6LR61 battery (not included) into the skull remote. Make sure you install the batteries according to the correct polarity. 3) Replace the battery covers. To Activate the Rocking RC Black Pearl: 1) To turn the RC Black Pearl ON, flip the switch located on the back of the ship to the left. 2) Point the skull remote towards the RC Black Pearl and press in one of the skull’s eyes. a. To make the ship move forward, press the skull’s left eye. (a) b. To make the ship change directions, press the skull’s right eye. (b) c. The RC Black Pearl can move on low cut carpeting and hard floor surfaces. 3) To turn the RC Black Pearl OFF, flip the switch located on the back of the ship to its original position. Note: The Rocking RC Black Pearl is not intended for water play. Rocking RC Black Pearl Assembly: 1) Place bow sprit into corresponding areas on the front of the ship. 2) Place each anchor into the designated places on the sides of the front of the ship. 3) Place the steering wheel and railing piece into the corresponding holes on the upper deck of the ship. 4) Assemble the front mast: A) Snap one of the two largest sails onto the second tallest mast. The sail should snap in between the bottom two notches on the mast. B) Slide the sail with the longest rigging line attached to it onto the mast. This sail should slide down until it rests above the top notch on the mast. C) Place the entire mast into its designated location on the front deck of the ship. D) Attach rigging line to the bow sprit. 5) Assemble the middle mast: A) Snap the ratlines onto the tallest mast. The ratlines should snap together directly under the crow’s nest. The piece that extends out where the ratlines connect should be facing towards the front of the ship. B) Snap the ratline holder onto the piece that extends out where the ratlines connect. C) Take o…

Text truncated - open the document above for the full version.

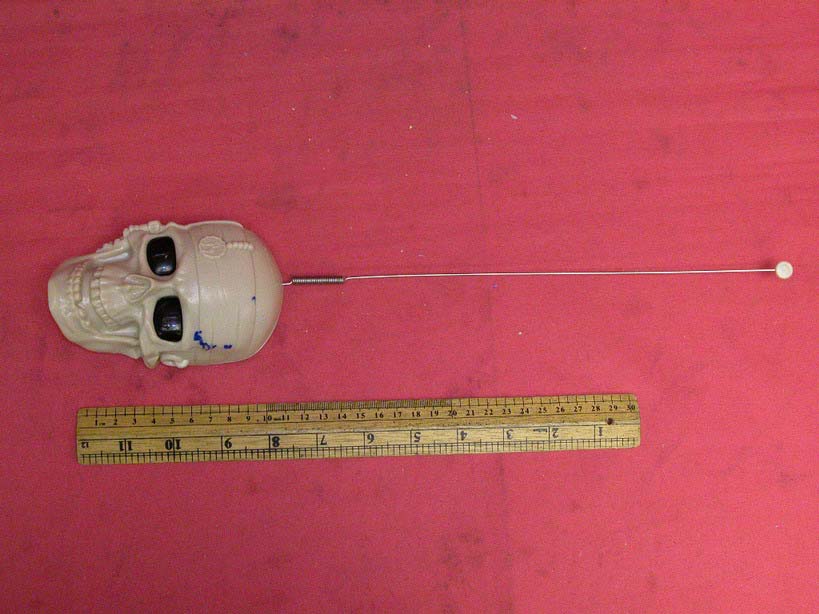

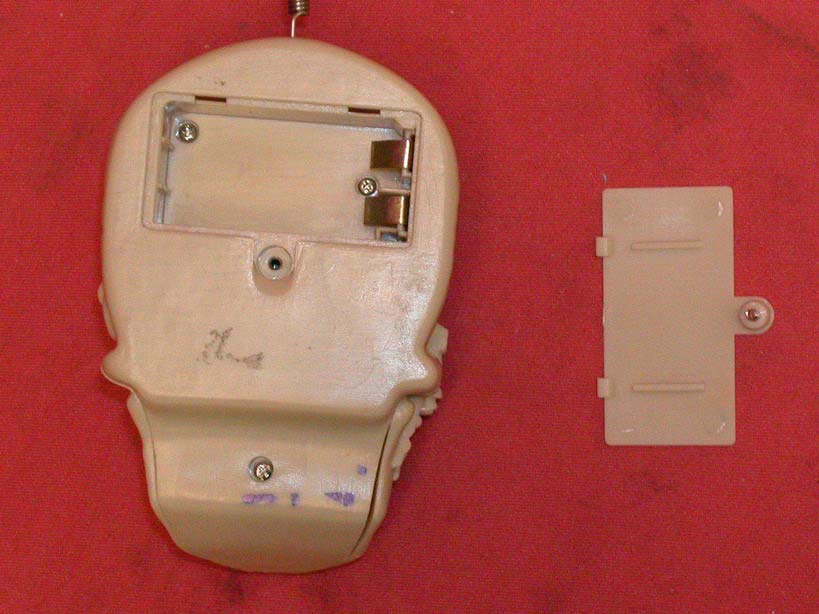

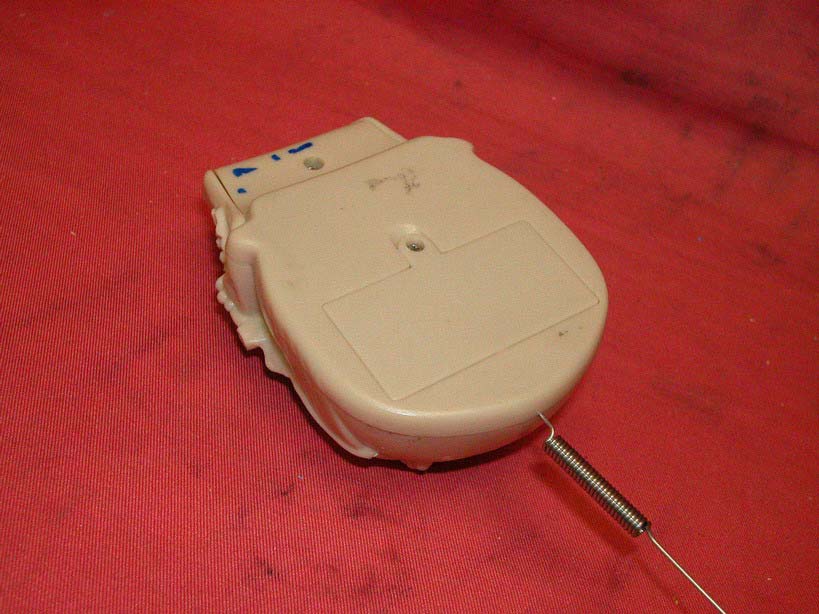

FCC ID: T5703020 Ophoto1 Ophoto2 FCC ID: T5703020 Ophoto3 Ophoto4

FCC ID: T5703020 Iphoto1 Iphoto2 FCC ID: T5703020 Iphoto3 Iphoto4 FCC ID: T5703020 Iphoto5 Iphoto6

FCC ID: T5703020 Technical Description : The brief circuit description is listed as follows : - Q2, Q3 and associated circuit act as RF Amplifier and Modulator. - Q1, Y1 and associated circuit act as 27.145 MHz Oscillator. - U1 TL35018 acts as Encoder. - S1 and S2 act as Control Keys. - Z1 and associated circuit act as Voltage Regulator. Antenna Used : An integral antenna (non-extendable) has been used.

03020TX27MB1.sch-1 - Wed Apr 18 08:18:23 2007

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : T5703020 Zizzle (Hong Kong) Ltd. Application For Certification (FCC ID: T5703020) Transmitter Sample Description : RC Black Pearl Model : 03020 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [4-5-2005] 0702706 AC/at May 2, 2007 INTERTEK TESTING SERVICES FCC ID: T5703020 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1 : General Description EXHIBIT 2 : System Test Configuration EXHIBIT 3 : Emission Results EXHIBIT 4 : Equipment Photographs EXHIBIT 5 : Product Labelling EXHIBIT 6 : Technical Specifications EXHIBIT 7 : Instruction Manual EXHIBIT 8 : Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: T5703020 ii MEASUREMENT/TECHNICAL REPORT Zizzle (Hong Kong) Ltd. - MODEL: 03020 FCC ID: T5703020 May 2, 2007 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [4-5- 2005 Edition] provision. Report prepared by: Chan Kar Ming, Anthony Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8517 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: T5703020 iii Table of Contents 1.0 General Description .................................................................................................. 2 1.1 Product Description ............................................................................................... 2 1.2 Related Submittal(s) Grants .................................................................................. 2 1.3 Test Methodology.................................................................................................. 3 1.4 Test Facility........................................................................................................... 3 2.0 System Test Configuration ....................................................................................... 5 2.1 Justification............................................................................................................ 5 2.2 EUT Exercising Software....................................................................................... 5 2.3 Special Accessories .............................................................................................. 5 2.4 Equipment Modification ......................................................................................... 6 2.5 Support Equipment List and Description................................................................ 6 3.0 Emission Results ...................................................................................................... 8 3.1 Field Strength Calculation...................................................................................... 9 3.1 Field Strength Calculation (cont’d)....................................................................... 10 3.2 Radiated Emission Configuration Photograph ..................................................... 11 3.3 Radiated Emission Data ...................................................................................... 12 4.0 Equipment Photographs ......................................................................................... 15 5.0 Product Labelling .................................................................................................... 17 6.0 Technical Specifications ......................................................................................... 19 7.0 Instruction Manual .................................................................................................. 21 8.0 Miscellaneous Information ..................................................................................... 23 8.1 Measured Bandwidth........................................................................................... 24 8.2 Discussion of Pulse Desensitization .................................................................... 25 8.3 Calculation of Average Factor ............................................................................. 26 8.4 Emission Test Procedures .................................................................................. 27 8.4 Emission Test Procedures (Cont’d) ..................................................................... 28 INTERTEK TESTING SERVICES FCC ID: T5703020 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Average Factor af.pdf INTERTEK TESTING SERVICES FCC ID: T5703020 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: T5703020 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a transmitter for a RC toy ship operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by a 9V battery. The EUT has…
