T570310049ARC Car

1 Ages 6+ Item no. 03111 / 03112 / 03113 / 03114 / 03115 / 03116 Gut Wrencher Instructions Out of the Box: Remove Gut Wrencher from the box, carefully collecting all small pieces to be disposed of properly. Package Contents: - Gut Wrencher R/C vehicle - Gut Wrencher transmitter - 1 x 9.6V Rechargeable battery pack (optional for 03113 / 03114 / 03116) - 1 x AC adaptor (optional for 03113 / 03114 / 03116) - 1 x 9 V Battery (optional for 03113 / 03114 / 03116) Read instructions before use, and keep for future reference. OPERATING INSTRUCTIONS: - Use only fresh battery and battery pack of required size and type. How to Install Batteries: Caution! Always have an adult perform the battery installation. 1) Once removed from the box, flip Gut Wrencher over to access the battery compartment. Using a Philips-head screwdriver, unscrew the battery compartment cover and insert 9.6V Rechargeable Battery Pack (optional for 03113 / 03114 / 03116) Carefully attach the connector of the battery to the connector of the car (see inset). Please make sure that two pieces fit firmly together. Replace the cover and tighten the screw. 2) Next unscrew the battery compartment on the back of the transmitter and insert the 9V battery (optional for 03113 / 03114 / 03116). GETTING STARTED: Slide ‘On’ the power switch located on the side of Gut Wrencher and you are ready to thrash. HOW TO DRIVE: CONTROLS: The Front and Rear wheels of Gut Wrencher are controlled independently, giving you more control and the ability to make quicker turns. - To move FORWARD push left lever forward - To move BACKWARDS pull left lever backward - To turn LEFT push both levers forward - To turn RIGHT push left lever forward and right lever backward - For LEFT SPINNING press the TURBO button and push right lever forward - For RIGHT SPINNING press the TURBO button and push right lever backward For optimal driving in a straight line, please try backing up first. It will help align the car appropriately. CAUTION: If Gut Wrencher gets stuck under an object, immediately release the control levers on the transmitter, then retrieve the vehicle. MASTER ALL THE MOVES!: Here is a guide to help you master some of the tricks using different combinations of moving levers and buttons. Watch out it will be INSANE! 1. TRACTION TWIST - This is the ultimate! Drive the vehicle forward and try to spin it at the same time! Turn LEFT BACKWARDS by pushing the left lever backward and pull the right lever FORWARD while hitting the TURBO button! This should give you maximum power to allow Gut Wrencher to flip and move so you can master the TRACTION TWIST. Try it doing the RIGHT FORWARD moves for another variation. 2. BODY SHAKIN TREMOR - Wiggle it from side to side in slow motion! While moving the car FORWARD try to get the body of the car to move side to side by moving the RIGHT lever back and forth. It takes a certain kind of precision but it SO COOL! 3. REVERSE ROTATOR - Watch it crank around and around! Hit the TURBO button while moving the RIGHT lever up or down. This will give Gut Wrencher its trademark spin action! Now that you have mastered these tricks you need to come up your own! Good Luck! NOTE TO ADULTS: - Remove rechargeable battery pack before recharging. The battery charger should be operated only under supervision. - Regularly examine for damage to the plug, the unit , charger ,enclosure and other parts periodically. - In case there is any damage, the toy must not be used until that damage has been properly repaired. - This toy is not intended for children under 6 years old. The battery charger is not a toy. CARE AND USE MAINTENANCE: - Brush areas where dirt and dust get trapped. - Clean the unit with a soft, damp cloth. - Please do not put the unit in direct sunlight or near any source of heat. - Please remove the battery pack from vehicle and transmitter if you won’t be using the unit for a long period of time. - Do not use any chemical solvent to clean the unit. - Do not spill anything on the unit. - Do not immerse in water. SAFETY Adults, this toy is recommended for children age 6 years and older, Please review all operating instruction and safety guidelines. - Do not remove warm or hot battery packs. Wait 20 min. until battery pack has cooled. Recharging too early will shorten battery pack life. - Recharging near fire or high temperature is dangerous. - Do not recharge battery packs that show wear or leakage. - Always unplug battery pack when not in use. - Do not dispose of battery pack in fire, explosion or personal injury may occur. - Dispose of battery packs properly, do not disassemble. - Always remove battery pack from vehicle before charging. - Do not use charger for any use other than instructed in directions. Operating and caring for Gut Wrencher - Do not drive vehicle on streets! Streets are for real cars only. - Do not pick up vehicle while in motion. - Keep fingers, hair and loose clothing away from the tires and the wheel hubs while the vehicle is switched ON. - Adult supervision is recommended when this vehicle is being operated. - To avoid accidental operation, remove all batteries when not in use. - Always operate your vehicle within a range of 50 feet from you. - Always store your vehicle in a cool, dry place and off of painted or varnished surfaces. - Keep vehicle away from wet surfaces or rain. If your vehicle ACCIDENTALLY gets wet and stops running. Let it dry overnight before trying to run it again. CAUTION 1) Radio interference can be caused by the presence of other radio-controlled vehicles operation on the same frequency as your vehicle. 2) Radio interference can be caused by the operation of your vehicle near high voltage electrical wires, large steer reinforced concrete buildings and passing trucks with CB radios. 3) DO NOT operate your vehicle over wet surfaces. Water can damage the internal electronic assemblies. 4) For best results, hold antenna up, not pointed down toward the R/C vehicle. Too far away from the transmit…

Text truncated - open the document above for the full version.

TX BLOCK DIAGRAM.sch-1 - Fri Jun 16 03:02:07 2006

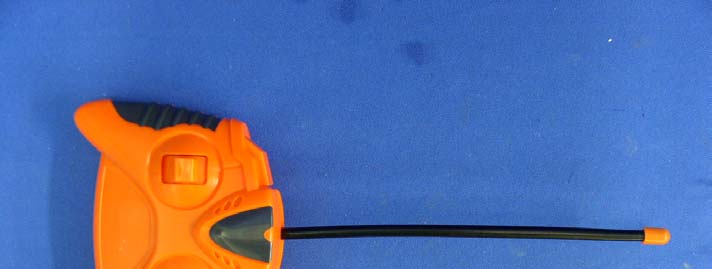

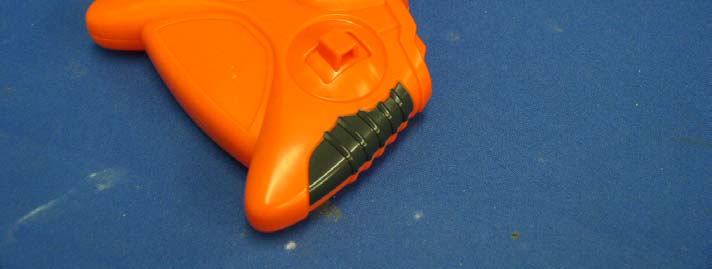

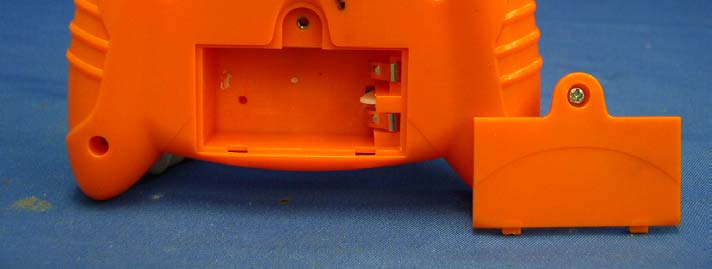

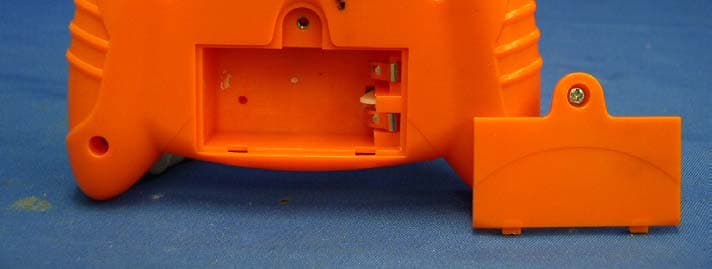

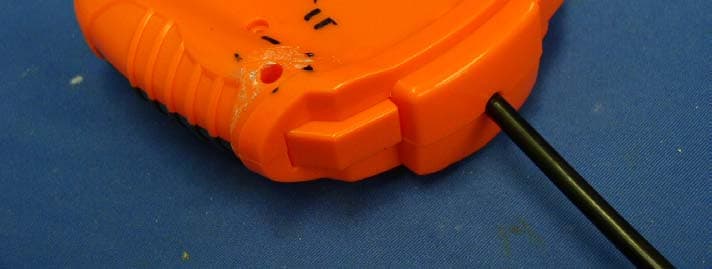

FCC ID: T570310049A Ophoto1 Ophoto2 FCC ID: T570310049A Ophoto3 Ophoto4

FCC ID: T570310049A Iphoto1 Iphoto2 FCC ID: T570310049A Iphoto3 Iphoto4 FCC ID: T570310049A Iphoto5 Iphoto6 FCC ID: T570310049A Iphoto7 Iphoto8

FCC ID: T570310049A Technical Description : The brief circuit description is listed as follows : - X1 and associated circuit act as 49.860 MHz Oscillator. - U1 acts as Encoder, Modulator and Amplifier. - Z1, Q2 and associated circuit act as Voltage Regulator. - T1, C8 and C9 act as Low Pass Filter. - LEFT, RIGHT, FORWARD, BACK and TURBO act as Control Keys. Antenna Used : An integral antenna (non-extensible) has been used.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : T570310049A Zizzle Hong Kong Limited Application For Certification (FCC ID: T570310049A) Transmitter Sample Description : Gut Wrencher R/C Assortment [03100(03113/03114) Without Battery & Charger/03100(03111/03112) With Battery & Charger] Model : 03112/03114 Asst. No. : 03100/03101 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [4-5-2005] 0609485 AC/at June 22, 2006 INTERTEK TESTING SERVICES FCC ID: T570310049A i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: T570310049A ii MEASUREMENT/TECHNICAL REPORT Zizzle Hong Kong Limited - MODEL: 03112/03114 FCC ID: T570310049A June 22, 2006 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [4-5- 2005 Edition] provision. Report prepared by: Chan Kar Ming, Anthony Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8517 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: T570310049A iii Table of Contents 1.0 General Description................................................................................................ 2 1.1 Product Description ............................................................................................. 2 1.2 Related Submittal(s) Grants................................................................................. 2 1.3 Test Methodology................................................................................................ 3 1.4 Test Facility ......................................................................................................... 3 2.0 System Test Configuration..................................................................................... 5 2.1 Justification.......................................................................................................... 5 2.2 EUT Exercising Software ..................................................................................... 5 2.3 Special Accessories............................................................................................. 5 2.4 Equipment Modification ....................................................................................... 6 2.5 Support Equipment List and Description .............................................................. 6 3.0 Emission Results .................................................................................................... 8 3.1 Field Strength Calculation .................................................................................... 9 3.1 Field Strength Calculation (cont’d) ..................................................................... 10 3.2 Radiated Emission Configuration Photograph .................................................... 11 3.3 Radiated Emission Data .................................................................................... 12 4.0 Equipment Photographs ....................................................................................... 15 5.0 Product Labelling .................................................................................................. 17 6.0 Technical Specifications....................................................................................... 19 7.0 Instruction Manual ................................................................................................ 21 8.0 Miscellaneous Information................................................................................... 23 8.1 Measured Bandwidth......................................................................................... 24 8.2 Discussion of Pulse Desensitization................................................................... 25 8.3 Calculation of Average Factor ............................................................................ 26 8.4 Emission Test Procedures ................................................................................ 27 8.4 Emission Test Procedures (Cont’d).................................................................... 28 INTERTEK TESTING SERVICES FCC ID: T570310049A iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Average Factor af.pdf INTERTEK TESTING SERVICES FCC ID: T570310049A 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: T570310049A 2 1.0 General Description 1.1 Product Description The equipment u…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Front View Back View
