T5O-BUOYTXBeacon Buoy Transmitter

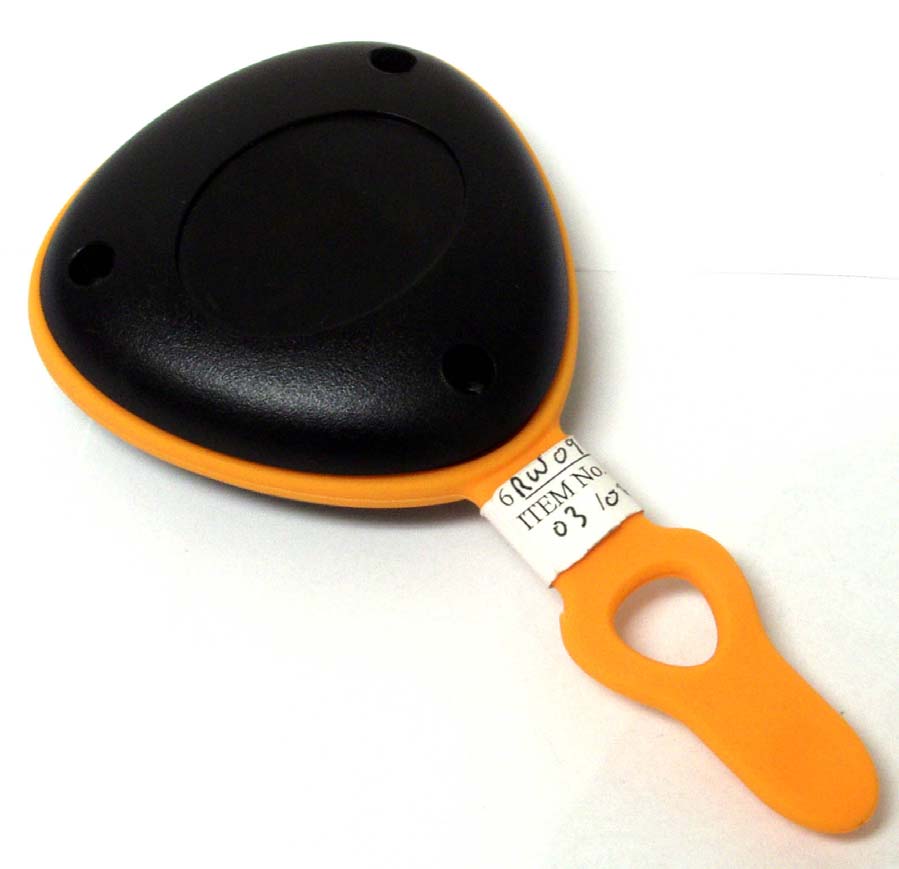

B B E E A A C C O O N N B B U U O O Y Y / / G G L L O O W W B B U U O O Y Y REMOTE CONTROL ON/OFF KEY FOB TRANSMITTER U U S S E E R R M M A A N N U U A A L L : : Congratulations, your purchase of the KL Industries Remote Control On/Off Key Fob Transmitter for the BeaconBuoy and/or GlowBuoy will add tremendous functionality and convenience to your light for years to come. I I n n s s t t r r u u c c t t i i o o n n s s : : 1) Remove the three Screws located on the back of the device and put aside in a safe place. 2) Remove the Key Fob Transmitter Back Plate and Gasket. 3) Insert battery provided, making sure that the polarity is correct. 4) Test the Key Fob Transmitter by turning the switch on your GlowBuoy or BeaconBuoy to the ‘On’ position and activating the ‘Off’ switch on the Key Fob to make sure that the battery has been properly inserted and that the light then turns off. 5) With proper operation confirmed, replace the Gasket, Back Plate and three Screws making sure that the Screws are snug, but not over tightened. T T r r o o u u b b l l e e s s h h o o o o t t i i n n g g a a n n d d R R e e p p a a i i r r : : 1) Key Fob does not work. - Check to make sure that the GlowBuoy or BeaconBuoy is charged and that the switch is in the ‘On’ position. - Check to make sure that the Key Fob battery is charged. - Check to make sure that the Gasket seal is secure and that there is no water inside the unit. (Salt water poses the greatest risk). R R E E S S I I D D E E N N T T I I A A L L E E Q Q U U I I P P M M E E N N T T C C L L A A S S S S B B D D I I G G I I T T A A L L D D E E V V I I C C E E I I N N F F O O R R M M A A T T I I O O N N T T O O U U S S E E R R This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turn- ing the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Manufactured for and Imported by KL Industries, Inc., 1790 Sun Dolphin Drive • Muskegon, MI 49444 USA phone 231-733-2725 • fax 231-739-4502 • email [email protected] • website www.glowbuoy.com www.beaconbuoy.com B B E E A A C C O O N N B B U U O O Y Y / / G G L L O O W W B B U U O O Y Y REMOTE CONTROL ON/OFF KEY FOB TRANSMITTER U U S S E E R R M M A A N N U U A A L L : : Congratulations, your purchase of the KL Industries Remote Control On/Off Key Fob Transmitter for the BeaconBuoy and/or GlowBuoy will add tremendous functionality and convenience to your light for years to come. I I n n s s t t r r u u c c t t i i o o n n s s : : 1) Remove the three Screws located on the back of the device and put aside in a safe place. 2) Remove the Key Fob Transmitter Back Plate and Gasket. 3) Insert battery provided, making sure that the polarity is correct. 4) Test the Key Fob Transmitter by turning the switch on your GlowBuoy or BeaconBuoy to the ‘On’ position and activating the ‘Off’ switch on the Key Fob to make sure that the battery has been properly inserted and that the light then turns off. 5) With proper operation confirmed, replace the Gasket, Back Plate and three Screws making sure that the Screws are snug, but not over tightened. T T r r o o u u b b l l e e s s h h o o o o t t i i n n g g a a n n d d R R e e p p a a i i r r : : 1) Key Fob does not work. - Check to make sure that the GlowBuoy or BeaconBuoy is charged and that the switch is in the ‘On’ position. - Check to make sure that the Key Fob battery is charged. - Check to make sure that the Gasket seal is secure and that there is no water inside the unit. (Salt water poses the greatest risk). R R E E S S I I D D E E N N T T I I A A L L E E Q Q U U I I P P M M E E N N T T C C L L A A S S S S B B D D I I G G I I T T A A L L D D E E V V I I C C E E I I N N F F O O R R M M A A T T I I O O N N T T O O U U S S E E R R This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which c…

Text truncated - open the document above for the full version.

FCC Part 15 Subpart C, 15.231 : February 2005 Test Report: 6W59398.4 Applicant: KL Industries Inc. 1790 Sun Dolphin Drive Muskegon, MI 49444 USA Apparatus: BeaconBuoy (M/N: 91000 and 91001) FCC ID: T5O-BuoyTX In Accordance With: FCC Part 15 Subpart C, 15.231 Periodic operation in the band 40.66-40.70MHz and above 70 MHz. Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Jin Xu, Wireless Specialist Date: April 26, 2006 Total Number of Pages: 19 Nemko Canada Inc. REPORT SUMMARY Report Number: 6W59398.4 FCC ID: T5O-BuoyTX Specification: FCC Part 15 Subpart C, 15.231 Page 2 of 19 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C. Radiated tests were conducted in accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: BeaconBuoy (M/N: 91000 and 91001) Specification: FCC Part 15 Subpart C, 15.231 Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: Jason Nixon, Telecom Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Nemko Canada Inc. REPORT SUMMARY Report Number: 6W59398.4 FCC ID: T5O-BuoyTX Specification: FCC Part 15 Subpart C, 15.231 Page 3 of 19 TABLE OF CONTENTS Report Summary......................................................................................................................................... 2 Section 1 : Equipment Under Test............................................................................................................. 4 1.1 Product Identification .................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.3 Theory of Operation ...................................................................................................................................4 1.4 Technical Specifications of the EUT ..........................................................................................................4 Section 2 : Test Conditions......................................................................................................................... 5 2.1 Specifications .............................................................................................................................................5 2.2 Deviations From Laboratory Test Procedures ............................................................................................5 2.3 Test Environment .......................................................................................................................................5 2.4 Test Equipment...........................................................................................................................................5 Section 3 : Observations ............................................................................................................................. 6 3.1 Modifications Performed During Assessment ............................................................................................6 3.2 Record Of Technical Judgements ...............................................................................................................6 3.3 EUT Parameters Affecting Compliance .....................................................................................................6 3.4 Test Deleted................................................................................................................................................6 3.5 Additional Observations .............................................................................................................................6 Section 4 : Results Summary ..................................................................................................................... 7 4.1 FCC Part 15 Subpart C : Test Results ........................................................................................................8 Appendix A : Test Results .......................................................................................................................... 9 Clause 15.209(a) Radiated Emissions within Restricted Bands ............................................................................9 Clause 15.231(a) Conditions for intentional radiators to comply with periodic operation ..................................11 Clause 15.231(b) Radiated Emissions .................................................................................................................12 Clause 15.231(c) 20dB Bandwidth ......................................................................................................................16 Appendix B : Setup Photographs ............................................................................................................ 17 Appendix C : Block Diagram of Test Setups .......................................................................................... 19 Nemko…

Text truncated - open the document above for the full version.
