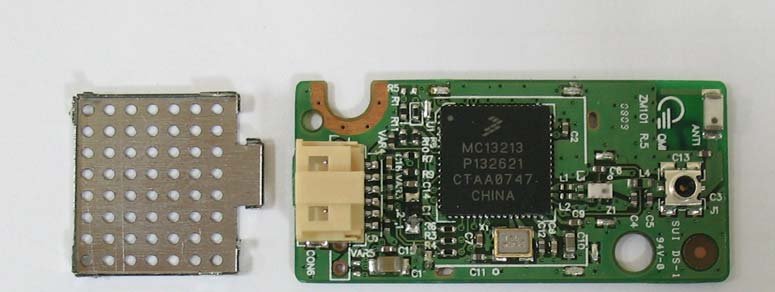

T5U-ZM101IEEE 802.15.4 transceivers Module

Quanta Microsystems Inc. ZM101 module operation manual-RF mode Quanta Microsystems, Inc. Subject: ZM10 operation manual-RF mode Rev: 0.2 Doc No. OP_ZM10X-1 Revised Date: 2008/03/28 Page: 2 of 10 QMI PROPERTY & CONFIDENTIAL! 2 Reason for Release： Revision Effective Date Author Description of Changes 0.1 03/28/2008 Samuel Wang Modified from OP_ZM100-1 Quanta Microsystems, Inc. Subject: ZM101 operation manual-RF mode Rev: 0.2 Doc No. OP_ZM10X-1 Revised Date: 2008/03/28 Page: 3 of 10 QMI PROPERTY & CONFIDENTIAL! 3 1. Adaptor board connection and setup „ Power IN (+2.7~+3.3Vdc) ‹ USB plug in: ― J_USB should be selected as USB PWR IN mode ― USB +5V Æ LDOÆPower in ‹ RCA Jack plug in: ― J_DC should be 2-3 pin short. ― Use a +4~7V(inner) DC adaptor plug in CON_RCAÆ LDOÆPower in ‹ Pin header plug in: ― Use other power source(such as power supply) ― Supply +2.7~+3.3V and plug in by J_3V pin headerÆPower in Fig1.1 Adaptor board and DUT test setup Quanta Microsystems, Inc. Subject: ZM10 operation manual-RF mode Rev: 0.2 Doc No. OP_ZM10X-1 Revised Date: 2008/03/28 Page: 4 of 10 QMI PROPERTY & CONFIDENTIAL! 4 „ Adaptor board placement and jumper selection ‹ J_CURRENT: For DC current measurement use; Default is short by Jumper. ‹ J_DC: DC input selection ― 1-2 Short by Jumper : Use USB +5VÆLDOÆ3.3V ― 2-3 Short by Jumper : Use RCA Jack ― Open : Use J_3V pin header ‹ CN USB: Insert USB A-type cable connect to USB host to provide +5Vdc. ‹ CN_RCA : Provide +4~7Vdc by RCA Jack. ‹ J_3V : Provide +2.7~3.3V by pin header, positive port are marked in square. ‹ CN9 : D-SUB9 for UART console. ‹ CON4 : insert 4-wire cable connect to DUT for FW download. ‹ CON6 : insert 6-wire cable connect to DUT for RF testing. Quanta Microsystems, Inc. Subject: ZM101 operation manual-RF mode Rev: 0.2 Doc No. OP_ZM10X-1 Revised Date: 2008/03/28 Page: 5 of 10 QMI PROPERTY & CONFIDENTIAL! 5 ‹ „ FW download ‹ Connect 4pin connector to adaptor and use USB multi-link or programmer download, 2X3 pin header pin1 are marked in square. ‹ Open OS hyper terminal as a com port used „ UART connection ‹ Use a D-SUB9 cable connects to PC com port ‹ Open OS hyper terminal as a com port used ‹ Set properties as following Fig 1.1 Hyper terminal COM port settings Quanta Microsystems, Inc. Subject: ZM101 operation manual-RF mode Rev: 0.2 Doc No. OP_ZM10X-1 Revised Date: 2008/03/28 Page: 6 of 10 QMI PROPERTY & CONFIDENTIAL! 6 Fig 1.2 Hyper terminal Properties settings Quanta Microsystems, Inc. Subject: ZM101 operation manual-RF mode Rev: 0.2 Doc No. OP_ZM10X-1 Revised Date: 2008/03/28 Page: 7 of 10 QMI PROPERTY & CONFIDENTIAL! 7 Fig 1.3 ASCII setup After finished above item, connect DUT and adaptor board by 6pin wire connection. Then it will be operating as RF test mode Quanta Microsystems, Inc. Subject: ZM101 operation manual-RF mode Rev: 0.2 Doc No. OP_ZM10X-1 Revised Date: 2008/03/28 Page: 8 of 10 QMI PROPERTY & CONFIDENTIAL! 8 2. RF test mode application „ Channel selection ‹ Set channel ― Select character “1,2,3....,f,g to set channel 1~16 Quanta Microsystems, Inc. Subject: ZM101 operation manual-RF mode Rev: 0.2 Doc No. OP_ZM10X-1 Revised Date: 2008/03/28 Page: 9 of 10 QMI PROPERTY & CONFIDENTIAL! 9 ‹ Set output power ― Default power: -0.66dBm (select character “n”) Quanta Microsystems, Inc. Subject: ZM101 operation manual-RF mode Rev: 0.2 Doc No. OP_ZM10X-1 Revised Date: 2008/03/28 Page: 10 of 10 QMI PROPERTY & CONFIDENTIAL! 10 ‹ Set operation mode ― Select character “v,w,x...r,s” for operation mode After you finished testing, you can select character “t” to go back to main manual. If you can not go back to main manual (ex. DUT on sleep mode); it shall be power off then power on DUT to go back to main manual. 11 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device is intended only for OEM integrators under the following conditions: 1. The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2. The transmitter module may not be co-located with any other transmitter or antenna, IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop conf…

Text truncated - open the document above for the full version.

RF_734_00, Issue 1 Modular Approval Request FCC (per DA 00-1407) FCC ID: T5U-ZM101______ Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. Yes 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Yes 3. The modular transmitter must have its own power supply regulation. Yes 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. Yes 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Yes 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. YES 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. yes 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. yes Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): Stanly Cheng_______ RF_734_00, Issue 1 Date: __2008-4-7___ Signature:

Project No.: R0803007 Page 2 of 4 Neutron Engineering Inc. R0803007 R0803007 Project No.: R0803007 Page 2 of 4 Neutron Engineering Inc. R0803007 R0803007 Project No.: R0803007 Page 4 of 4 Neutron Engineering Inc. R0803007 Project No.: R0803007 Page 3 of 4 Neutron Engineering Inc. R0803007 R0803007 Project No.: R0803007 Page 3 of 4 Neutron Engineering Inc. R0803007 R0803007

E Toleranceunlessotherwisespecified ClassAgradeBgrade CgradeDgrade 0~10±0.05±0.1±0.3±1.0 10~50±0.1 ±0.2±0.5±1.5 50~250±0.2 ±0.3±0.8±2.0 250~500±0.5±1.2±3.0 ANGLE±1/2°±1° DOC./No. REV.DATEISSUEDDATE PAGE/OFVERSION TITLE: PART NO.:REV. 1.0 UNITMM SCALE1/1Q'TY1 SHEET 1OF1DATE MATERIALDRAWNDATE Vickyku 18-MAR-08 HEATTREATMENTCHECKEDDATE * Vickyku 18-MAR-08 SURFACETREATMENTAPPROVEDDATE BakingVarnish FILENAME: ~ ~ ~ ZM101 Quanta Microsystems Inc, MAC ID for end code8 xxxxxxxx 2D barcode(MAC ID) Front Back MAC LABEL,9x9mm material:PET,white,50#,+M actual size 1 2 ZM101 Made in China XXXXXXXXXXXXX FCC ID:T5U-ZM101 IC:A-ZM1017424 2.4 DS1 XXXXXXXXXXXXXX scale 2:1 scale 2:1 SAFETY LABEL,40x33.5mm material:PET,white,50#,+M ZM101-XX model 36.0 17.0

Project No.: R0803007 Page 2 of 4 Neutron Engineering Inc. R0803007 R0803007 Project No.: R0803007 Page 2 of 4 Neutron Engineering Inc. R0803007 R0803007 Project No.: R0803007 Page 4 of 4 Neutron Engineering Inc. R0803007 Project No.: R0803007 Page 3 of 4 Neutron Engineering Inc. R0803007 R0803007 Project No.: R0803007 Page 3 of 4 Neutron Engineering Inc. R0803007 R0803007

1.1. Test Result of RF Exposure Evaluation . Product: Wireless Router . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 1 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: GFSK Test Date: Mar. 21, 2008 Temperature: 25°C Humidity: 58％ Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2405 1.37 0.000344 08 2440 1.2 0.000330 16 2480 1.18 0.000329 The MPE is calculated as 0.000344 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. For 2405-2480 MHz, the EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference.

Report No.: NEI-FCCP-1-R0803007 Page 2 of 58 Neutron Engineering Inc. Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: NEI-FCCP-1-R0803007 Page 3 of 58 Neutron Engineering Inc. Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 10 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.5 DESCRIPTION OF SUPPORT UNITS(RADIATED MODE) 12 3.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 14 4.1.3 TEST PROCEDURE 15 4.1.4 DEVIATION FROM TEST STANDARD 15 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 15 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 18 4.2.1 RADIATED EMISSION LIMITS 18 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 19 4.2.3 TEST PROCEDURE 20 4.2.4 DEVIATION FROM TEST STANDARD 20 4.2.5 TEST SETUP 21 4.2.6 EUT OPERATING CONDITIONS 21 4.2.7 TEST RESULTS (BETWEEN30 – 1000 MHZ) 22 4.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 4.2.9 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS) 37 5 . BANDWIDTH TEST 41 5.1 APPLIED PROCEDURES / LIMIT 41 5.1.1 MEASUREMENT INSTRUMENTS LIST 41 5.1.2 TEST PROCEDURE 41 5.1.3 DEVIATION FROM STANDARD 41 Report No.: NEI-FCCP-1-R0803007 Page 4 of 58 Neutron Engineering Inc. Table of Contents Page 5.1.4 TEST SETUP 41 5.1.5 EUT OPERATION CONDITIONS 41 5.1.6 TEST RESULTS 42 6 . PEAK OUTPUT POWER TEST 44 6.1 APPLIED PROCEDURES / LIMIT 44 6.1.1 MEASUREMENT INSTRUMENTS LIST 44 6.1.2 TEST PROCEDURE 44 6.1.3 DEVIATION FROM STANDARD 44 6.1.4 TEST SETUP 44 6.1.5 EUT OPERATION CONDITIONS 44 6.1.6 TEST RESULTS 45 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 46 7.1 APPLIED PROCEDURES / LIMIT 46 7.1.1 MEASUREMENT INSTRUMENTS LIST 46 7.1.2 TEST PROCEDURE 46 7.1.3 DEVIATION FROM STANDARD 46 7.1.4 TEST SETUP 46 7.1.5 EUT OPERATION CONDITIONS 47 7.1.6 TEST RESULTS 48 8 . POWER SPECTRAL DENSITY TEST 50 8.1 APPLIED PROCEDURES / LIMIT 50 8.1.1 MEASUREMENT INSTRUMENTS LIST 50 8.1.2 TEST PROCEDURE 50 8.1.3 DEVIATION FROM STANDARD 50 8.1.4 TEST SETUP 50 8.1.5 EUT OPERATION CONDITIONS 50 8.1.6 TEST RESULTS 51 9 . RF EXPOSURE TEST 53 9.1 APPLIED PROCEDURES / LIMIT 53 9.1.1 MEASUREMENT INSTRUMENTS LIST 53 9.1.2 MPE CALCULATION METHOD 53 9.1.3 DEVIATION FROM STANDARD 54 9.1.4 TEST SETUP 54 9.1.5 EUT OPERATION CONDITIONS 54 9.1.6 TEST RESULTS 55 10 . EUT TEST PHOTO 56 Report No.: NEI-FCCP-1-R0803007 Page 5 of 58 Neutron Engineering Inc. 1. CERTIFICATION E q u i p m e n t : IEEE 802.15.4 transceivers module Trade Name : QMI Model Name : ZM101;ZM101-11;ZM101-21 A p p l i c a n t : Quanta Microsystems,Inc. T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANCI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-R0803007) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Test result included in this report is only for the Zigbee part of the product. Report No.: NEI-FCCP-1-R0803007 Page 6 of 58 Neutron Engineering Inc. 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (c) Antenna conducted Spurious EmissionPASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.203 Antenna Requirement PASS 1.1307 1.1310 2.1091 2.1093 RF Exposure Compliance PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Report No.: NEI-FCCP-1-R0803007 Page 7 of 58 Neutron Engineering Inc. 2.1 TEST FACILITY The test facilities used to collect the test data in this report is C01/OS02 at the location of 132-1, Lane 329, Sec. 2, Palain Road, Shijr City, Taipei, Taiwan. Neutron's test firm number is 95335 2.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=…

Text truncated - open the document above for the full version.

Conducted Measurement Photos Radiated Measurement Photos
