T5U-ZM260Zigbee 2.4GHz Module

Page 1 User Manual Model name: ZM260 Zigbee 2.4GHz Module Version: v1.0 Page 2 Date: August 8, 2011 Federal Communication Commission Interference Stat ement This device complies with Part 15 of the FCC Rules . Operation is subject to the following two conditi ons: (1) This device may not cause harmful interference, and (2) this device must acce pt any interference received, including interferenc e that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, purs uant to Part 15 of the FCC Rules. These limits are designed to provide reasonable pro tection against harmful interference in a residenti al installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the inst ructions, may cause harmful interference to radio communications. However, there is no guarant ee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television r eception, which can be determined by turning the eq uipment off and on, the user is encouraged to try to correct the interference by one of the fo llowing measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment an d receiver. Page 3 - Connect the equipment into an outlet on a circui t different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV te chnician for help. FCC Caution: Any changes or modifications not expr essly approved by the party responsible for complia nce could void the user's authority to operate this equipment. This transmitter must not be co-located or operati ng in conjunction with any other antenna or transmi tter. Radiation Exposure Statement: This equipment complies with FCC radiation exposur e limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device is intended only for OEM integrators un der the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located wit h any other transmitter or antenna. As long as 2 conditions above are met, further tran smitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance req uirements required with this module installed IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configur ations or co-location with another transmitter), then the FCC authorization is no long er considered valid and the FCC ID can not be used on the final product. In these Page 4 circumstances, the OEM integrator will be responsib le for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such t hat 20 cm may be maintained between the antenna and users. The final end product must be la beled in a visible area with the following: “Contains FCC ID:T5U-ZM260”. The grantee's FCC ID c an be used only when all FCC compliance requirement s are met. Manual Information To the End User The OEM integrator has to be aware not to provide i nformation to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this mod ule. The end user manual shall include all required regu latory information/warning as show in this manual. Page 5 Industry Canada statement: This device complies with RSS-210 of the Industry C anada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device mus t accept any interference received, including inter ference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-210 d'Ind ustrie Canada applicable aux appareils radio exempt s de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le disposi tif ne doit pas produire de brouillage préjudiciabl e, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptibl e de provoquer un fonctionnement indésirable. Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'expositio n aux rayonnements IC établies pour un environnemen t non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm d e distance entre la source de rayonnement et votre corps. This device is intended only for OEM integrators u nder the following conditions: (For module device u se) 1) The antenna must be installed such that 20 cm i s maintained between the antenna and users, and 2) The transmitter module may not be co-located wi th any other transmitter or antenna. As long as 2 conditions above are met, further tra nsmitter test will not be required. However, the OE M integrator is still responsible for testing their end-product for any additional compli ance requirements required with this module install ed. Cet appareil est conçu uniquement pour les intégra teurs OEM dans les conditions suivantes: (Pour util isation de dispositif module) Page 6 1) L'antenne doit être installée de telle sorte qu 'une distance de 20 cm est respectée entre l'antenn e et les utilisateurs, et 2) Le module émetteur peut ne pas être coïmplanté a vec un autre émetteur ou antenne. Tant que les 2 conditions ci-dessus sont remplies, des essais supplémentaires sur l'émetteur ne seron t pas nécessaires. Toutefois, l'intégrateur OEM est tou…

Text truncated - open the document above for the full version.

FCC ID: T5U-ZM260 Report No.: RF 120625C06 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch July 17, 2012 Dear Application Examiner, Quanta Microsystems, Inc., It’s a Zigbee 2.4GHz Module. FCC ID: T5U-ZM260 would like to have your authorization as a modular approval specific to the mobile RF exposure condition. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip CC2531. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is CC2531. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: T5U-ZM260 Report No.: RF 120625C06 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Gary Chang Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

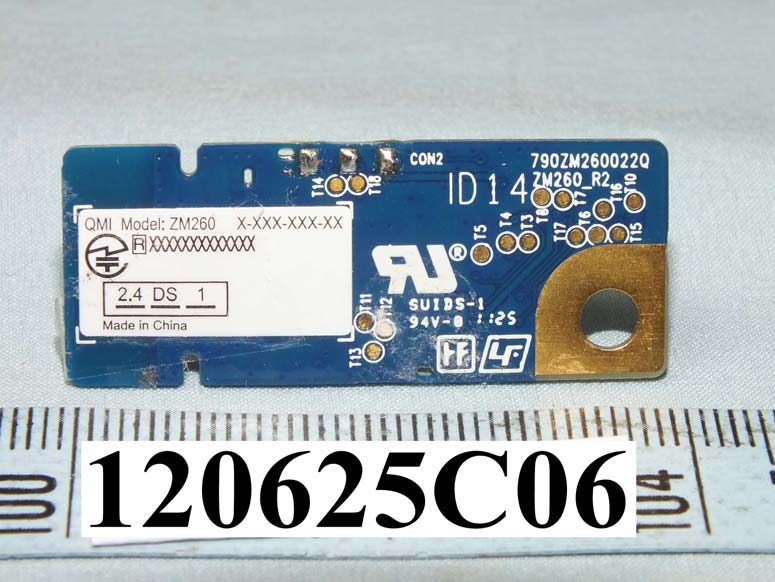

Page 1 CONSTRUCTION PHOTOS OF EUT

18mm 0.5R 8.5mm QMI Model: ZM260 1-490-023-11 201WW11215300 FCC ID:T5U-ZM260 IC:7424A-ZM260

Page 2

FCC ID: T5U-ZM260 Report No.: RF 120625C06 Operational Description This device is a Zigbee 2.4GHz Module, which operates in 2.4GHz frequency spectrum with throughput of up to 250kbps which O-QPSK technique will be applied. The transmitter of the EUT is powered by DC 3.3V from host equipment. The antenna used in this product is Inverter F antenna. The other instruction, please have a look at the users manual.

Report No.: SA120625C06 1 of 5 Report Format Version 5.0.0 RF EXPOSURE REPORT APPLICANT: Quanta Microsystems, Inc. ADDRESS: 188 Wenhwa 2nd Rd., Kueishan Hsiang Taoyuan Shien 333, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. REPORT NO.: SA120625C06 MODEL NO.: ZM260 FCC ID: T5U-ZM260 RECEIVED: Jun. 25, 2012 TESTED: Jun. 27 ~ Jul. 09, 2012 ISSUED: Jul. 11, 2012 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: SA120625C06 2 of 5 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT .............................................................................................. 5 3. MPE CALCULATION FORMULA .............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ........................... 5 Report No.: SA120625C06 3 of 5 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA120625C06 Original release Jul. 11, 2012 Report No.: SA120625C06 4 of 5 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: Zigbee 2.4GHz Module MODEL NO.: ZM260 BRAND: SONY APPLICANT: Quanta Microsystems, Inc. TESTED: Jun. 27 ~ Jul. 09, 2012 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (model: ZM260) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Jul. 11, 2012 Pettie Chen / Specialist APPROVED BY : , DATE : Jul. 11, 2012 Gary Chang / Technical Manager Report No.: SA120625C06 5 of 5 Report Format Version 5.0.0 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2.77 4.467 20 0.00105 1.00

Report No.: RF120625C06 1 of 36 Report Format Version 5.0.0 FCC TEST REPORT REPORT NO.: RF120625C06 MODEL NO.: ZM260 FCC ID: T5U-ZM260 RECEIVED: Jun. 25, 2012 TESTED: Jun. 27 ~ Jul. 09, 2012 ISSUED: Jul. 11, 2012 APPLICANT: Quanta Microsystems, Inc. ADDRESS: 188 Wenhwa 2nd Rd., Kueishan Hsiang Taoyuan Shien 333, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-com pliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF120625C06 2 of 36 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................................ 4 1. CERTIFICATION ............................................................................................................................. 5 2. SUMMARY OF TEST RESULTS .................................................................................................... 6 2.1 MEASUREMENT UNCERTAINTY .................................................................................................. 6 3. GENERAL INFORMATION ............................................................................................................. 7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................................... 7 3.2 DESCRIPTION OF TEST MODES ................................................................................................. 8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ................................................. 9 3.3 DESCRIPTION OF SUPPORT UNITS ......................................................................................... 11 3.3.1 CONFIGURATION OF SYSTEM UNDER TEST .......................................................................... 11 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................................. 12 4. TEST TYPES AND RESULTS ...................................................................................................... 13 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ...................................................... 13 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .................................... 13 4.1.2 TEST INSTRUMENTS .................................................................................................................. 14 4.1.3 TEST PROCEDURES .................................................................................................................. 15 4.1.4 DEVIATION FROM TEST STANDARD ........................................................................................ 15 4.1.5 TEST SETUP ................................................................................................................................ 16 4.1.6 EUT OPERATING CONDITIONS ................................................................................................. 16 4.1.7 TEST RESULTS ............................................................................................................................ 17 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................................... 21 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................................................ 21 4.2.2 TEST INSTRUMENTS .................................................................................................................. 21 4.2.3 TEST PROCEDURES .................................................................................................................. 22 4.2.4 DEVIATION FROM TEST STANDARD ........................................................................................ 22 4.2.5 TEST SETUP ................................................................................................................................ 22 4.2.6 EUT OPERATING CONDITIONS ................................................................................................. 22 4.2.7 TEST RESULTS ............................................................................................................................ 23 4.3 6dB BANDWIDTH MEASUREMENT ............................................................................................ 25 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ......................................................................... 25 4.3.2 TEST SETUP ......…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 3 RADIATED EMISSION TEST 4
