T6B0001Dual Shot Alpha

001-100134.00.01 Nemoto Kyorindo Co., Ltd. 2-27-20 Hongo, Bunkyo-ku, Tokyo 113-0033, Tokyo Japan 06/01/12 1st Edition Contrast Delivery System ˴Dual Shot Alpha Operation Manual Alpha 001-100134.00 Dual Shot Alpha 1 Nemoto Kyorindo Co., Ltd.06/01/12 1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 2. Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 3. Cautions in Use (for Safety) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 4. Main Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Electric Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Safety Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Error Message and Halt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Installation Condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Programming Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Volume Programming Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Flow Rate Programming Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Pressure Limiter Programming Range . . . . . . . . . . . . . . . . . . . . . . . . 14 Scan Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Interval Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Delay Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 5. Composition of the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 5-1.Composition of the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 5-2. Installation Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 5-3. Connection Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 6. Names of Individual Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 6-1. Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 6-2. Main Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 6-3. Handswitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 6-4. Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 6-5. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 7. Basic Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 7-1. How to Turn On Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 7-2. How to Turn Off Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 7-3. Basic Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Start of the contrast injection from the operation room . . . . . . . . . . . . 36 Start of the contrast injection from the examination room . . . . . . . . . . 36 001-100134.00 Dual Shot Alpha Contents 2 Nemoto Kyorindo Co., Ltd.06/01/12 7-4. Basic Operations of the Setup Screen . . . . . . . . . . . . . . . . . . . . . . . . . 38 7-4-1. Setting of Values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 7-5. Installation and Detachment of a Syringe. . . . . . . . . . . . . . . . . . . . . . . 41 7-5-1. Installation of a 100 mL Syringe . . . . . . . . . . . . . . . . . . . . . . . . 41 7-5-2. Detachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 7-5-3. Installation of a 200 mL Syringe . . . . . . . . . . . . . . . . . . . . . . . . 43 7-5-4. Detachment of a 200 mL Syringe . . . . . . . . . . . . . . . . . . . . . . . 43 7-5-5. Installation of B Side Syringe . . . . . . . . . . . . . . . . . . . . . . . . . . 44 7-5-6. Installation of a 100 mL Syringe Adapter . . . . . . . . . . . . . . . . . 45 7-5-7. Detachment of a 100 mL Syringe Adapter . . . . . . . . . . . . . . . . 46 001-100133.11.017-6. Filling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 7-7. Connection of the Injection Route . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 7-8. Operation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 7-9. Injection Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 7-9-1. Shift of Setting Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 7-9-2. PH1 Setting and Multi Setting . . . . . . . . . . . . . . . . . . . . . . . . . . 54 7-9-3. Setting of PH1ψ2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 7-9-4. Setting of PH1ψ Stop ψPH2 . . . . . . . . . . . . . . . . . . . . . . . . . 54 7-9-5. Setting of A1ψB1 (dual injection mode) . . . . . . . . . . . . . . . . . 55 7-9-6. Setting of A2ψB1 (dual injection mode) . . . . . . . . . . . . . . . . . 55 7-9-7. Setting of A1+B1 (dual injection mode) . . . . . . . . . . . . . . . . . . 55 7-9-8. Setting of AB1ψAB2 (dual injection mode) . . . . . . . . . . . . . . 56 7-9-9. Setting of AψA+B (dual injection mode). . . . . . . . . . . . . . . . . 56 7-10. Other Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Results of injection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 8. Adjustment scre…

Text truncated - open the document above for the full version.

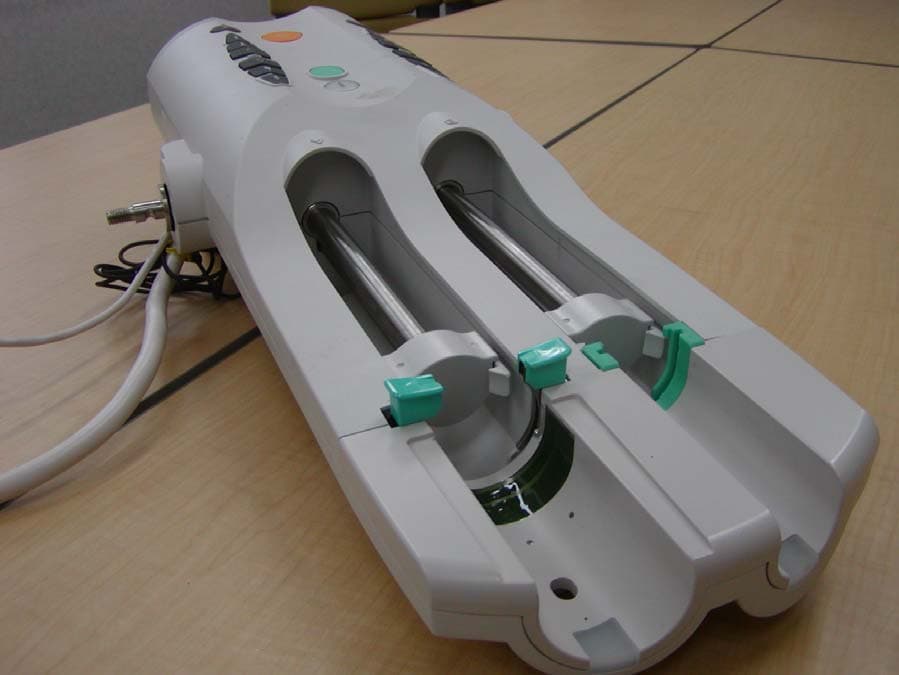

External Picture External pictures Top view Bottom view Antenna location Antenna Location

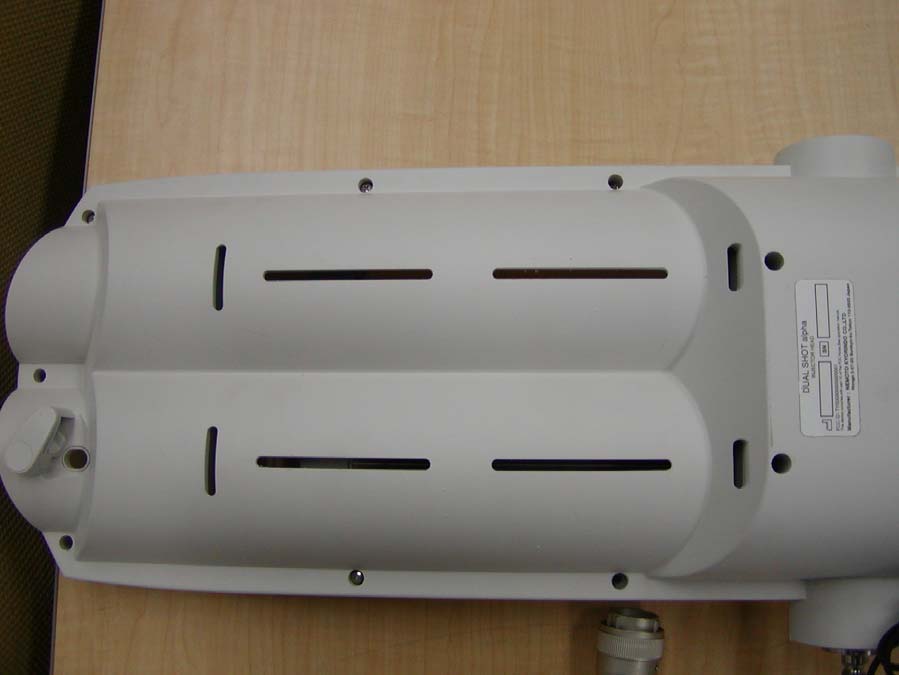

Label Location: Label Location

Radio Location Radio Location Radio Location Radio Location Top view and Bottom view of the Radio

FCC ID : T6B0001 Test report No. : 26HE0085-YK-F-1 Page : 1 of 27 Issued date : April 17, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (12.02.06) EMI TEST REPORT Test Report No.: 26HE0085-YK-F-1 Applicant : Nemoto Kyorindo Co., Ltd. Type of Equipment : Contrast Delivery System (Head unit) Model No. : Dual Shot Alpha FCC ID : T6B0001 Test Standard : FCC Part15 Subpart C, Section 15.207, 15.209, 15.215, 15.225: 2006 Test Result : Complied 1. This test report shall not be reproduced except in full, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this test report are traceable to the national or international standards. Date of test: March 12, 14 and 15, 2006 Tested by: Toyokazu Imamura & Fumiaki Matsuo Approved by: Osamu Watatani Site Manager of Yamakita EMC Lab. FCC ID : T6B0001 Test report No. : 26HE0085-YK-F-1 Page : 2 of 27 Issued date : April 17, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (12.02.06) Table of Contents Page 1 Applicant Information 3 2 Product Description 3 3 Test Specification, Procedures and Results 4 4 System Test Configuration 6 5 Conducted Emissions 8 6 Radiated Emissions (Fundamental, Spurious and Outside the Allocated bands) 9 7 20dB Bandwidth 11 8 Frequency Tolerance 11 Contents of Appendixes 12 APPENDIX 1: Photographs of test setup 13 APPENDIX 2: Test Data 15 APPENDIX 3: Test instruments 27 FCC ID : T6B0001 Test report No. : 26HE0085-YK-F-1 Page : 3 of 27 Issued date : April 17, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (12.02.06) 1 Applicant Information Company Name : Nemoto Kyorindo Co., Ltd. Address : 2-12-4 Aoki, Kawaguchi-shi, Saitama-ken, 332-0031 JAPAN Telephone Number : +81-48-250-3255 Facsimile Number : +81-48-250-3256 Contact Person : Masahiro Sakakibara 2 Product Description Type of Equipment : Contrast Delivery System (Head unit) Model No. : Dual Shot Alpha Serial No. : 02 Rating : AC100-120V, 50/60Hz Country of Manufacture : Japan Receipt Date of Sample : March 9, 2006 Condition of EUT : Production prototype (Not for sale: This sample is equivalent to mass-produced items.) The clock frequency used in EUT: 20MHz, 117MHz Equipment type : Transceiver Frequency of operation : 13.56MHz Type of modulation : ASK Antenna type : Loop antenna Antenna connector type : Crimping Mode of operation : Duplex Emission Designation : 7K03A1D Operation temperature range: -40 ~ +70 deg. C. *FCC Part 15.31 (e) The RFID Module is provided stable power supply (DC 5V), and the power is not changed when voltage of the main unit is varied. Therefore, the equipment complies power supply regulation. *FCC Part 15.203 It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. FCC ID : T6B0001 Test report No. : 26HE0085-YK-F-1 Page : 4 of 27 Issued date : April 17, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (12.02.06) 3 Test Specification, Procedures and Results 3.1 Test specification Test specification : FCC Part15 Subpart C: 2006 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207: Conducted limits Section 15.209: Radiated emission limits, general requirements Section 15.215: Additional provisions to the general radiated emission limitations Section 15.225: Operation within the band 13.110-14.010MHz 3.2 Procedures & Results Item Test Procedure Specification Remarks DeviationWorst Margin Results Conducted Emission ANSI C63.4: 2003 7. AC powerline conducted emission measurements Section 15.207 - N/A 0.8dB (13.56MHz, L1, AV) Complied Electric Field Strength of Fundamental Emission ANSI C63.4: 2003 13. Measurement of intentional radiators Section 15.225 (a)Radiated N/A 66.1dB (Horizontal) Complied Electric Field Strength of Outside the Allocated bands ANSI C63.4: 2003 13. Measurement of intentional radiators Section 15.225 (b) (c) Radiated N/A 22.80dB (13.110MHz, Vertical) Complied Electric Field Strength of Spurious Emission ANSI C63.4: 2003 13. Measurement of intentional radiators Section15.209, Section 15.225 (d) Radiated N/A 1.3dB (133.66MHz, Horizontal) Complied 20dB Bandwidth ANSI C63.4: 2003 13. Measurement of intentional radiators Section15.215(c) Radiated N/A - Complied Frequency Tolerance ANSI C63.4: 2003 13. Measurement of intentional radiators Section15.225 (e) Radiated N/A - Complied Note: UL Apex’s EMI Work Procedures No.QPM05. * No addition, exclusion nor deviation has been made from the standard. FCC ID : T6B0001 Test report No. : 26HE0085-YK-F-1 Page : 5 of 27 Issued date : April 17, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (12.02.06) 3.3 Uncertainty Conducted emission The measurement uncertainty (with 95% confidence level) for this test is ±2.7dB. The data listed in this report meets the limits unless the uncertainty is taken into consideration. Radiated emission The measurement uncertainty (with a 95% confidence level) for this test using Loop antenna is ±2.3dB. The measurement uncertainty (with 95% confidence level) for this test using Biconical antenna is ±4.5dB. The measurement uncertainty (with 95…
