T6QGM338Dual-band GSM/GPRS Handset

Dual-band GSM/GPRS handset GM338 User Guide Rev A1.1 UNPACKING Thank you for purchasing GM338. Check whether your phone comes equipped with all the nec essary components, as shown in the figure below. If the product is defective or there is a comp onent missing, immediately contact the office where you bought our phone. 9 Phone 9 Li-ion Battery 9 USB type Travel Charger & USB Cable 9 Earphone 9 User Guide 9 Quick Reference Card CONTENTS 0...SAFETY INFORMATION 0...BEFORE YOU START 0...PHONE ICONS 0...DESCRIPTION OF KEYS 0...BACKLIGHT 0...BATTERY 0...NETWORK LINKING 0...INSERT & REMOVE THE T- FLASH CARD 0...THE IDLE PROFILE 0...CALL FUNCTIONS 0...DISPLAY SCREEN 0...KEY OPERATION 0...SILENT MODE 0...CALL LOG 0...CALL MENU 0...FUNCTION MENU 0...PHONEBOOK 0...Quick Search 0...Search Entry 0...Add New Entry 0...Copy All 0...Delete 0...Caller Group 0...Extra Number 0...Settings 0...Caller Picture 0...Caller Ring Tone 0...Caller Video 0...MESSAGE 0...SMS 0...MMS 0...Chat Application 0...Voice Mail 0...Broadcast Message 0...CALL HISTORY 0...Missed Calls 0...Dialed Calls 0...Received Calls 0...Delete Call Log 0...Call Time 0...Call cost 0...SMS Counter 0...GPRS Counter 0...SETTINGS 0...Phone Setup 0...Call Setup 0...Network Setup 0...Security Setup 0...Sound Effect 0...Restore Factory Settings 0...S/W Version 0...MULTIMEDIA 0...Camera 0...ImageViewer 0...Video Recorder 0...Video Player 0...Audio Player 0...Sound Recorder 0...Melody compose 0...FILE MANAGER 0...FUN & GAME 0...Games 0...Theme 0...Image Editor 0...Game Setting 0...USER PROFILE 0...ORGANIZER 0...Calendar 0...To Do List 0...Alarm 0...World Clock 0...Hourly Alarm 0...SERVICES 0...SIM Tool Kit 0...WAP 0...Data Account 0...EXTRA FUNCTIONS 0...Calculator 0...Unit Converter 0...Currency Converter 0...Health 0...Stopwatch 0...SHORTCUTS 0...TEXT INPUT MODE 0...SPANISH/ENGLISH IUPUT MODE 0...Multitap ES/ABC Input Mode 0...Multitap es/abc Input Mode 0...Smart ES/ABC Input Mode 0...Smart es/abc Input Mode 0...Numeric Mode 0...SYMBOLS 0...MP3 AND MP4 INSTRUCTION 0...TROUBLESHOOTING 0...GLOSSARY 0...LIMITED WARRANTY STATEMENT SAFETY INFORMATION PERSONAL USE Operation of any radio equipment including mobile phones may interfere with the function of in adequately shielded medical devices such as hearing aids and pacemakers. You must consult t he manufacturer of these devices or your physician before use. In oil depots and chemical factories where explosive gas or other products are stored, the user should pay close attention to the restriction on the use of mobile phone. Even if your phone is i n the idle mode, it will still transmit radio frequency signals. Therefore, you must switch off wh en requested to do so. Do not move the antenna close to or touch any exposed part of the body when making a call. Otherwise, it will cause minor burn to your body. Note traffic safety. When you are driving, please do no use your mobile phone. Stop on the sid e of the road when you do need to use it. Avoid making calls with your cellular phone in storm y weather. Safety Information related with children: 9 Be cautious of children swallowing the small parts such as the SIM card 9 Prevent children from playing with your cell phone as toys. For example, behaviors l ike throwing, biting the phone, or immersing it into water should be avoided. 9 Do not let children less than 14 years old hang the phone around the neck. MOBILE PHONE USE Please use only the accessories or parts offered by the manufacturer or those authorized by th e manufacturer. Use of unauthorized accessories might influence the performance of the phone. What’s worse, your phone might get damaged and harm will be caused to your body. It might even violate the national regulations on the telecommunication terminal products. Do not use chemical products like cleaning solvents or detergents to clean your phone. It is rec ommended that you use slightly damp and static electricity proof cloth instead of cloth that is d ry and easy to catch static electricity. Before cleaning, you should switch off your phone. Your mobile phone produces magnetic fields. Do not place it next to magnetic storage media s uch as computer diskettes. Operating your mobile phone close to other electrical equipment su ch as televisions, phones, radios and personal computers may cause interference and therefore influence the performance of your phone. Do not expose your mobile phone to strong sunlight, direct heat or any liquids in case of any d amage. Harsh handling behaviors such as throwing; beating which might damage the internal integrate d circuit of the phone should be avoided. Please do not link it to other unnecessary equipments. Note! Non-professionals must not try to dissemble the phone. Phone Precautions! 9 Use your phone battery only for its intended purpose, and never use any battery charger which is damaged or worn out. 9 When you unplug your phone from its charger, grasp and pull the plug, not the power cord. 9 Do not use harsh chemicals, cleaning solvents, or strong detergents to clean your phone. Wipe it with a soft cloth slightly dampened in a mild soap-and-water solution. 9 Do not attempt to open the casing on your phone or its battery. 9 Always keep SIM card out of children’s reach. BATTERY USE Do not short-circuit the battery terminals. This is dangerous and will damage the battery, produ ce heat and may cause a fire. Never dispose of batteries in a fire as it can cause explosion. Return waste batteries to your su pplier or an approved recycling center. Do Not dispose along with household wastes. Warning! If the battery case is broken, avoid contact with the contents. Wash contaminated s kin with lots of water and seek medical attention. Battery Precautions! 9 Avoid dropping the cell phone. Dropping it, especially on a hard surface, can potenti ally cause damage to the phone and battery. If you suspect damage to the phone o r battery, take it to a service center for inspection. 9 Never use any charger or batter…

Text truncated - open the document above for the full version.

3F., Seochoworld Officetel, 1355-3, SeoCho-Dong, SeoCho-Gu, Seoul 137-862, Korea Sep 26, 2006 MET Laboratories 914 West Patapsco Ave. Baltimore MD 21230 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize DIGITAL EMC Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: T6QGM338. including signing of all documents relating to these matters. Any and all acts carried out by DIGITAL EMC Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from KC Mobile Co., Ltd. Sincerely, Manager Ji Jung Jae

3F., Seochoworld Officetel, 1355-3, SeoCho-Dong, SeoCho-Gu, Seoul 137-862, Korea Sep 26, 2006 MET Laboratories 914 West Patapsco Ave. Baltimore MD 21230 In re : KC Mobile Co., Ltd. FCC ID : T6QGM338 Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, KC Mobile Co., Ltd. hereby requests confidentiality of the Block diagram, Schematics, Parts list, Part Location, Turn up procedure and Operational description of the attached test report. These documents contain detailed system and equipment description and related information about the product which KC Mobile Co., Ltd. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, KC Mobile Co., Ltd. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Manager Ji Jung Jae

3F., Seochoworld Officetel, 1355-3, SeoCho-Dong, SeoCho-Gu, Seoul 137-862, Korea Sep 26, 2006 MET Laboratories 914 West Patapsco Ave. Baltimore MD 21230 In re : KC Mobile Co., Ltd. FCC ID : T6QGM338 Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, KC Mobile Co., Ltd. requests short-term Confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos External photos except the external photos in the SAR report Internal photos, and User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which KC Mobile Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, KC Mobile Co., Ltd. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Manager Ji Jung Jae

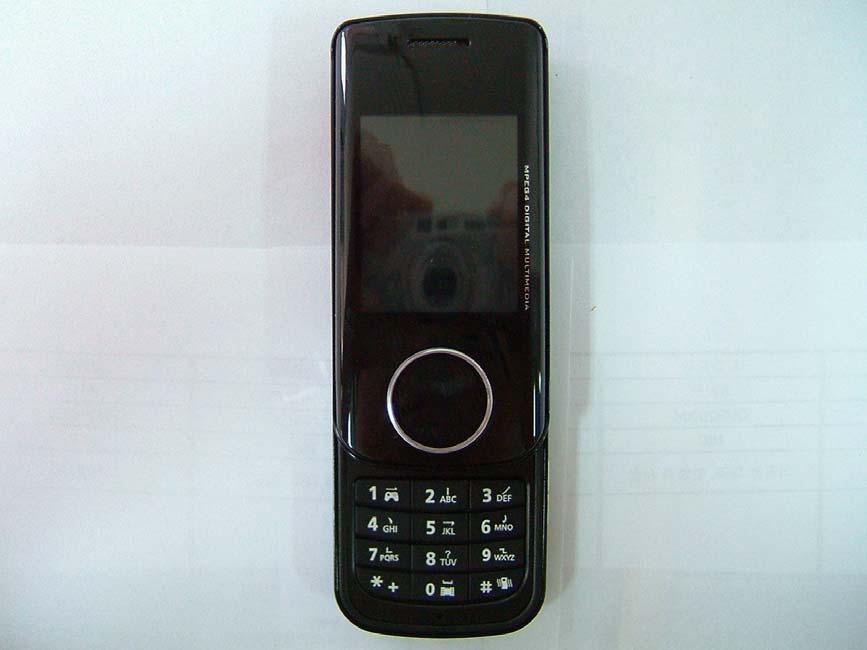

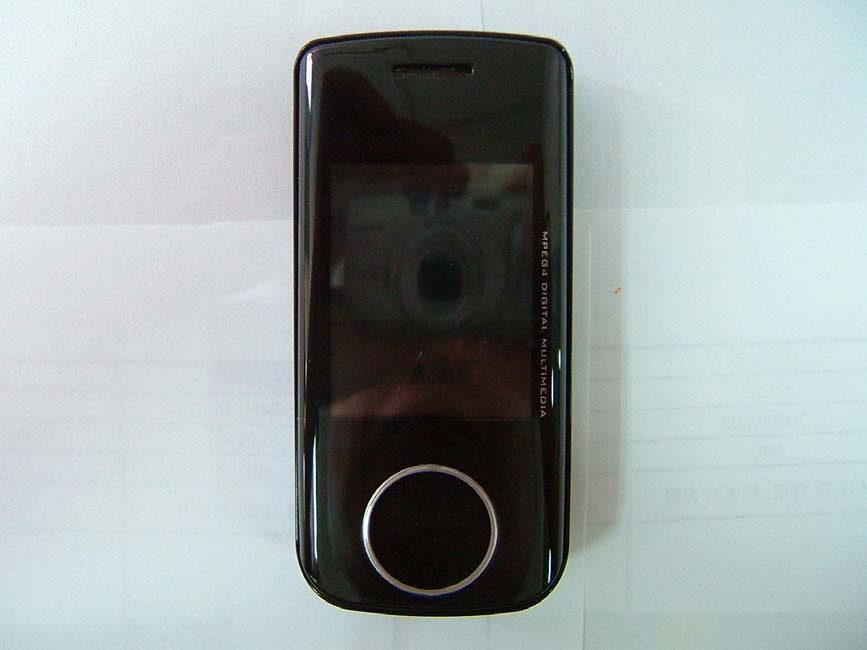

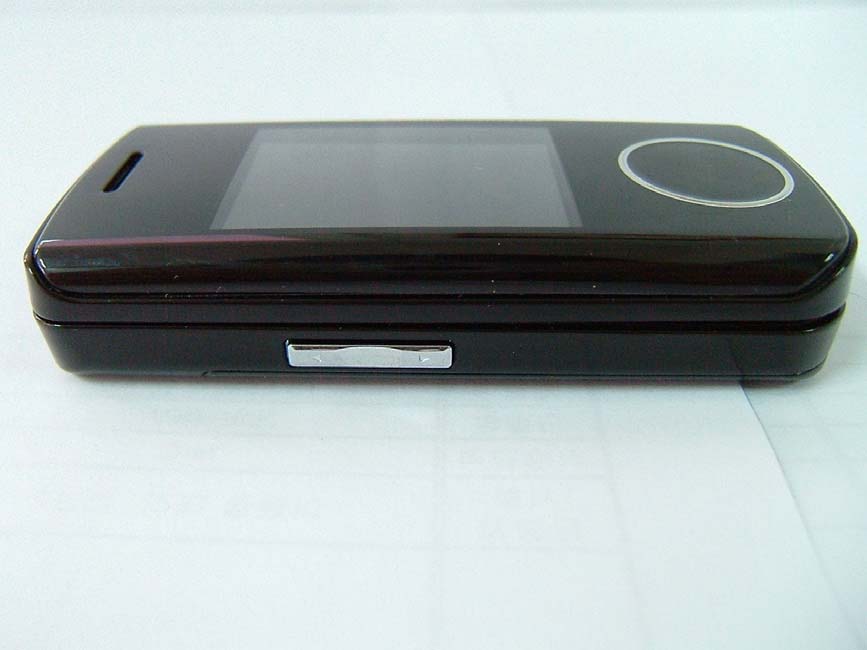

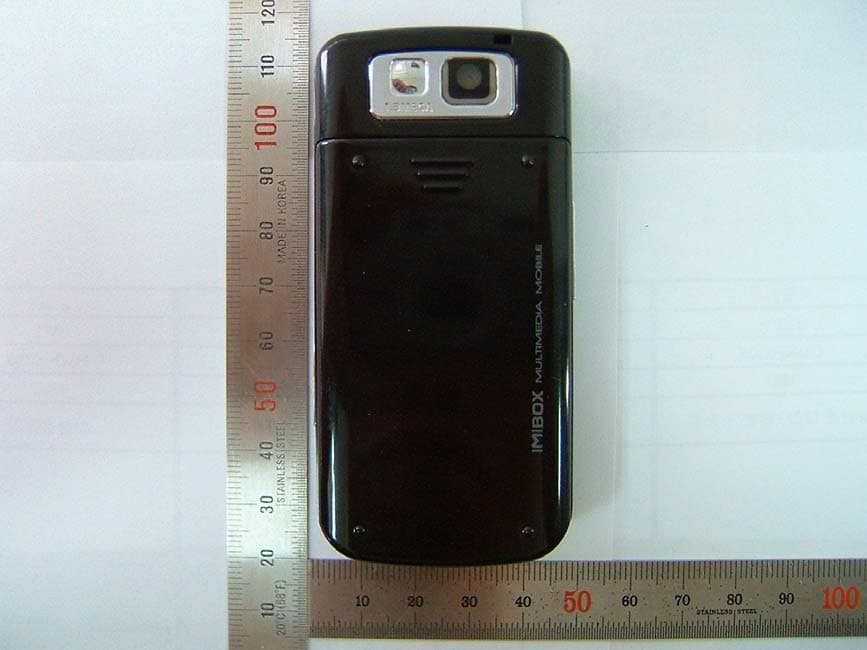

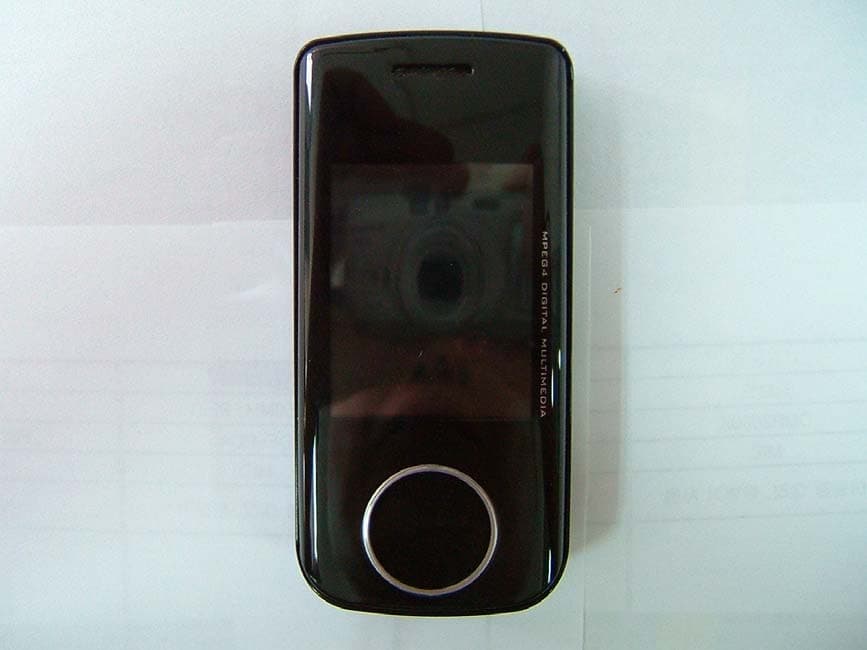

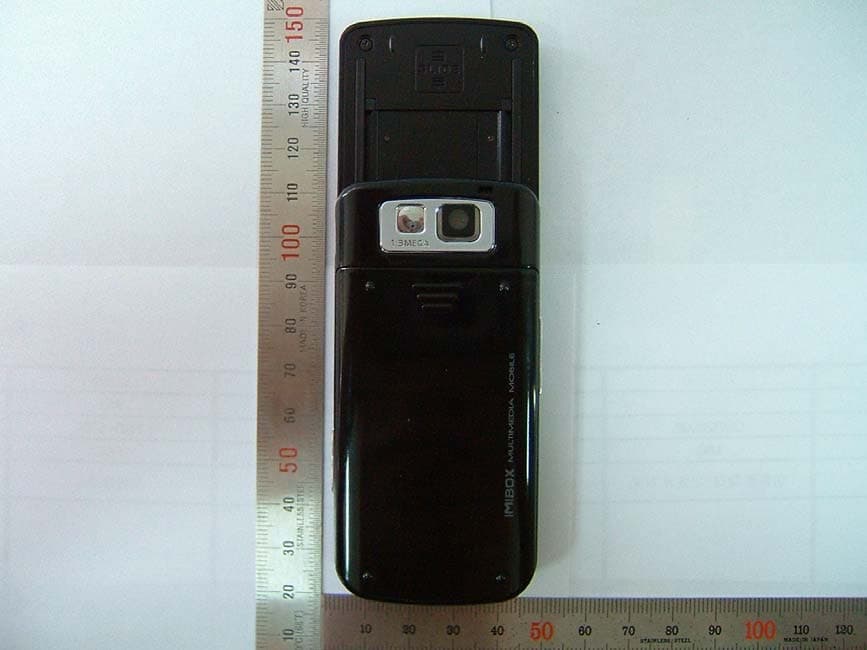

External Photograph FCC ID : T6QGM338 External Photograph FCC ID : T6QGM338 External Photograph FCC ID : T6QGM338 External Photograph FCC ID : T6QGM338 External Photograph FCC ID : T6QGM338

FCC ID : T6QGM338 Copyright ○ c 2006, DIGITAL EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase (SEE NEXT PAGE) FCC ID : T6QGM338 Copyright ○ c 2006, DIGITAL EMC Co., Ltd. FCC IDENTIFICATION (NAME PLATE) INFORMATION Note: 1. The label generally is located underneath a back door of the phone. 2. Because The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual.

Internal Photograph FCC ID : T6QGM338 Internal Photograph FCC ID : T6QGM338 Internal Photograph FCC ID : T6QGM338 Internal Photograph FCC ID : T6QGM338 Internal Photograph FCC ID : T6QGM338 Internal Photograph FCC ID : T6QGM338 Internal Photograph FCC ID : T6QGM338 Internal Photograph FCC ID : T6QGM338

Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. Probe Calibration

DIGITAL EMC CO., LTD DUT: GM338; Type: Slide Type Communication System: GSM 850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 824.2 MHz; σ = 0.883 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.66, 6.66, 6.66); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Date: 2006-09-19; Ambient Temp: 21.0; Tissue Temp:21.5 Right Touch Slide Up, GSM Ch.128, Ant Intenna, Standard Battery Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.278 dB Peak SAR (extrapolated) = 0.535 W/kg SAR(1 g) = 0.379 mW/g; SAR(10 g) = 0.270 mW/g 0 dB = 0.404mW/g DIGITAL EMC CO., LTD DUT: GM338; Type: Slide Type Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 836.6 MHz; σ = 0.894 mho/m; ε r = 41; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.66, 6.66, 6.66); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Date: 2006-09-19; Ambient Temp: 21.0; Tissue Temp:21.5 Right Touch Slide Up, GSM Ch.190, Ant Intenna, Standard Battery Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.105 dB Peak SAR (extrapolated) = 0.664 W/kg SAR(1 g) = 0.451 mW/g; SAR(10 g) = 0.314 mW/g 0 dB = 0.484mW/g DIGITAL EMC CO., LTD DUT: GM338; Type: Slide Type Communication System: GSM 850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 848.8 MHz; σ = 0.906 mho/m; ε r = 40.9; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.66, 6.66, 6.66); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Date: 2006-09-19; Ambient Temp: 21.0; Tissue Temp:21.5 Right Touch Slide Up, GSM Ch.251, Ant Intenna, Standard Battery Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.137 dB Peak SAR (extrapolated) = 0.486 W/kg SAR(1 g) = 0.334 mW/g; SAR(10 g) = 0.232 mW/g 0 dB = 0.356mW/g DIGITAL EMC CO., LTD DUT: GM338; Type: Slide Type Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 836.6 MHz; σ = 0.894 mho/m; ε r = 41; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.66, 6.66, 6.66); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Date: 2006-09-19; Ambient Temp: 21.0; Tissue Temp:21.5 Right Tilt Slide Up, GSM Ch.190, Ant Intenna, Standard Battery Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.028 dB Peak SAR (extrapolated) = 0.268 W/kg SAR(1 g) = 0.209 mW/g; SAR(10 g) = 0.154 mW/g 0 dB = 0.222mW/g DIGITAL EMC CO., LTD DUT: GM338; Type: Slide Type Communication System: GSM 850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 824.2 MHz; σ = 0.883 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.66, 6.66, 6.66); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Date: 2006-09-19; Ambient Temp: 21.0; Tissue Temp:21.5 Left Touch Slide Up, GSM Ch.128, Ant Intenna, Standard Battery Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.107 dB Peak SAR (extrapolated) = 0.459 W/kg SAR(1 g) = 0.313 mW/g; SAR(10 g) = 0.213 mW/g 0 dB = 0.338mW/g DIGITAL EMC CO., LTD DUT: GM338; Type: Slide Type Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 836.6 MHz; σ = 0.894 mho/m; ε r = 41; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.66, 6.66, 6.66); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Date: 2006-09-19; Ambient Temp: 21.0; Tissue Temp:21.5 Left Touch Slide Up, GSM Ch.190, Ant Intenna, Standard Battery Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = 0.047 dB Peak SAR (extrapolated) = 0.574 W/kg SAR(1 g) = 0.389 mW/g; SAR(10 g) = 0.265 mW/g 0 dB = 0.420mW/g DIGITAL EMC CO., LTD DUT: GM338; Type: Slide Type Communication System: GSM 850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 848.8 MHz; σ = 0.906 mho/m; ε r = 40.9; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.66, 6.66, 6.66); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Date: 2006-09-19; Ambient Temp: 21.0; Tissue Temp:21.5 Left Touch Slide Up, GSM Ch.251, Ant Intenna, Standard Battery Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.217 dB Peak SAR (extrapolated) = 0.642 W/kg SAR(1 g) = 0.437 mW/g; SAR(10 g) = 0.297 mW/g 0 dB = 0.474mW/g DIGITAL EMC CO., LTD DUT: GM338; Type: Slide Type …

Text truncated - open the document above for the full version.

DEMC#DR50110609J Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 1 of 26 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com SAR TEST REPORT Dates of Tests: Sep 13~30, 2006 Test Report S/N:DR50110609J Test Site : DIGITAL EMC CO., LTD. FCC ID APPLICANT FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) EUT Type: GSM850/PCS1900 Dual Band Mobile Phone Model Name: GM338 Test Device Serial No.: Identical prototype TX Frequency Range: 824.2 ~848.8 MHz (GSM850) 1850.2 ~ 1909.8 MHz (PCS1900) RX Frequency Range: 869.2 ~893.8 MHz (GSM850) 1930.2 ~ 1989.8 MHz (PCS1900) Max. RF Output Power: 1.064 W ERP GSM850(30.27dBm) 0.743 W EIRP PCS1900(28.71dBm) Max. SAR Measurement: 0.451 mW/g GSM850 Head SAR // 0.410 mW/g GSM850 Body SAR 1.330 mW/g PCS1900 Head SAR // 0.600 mW/g PCS1900 Body SAR Application Type: Certification Rule Part(s): §2.1093; FCC/OET Bulletin Supplement C[July 2001] Data of issue: September 30, 2006 Tested by : Reviewed by : Sun-Kyu Ryu (Engineer) Harvey Sung (Chief Engineering Director) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. T6QGM338 KC Mobile Co.,Ltd DEMC#DR50110609J Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 2 of 26 1. INTRODUCTION ...................................................................................................... 3 SAR DEFINITION .................................................................................................... 3 2. SAR MEASUREMENT SETUP......................................................................................... 4 Robotic System.......................................................................................................... 4 System Hardware ....................................................................................................... 4 System Electronics...................................................................................................... 4 3. DASY4 E-FIELD PROBE SYSTEM................................................................................... 5 Probe Measurement System......................................................................................... 5 Probe Specifications .................................................................................................... 5 4. Probe Calibration Process............................................................................................ 6 Dosimetric Assessment Procedure.................................................................................. 6 Free Space Assessment ............................................................................................... 6 Temperature Assessment ............................................................................................ 6 5. PHANTOM & EQUIVALENT TISSUES.............................................................................. 7 SAM Phantom ........................................................................................................... 7 Brain & Muscle Simulating Mixture Characterization ....................................................... 7 Device Holder for Transmitters..................................................................................... 7 6. TEST SYSTEM SPECIFICATIONS.................................................................................. 8 Automated Test System Specifications.......................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS ........................................................... 9 Measurement Procedure............................................................................................. 9 Specific Anthropomorphic Mannequin (SAM) Specifications.............................................. 9 8. DEFINITION OF REFERENCE POINTS .......................................................................... 10 EAR Reference Point................................................................................................... 10 Handset Reference Points............................................................................................ 10 9. TEST CONFIGURATION POSITIONS ............................................................................. 11 Positioning for Cheek/Touch ........................................................................................ 11 Positioning for Ear /15° Tilt ......................................................................................... 12 Body Holster /Belt Clip Configurations .......................................................................... 13 10. ICNIRP GUIDELINES RF EXPOSURE LIMITS.................................................................. 14 Uncontrolled Environment ........................................................................................... 14 Controlled Environment........................................................................................ ....... 14 11. MEASUREMENT UNCERTAINTIES............................................................................... 15 SAR Measurement Uncertainties .................................................................................. 15 12. SYSTEM VERIFICATION........................................................................................... 16 Tissue Verification...................…

Text truncated - open the document above for the full version.

DIGITAL EMC CO., LTD DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:464 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.894 mho/m; ε r = 41; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.66, 6.66, 6.66); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2006-09-19 Ambient Temp: 21.0; Tissue Temp: 21.5 Dipole Validation Area Scan (51x101x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.009 dB Peak SAR (extrapolated) = 3.70 W/kg SAR(1 g) = 2.45 mW/g; SAR(10 g) = 1.59 mW/g 0 dB = 2.65mW/g DIGITAL EMC CO., LTD DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d029 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.45 mho/m; ε r = 38.2; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(5.29, 5.29, 5.29); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2006-09-13 Ambient Temp: 20.0; Tissue Temp: 20.5 Dipole Validation Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.021 dB Peak SAR (extrapolated) = 17.6 W/kg SAR(1 g) = 9.98 mW/g; SAR(10 g) = 5.24 mW/g 0 dB = 11.2mW/g DIGITAL EMC CO., LTD DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d029 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.4 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(5.29, 5.29, 5.29); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2006-09-30; Ambient Temp: 20.0; Tissue Temp: 20.0 Dipole Validation Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.018 dB Peak SAR (extrapolated) = 19.6 W/kg SAR(1 g) = 10.4 mW/g; SAR(10 g) = 5.23 mW/g 0 dB = 11.6mW/g

DEMC#DR50110609N Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 1 of 57 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Dates of Tests: September 20 ~ 26, 2006 Test Report S/N:DR50110609N Test Site : DIGITAL EMC CO., LTD. FCC ID. APPLICANT Classification : Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s) : §22(H), §24(E), §2 EUT Type : Dual-band GSM/GPRS handset Model name : GM338 Serial number : Identical prototype TX Frequency Range : 824.2 ~ 848.8 MHz (GSM850) / 1850.2 ~ 1909.8 MHz (PCS1900) RX Frequency Range : 869.2 ~ 893.8 MHz (GSM850) / 1930.2 ~ 1989.8 MHz (PCS1900) Max. RF Output Power : 1.064 W ERP GSM850 : 0.743 W EIRP PCS1900 Max. SAR Measurement : 0.451 mW/g GSM850 Head SAR // 0.410 mW/g GSM850 Body SAR : 1.330 mW/g PCS1900 Head SAR // 0.600 mW/g PCS1900 Body SAR Date of Issue : September 27, 2006 T6QGM338 KC Mobile Co., Ltd. DEMC#DR50110609N Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 2 of 57 TABLE OF CONTENTS ATTACHMENT CONFIDENTIALITY LETTER ATTACHMENT AUTHOLIZATION LETTER ATTACHMENT TEST REPORT 1 SCOPE 3 2 INTRODUCTION 4 3 TEST REPORT 5 3.1 SUMMARY OF TEST 5 3.2 POWER OUTPUT 6 3.3 OCUPIED BANDWIDTH 13 3.4 OCCUPIED BANDWIDTH EMISSION LIMIT 17 3.5 SPURIOUS EMISSION AT ANT. TERMINAL 23 3.6 FIELD STRENGTH OF SPURIOUS RADIATION 42 3.7 FREQUENCY STABILITY 49 4 TEST EQUIPMENT 54 5 EMISSION DESIGNATOR 56 6 CONCLUSION 57 ATTACHMENT PART LOCATION ATTACHMENT FCC ID LABEL & LOCATION ATTACHMENT TEST SETUP PHOTOGRAPHS ATTACHMENT EXTERNAL PHOTOGRAPHS ATTACHMENT INTERNAL PHOTOGRAPHS ATTACHMENT BLOCK DIAGRAM(S) ATTACHMENT SCHEMATIC DIAGRAM(S) ATTACHMENT OPERATIONAL DESCRIPTION ATTACHMENT PARTS LI S T ATTACHMENT USER’S MANUAL ATTACHMENT SAR TEST REPORT ATTACHMENT SAR VALIDATION PLOTS ATTACHMENT SAR TEST PLOTS ATTACHMENT SAR TEST SETUP PHOTOGRAPHS ATTACHMENT PROBE CALIBRATION ATTACHMENT DIPOLE CALIBRATION DEMC#DR50110609N Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 3 of 57 MEASUREMENT REPORT 1. Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information z FCC ID: z Quantity: z Tx Freq. Range: z Rx Freq. Range: z Max. Power Rating: z FCC Classification(s): z Equipment (EUT) Type: z Modulation(s): z Frequency Tolerance: z FCC Rule Part(s): z Dates of Tests: z Place of Tests: z Test Report S/N: T6QGM338 The mass product 824.2 ~ 848.8 MHz (GSM850) / 1850.2 ~ 1909.8 MHz (PCS1900) 869.2 ~ 893.8 MHz (GSM850) / 1930.2 ~ 1989.8 MHz (PCS1900) 1.064W ERP GSM850 0.743W EIRP PCS1900 Licensed Portable Transmitter Held to Ear (PCE) Dual-band GSM/GPRS handset GMSK ± 0.00025 % (2.5ppm) §22(H), §24(E), §2 September 20 ~ 26, 2006 DIGITAL EMC DR50110609N Applicant: KC Mobile Co., Ltd. Address: 3F, SeochoWorld Officetel 1355-3, Seocho-Dong, Seocho-Gu, SEOUL KOREA 137-862 Attention: JI JUNG JAE (Senior Manager) DEMC#DR50110609N Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 4 of 57 2. General Information This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200559-0. Test operator: engineer September 27, 2006 Won-Jung LEE Data Name Signature Report Reviewed By: manager September 27, 2006 Harvey Sung Data Name Signature Ordering party: Company name : KC Mobile Co., Ltd. Address : 3F, SeochoWorld Officetel 1355-3, Seocho-Dong, Seocho-Gu Zipcode : 137-862 City/town : SEOUL Country : KOREA Date of order : September 1, 2006 DEMC#DR50110609N Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 5 of 57 3. Test Report 3.1 Summary of test FCC Part Section(s) Parameter Status (note 1) 22.913(a) / 24.232(b), 2.1046 Power Output C 22.917 / 24.238, 2.1049(h)(i) Occupied Bandwidth C 22.917(b) / 24.238(b) Emission Bandwidth C 22.917 / 24.238 2.1051 Emission Limits Transmitter C 2.1053 (a) Field Strength of Spurious Radiation C 2.1055 Frequency Stability C Note 1: C= Complies NC=Not Complies NT=Not Tested NA=Not Applicable The sample was tested according to the following specification: FCC Parts §22(H), §24(E), §2; ANSI C-63.4-2003 DEMC#DR50110609N Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 6 of 57 3.2 Power Output FCC ID : T6QGM338 Specification : 47 CFR 2.1046 (a) Tested Frequency : 824.2MHz, 836.6MHz and 848.8MHz for GSM850 1850.2MHz, 1880.0MHz and 1909.8MHz for PCS1900 Measurement Procedure: - During the process of testing, the EUT was controlled via Radio Communication tester to ensure max. Power transmission and proper modulation. - Power output was measured at the RF output terminals when the transmitter is adjusted in accordance with Communication tester (or the tune-up procedure). Measurement Data: GSM850 TEST CONDITIONS Power Step: 5 Channel Frequency (MHz) (dBm) 128 824.2 32.72 190 836.6 32.62 251 848.8 32.55 PCS1900 TEST CONDITIONS Power Step: 0 Channel Frequency (MHz) (dBm) 512 …
