T6QGM608Tri-band GSM phone

Tri-band GSM/GPRS handset GM608 User Guide Rev A1.2 UNPACKING Thank you for purchasing GM608. Check whether your phone comes equipped with all the nec essary components, as shown in the figure below. If the product is defective or there is a comp onent missing, immediately contact the office where you bought our phone. 9 Phone 9 Li-ion Battery 9 Travel Charger 9 Earphone 9 User Guide 9 Quick Reference Card CONTENTS 0...SAFETY INFORMATION 0...BEFORE YOU START 0...PHONE ICONS 0...DESCRIPTION OF KEYS 0...BACKLIGHT 0...BATTERY 0...NETWORK LINKING 0...INSERT & REMOVE THE T- FLASH CARD 0...THE IDLE PROFILE 0...CALL FUNCTIONS 0...DISPLAY SCREEN 0...KEY OPERATION 0...SILENT MODE 0...CALL LOG 0...CALL MENU 0...FUNCTION MENU 0...PHONEBOOK 0...Quick Search 0...Search Entry 0...Add New Entry 0...Copy All 0...Delete 0...Caller Group 0...Extra Number 0...Settings 0...Caller Picture 0...Caller Ring Tone 0...Caller Video 0...MESSAGE 0...SMS 0...MMS 0...Chat Application 0...Voice Mail 0...Broadcast Message 0...CALL HISTORY 0...Missed Calls 0...Dialed Calls 0...Received Calls 0...Delete Call Log 0...Call Time 0...Call cost 0...SMS Counter 0...GPRS Counter 0...SETTINGS 0...Phone Setup 0...Call Setup 0...Network Setup 0...Security Setup 0...Sound Effect 0...Restore Factory Settings 0...S/W Version 0...MULTIMEDIA 0...Camera 0...ImageViewer 0...Video Recorder 0...Video Player 0...Audio Player 0...Sound Recorder 0...Melody compose 0...FILE MANAGER 0...FUN & GAME 0...Games 0...Theme 0...Image Editor 0...Game Setting 0...USER PROFILE 0...ORGANIZER 0...Calendar 0...To Do List 0...Alarm 0...World Clock 0...Hourly Alarm 0...SERVICES 0...SIM Tool Kit 0...WAP 0...Data Account 0...EXTRA FUNCTIONS 0...Calculator 0...Unit Converter 0...Currency Converter 0...Health 0...Stopwatch 0...SHORTCUTS 0...TEXT INPUT MODE 0...SPANISH/ENGLISH IUPUT MODE 0...Multitap ES/ABC Input Mode 0...Multitap es/abc Input Mode 0...Smart ES/ABC Input Mode 0...Smart es/abc Input Mode 0...Numeric Mode 0...SYMBOLS 0...MP3 AND MP4 INSTRUCTION 0...TROUBLESHOOTING 0...GLOSSARY 0...LIMITED WARRANTY STATEMENT SAFETY INFORMATION PERSONAL USE Operation of any radio equipment including mobile phones may interfere with the function of in adequately shielded medical devices such as hearing aids and pacemakers. You must consult t he manufacturer of these devices or your physician before use. In oil depots and chemical factories where explosive gas or other products are stored, the user should pay close attention to the restriction on the use of mobile phone. Even if your phone is i n the idle mode, it will still transmit radio frequency signals. Therefore, you must switch off wh en requested to do so. Do not move the antenna close to or touch any exposed part of the body when making a call. Otherwise, it will cause minor burn to your body. Note traffic safety. When you are driving, please do no use your mobile phone. Stop on the sid e of the road when you do need to use it. Avoid making calls with your cellular phone in storm y weather. Safety Information related with children: 9 Be cautious of children swallowing the small parts such as the SIM card 9 Prevent children from playing with your cell phone as toys. For example, behaviors l ike throwing, biting the phone, or immersing it into water should be avoided. 9 Do not let children less than 14 years old hang the phone around the neck. MOBILE PHONE USE Please use only the accessories or parts offered by the manufacturer or those authorized by th e manufacturer. Use of unauthorized accessories might influence the performance of the phone. What’s worse, your phone might get damaged and harm will be caused to your body. It might even violate the national regulations on the telecommunication terminal products. Do not use chemical products like cleaning solvents or detergents to clean your phone. It is rec ommended that you use slightly damp and static electricity proof cloth instead of cloth that is d ry and easy to catch static electricity. Before cleaning, you should switch off your phone. Your mobile phone produces magnetic fields. Do not place it next to magnetic storage media s uch as computer diskettes. Operating your mobile phone close to other electrical equipment su ch as televisions, phones, radios and personal computers may cause interference and therefore influence the performance of your phone. Do not expose your mobile phone to strong sunlight, direct heat or any liquids in case of any d amage. Harsh handling behaviors such as throwing; beating which might damage the internal integrate d circuit of the phone should be avoided. Please do not link it to other unnecessary equipments. Note! Non-professionals must not try to dissemble the phone. Phone Precautions! 9 Use your phone battery only for its intended purpose, and never use any battery charger which is damaged or worn out. 9 When you unplug your phone from its charger, grasp and pull the plug, not the power cord. 9 Do not use harsh chemicals, cleaning solvents, or strong detergents to clean your phone. Wipe it with a soft cloth slightly dampened in a mild soap-and-water solution. 9 Do not attempt to open the casing on your phone or its battery. 9 Always keep SIM card out of children’s reach. BATTERY USE Do not short-circuit the battery terminals. This is dangerous and will damage the battery, produ ce heat and may cause a fire. Never dispose of batteries in a fire as it can cause explosion. Return waste batteries to your su pplier or an approved recycling center. Do Not dispose along with household wastes. Warning! If the battery case is broken, avoid contact with the contents. Wash contaminated s kin with lots of water and seek medical attention. Battery Precautions! 9 Avoid dropping the cell phone. Dropping it, especially on a hard surface, can potenti ally cause damage to the phone and battery. If you suspect damage to the phone o r battery, take it to a service center for inspection. 9 Never use any charger or battery that is damaged in a…

Text truncated - open the document above for the full version.

3F., Seochoworld Officetel, 1355-3, SeoCho-Dong, SeoCho-Gu, Seoul 137-862, Korea Apr 25, 2006 MET Laboratories 914 West Patapsco Ave. Baltimore MD 21230 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize DIGITAL EMC Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: T6QGM608. including signing of all documents relating to these matters. Any and all acts carried out by DIGITAL EMC Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from KC Mobile Co., Ltd. Sincerely, Manager Kil – Joo, Lee

3F., Seochoworld Officetel, 1355-3, SeoCho-Dong, SeoCho-Gu, Seoul 137-862, Korea Apr 25, 2006 MET Laboratories 914 West Patapsco Ave. Baltimore MD 21230 In re : KC Mobile Co., Ltd. FCC ID : T6QGM608 Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, KC Mobile Co., Ltd. hereby requests confidentiality of the Block diagram, Schematics, Parts list, Turn up procedure and Operational description of the attached test report. These documents contain detailed system and equipment description and related information about the product which KC Mobile Co., Ltd. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, KC Mobile Co., Ltd. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Manager Kil – Joo, Lee

3F., Seochoworld Officetel, 1355-3, SeoCho-Dong, SeoCho-Gu, Seoul 137-862, Korea Apr 25, 2006 MET Laboratories 914 West Patapsco Ave. Baltimore MD 21230 In re : KC Mobile Co., Ltd. FCC ID : T6QGM608 Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, KC Mobile Co., Ltd. requests short-term Confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos External photos except the external photos in the SAR report Internal photos, and User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which KC Mobile Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, KC Mobile Co., Ltd. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Manager Kil – Joo, Lee

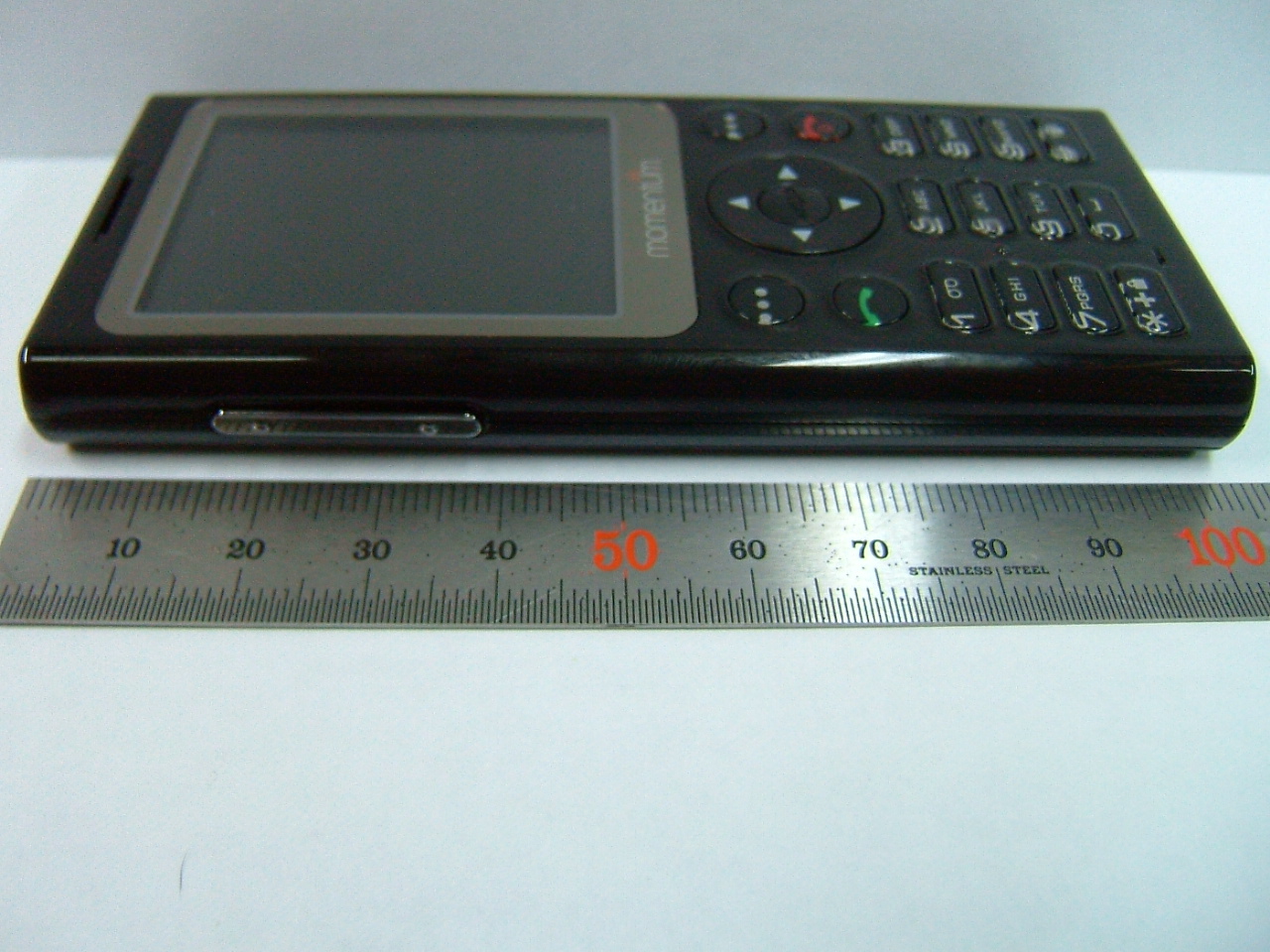

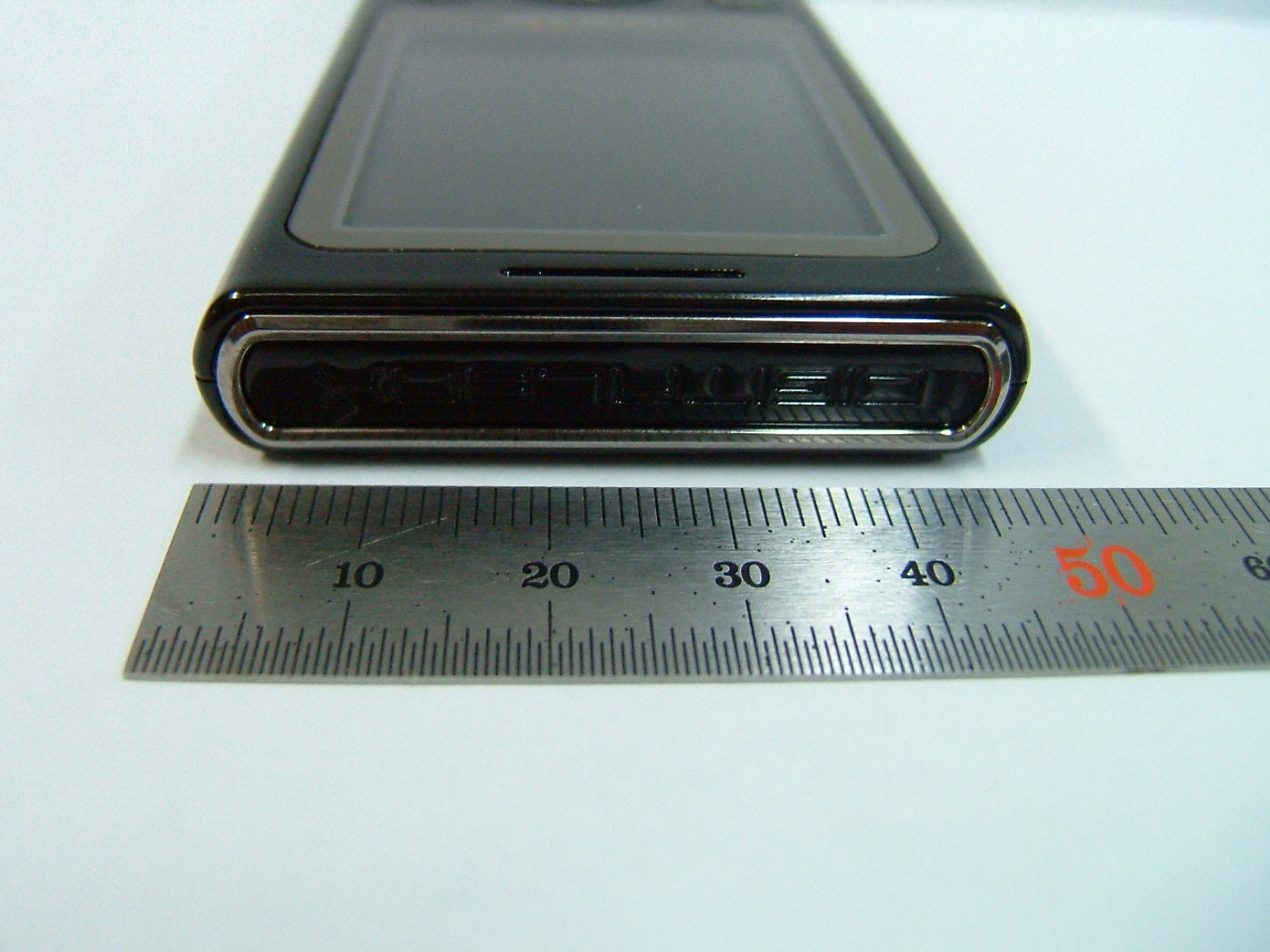

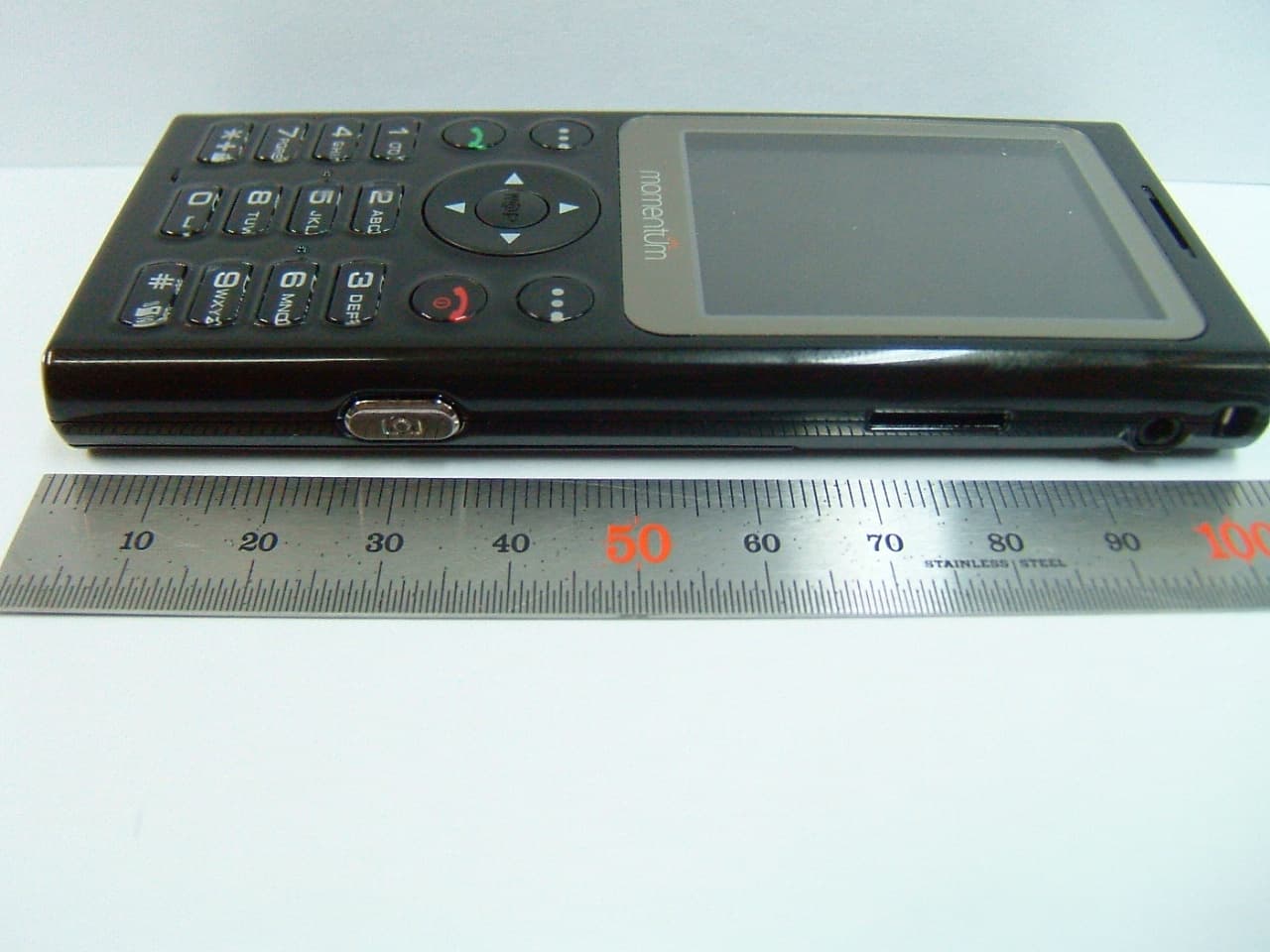

FCC ID: T6QGM608 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 1 FCC ID: T6QGM608 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 2 FCC ID: T6QGM608 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 3

FCC ID : T6QKM608 Copyright ○ c 2006, DIGITAL EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase (SEE NEXT PAGE) FCC ID : T6QKM608 Copyright ○ c 2006, DIGITAL EMC Co., Ltd. FCC IDENTIFICATION (NAME PLATE) INFORMATION Note: 1. The label generally is located underneath a back door of the phone. 2. Because The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual.

FCC ID: T6QGM608 Copyright հ 2006, DIGITAL EMC Co., Ltd. View 1 FCC ID: T6QGM608 Copyright հ 2006, DIGITAL EMC Co., Ltd. View 2 G FCC ID: T6QGM608 Copyright հ 2006, DIGITAL EMC Co., Ltd. View 3 G GG FCC ID: T6QGM608 Copyright հ 2006, DIGITAL EMC Co., Ltd. View 4 G G FCC ID: T6QGM608 Copyright հ 2006, DIGITAL EMC Co., Ltd. View 5 G G FCC ID: T6QGM608 Copyright հ 2006, DIGITAL EMC Co., Ltd. View 6 G G FCC ID: T6QGM608 Copyright հ 2006, DIGITAL EMC Co., Ltd. View 7 G G

Copyright ○ c 2006, DIGITAL EMC Co., Ltd. DIPOLE CALIBRATION Copyright ○ c 2006, DIGITAL EMC Co., Ltd. 1. 1900 Dipole Calibration

Copyright ○ c 2006, DIGITAL EMC Co., Ltd. PROBE CALIBRATION

DIGITAL EMC CO., LTD DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d029 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.41 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(5.29, 5.29, 5.29); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 145 Test Date: 2006-04-24; Ambient Temp: 20.5; Tissue Temp: 20.0 Dipole Validation Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.035 dB Peak SAR (extrapolated) = 19.8 W/kg SAR(1 g) = 10.4 mW/g; SAR(10 g) = 5.2 mW/g 0 dB = 11.7mW/g DIGITAL EMC CO., LTD DUT: GM608; Type: Bar Type Communication System: PCS1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1850.2 MHz; σ = 1.37 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(5.29, 5.29, 5.29); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 145 Date: 2006-04-24; Ambient Temp: 20.5; Tissue Temp:20.0 Right Touch PCS Ch.512, Ant Intenna, Standard Battery Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.050 dB Peak SAR (extrapolated) = 1.92 W/kg SAR(1 g) = 0.973 mW/g; SAR(10 g) = 0.519 mW/g 0 dB = 1.07mW/g DIGITAL EMC CO., LTD DUT: GM608; Type: Bar Type Communication System: PCS1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.4 mho/m; ε r = 40.5; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(5.29, 5.29, 5.29); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 145 Date: 2006-04-24; Ambient Temp: 20.5; Tissue Temp:20.0 Right Touch PCS Ch.661, Ant Intenna, Standard Battery Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.107 dB Peak SAR (extrapolated) = 2.41 W/kg SAR(1 g) = 1.19 mW/g; SAR(10 g) = 0.618 mW/g 0 dB = 1.31mW/g DIGITAL EMC CO., LTD DUT: GM608; Type: Bar Type Communication System: PCS1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1909.8 MHz; σ = 1.42 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(5.29, 5.29, 5.29); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 145 Date: 2006-04-24; Ambient Temp: 20.5; Tissue Temp:20.0 Right Touch PCS Ch.810, Ant Intenna, Standard Battery Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.116 dB Peak SAR (extrapolated) = 2.74 W/kg SAR(1 g) = 1.34 mW/g; SAR(10 g) = 0.693 mW/g 0 dB = 1.46mW/g DIGITAL EMC CO., LTD DUT: GM608; Type: Bar Type Communication System: PCS1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1850.2 MHz; σ = 1.37 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(5.29, 5.29, 5.29); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 145 Date: 2006-04-24; Ambient Temp: 20.5; Tissue Temp:20.0 Right Tilt PCS Ch.512, Ant Intenna, Standard Battery Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.116 dB Peak SAR (extrapolated) = 1.08 W/kg SAR(1 g) = 0.552 mW/g; SAR(10 g) = 0.286 mW/g 0 dB = 0.604mW/g DIGITAL EMC CO., LTD DUT: GM608; Type: Bar Type Communication System: PCS1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.4 mho/m; ε r = 40.5; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(5.29, 5.29, 5.29); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 145 Date: 2006-04-24; Ambient Temp: 20.5; Tissue Temp:20.0 Right Tilt PCS Ch.661, Ant Intenna, Standard Battery Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.023 dB Peak SAR (extrapolated) = 1.41 W/kg SAR(1 g) = 0.72 mW/g; SAR(10 g) = 0.375 mW/g 0 dB = 0.786mW/g DIGITAL EMC CO., LTD DUT: GM608; Type: Bar Type Communication System: PCS1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1909.8 MHz; σ = 1.42 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(5.29, 5.29, 5.29); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 145 Date: 2006-04-24; Ambient Temp: 20.5; Tissue Temp:20.0 Right Tilt PCS Ch.810, Ant Intenna, Standard Battery Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.079 dB Peak SAR (extrapolated) = 1.69 W/kg SAR(1 g) = 0.832 mW/g; SAR(10 g) = 0.430 mW/g 0 dB = 0.892mW/g DIGITAL EMC CO., LTD DUT: GM608; Type: Bar Type Communication System: PCS1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium paramete…

Text truncated - open the document above for the full version.

DEMC#DR50110604T Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 1 of 22 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com SAR TEST REPORT Dates of Tests: April 24, 2006 Test Report S/N:DR50120604T Test Site : DIGITAL EMC CO., LTD. FCC ID APPLICANT FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) EUT Type: Tri-band GSM/GPRS handset Model Name GM608 Test Device Serial No.: Identical prototype TX Frequency Range: 1850.20 ~ 1909.80 MHz (PCS1900) RX Frequency Range: 1930.2 ~ 1989.8 MHz (PCS1900) Max. RF Output Power: 0.492 W EIRP GSM1900 (26.92dBm) Max. SAR Measurement: 1.340 mW/g PCS Head SAR / 0.162 mW/g PCS Body SAR Application Type: Certification Rule Part(s): §2.1093; FCC/OET Bulletin Supplement C[July 2001] Data of issue: May 09, 2006 Tested by : Reviewed by : Sun-Kyu Ryu (Engineer) Harvey Sung (Chief Engineering Director) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. T6QGM608 KC Mobile Co.,Ltd. DEMC#DR50110604T Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 2 of 22 1. INTRODUCTION ...................................................................................................... 3 SAR DEFINITION .................................................................................................... 3 2. SAR MEASUREMENT SETUP......................................................................................... 4 Robotic System.......................................................................................................... 4 System Hardware ....................................................................................................... 4 System Electronics...................................................................................................... 4 3. DASY4 E-FIELD PROBE SYSTEM................................................................................... 5 Probe Measurement System......................................................................................... 5 Probe Specifications .................................................................................................... 5 4. Probe Calibration Process............................................................................................ 6 Dosimetric Assessment Procedure.................................................................................. 6 Free Space Assessment ............................................................................................... 6 Temperature Assessment ............................................................................................ 6 5. PHANTOM & EQUIVALENT TISSUES.............................................................................. 7 SAM Phantom ........................................................................................................... 7 Brain & Muscle Simulating Mixture Characterization ....................................................... 7 Device Holder for Transmitters..................................................................................... 7 6. TEST SYSTEM SPECIFICATIONS.................................................................................. 8 Automated Test System Specifications.......................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS ........................................................... 9 Measurement Procedure............................................................................................. 9 Specific Anthropomorphic Mannequin (SAM) Specifications.............................................. 9 8. DEFINITION OF REFERENCE POINTS .......................................................................... 10 EAR Reference Point................................................................................................... 10 Handset Reference Points............................................................................................ 10 9. TEST CONFIGURATION POSITIONS ............................................................................. 11 Positioning for Cheek/Touch ........................................................................................ 11 Positioning for Ear /15° Tilt ......................................................................................... 12 Body Holster /Belt Clip Configurations .......................................................................... 13 10. ICNIRP GUIDELINES RF EXPOSURE LIMITS.................................................................. 14 Uncontrolled Environment ........................................................................................... 14 Controlled Environment........................................................................................ ....... 14 11. MEASUREMENT UNCERTAINTIES............................................................................... 15 SAR Measurement Uncertainties .................................................................................. 15 12. SYSTEM VERIFICATION........................................................................................... 16 Tissue Verification...................................................................................................... 16 Test System Verification....................................................…

Text truncated - open the document above for the full version.

DEMC#DR50110605D Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 1 of 34 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATE OF COMPLIANCE FCC Part 24 Certification Dates of Tests: April 28 ~ May 4, 2006 Test Report S/N:DR50110605D Test Site : DIGITAL EMC CO., LTD. Model No. APPLICANT Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §2 EUT Type: Tri-band GSM/GPRS handset Model name: GM608 Serial number: Identical prototype TX Frequency Range: 1850.2 ~ 1909.8 MHz RX Frequency Range: 1930.2 ~ 1989.8 MHz Max. RF Output Power: 0.492 W EIRP GSM1900 (26.92dBm) Max. SAR Measurement: 1.340W/kg GSM1900 Head SAR / 0.162W/kg GSM1900 Body SAR Date of Issue: May 8, 2006 T6QGM608 KC Mobile Co., Ltd. DEMC#DR50110605D Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 2 of 34 TABLE OF CONTENTS ATTACHMENT: CONFIDENTIALITY LETTER(S) ATTACHMENT: ATTESTATION STATEMENT(S) ATTACHMENT: TEST REPORT 1 SCOPE 3 2 INTRODUCTION 4 3 TEST REPORT 5 3.1 SUMMARY OF TEST 5 3.2 REQUIREMENTS 6 3.2.1 POWER OUTPUT 6 3.2.2 OCUPIED BANDWIDTH 10 3.2.3 OCCUPIED BANDWIDTH EMISSION LIMIT 13 3.2.4 SPURIOUS EMISSION AT ANT. TERMINAL 17 3.2.5 FIELD STRENGTH OF SPURIOUS RADIATION 24 3.2.6 FREQUENCY STABILITY / TEMPERATURE VARIATION 28 4 TEST EQUIPMENT 31 5 EMISSION DESIGNATOR 33 6 CONCLUSION 34 ATTACHMENT: PART LOCATION ATTACHMENT: FCC ID LABEL & LOCATION ATTACHMENT: TEST SETUP PHOTOGRAPHS ATTACHMENT: EXTERNAL PHOTOGRAPHS ATTACHMENT: INTERNAL PHOTOGRAPHS ATTACHMENT: BLOCK DIAGRAM(S) ATTACHMENT: SCHEMATIC(S) ATTACHMENT: OPERATIONAL DESCRIPTION ATTACHMENT: PARTS LIST ATTACHMENT: USER’S MANUAL ATTACHMENT: SAR MEASUREMENTS REPORT ATTACHMENT: SAR VALIDATION AND TEST PLOTS ATTACHMENT: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT: DIPOLE CALIBRATION ATTACHMENT: PROBE CALIBRATION DEMC#DR50110605D Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 3 of 34 MEASUREMENT REPORT 1. Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information z FCC ID: z Quantity: z Tx Freq. Range: z Rx Freq. Range: z Max. Power Rating: z FCC Classification(s): z Equipment (EUT) Type: z Modulation(s): z Frequency Tolerance: z FCC Rule Part(s): z Dates of Tests: z Place of Tests: z Test Report S/N: T6QGM608 The mass product 1850.2 ~ 1909.8 MHz 1930.2 ~ 1989.8 MHz 0.492 W EIRP GSM1900 (26.92dBm) Licensed Portable Transmitter Held to Ear (PCE) Tri-band GSM/GPRS handset GMSK ± 0.00025 % (2.5ppm) §24(E), §2 Dates of Tests: April 28 ~ May 4, 2006 DIGITAL EMC DR50110605D Applicant: KC Mobile Co., Ltd. Address: 3F., Seochoworld Officetel, 1355-3, SeoCho-Dong, SeoCho-Gu, Seoul 137-862, Korea Attention: Kil-Joo Lee (Hardware Manager) DEMC#DR50110605D Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 4 of 34 2. Introduction This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competent of calibration and testing laboratory”. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200559-0. Test operator: engineer May 8, 2006 Won-Jung LEE Data Name Signature Report Reviewed By: manager May 8, 2006 Harvey Sung Data Name Signature Ordering party: Company name : KC Mobile Co., Ltd. Address : 3F., Seochoworld Officetel, 1355-3, SeoCho-Dong, SeoCho-Gu Zipcode : 137-862 City/town : Seoul Country : Korea Date of order : April 18, 2006 DEMC#DR50110605D Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 5 of 34 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Status (note 1) 24.232(b) / 2.1046 Power Output C 24.238 / 2.1049(h)(i) Occupied Bandwidth C 24.238(b) Emission Bandwidth C 24.238 / 2.1051 Emission Limits Transmitter C 2.1053 (a) Field Strength of Spurious Radiation C 2.1055 Frequency Stability C Note 1: C= Complies NC=Not Complies NT=Not Tested NA=Not Applicable The sample was tested according to the following specification: FCC Parts §24(E), §2; ANSI C-63.4-2003 DEMC#DR50110605D Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 6 of 34 3.2 Requirements 3.2.1 Output Power FCC ID : T6QGM608 Specification : 47 CFR 2.1046 (a) Tested Frequency : 1850.2MHz, 1880.0MHz and 1909.8MHz for GSM1900 Measurement Procedure: - During the process of testing, the EUT was controlled via Radio Communication tester to ensure max. power transmission and proper modulation. - Power output was measured at the RF output terminals when the transmitter is adjusted in accordance with communication tester (or the tune-up procedure). Measurement Data: GSM1900 TEST CONDITIONS Power Step: 0 Channel Frequency (MHz) (dBm) 512 1850.2 29.78 661 1880.0 29.92 810 1909.8 30.00 DEMC#DR50110605D Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 7 of 34 POWER OUT. GSM1900 Ch.512 POWER OUT. GSM1900 Ch.661 DEMC#DR50110605D Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 8 of 34 POWER OUT. GSM1900 Ch.810 DEMC#DR50110605D Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 9 of 34 EIRP (GSM1900) FCC ID : T6QGM608 Specification : 47 CFR 24.232(b) Tested Frequency : 1850.2MHz, 1880.0MHz and 1909.8MHz for GSM1900 RBW=VBW : 3MHz Measurement Procedure: Effective Radiated Power Output Measurements by Substitution Method according to ANSI/TIA/EIA-603-A-2001, Aug. 15, 2001: The EUT was placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotation was adjusted for the highest reading on the receive spectrum analyzer. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal gener…

Text truncated - open the document above for the full version.

FCC ID : T6QGM608 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. SAR TEST SET UP PHOTO FCC ID : T6QGM608 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 1 FCC ID : T6QGM608 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 2(Left Touch / Tilt) FCC ID : T6QGM608 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 3(Right Touch / Tilt) FCC ID : T6QGM608 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 4(Body)

FCC ID: T6QGM608 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 1 FCC ID: T6QGM608 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 2 FCC ID: T6QGM608 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 3 FCC ID: T6QGM608 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 4
