T6QN110QUAD-BAND MULTIMEDIA GSM PHONE

Tri-band GSM/GPRS handset N110 User Guide UNPACKING Thank you for purchasing N110. Check whether your phone comes equipped with all the neces sary components, as shown in the figure below. If the product is defective or there is a compo nent missing, immediately contact the office where you bought our phone. 9 Phone 9 Li-ion Battery 9 Travel Charger 9 Earphone 9 User Guide 9 Quick Reference Card CONTENTS 0...SAFETY INFORMATION 0...BEFORE YOU START 0...PHONE ICONS 0...DESCRIPTION OF KEYS 0...BACKLIGHT 0...BATTERY 0...NETWORK LINKING 0...INSERT & REMOVE THE T- FLASH CARD 0...THE IDLE PROFILE 0...CALL FUNCTIONS 0...DISPLAY SCREEN 0...KEY OPERATION 0...SILENT MODE 0...CALL LOG 0...CALL MENU 0...FUNCTION MENU 0...PHONEBOOK 0...Quick Search 0...Search Entry 0...Add New Entry 0...Copy All 0...Delete 0...Caller Group 0...Extra Number 0...Settings 0...Caller Picture 0...Caller Ring Tone 0...Caller Video 0...MESSAGE 0...Message 0...Chat 0...Voice Mail Server 0...Broadcast Message 0...CALL HISTORY 0...Missed Calls 0...Dialed Calls 0...Received Calls 0...Delete Call Log 0...Call Time 0...Call cost 0...SMS Counter 0...GPRS Counter 0...SETTINGS 0...Phone Setup 0...Call Setup 0...Network Setup 0...Security Setup 0...Sound Effect 0...Restore Factory Settings 0...S/W Version 0...MULTIMEDIA 0...Camera 0...ImageViewer 0...Video Recorder 0...Video Player 0...Webcam 0...Photo Editor 0...Audio Player 0...AB Repeater 0...Sound Recorder 0...Melody Compose 0...FILE MANAGER 0...FUN & GAME 0...Games 0...Theme 0...Stopwatch 0...USER PROFILE 0...ORGANIZER 0...Calendar 0...To Do List 0...Alarm 0...World Clock 0...Voice ExactTime 0...SERVICES 0...WAP 0...Data Account 0...EXTRA FUNCTIONS 0...Calculator 0...Unit Converter 0...Currency Converter 0...Health 0...E-Book Reader 0...SHORTCUTS 0...TEXT INPUT MODE 0...SPANISH/ENGLISH IUPUT MODE 0...SYMBOLS 0...MP3 AND MP4 INSTRUCTION 0...TROUBLESHOOTING 0...GLOSSARY 0...LIMITED WARRANTY STATEMENT 0...Multitap ES/ABC Input Mode 0...Multitap es/abc Input Mode 0...Smart ES/ABC Input Mode 0...Smart es/abc Input Mode 0...Numeric Mode SAFETY INFORMATION PERSONAL USE Operation of any radio equipment including mobile phones may interfere with the function of in adequately shielded medical devices such as hearing aids and pacemakers. You must consult t he manufacturer of these devices or your physician before use. In oil depots and chemical factories where explosive gas or other products are stored, the user should pay close attention to the restriction on the use of mobile phone. Even if your phone is i n the idle mode, it will still transmit radio frequency signals. Therefore, you must switch off wh en requested to do so. Do not move the antenna close to or touch any exposed part of the body when making a call. Otherwise, it will cause minor burn to your body. Note traffic safety. When you are driving, please do no use your mobile phone. Stop on the sid e of the road when you do need to use it. Avoid making calls with your cellular phone in storm y weather. Safety Information related with children: 9 Be cautious of children swallowing the small parts such as the SIM card 9 Prevent children from playing with your cell phone as toys. For example, behaviors l ike throwing, biting the phone, or immersing it into water should be avoided. 9 Do not let children less than 14 years old hang the phone around the neck. MOBILE PHONE USE Please use only the accessories or parts offered by the manufacturer or those authorized by th e manufacturer. Use of unauthorized accessories might influence the performance of the phone. What’s worse, your phone might get damaged and harm will be caused to your body. It might even violate the national regulations on the telecommunication terminal products. Do not use chemical products like cleaning solvents or detergents to clean your phone. It is rec ommended that you use slightly damp and static electricity proof cloth instead of cloth that is d ry and easy to catch static electricity. Before cleaning, you should switch off your phone. Your mobile phone produces magnetic fields. Do not place it next to magnetic storage media s uch as computer diskettes. Operating your mobile phone close to other electrical equipment su ch as televisions, phones, radios and personal computers may cause interference and therefore influence the performance of your phone. Do not expose your mobile phone to strong sunlight, direct heat or any liquids in case of any d amage. Harsh handling behaviors such as throwing; beating which might damage the internal integrate d circuit of the phone should be avoided. Please do not link it to other unnecessary equipments. Note! Non-professionals must not try to dissemble the phone. Phone Precautions! 9 Use your phone battery only for its intended purpose, and never use any battery charger which is damaged or worn out. 9 When you unplug your phone from its charger, grasp and pull the plug, not the power cord. 9 Do not use harsh chemicals, cleaning solvents, or strong detergents to clean your phone. Wipe it with a soft cloth slightly dampened in a mild soap-and-water solution. 9 Do not attempt to open the casing on your phone or its battery. 9 Always keep SIM card out of children’s reach. BATTERY USE Do not short-circuit the battery terminals. This is dangerous and will damage the battery, produ ce heat and may cause a fire. Never dispose of batteries in a fire as it can cause explosion. Return waste batteries to your su pplier or an approved recycling center. Do Not dispose along with household wastes. Warning! If the battery case is broken, avoid contact with the contents. Wash contaminated s kin with lots of water and seek medical attention. Battery Precautions! 9 Avoid dropping the cell phone. Dropping it, especially on a hard surface, can potenti ally cause damage to the phone and battery. If you suspect damage to the phone o r battery, take it to a service center for inspection. 9 Never use any charger or battery that is damaged in any way…

Text truncated - open the document above for the full version.

KCMobile Co., Ltd. 3F., Seochoworld Officetel, 1355-3, SeoCho-Dong, SeoCho-Gu, Seoul 137-862, Korea TEL : 82-2-583-9888 FAX : 82-2-582-2992 Date: 27 February, 2007 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: KC Mobile Co., Ltd., FCC ID: T6QN110 FCC Part 22&24 Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. KC Mobile Co., Ltd., requests that the following documents regarding this submission for FCC ID: T6QN110 be kept confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Circuit Diagram.pdf Operational Description Operational_Description.pdf Part list BOM.pdf Tune-Up-Procedure Tune up precedure.pdf Those documents contain detailed system and equipment description and related information about the product which KC Mobile Co., Ltd., considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, KC Mobile Co., Ltd., considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours Sincerely, Daewon Seo Marketing manager

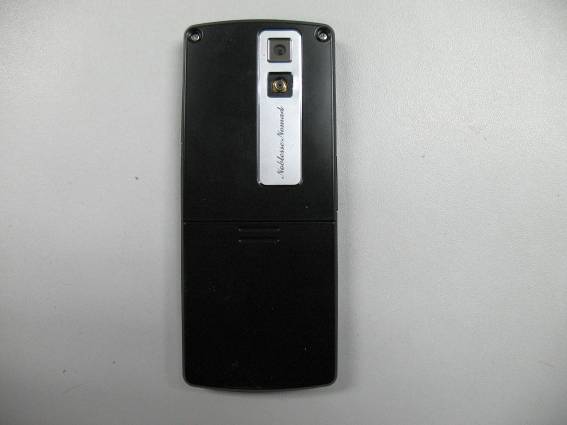

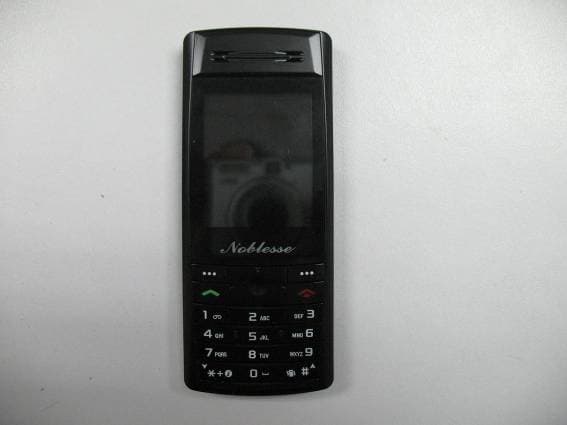

External Photos 1. Front View of EUT 2. Back View of EUT 3. Side View of EUT

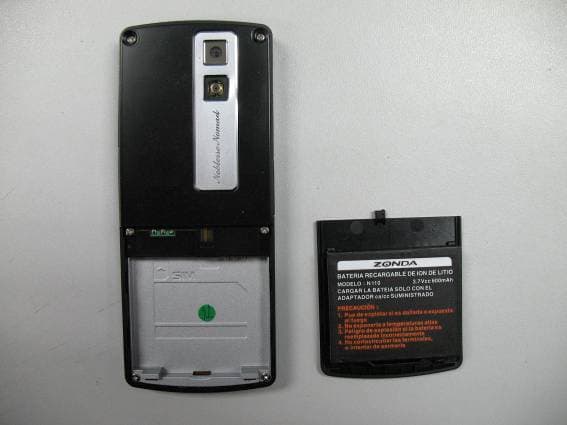

Label Label Location

KCMobile Co., Ltd. 3F., Seochoworld Officetel, 1355-3, SeoCho-Dong, SeoCho-Gu, Seoul 137-862, Korea TEL : 82-2-583-9888 FAX : 82-2-582-2992 Date: 27 February, 2007 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: T6QN110 Dear Sirs: KC Mobile Co., Ltd., requests acceptance of the labeling proposal described below for cell phone bearing FCC identifier T6QN110. The subject cell phone are compact handheld models as shown in figure 1, authorized under 47CFR Part 22&24 for GSM mobile services. Figure 1. Because the majority of the cell phone housing is composed of display, speaker, operating controls, camera and a removable battery pack, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery pack is not acceptable because the battery pack is a removable item. For this reason, KC Mobile proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. KCMobile Co., Ltd. 3F., Seochoworld Officetel, 1355-3, SeoCho-Dong, SeoCho-Gu, Seoul 137-862, Korea TEL : 82-2-583-9888 FAX : 82-2-582-2992 Figure 2. The consumer packaging for these models includes the battery pack as a separate item, NOT installed on the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a "gift box" which does not allow the transceiver to be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), KC Mobile will add the FCC identifier "T6QN110" to the outside of the consumer "gift box" packaging. Thank you for your attention to this matter. Yours Sincerely, Daewon Seo Marketing manager

Internal Photos

No. SAR07-009 Page 3 of 76 Contents 1. GENERAL CONDITIONS 2. ADMINISTRATIVE DATA 2.1. Identification of the Responsible Testing Laboratory 2.2. Identification of the Responsible Testing Location(s) 2.3. Organization Item 2.4. Identification of Applicant 2.5. Identification of Manufacture 3. EQUIPMENT UNDER TEST (EUT) 3.1. Identification of the Equipment under Test 3.2. Identification of all used Test Sample of the Equipment under Test 4. OPERATIONAL CONDITIONS DURING TEST 4.1. Schematic Test Configuration 4.2. SAR Measurement System 5. CHARACTERISTICS OF THE TEST 5.1. Applicable Limit Regulations 5.2. Applicable Measurement Standards 6. LABORATORY ENVIRONMENT 7. TEST RESULTS 7.1. Dielectric Performance 7.2. Summary of Measurement Results 7.3. Conclusion 8. MEASUREMENT UNCERTAINTY 9. MAIN TEST INSTRUMENTS This Test Report consists of the following Annexes: Annex A: Accreditation Certificate Annex B: Test Layout Annex C: Sample Photographs Annex D: Graph Test Results Annex E: System Performance Check Data No. SAR07-009 Page 4 of 76 1．GENERAL CONDITIONS 1.1 This report only refers to the item that has undergone the test. 1.2 This report standalone dose not constitute or imply by its own an approval of the product by the certification Bodies or competent Authorities. 1.3 This document is only valid if complete; no partial reproduction can be made without written approval of Shenzhen Electronic Product Quality Testing Center. 1.4 This report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of Shenzhen Electronic Product Quality Testing Center and the Accreditation Bodies, if it applies. No. SAR07-009 Page 5 of 76 2. Administrative Date 2.1. Identification of the Responsible Testing Laboratory Company Name: ShenZhen Electronic Product Quality Testing Center Department: Testing Department Address: Electronic Testing Building, ShaHe Road, NanShan District, ShenZhen, P. R. China Telephone: +86-755-26628676 Fax: +86-755-26627238 Responsible Test Lab Managers: Mr. Li’an Wu 2.2. Identification of the Responsible Testing Location(s) Company Name: ShenZhen Electronic Product Quality Testing Center Address: Electronic Testing Building, ShaHe Road, NanShan District, ShenZhen, P. R. China 2.3. Organization Item S.E.T Report No.: SAR07-009 S.E.T Project Leader: Mr. Li Sixiong S.E.T Responsible for accreditation scope: Mr. Li’an Wu Start of Testing: 2007-02-12 End of Testing: 2007-03-07 2.4. Identification of Applicant Company Name: KCMOBILE CO., LTD. Address: 3F., Seochoworld Officetel, 1355-3, SeoCho-Dong, SeoCho-Gu, Seoul 137-862, Korea Contact person: Daewon Seo Telephone: +82 2 583 9888 Ext. 207 Fax: +82 2 582 2992 2.5. Identification of Manufacture Company Name: KCMOBILE CO., LTD. Address: 3F., Seochoworld Officetel, 1355-3, SeoCho-Dong, SeoCho-Gu, Seoul 137-862, Korea Contact person: Daewon Seo Telephone: +82 2 583 9888 Ext. 207 Fax: +82 2 582 2992 Notes: This data is based on the information by the applicant. No. SAR07-009 Page 6 of 76 3. Equipment Under Test (EUT) 3.1. Identification of the Equipment under Test Brand Name: / Type Name: N110 Marking Name: N110 Test frequency GSM 850MHz and GSM 1900MHz Development Stage Identical prototype Accessories Charger, Battery Battery Model N110 Battery specification550mAh 3.7V Antenna type Build inside Operation mode Call established Modulation mode GSMK General description: Max. Power 33dBm(GSM 850) 30dBm(GSM 1900) 3.2. Identification of all used Test Sample of the Equipment under Test EUT Code Serial Number Hardware Version Software Version IMEI 1# N.A. J1_MAIN_REV03 N110_155MXTC 355500009032954 NOTE: 1. The EUT consists of Hand Telephone Set and normal options: Charger, Lithium Battery as listed above. 2. Please refer to Appendix C for the photographs of the EUT. For a more detailed features description about the EUT, please refer to User’s Manual. 3. The EUT can work in four different bands, but this SAR test was performed only in the GSM 850MHz and GSM 1900MHz bands. No. SAR07-009 Page 7 of 76 4 OPERATIONAL CONDITIONS DURING TEST 4.1 Schematic Test Configuration During SAR test, EUT is in Traffic Mode (Channel Allocated) at Normal Voltage Condition. A communication link is set up with a System Simulator (SS) by air link, and a call is established. The TCH is allocated to 128, 190 and 251 respectively in the case of GSM 850 MHz, or to 512, 661 and 810 respectively in the case of GSM 1900 MHz. The EUT is commanded to operate at maximum transmitting power. The EUT shall use its internal transmitter. The antenna(s), battery and accessories shall be those specified by the manufacturer. The EUT battery must be fully charged and checked periodically during the test to ascertain uniform power output. If a wireless link is used, the antenna connected to the output of the base station simulator shall be placed at least 50 cm away from the handset. The signal transmitted by the simulator to the antenna feeding point shall be lower than the output power level of the handset by at least 35 dB. 4.2 SAR Measurement System The SAR measurement system being used is the IndexSAR SARA2 system, which consists of a Figure1. SAR Lab Test Measurement Set-up No. SAR07-009 Page 8 of 76 Mitsubishi RV-E2 6-axis robot arm and controller, IndexSAR probe and amplifier and SAM phantom Head Shape. The system is controlled remotely from a PC, which contains the software to control the robot and data acquisition equipment. The software also displays the data obtained from test scans. In operation, the system first does an area (2D) scan at a fixed depth within the liquid from the inside wall of the phantom. When the maximum SAR point has been found, the system will then carry out a 3D scan centred at that point to determine volume averaged SAR level. 4.2.1 Robot system specification The robot is used to articulate the probe to programmed positions inside the phantom head to obtain the SAR readings from the DUT. 4.2.2 Probe a…

Text truncated - open the document above for the full version.

Report No. SN0093_900 March 2006 INDEXSAR 900MHz validation Dipole Type IXD-090 S/N 0093 Performance measurements MI Manning Indexsar, Oakfield House, Cudworth Lane, Newdigate, Surrey RH5 5BG. UK. Tel: +44 (0) 1306 632870 Fax: +44 (0) 1306 631834 e-mail: [email protected] 1. Measurement Conditions Measurements were performed using a box-shaped phantom made of PMMA with dimensions designed to meet the accuracy criteria for reasonably-sized phantoms that do not have liquid capacities substantially in excess of the volume of liquid required to fill the Indexsar upright SAM phantoms used for SAR testing of handsets against the ear. An Anritsu MS4623B vector network analyser was used for the return loss measurements. The dipole was placed in a special holder made of low-permittivity, low-loss materials. This holder enables the dipole to be positioned accurately in the centre of the base of the Indexsar box-phantom used for flat-surface testing and validation checks. The validation dipoles are supplied with special spacers made from a low- permittivity, low-loss foam material. These spacers are fitted to the dipole arms to ensure that, when the dipole is offered up to the phantom surface, the spacing between the dipole and the liquid surface is accurately aligned according to the guidance in the relevant standards documentation. The spacers are rectangular with a central hole equal to the dipole arm diameter and dimensioned so that the longer side can be used to ensure a spacing of 15mm from the liquid in the phantom (for tests at 900MHz and below) and the shorter side can be used for tests at 1800MHz and above to ensure a spacing of 10mm from the liquid in the phantom. The spacers are made on a CNC milling machine with an accuracy of 1/40 th mm but they may suffer wear and tear and need to be replaced periodically. The material used is Rohacell, which has a relative permittivity of approx. 1.05 and a negligible loss tangent. The apparatus supplied by Indexsar for dipole validation tests thus includes: Balanced dipoles for each frequency required are dimensioned according to the guidelines given in IEEE 1528 [1]. The dipoles are made from semi-rigid 50 Ohm co-ax, which is joined by soldering and is gold-plated subsequently. The constructed dipoles are easily deformed, if mis-handled, and periodic checks need to be made of their symmetry. Rohacell foam spacers designed for presenting the dipoles to 2mm thick PMMA box phantoms. These components also suffer wear and tear and should be replaced when the central hole is a loose-fit on the dipole arms or if the edges are too worn to ensure accurate alignment. The standard spacers are dimensioned for use with 2mm wall thickness (additional spacers are available for 4mm wall thickness). 2. Typical SAR Measurement A SAR validation check is performed with the box-phantom located on the SARA2 phantom support base on the SARA2 robot system. Tests are then conducted at a feed power level of approx. 0.25W. The actual power level is recorded and used to normalise the results obtained to the standard input power conditions of 1W (forward power). The ambient temperature is 21 o C +/- 1 o C and the relative humidity is around 40% during the measurements. The phantom is filled with a 900MHz brain liquid using a recipe from [1], which has the following electrical parameters (measured using an Indexsar DiLine kit) at 900MHz: Relative Permittivity 42.5 Conductivity 0.96 S/m The SARA2 software version VPM2.2 is used with an Indexsar probe previously calibrated using waveguides. The 3D measurements made using the dipole at the bottom of the phantom box is shown below: The results, normalised to an input power of 1W (forward power) are typically: Averaged over 1 cm3 (1g) of tissue 10.55 W/kg Averaged over 10cm3 (10g) of tissue 6.80 W/kg These results can be compared with Table 8.1 in [1]. The agreement is within 10%. 3. Dipole impedance and return loss The dipoles are designed to have low return loss ONLY when presented against a lossy-phantom at the specified distance. A Vector Network Analyser (VNA) was used to perform a return loss measurement on the specific dipole when in the measurement-location against the box phantom. The distance was as specified in the standard i.e. 10mm from the liquid (for 900MHz). The Indexsar foam spacers (described above) were used to ensure this condition during measurement. The impedance was measured at the SMA-connector with the network analyser. The following parameters were measured: Dipole impedance at 900 MHz Re{Z} = 49.999 Ω Im{Z} = 631.313 μΩ Return loss at 900MHz -20.416 dB 4. Dipole handling The dipoles are made from standard, copper-sheathed coaxial cable. In assembly, the sections are joined using ordinary soft-soldering. This is necessary to avoid excessive heat input in manufacture, which would destroy the polythene dielectric used for the cable. The consequence of the construction material and the assembly technique is that the dipoles are fragile and can be deformed by rough handling. Conversely, they can be straightened quite easily as described in this report. If a dipole is suspected of being deformed, a normal workshop lathe can be used as an alignment jig to restore the symmetry. To do this, the dipole is first placed in the headstock of the lathe (centred on the plastic or brass spacers) and the headstock is rotated by hand (do NOT use the motor). A marker (lathe tool or similar) is brought up close to the end of one dipole arm and then the headstock is rotated by 0.5 rev. to check the opposing arm. If they are not balanced, judicious deformation of the arms can be used to restore the symmetry. If a dipole has a failed solder joint, the dipole can be fixed down in such a way that the arms are co-linear and the joint re-soldered with a reasonably-powerful electrical soldering iron. Do not use gas soldering irons. After such a repair, electrical tests must be performed as described below. Please note that, beca…

Text truncated - open the document above for the full version.

Report No. SN0112_1900 March 2006 INDEXSAR 1900MHz validation Dipole Type IXD-080 S/N 0112 Performance measurements MI Manning Indexsar, Oakfield House, Cudworth Lane, Newdigate, Surrey RH5 5BG. UK. Tel: +44 (0) 1306 633870 Fax: +44 (0) 1306 631834 e-mail: [email protected] 1. Measurement Conditions Measurements were performed using a box-shaped phantom made of PMMA with dimensions designed to meet the accuracy criteria for reasonably-sized phantoms that do not have liquid capacities substantially in excess of the volume of liquid required to fill the Indexsar upright SAM phantoms used for SAR testing of handsets against the ear. An Anritsu MS4623B vector network analyser was used for the return loss measurements. The dipole was placed in a special holder made of low-permittivity, low-loss materials. This holder enables the dipole to be positioned accurately in the centre of the base of the Indexsar box-phantom used for flat-surface testing and validation checks. The validation dipoles are supplied with special spacers made from a low- permittivity, low-loss foam material. These spacers are fitted to the dipole arms to ensure that, when the dipole is offered up to the phantom surface, the spacing between the dipole and the liquid surface is accurately aligned according to the guidance in the relevant standards documentation. The spacers are rectangular with a central hole equal to the dipole arm diameter and dimensioned so that the longer side can be used to ensure a spacing of 15mm from the liquid in the phantom (for tests at 900MHz and below) and the shorter side can be used for tests at 1800MHz and above to ensure a spacing of 10mm from the liquid in the phantom. The spacers are made on a CNC milling machine with an accuracy of 1/40 th mm but they may suffer wear and tear and need to be replaced periodically. The material used is Rohacell, which has a relative permittivity of approx. 1.05 and a negligible loss tangent. The apparatus supplied by Indexsar for dipole validation tests thus includes: Balanced dipoles for each frequency required are dimensioned according to the guidelines given in IEEE 1528 [1]. The dipoles are made from semi-rigid 50 Ohm co-ax, which is joined by soldering and is gold-plated subsequently. The constructed dipoles are easily deformed, if mis-handled, and periodic checks need to be made of their symmetry. Rohacell foam spacers designed for presenting the dipoles to 2mm thick PMMA box phantoms. These components also suffer wear and tear and should be replaced when the central hole is a loose-fit on the dipole arms or if the edges are too worn to ensure accurate alignment. The standard spacers are dimensioned for use with 2mm wall thickness (additional spacers are available for 4mm wall thickness). 2. Typical SAR Measurement A SAR validation check is performed with the box-phantom located on the SARA2 phantom support base on the SARA2 robot system. Tests are then conducted at a feed power level of approx. 0.25W. The actual power level is recorded and used to normalise the results obtained to the standard input power conditions of 1W (forward power). The ambient temperature is 22 o C +/- 1 o C and the relative humidity is around 40% during the measurements. The phantom is filled with a 1900MHz brain liquid using a recipe from [1], which has the following electrical parameters (measured using an Indexsar DiLine kit) at 1900MHz: Relative Permittivity 41.4 Conductivity 1.85 S/m The SARA2 software version 2.2 VPM is used with an Indexsar probe previously calibrated using waveguides. The 3D measurements made using the dipole at the bottom of the phantom box is shown below: The results, normalised to an input power of 1W (forward power) are typically: Averaged over 1 cm3 (1g) of tissue 4.928 W/kg Averaged over 10cm3 (10g) of tissue 2.362 W/kg These results can be compared with Table 8.1 in [1]. The agreement is within 10%. 3. Dipole impedance and return loss The dipoles are designed to have low return loss ONLY when presented against a lossy-phantom at the specified distance. A Vector Network Analyser (VNA) was used to perform a return loss measurement on the specific dipole when in the measurement-location against the box phantom. The distance was as specified in the standard i.e. 10mm from the liquid (for 1900MHz). The Indexsar foam spacers (described above) were used to ensure this condition during measurement. The impedance was measured at the SMA-connector with the network analyser. The following parameters were measured: Dipole impedance at 1900 MHz Re{Z} = 49.996 Ω Im{Z} = 15.160 mΩ Return loss at 1900MHz -26.175 dB 4. Dipole handling The dipoles are made from standard, copper-sheathed coaxial cable. In assembly, the sections are joined using ordinary soft-soldering. This is necessary to avoid excessive heat input in manufacture, which would destroy the polythene dielectric used for the cable. The consequence of the construction material and the assembly technique is that the dipoles are fragile and can be deformed by rough handling. Conversely, they can be straightened quite easily as described in this report. If a dipole is suspected of being deformed, a normal workshop lathe can be used as an alignment jig to restore the symmetry. To do this, the dipole is first placed in the headstock of the lathe (centred on the plastic or brass spacers) and the headstock is rotated by hand (do NOT use the motor). A marker (lathe tool or similar) is brought up close to the end of one dipole arm and then the headstock is rotated by 0.5 rev. to check the opposing arm. If they are not balanced, judicious deformation of the arms can be used to restore the symmetry. If a dipole has a failed solder joint, the dipole can be fixed down in such a way that the arms are co-linear and the joint re-soldered with a reasonably-powerful electrical soldering iron. Do not use gas soldering irons. After such a repair, electrical tests must be performed as described below. Please note th…

Text truncated - open the document above for the full version.

IMMERSIBLE SAR PROBE CALIBRATION REPORT Part Number: IXP – 050 S/N 0177 March 2006 Indexsar Limited Oakfield House Cudworth Lane Newdigate Surrey RH5 5BG Tel: +44 (0) 1306 632 870 Fax: +44 (0) 1306 631 834 e-mail: [email protected] Page 1 of 19 Page 2 of 19 INTRODUCTION This Report presents measured calibration data for a particular Indexsar SAR probe (S/N 0177) and describes the procedures used for characterisation and calibration. Indexsar probes are characterised using procedures that, where applicable, follow the recommendations of CENELEC [1] and IEEE [2] standards. The procedures incorporate techniques for probe linearisation, isotropy assessment and determination of liquid factors (conversion factors). Calibrations are determined by comparing probe readings with analytical computations in canonical test geometries (waveguides) using normalised power inputs. Each step of the calibration procedure and the equipment used is described in the sections below. CALIBRATION PROCEDURE 1. Objectives The calibration process comprises three stages 1) Determination of the channel sensitivity factors which optimise the probe’s overall rotational isotropy in 1800MHz brain fluid 2) At each frequency of interest, application of these channel sensitivity factors to model the exponential decay of SAR in a waveguide fluid cell, and hence derive the liquid conversion factors at that frequency 3) Determination of the effective tip radius and angular offset of the X channel which together optimise the probe’s spherical isotropy in 900MHz brain fluid 2. Probe output The probe channel output signals are linearised in the manner set out in Refs [1] and [2]. The following equation is utilized for each channel: U lin = U o/p + U o/p 2 / DCP (1) where U lin is the linearised signal, U o/p is the raw output signal in voltage units and DCP is the diode compression potential in similar voltage units. DCP is determined from fitting equation (1) to measurements of U lin versus source feed power over the full dynamic range of the probe. The DCP is a characteristic of the Schottky diodes used as the sensors. For the IXP-050 probes with CW signals the DCP values are typically 0.10V (or 20 in the voltage units used by Indexsar software, which are V*200). In turn, measurements of E-field are determined using the following equation (where output voltages are also in units of V*200): Page 3 of 19 E liq 2 (V/m) = U linx * Air Factor x * Liq Factor x + U liny * Air Factor …

Text truncated - open the document above for the full version.
