Publication No. OME-R07903-B Date: Feb/2007 PRINTED IN JAPAN USER’S MANUAL Single-band Access Point MODEL: WN-701-W FURUNO SYSTEMS CO., LTD. A TABLE OF CONTENTS FOREWORDS ........................................................................................................................ C DISCLAIMER.......................................................................................................................... C TRADEMARKS....................................................................................................................... C COPYRIGHT........................................................................................................................... D DISPOSAL OF LITHIUM BATTERY ...................................................................................... D FCC MANUAL STATEMENT ................................................................................................. D SAFETY LEVELS & MARKS ..................................................................................................F HANDLING PRECAUTIONS FOR THIS UNIT ....................................................................... G SECURITY ON USING WIRELESS LAN .................................................................................I 1. Features............................................................................................. 1 2. System Configuration ...................................................................... 2 3. Controls & Switches......................................................................... 3 4. INSTALLATION: Introduction .......................................................... 5 4-1 Materials required ........................................................................................................5 4-2 Installation Procedure Guideline ................................................................................6 5. INSTALLATION: Notes on radio wave path.................................... 7 5-1 Radio wave attenuation by wall, metallic net, etc. ....................................................7 5-2 Interference from ISM devices ....................................................................................7 5-3 Mounting Location .......................................................................................................7 5-4 Installing multiple access points................................................................................9 6. INSTALLATION: Cabling & Mounting ........................................... 10 6-1 Notes on Cabling .......................................................................................................10 6-2 Mounting Procedure ..................................................................................................11 6-3 Notes on PoE Power Supply .....................................................................................14 7. INSTALLATION: Initial Setup......................................................... 15 7-1 Initial Setup Items ......................................................................................................15 7-2 Initial Setup Procedures ............................................................................................17 7-3 Calling MainMenu through network by telnet .........................................................17 7-4 Calling MainMenu through COM port ......................................................................18 7-5 Settings on MainMenu ...............................................................................................19 7-6 Initial Setup by MORS Terminal Manager ................................................................23 8. Daily Maintenance .......................................................................... 24 9. Before calling service .................................................................... 25 10. Specifications............................................................................... 27 11. Equipment List ............................................................................. 31 B THIS PAGE INTENTIONALLY BLANK C FOREWORDS Congratulations and thank you for deciding and purchasing this unit. Before start using the unit, read this manual carefully to operate it properly and derive full performance. This manual explains installation procedure, very basic usages and the important information (cautions, etc.) required when using the unit. For daily operations or other information of the entire system including the host computer, refer to relative manuals for that system. Always keep this manual in the place accessible from the operators. DISCLAIMER This manual was edited very carefully and the information contained in this manual is thought to be correct in every respect, however, in no event FURUNO SYSTEMS be liable to you for any damages, including any lost profits, lost savings or consequential damages arising from incorrect and/or insufficient information in this manual. The entire risks are assumed by you. The information in this manual may be revised without notice. TRADEMARKS Product names used in this document are for identification purposes only and may be trademarks of their respective companies. D COPYRIGHT Everything contained in this document, including all text, images, graphics, photographs, design elements, etc. is the intellectual property of FURUNO SYSTEMS. Full copyrights over all of this material are retained by FURUNO SYSTEMS. No material from this document may be reproduced by any means in any form whatsoever without written permission from FURUNO SYSTEMS. DISPOSAL OF LITHIUM BATTERY This unit contains a Lithium battery. For disposal of the Lithium battery, follow the directions of your local government. Feel free to contact the vendor of your unit for any inquiry on this matter. FCC MANUAL STATEMENT FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could vo…
Text truncated - open the document above for the full version.

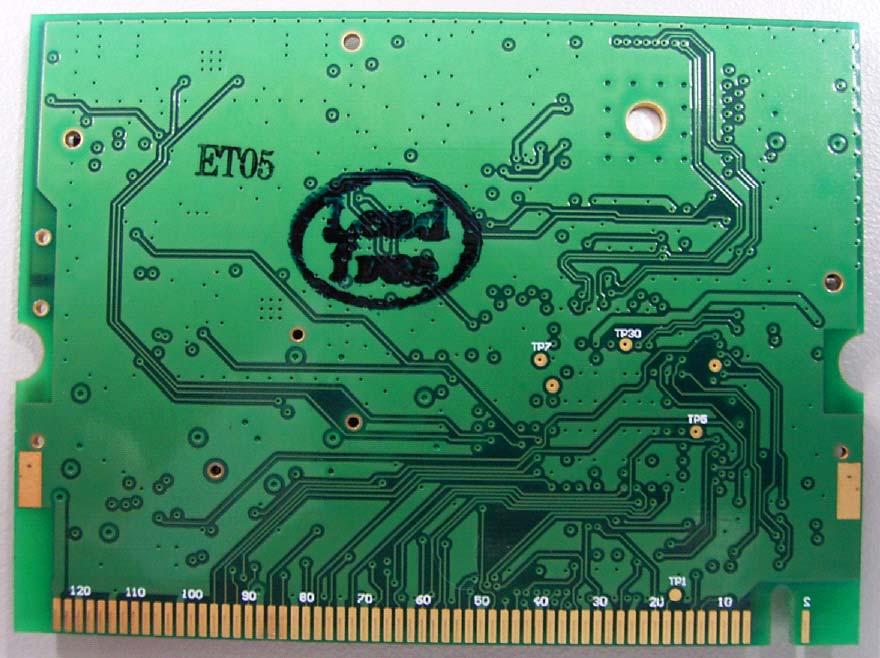

External Photo FURUNO SYSTEMS CO.,LTD. WLAN Module(Model: SS21M) FCC ID: T87SS21ABGXM Front Back External Photo FURUNO SYSTEMS CO.,LTD. WLAN Module(Model: SS21M) FCC ID: T87SS21ABGXM Antenna (Front) Antenna (Back)
LABEL LOCATION Location: Material: FCC ID:XXXXXXXXXXXX Yupo paper with laminate (acrylic adhesive) 50 30
Internal Photo FURUNO SYSTEMS CO.,LTD. WLAN Module(Model: SS21M) FCC ID: T87SS21ABGXM
Applicant: FURUNO SYSTEMS Co., Ltd. Type of Equipment : WLAN module (IEEE802.11a) Model No. : SS21M FCC ID: T87SS21ABGXM FURUNO SYSTEMS Co., Ltd. declares that Model : WLAN module (IEEE802.11a) complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093(for portable)/2.1091 (for mobile). RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “SS21M“ as calculate d from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 157.40 mW (Maximum peak output power) G = 1.68 Numerical Antenna gain; equal 2.25 dBi r =20.0 cm For: SS21MS = 0.05257 mW/cm 2 No. : 26GE0203-HO RF Exposure Statement
Applicant: FURUNO SYSTEMS Co., Ltd. Type of Equipmen t: WLAN module (IEEE802.11b/g) Model No. : SS21 M FCC ID: T87SS21ABGXM FURUNO SYSTEMS Co., Ltd. declares that Model : WLAN module (IEEE802.11b/g) complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093(for portable)/2.1091 (for mobile). RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “SS21M“ as calculate d from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 181.13 mW (Maximum peak output power) G = 0.70 Numerical Antenna gain; equal -1.56 dBi r =20.0 c m For: SS21MS =0.02516mW/cm 2 No. : 26GE0203-HO RF Exposure Statement
Test report No. : 26GE0203-HO-A Page : 16 of 71 Issued date : March 20, 2007 FCC ID : T87SS21ABGXM UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06) APPENDIX 2: Data of EMI test Conducted Emission (IEEE802.11a Ch High) DATA OF CONDUCTED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.3 Semi Anechoic Chamber Date : 2007/03/15 Company : FURUNO SYSTEMS CO.,LTDReport No.:26GE0203-HO Kind of EUT : WLAN Module Power:AC 120V / 60Hz Model No. : SS21M Temp./Humi.:25deg.C / 34% Serial No. : C0695230007DC01 Operator:Shinya Watanabe Mode / Remarks : Transmitting 11a/24Mbps/5825MHz LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data.Data is uncorrected. CALCURATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Fre quency[Hz] [dBuV] << QP/AV DATA >>L :QP :AV N :QP :AV .15M30M .2M .3M .5M .7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 _ Frequency _ Reading Level _ Reading Level _ Corr. _ Results _ Results _ Limit _ Limit _ Margin _ Margin _ Phase _ Frequency _ QP _ AV _ Factor _ QP _ AV _ QP _ AV _ QP _ AV _ Phase _ [MHz ] _ [ dBuV ] _ [ dBuV ] _ [dB] _ [dBuV] _ [dBuV] _ [dBuV] _ [dBuV] _ [dB] _ [dB] _ Phase _ 0 . 15510 _ 43 . 5 _ 17 . 4 _ 0.2 _ 43.7 _ 17.6 _ 65.7 _ 55.7 _ 22.0 _ 38.1 _ N _ 0 . 52910 _ 46 . 4 _ 39 . 5 _ 0.2 _ 46.6 _ 39.7 _ 56.0 _ 46.0 _ 9.4 _ 6.3 _ N _ 0 . 59200 _ 40 . 2 _ 35 . 2 _ 0.3 _ 40.5 _ 35.5 _ 56.0 _ 46.0 _ 15.5 _ 10.5 _ N _ 1 . 07200 _ 37 . 5 _ 24 . 0 _ 0.3 _ 37.8 _ 24.3 _ 56.0 _ 46.0 _ 18.2 _ 21.7 _ N _ 2 . 07999 _ 39 . 4 _ 33 . 0 _ 0.4 _ 39.8 _ 33.4 _ 56.0 _ 46.0 _ 16.2 _ 12.6 _ N _ 2 . 75500 _ 39 . 3 _ 27 . 3 _ 0.4 _ 39.7 _ 27.7 _ 56.0 _ 46.0 _ 16.3 _ 18.3 _ N _ 3 . 43000 _ 38 . 9 _ 27 . 0 _ 0.6 _ 39.5 _ 27.6 _ 56.0 _ 46.0 _ 16.5 _ 18.4 _ N _ 0 . 15425 _ 43 . 1 _ 17 . 0 _ 0.2 _ 43.3 _ 17.2 _ 65.8 _ 55.8 _ 22.5 _ 38.6 _ L _ 0 . 52995 _ 48 . 2 _ 40 . 4 _ 0.2 _ 48.4 _ 40.6 _ 56.0 _ 46.0 _ 7.6 _ 5.4 _ L _ 0 . 59285 _ 41 . 1 _ 34 . 7 _ 0.3 _ 41.4 _ 35.0 _ 56.0 _ 46.0 _ 14.6 _ 11.0 _ L _ 1 . 07200 _ 37 . 2 _ 24 . 8 _ 0.3 _ 37.5 _ 25.1 _ 56.0 _ 46.0 _ 18.5 _ 20.9 _ L _ 2 . 07999 _ 38 . 6 _ 31 . 2 _ 0.4 _ 39.0 _ 31.6 _ 56.0 _ 46.0 _ 17.0 _ 14.4 _ L _ 2 . 75500 _ 38 . 6 _ 26 . 4 _ 0.4 _ 39.0 _ 26.8 _ 56.0 _ 46.0 _ 17.0 _ 19.2 _ L _ 3 . 43000 _ 38 . 1 _ 26 . 4 _ 0.6 _ 38.7 _ 27.0 _ 56.0 _ 46.0 _ 17.3 _ 19.0 _ L Test report No. : 26GE0203-HO-A Page : 17 of 71 Issued date : March 20, 2007 FCC ID : T87SS21ABGXM UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06) Conducted Emission (IEEE802.11b Ch Low) DATA OF CONDUCTED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.3 Semi Anechoic Chamber Date : 2007/03/15 Company : FURUNO SYSTEMS CO.,LTDReport No.:26GE0203-HO Kind of EUT: WLAN Module Power:AC 120V / 60Hz Model No. : SS21M Temp./Humi.:25deg.C / 34% Serial No. : C0695230007DC01 Operator:Shinya Watanabe Mode / Remarks: Transmitting 11b/11Mbps/2412MHz LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data.Data is uncorrected. CALCURATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Fre quency[Hz] [dBuV] << PEAK DATA >> N:PEAK .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Frequency[Hz] [dBuV] << PEAK DATA >> L:PEAK .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Test report No. : 26GE0203-HO-A Page : 18 of 71 Issued date : March 20, 2007 FCC ID : T87SS21ABGXM UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06) Conducted Emission (IEEE802.11b Ch Mid) DATA OF CONDUCTED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.3 Semi Anechoic Chamber Date : 2007/03/15 Company : FURUNO SYSTEMS CO.,LTDReport No.:26GE0203-HO Kind of EUT: WLAN Module Power:AC 120V / 60Hz Model No. : SS21M Temp./Humi.:25deg.C / 34% Serial No. : C0695230007DC01 Operator:Shinya Watanabe Mode / Remarks: Transmitting 11b/11Mbps/2437MHz LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data.Data is uncorrected. CALCURATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Fre quency[Hz] [dBuV] << PEAK DATA >> N:PEAK .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Frequency[Hz] [dBuV] << PEAK DATA >> L:PEAK .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Test report No. : 26GE0203-HO-A Page : 19 of 71 Issued date : March 20, 2007 FCC ID : T87SS21ABGXM UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06) Conducted Emission (IEEE802.11b Ch High) DATA OF CONDUCTED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.3 Semi Anechoic Chamber Date : 2007/03/15 Company : FURUNO SYSTEMS CO.,LTDReport No.:26GE0203-HO Kind of EUT: WLAN Module Power:AC 120V / 60Hz Model No. : SS21M Temp./Humi.:25deg.C / 34% Serial No. : C0695230007DC01 Operator:Shinya Watanabe Mode / Remarks: Transmitting 11b/11Mbps/2462MHz LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data.Data is uncorrected. CALCURATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Fre quency[Hz] [dBuV] << PEAK DATA >> N:PEAK .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Frequency[Hz] [dBuV] << PEAK DATA >> L:PEAK .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Test report No. : 26GE0203-HO-A Page : 20 of 71 Issued date : March 20, 2007 FCC ID : T87SS21ABGXM UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsim…
Text truncated - open the document above for the full version.
Test report No. : 26GE0203-HO-A Page : 13 of 71 Issued date : March 20, 2007 FCC ID : T87SS21ABGXM UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06) APPENDIX 1: Photographs of test setup Conducted Emission Front Rear Test report No. : 26GE0203-HO-A Page : 14 of 71 Issued date : March 20, 2007 FCC ID : T87SS21ABGXM UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06) Spurious Emission (Radiated) Front Rear Test report No. : 26GE0203-HO-A Page : 15 of 71 Issued date : March 20, 2007 FCC ID : T87SS21ABGXM UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06) Worst Case Position Below 1GHz (Horizontal: Y-axis/ Vertical:Y-axis) Above 1GHz (Horizontal: Z-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 2 | 15C | 5.75 GHz - 5.83 GHz | 157.00 mW |

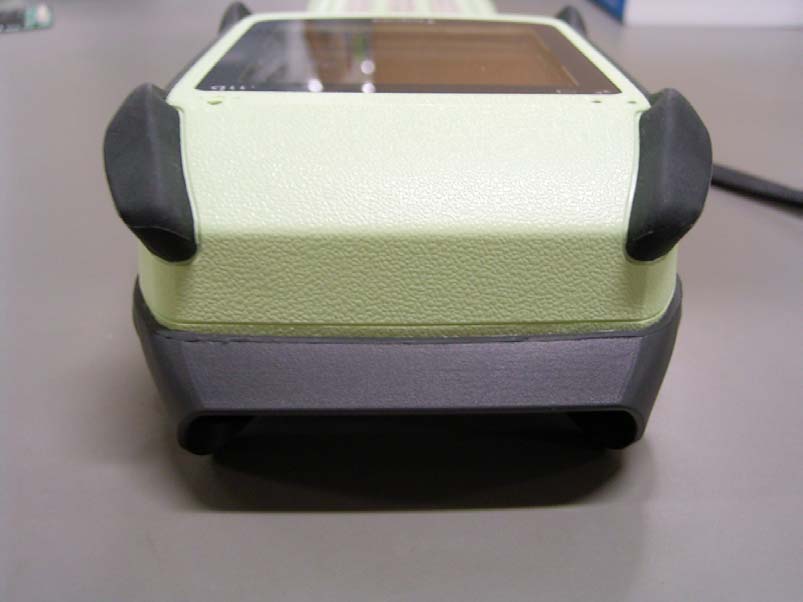

Hand Held Terminal with Bluetooth
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
