T89-160630P60 WIFI G BOARD

E E E P P P S S S O O O N N N R R R T T T S S S C C C / / / N N N A A A EPSON Application Note 160630 802.11g Wireless Radio User’s Printer Interface Guide Document No.: 055-17-APN-001 EPSON 160630 User’s Guide Page 1 of 3 Introduction The 160630 802.11g Wireless Radio Module Printer Interface provides 802.11g connectivity to Epson’s P60 family of printers. 160630 Wireless Radio Printer Interface Figure 1: 160630 Wireless Radio Printer Interface Wireless Radio Module Installation Instructions First remove the screw that holds the front cover to the printer as shown below. E E E P P P S S S O O O N N N R R R T T T S S S C C C / / / N N N A A A EPSON Application Note 160630 802.11g Wireless Radio User’s Printer Interface Guide Document No.: 055-17-APN-001 EPSON 160630 User’s Guide Page 2 of 3 Remove the front cover, connect the flat cable to the printer and interface board. Connect the 2pin plug from the printer to the interface card. Move the interface card into the printer by sliding it below the cutter arm. Align the half round cutouts in the circuit board with the plastic tabs in the printer. Place the front cover back on the printer and replace the screw that was originally removed. E E E P P P S S S O O O N N N R R R T T T S S S C C C / / / N N N A A A EPSON Application Note 160630 802.11g Wireless Radio User’s Printer Interface Guide Document No.: 055-17-APN-001 EPSON 160630 User’s Guide Page 3 of 3 160630 Safety Notices FCC Part 15.105: This equipment has been tested and found to comply with the limits for a Class B digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following measures:  Reorient or relocate the receiving antenna  Increase the separation between the equipment and receiver  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Part 15.19: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Compliance : This product complies with the applicable FCC & IC RF Exposure compliance requirement and may be used in portable exposure conditions with no restrictions on host platforms as shown in the filing. Please refer to RF Exposure exhibit for more details. Warning : Changes or modifications not expressly approved by EPSON could void the user’s authority to operate the equipment IMPORTANT: The integrator is responsible for the final product to comply with IC ICES-003 & FCC Part 15, Subpart B – Unintentional Radiators. Final product must be tested to demonstrate compliance with Part 15B of the FCC Rules and Industry Canada ICES-003 unintentional radiators limits. Labeling Considerations The OEM product which employs the 160630 802.11g Wireless Radio Module shall labeled as below “Contains Transmitter Module FCC ID: T89-160630 and IC: 2007B-160630” or “Contains FCC ID: T89-160630 and IC: 2007B-160630”

EPSON CANADA LIMITED 185 Renfrew Dr. Markham, Ontario L3R 6G3 Phone: 905-940-3254 Fax: 905-944-3762 Internet: http://www.epson.com Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road January 24, 2012 Subject: Manufacturer’s Declaration for compliance with FCC PART 15 UNLICENSED MODULAR TRANSMITTER APPROVAL of Sec 15.212 & Pubic Notice # DA 00-1407 FCC ID: T89-160630 Dear Si/Madam: The applicant hereby confirms that the following requirements per FCC PART 15 Unlicensed Modular Transmitter Approval of Sec 15.212 & Pubic Notice # DA 00-1407 are met for Modular Approval certification: Modular Approval Checklist: Modular approval requirement Yes No 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with Part 15 limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation.  Modular transmitter has its own shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation.  The modular transmitter uses a single chip solution which provides for data buffering on the modulation/data inputs. 3. The modular transmitter must have its own power supply regulation. This is intended to ensure that the module will comply with Part 15 requirements regardless of the design of the power supplying circuitry in the device into which the module is installed.  The modular transmitter has its own power supply regulation. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Any antenna used with the module must be approved with the module, either at the time of initial authorization or through a Class II permissive change. The “professional installation” provision of Section 15.203 may not be applied to modules.  The modular transmitter has a permanently attached integral antenna. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter  The modular transmitter was tested in the stand- alone configuration module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). using an unmodified base board. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization.  The modular transmitter is labeled with its FCC identification number.  Typically the modular transmitter is installed and cannot be seen by the end user. Users of the modular transmitter have been instructed to include an external label visible to the end user that indicates that the final product “Contains FCC ID: T89-160630”. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured.  A copy of the instructions are provided with the application. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15…

Text truncated - open the document above for the full version.

January 18, 2012 Ultratech Engineering Labs Inc. 3000 Bristol Circle Oakville, ON Canada L6H 6G4 Subject: Application for Equipment Certification under FCC Part 15, Subpart C, Section 15.247 - Digital Modulation Systems (DTS) Operating in 2412-2462 MHz Band. Applicant: EPSON Canada Limited Product: P60 WIFI G BOARD Model No.: 160630 FCC ID: T89-160630 Dear Sir/Madam As appointed agent for EPSON Canada Limited we submit the application for certification of the above product. Please review all files uploaded to your electronic filing site NOTE: This application is subject to modular approval, see Applicant’s cover letter requesting for modular approval. This module will be integrated to provide Wi-Fi interface for EPSON’s P-60 portable range of printers. This modular transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. If you have any queries, please do not hesitate to contact us. Yours truly, Dharmajit Solanki Dharmajit Solanki Authorized Agent UltraTech Group of Labs FCC TCB & IC CB Ultratech’s Accreditations: 0685 FCC 91038 1309 46390-2049 NvLap Lab Code 200093-0 SL2-IN-E-1119R Korea KCC-RRL CA2049 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

EPSON CANADA LIMITED 185 Renfrew Dr. Markham, Ontario L3R 6G3 Phone: 905-940-3254 Fax: 905-944-3762 Internet: http://www.epson.com Date: January 24, 2012 To Whom It May Concern Subject: Authority to Act as an Agent Applicant: Epson Canada Limited FCC ID: T89-160630 Dear Sir/Madam, I hereby appoint UltraTech Engineering Labs Inc. (UltraTech) to act as my agent in preparation of this application for authorization of above equipment under F.C.C. Rules. The applicant hereby certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a “party” for these purposes. I also certify that the information provided, properly describe the device or system for which authorization is required. Regards Dan Lehotsky Senior Manager, RTSC/RDC

EPSON CANADA LIMITED 185 Renfrew Dr. Markham, Ontario L3R 6G3 Phone: 905-940-3254 Fax: 905-944-3762 Internet: http://www.epson.com Date: January 24, 2012 To Whom It May Concern Subject: Confidentiality Letter Applicant: Epson Canada Limited FCC ID: T89-160630 Dear Sir/Madam: The applicant would like to request the following documents submitted with this application for certification be withheld from public disclosure as per Section 0.457 & 0.459 of FCC Rules. 1. Operational Description 2. Block Diagram 3. Schematics 4. Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Regards Dan Lehotsky Senior Manager, RTSC/RDC

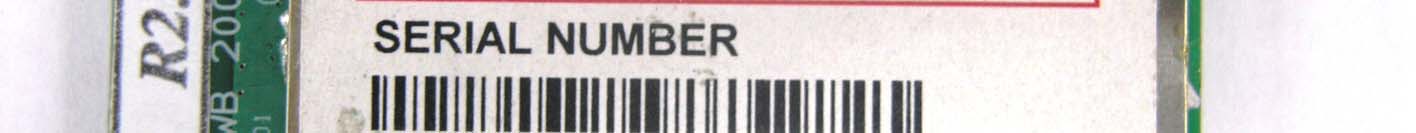

ANNEX 2 – EXTERNAL PHOTOGRAPHS Photo # 1 P60 WIFI G Board, Model No.: 160630 FCC ID: T89-160630 IC: 2007B-160630 ANNEX 2 – EXTERNAL PHOTOGRAPHS Photo # 2 P60 WIFI G Board, Model No.: 160630 FCC ID: T89-160630 IC: 2007B-160630

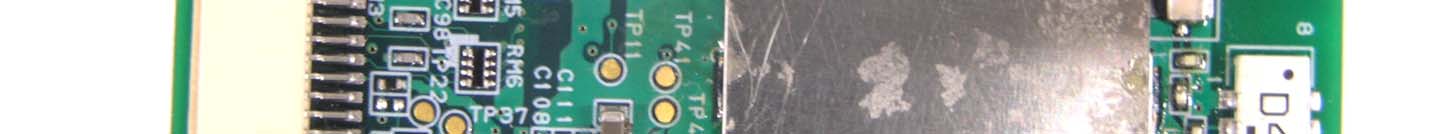

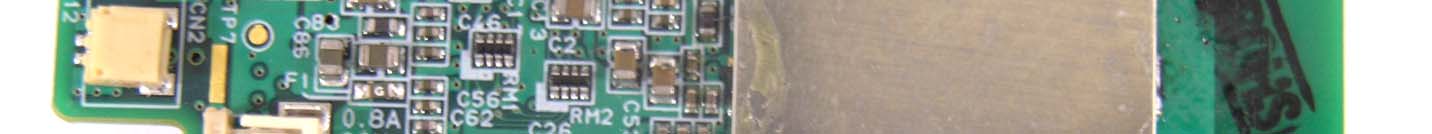

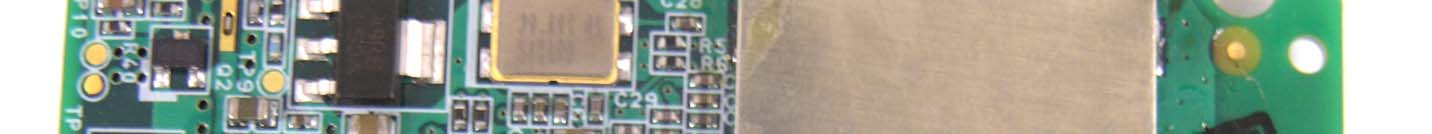

ANNEX 3 – INTERNAL PHOTOGRAPHS Photo # 1 P60 WIFI G Board, Model No.: 160630 FCC ID: T89-160630 IC: 2007B-160630 ANNEX 3 – INTERNAL PHOTOGRAPHS Photo # 2 P60 WIFI G Board, Model No.: 160630 FCC ID: T89-160630 IC: 2007B-160630

FCC Part 15, Subpart C, Section 15.247 – DTS Page 86 P60 WIFI G BOARD, Model 160630 FCC ID: T89-160630 5.11. RF EXPOSURE REQUIRMENTS [§§ 15.247(i), 1.1307(b)(1) & 2.1093] The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation. FCC 47 CFR § 1.1310: 5.11.1. Method of Measurements Refer to Sections 1.1310, 2.1091. Spread spectrum transmitters operating under section 15.247 are categorically excluded from routine environmental evaluation to demonstrating RF exposure compliance with respect to MPE and/or SAR limits. These devices are not exempted from compliance (As indicated in Section 15.247(b)(4), these transmitters are required to operate in a manner that ensures that exposure to public users and nearby persons) does not exceed the Commission’s RF exposure guidelines (see Section 1.1307 and 2.1093). Unless a device operates at substantially low power levels, with a low gain antenna(s), supporting information is generally needed to establish the various potential operating configurations and exposure conditions of a transmitter and its antenna(s) in order to determine compliance with the RF exposure guidelines. For portable transmitters (see Section 2.1093), or devices designed to operate next to a person’s body, compliance is determined with respect to the SAR limit (define in the body tissues) for near-field exposure conditions. If the maximum average output power, operating condition configurations and exposure conditions are comparable to those of existing cellular and PCS phones, SAR evaluation may be required in order to determine if such a device complies with SAR limit. When SAR evaluation data is not available, and the additional supporting information cannot assure compliance, the Commission may request that an SAR evaluation be performed, as provided for in Section 1.1307(d). FCC Part 15, Subpart C, Section 15.247 – DTS Page 87 P60 WIFI G BOARD, Model 160630 FCC ID: T89-160630 5.11.2. RF Evaluation This device is categorically excluded form routine environmental evaluation for RF Exposure requirement as per section 2.1093. This module may be used in portable exposure conditions with no restrictions on host platforms when the source- based time-averaged output power is ≤ 60/f (GHz) mW as per 2(a)(1) of FCC KDB 447498 v04. Measured Maximum source-based time-averaged output Power is = 10.67 dBm or 11.67 mW SAR is not required as average power (11.67mW) is well below the threshold value of 24 mW. Threshold Value = [60/f(GHz)] mW = (60/2.5) mW = 24 mW

P60 WIFI G BOARD Model No.: 160630 FCC ID: T89-160630 Applicant: EPSON Canada Limited 185 Renfrew Dr. Markham, Ontario Canada L3R 6G3 In Accordance With Federal Communications Commission (FCC) Part 15, Subpart C, Section 15.247 Digital Modulation Systems (DTS) Operating in 2412-2462 MHz Band UltraTech's File No.: EPS-102_F15C247 This Test report is Issued under the Authority of Tri M. Luu, BASc Vice President of Engineering UltraTech Group of Labs Date: January 18, 2012 Report Prepared by: Dharmajit Solanki Issued Date: January 18, 2012 Tested by: Hung Trinh, EMI/RFI Technician Test Dates: Dec 28, 2011 to Jan 12, 2012 The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] FCC Korea KCC-RRL 91038 1309 46390-2049 NvLap Lab Code 200093-0 SL2-IN-E-1119R CA2049 FCC Part 15, Subpart C, Section 15.247 – DTS Page 1 P60 WIFI G BOARD, Model 160630 FCC ID: T89-160630 TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ......................................................................................................................................... 2 1.1. SCOPE......................................................................................................................................................................... 2 1.2. RELATED SUBMITTAL(S)/GRANT(S) .................................................................................................................. 2 1.3. NORMATIVE REFERENCES ................................................................................................................................... 2 EXHIBIT 2. PERFORMANCE ASSESSMENT .............................................................................................................. 3 2.1. CLIENT INFORMATION .......................................................................................................................................... 3 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION ............................................................................................ 3 2.3. EUT’S TECHNICAL SPECIFICATIONS ................................................................................................................. 4 2.4. LIST OF EUT’S PORTS............................................................................................................................................. 4 2.5. ANCILLARY EQUIPMENT ...................................................................................................................................... 5 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ............................... 6 3.1. CLIMATE TEST CONDITIONS ............................................................................................................................... 6 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TESTS ............................................................ 6 EXHIBIT 4. SUMMARY OF TEST RESULTS ............................................................................................................... 7 4.1. LOCATION OF TESTS.............................................................................................................................................. 7 4.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS ............................................................. 7 4.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES....................................... 7 EXHIBIT 5. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS............................... 8 5.1. TEST PROCEDURES................................................................................................................................................. 8 5.2. MEASUREMENT UNCERTAINTIES ...................................................................................................................... 8 5.3. MEASUREMENT EQUIPMENT USED ................................................................................................................... 8 5.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUACTURER.......................................... 8 5.5. POWER LINE CONDUCTED EMISSIONS [§15.207(A)] ....................................................................................... 9 5.6. OCCUPIED BANDWIDTH [§ 15.247(A)(2)].......................................................................................................... 12 5.7. PEAK CONDUCTED OUTPUT POWER - DTS [§ 15.247(B)(3)]......................................................................... 34 5.8. TRANSMITTER BAND-EDGE & SPURIOUS CONDUCTED EMISSIONS [§ 15.247(D)]................................ 36 5.9. TRANSMITTER SPURIOUS RADIATED EMISSIONS AT 3 METERS [§§ 15.247(D), 15.209 & 15.205] ....... 53 5.10. POWER SPECTRAL DENSITY [§ 15.247(E)] ....................................................................................................... 64 5.11. RF EXPOSURE REQUIRMENTS [§§ 15.247(I), 1.1307(B)(1) & 2.1093] ............................................................ 86 EXHIBIT 6. TEST EQUIPMENT LIST ......................................................................................................................... 88 EXHIBIT 7. MEASUREMENT UNCERTAINTY.........................................................................................................89 7.1. LINE CONDUCTED EMISSION MEASUREMENT UNCERTAINTY ................................................................ 89 7.2. RADIATED EMISSION MEASUREMENT UNCERTAINTY .............................................................................. 89 FCC Part 15, Subpart C, Section 15.247 – DTS Page 2 P60 WIFI G BOARD, Model 16063…

Text truncated - open the document above for the full version.

ANNEX 1 – TEST SETUP PHOTOGRAPHS Photo # 1 P60 WIFI G Board, Model No.: 160630 FCC ID: T89-160630 IC: 2007B-160630 ANNEX 1 – TEST SETUP PHOTOGRAPHS Photo # 2 P60 WIFI G Board, Model No.: 160630 FCC ID: T89-160630 IC: 2007B-160630 ANNEX 1 – TEST SETUP PHOTOGRAPHS Photo # 3 P60 WIFI G Board, Model No.: 160630 FCC ID: T89-160630 IC: 2007B-160630 Position 1 ANNEX 1 – TEST SETUP PHOTOGRAPHS Photo # 4 P60 WIFI G Board, Model No.: 160630 FCC ID: T89-160630 IC: 2007B-160630 Position 1 ANNEX 1 – TEST SETUP PHOTOGRAPHS Photo # 5 P60 WIFI G Board, Model No.: 160630 FCC ID: T89-160630 IC: 2007B-160630 Position 2 ANNEX 1 – TEST SETUP PHOTOGRAPHS Photo # 6 P60 WIFI G Board, Model No.: 160630 FCC ID: T89-160630 IC: 2007B-160630 Position 3 ANNEX 1 – TEST SETUP PHOTOGRAPHS Photo # 7 P60 WIFI G Board, Model No.: 160630 FCC ID: T89-160630 IC: 2007B-160630 Position 3
