T8ODOGG001914.5MHz WIRELESS DEVICE

User’s manual APPLICANT: CRS Electronic (Shenzhen) Co., Ltd. FCC ID: T8ODOGG001 Performance parameter: 1. Operating frequency 914.5MHz. 2. Working voltage: Launcher 4.5V (AAA AM4 1.5V Alkaline battery 3PCS) Receiver 6V (AA AM3 1.5V Alkaline battery 4PCS) 3. Modulate way FM frequency modulation 4. Operate the distance (noiseless in the open ground) >= 200m (act on farther to the meeting when the receiver will be put high) 5. The loudest volume (25CM is tested ) <= 120dB 6. Job electric current 1). Launcher a. Shut down electro current <=50uA b. Turn on the flashlight (red LED is bright ) job electric current <= 30mA c. Stand-by the electro current <= 100uA d. Operate buttons and transmit the signal job electric current <= 40mA 2). Receiver a. Shut-down " SLEEP " state electric current <= 1.3mA b. Shut-down " ON " state electric current <= 10mA c. Stand-by electro current < = 10mA d. The largest electric current while sounding <= 550mA The outside drawing of the launcher and position function explaining 1. V Key - Enter animal's name to establish; shift down the animal’s name, and keep automatically. 2. - Key - Enter volume adjustment; tune the volume down. 3.¦« key - Enter animal's name to establish; shift up the animal’s name, and keep automatically. 4. Aerial. 5. LED flashlight. 6. Flashlight button of LED -The flashlight illumination is controlled. 7. ON/OFF key Manual switch; remote switch. 8. + the key - Enter volume adjustment; tune the volume up. 9.ENTER key - Sound operating key , press ENTER key once " sound turn on " , press ENTER key once again “turn sound off”. *Loudspeaker shown on LCD when “the sound turns off " and showing that the picture type of volume glimmers. *Loudspeaker shown on LCD when “the sound turn on” and showing that the picture type of volume is without glimmers. 10. the lock catch The outside drawing of the receiver and position function explaining APPLICANT: CRS Electronic (Shenzhen) Co., Ltd. FCC ID: T8ODOGG001 9 8 7 6 5 4 3 2 1 1. Aerial. 2. V Key - Enter animal's name to establish; shift down the animal’s name 3. - Key - Enter volume adjustment; tune the volume down. 4. ENTER key - Sound operating key , press ENTER key once " sound turn on " , press ENTER key once again “turn sound off”. *Loudspeaker shown on LCD when “the sound turns off " and showing that the picture type of volume glimmers. *Loudspeaker shown on LCD when “the sound turn on” and showing that the picture type of volume is without glimmers. 5. + the key - Enter volume adjustment; tune the volume up. 6. ¦« key - Enter animal's name to establish; shift up the animal’s name, and keep automatically. 7. ON/OFF key Manual switch 8. The speaker cover. 9. foot shelf. 10. Carry rope. LCD Display: LCD backlight: LCD will light on for 5 seconds when any button be pressed. APPLICANT: CRS Electronic (Shenzhen) Co., Ltd. FCC ID: T8ODOGG001 Mode choose: The capacity of the battery display: When the hunting device works normally, the capacity of the battery shows fully completely, show the following picture (1). When the battery is not enough in capacity, the battery indicates that begins to glimmer, if the hunting device is sounding , stop sounding at this moment. It will automatic shut-down after about 2 minutes glimmers. Show the following picture (2 ). (1) (2) Battery sign ON Choose animal’s name Λ/ V + / - Λ/ V + / - ENTER ENTER Adjust volume Λ/ V ENTER + / - Λ/ V + / - Turn on screen APPLICANT: CRS Electronic (Shenzhen) Co., Ltd. FCC ID: T8ODOGG001 z The capacity of the battery shows that only the above two ways. When the battery capacity is lower, receiver doesn’t get data, launcher doesn’t send data. Choose Animal's name : 1.Press " ¦« " key or " V " key to enter animal's name establish after starting the machine and showing POWER-DOGG, it will show last time established animal's name or press ENTER key and show last time established animal's name ( Default is first animal’s name for the first time turn on). 2. Press “¦« “key or " V " key and show the name that animal's name state can shift, and keep automatically. 3. When set up the volume, press the “¦« " key or “V” key can enter animal's name established . 4. When set up animal’s name, press " + /- " can enter volume adjustment. o 12 kinds of animals name: o 1)COY HOWL o 2)COY SEREN o 3)COY CHALL o 4)FEM INVIT o 5)COTT DIST o 6)JACK DIST o 7)PUP DIST o 8)FAWN DIST o 9)WDPCK DIST o 10)ROD DIST o 11)CROW FRNZY 12) SNOW GOOSE The volume adjusts: 1. Start the machine show POWER-DOGG and then press "+ "key or “-" key enters volume adjustment, show at this moment that volume is: VOLUME 1, starts the machine each time is Silent; (the volume is silent while glimmering on LCD) 2. Press "+ "key or " -" key is set up in volume, the size of volume has 1 ---5, 5 grades. 3. When set up the volume, press the “¦« " key or “V” key can enter animal's name established. 4. When set up animal’s name, press " + /- " can enter volume adjustment. Operation notice: 1. When you push transmitter keys, the function of transmitter and receiver will change at the same time, and so does POWER ON/OFF. However, if you push receiver keys, it cannot control the transmitter. 2. When the unit is power on, the volume is recognized as the first level automatically but no sounds. Only when you push the “ENTER” key, it will play sound. 3. After adjusting the volume, if you do not push any other key, the volume will keep fixed. 4. When the receiver is POWER OFF, it is in BYPASS condition. VCC is ON for 0.25sec; “SLEEP” is for 0.75sec. Λ/ V Λ V + / - + - APPLICANT: CRS Electronic (Shenzhen) Co., Ltd. FCC ID: T8ODOGG001 5. In the ENTER model, push “A” or “V” key, it will adjust animal name directly. 6. When the transmitter is power on, whenever receiver in any condition, the receiver will recognize the latest signal and will at the same condition as the transmitter automatically. For example, when the transmitter is power off, the receiver will also be power off automatically and will …

Text truncated - open the document above for the full version.

APPLICANT: CRS Electronic (Shenzhen) Co., Ltd. FCC ID: T8ODOGG001 LED apheliotropism LCD DisplayRF Transmit CPU Power Push button Lower-power Testing LED flash flight Push button Antenna 914.5MHz

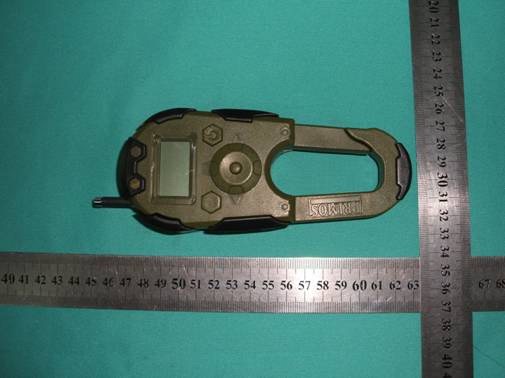

APPLICANT: CRS Electronic (Shenzhen) Co., Ltd. FCC ID: T8ODOGG001

APPLICANT: CRS Electronic (Shenzhen) Co., Ltd. FCC ID: T8ODOGG001 Label Location

APPLICANT: CRS Electronic (Shenzhen) Co., Ltd. FCC ID: T8ODOGG001 Label Drawing FCC ID: T8ODOGG001 Model Number: Power Dogg This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

APPLICANT: CRS Electronic (Shenzhen) Co., Ltd. FCC ID: T8ODOGG001 APPLICANT: CRS Electronic (Shenzhen) Co., Ltd. FCC ID: T8ODOGG001

APPLICANT: CRS Electronic (Shenzhen) Co., Ltd. FCC ID: T8ODOGG001 Power Dog Schematics Guide 1．CPU CL3116V032 2．Transmit RF and handle TX4915 3．Receive RF and handle RX3930 4．Store voice files and handle AM4EG1707 5．Voice amplifier UTC2206L Main Oscillator’s Working Frequency for Power Dog 1．CPU frequency: 32.768KHz 2．Transmitter RF: Crystal frequency 14.289 MHz, working frequency 914.5MHz. 3．Receiver RF: Crystal frequency 14.121875MHz, working frequency 903.8MHz.

APPLICANT: CRS ELECTRONIC (SHENZHEN) CO., LTD. FCC ID: T8ODOGG001 Description of Electronics Circuit 1. The oscillator frequency of IC U1is Y2 14.289MHz. And the frequency will be enlarged by 64 times as before in the U1. Then it will go through the Internet made of C3, L1, C4, C5, and gets rid of cacophonic signal, then transmits the signal by wires after outputting from pin5 of U1. 2. To achieve the aim of adding the signal to main frequency, we need adjust the signal to input from Q1 and change the frequency of Y214.289MHz. 3. Transmit wire is 90mm, a telescopic wire. 4. The power supply is provided by 3PCS 1.5V AAA battery.

A B C D A B C D RD1752 REV:1.0 RF FR4 1.0mm TX ANT1 C1 100P C8 102P L3 5.6nH Y2 14.289MHz R7 33R L4 5.6nH R3 10K 123 456 7 8 131211 109161514 U1 TX4915 OSCIOSCOTXENVSSPAOUT NC VSS2 VCC2 MODINVCC1VSS1 RESB RES LDDOSW C12 221P C13 222P C11 102P R2 2.7K VCC C5 33P L2 3.3uH C3 1P R6 2.7K C0 4.7uF C16 103P C14 103P C4 5.6nH Q1 2SC3904 R10 100R R9 100R R13 10R C6 4.7uF C7 221P R4 100R L1 33P TXD R8 10K R1 33R R12 10K R11 10K C10 103P VC1 NC C17 103P 1 2 3 4 J1 4PIN VCC TXD RD1752TX-2 2006/2/7 PB3 PB3 PB3 TXEN VCC2 VCC2 C2 43P C9 103P C15 102P C11A 103P C18 27P TX ADJ A B C D : : PCB : : : PCB : PCB : : : : : : : A B C ( ) , . , , . C8 1 C9 2 C10 3 C11 4 C12 5 C13 6 C14 7 C15 8 S31 9 S30 10 S29 11 S28 12 S27 13 S26 14 S25 15 S24 16 S23 17 S22 18 S21 19 S20 20 S19 21 S18 22 S17 23 S16 24 S15 25 S14 26 S13 27 S12 28 S11 29 S10 30 S9 31 S8 32 S7 33 S6 34 S5 35 S4 36 S3 37 S2 38 S1 39 S0 40 CC0 41 CC1 42 V1 43 V2 44 V3 45 V4 46 PB4 47 PB0 48 PB1 49 VDD 50 PB2 51 PB3 52 VSS 53 PA0 54 PA1 55 PA2 56 PA3 57 PA4 58 PA5 59 PA6 60 PA7 61 OSC0 62 OSC1 63 RESETB 64 XIN 65 XOUT 66 C0 67 C1 68 C2 69 C3 70 C4 71 C5 72 C6 73 C7 74 U1 CL3116V032 C0C1C2C3C4C5C6C7 C8 C9 C10 C11 C12 C13 S2 S3S4S5S6S7S8S9S10S11S12S13S14S15S16S17S18S19 S20 S21 S22 S23 S24 S25 S26 S27 S28 S29 S30 S31 X1 32.768KHz C1 104P C2 104P C3 104P C4 104P C5 104P C6 104P C7 104P VDD S1 KEY S2 VolUP S3 VolDN S4 ENTER S5 AUP S6 ADN S7 ON/OFF Q1 2SC3904 LED1 TS-532YG-B LED2 503SAC R1 2.2K R4 56R R5 100R SW1 TC-106 BAT1 4.5V OUT 1 GND 3 IN 2 U2 AIC1734-33PXA OUT 1 GND 3 IN 2 U3 HT7024A C14 10uF TXD LED R6 100K VDD C13 10uF VDDV+ LO VDD LED LCD RD1752 RD1752TX-1 LCD 2006/2/7 PB3 RX 51K C10 20P C11 20P R10 10R VCC C8 104P C9 104P C12 104P TC-0402 TC-0402 TC-0402 TC-0402 TC-0402 TC-0403 TX-GND RX-VCC REV:1.2 1 2 3 4 J1 VCC TXD PB3 C15 104P S32 S33 D1 1N4148

A B C D A B C D RD1752 REV:1.0 RF FR4 1.0mm TX ANT1 C1 100P C8 102P L3 5.6nH Y2 14.289MHz R7 33R L4 5.6nH R3 10K 123 456 7 8 131211 109161514 U1 TX4915 OSCIOSCOTXENVSSPAOUT NC VSS2 VCC2 MODINVCC1VSS1 RESB RES LDDOSW C12 221P C13 222P C11 102P R2 2.7K VCC C5 33P L2 3.3uH C3 1P R6 2.7K C0 4.7uF C16 103P C14 103P C4 5.6nH Q1 2SC3904 R10 100R R9 100R R13 10R C6 4.7uF C7 221P R4 100R L1 33P TXD R8 10K R1 33R R12 10K R11 10K C10 103P VC1 NC C17 103P 1 2 3 4 J1 4PIN VCC TXD RD1752TX-2 2006/2/7 PB3 PB3 PB3 TXEN VCC2 VCC2 C2 43P C9 103P C15 102P C11A 103P C18 27P TX ADJ A B C D : : PCB : : : PCB : PCB : : : : : : : A B C ( ) , . , , . C8 1 C9 2 C10 3 C11 4 C12 5 C13 6 C14 7 C15 8 S31 9 S30 10 S29 11 S28 12 S27 13 S26 14 S25 15 S24 16 S23 17 S22 18 S21 19 S20 20 S19 21 S18 22 S17 23 S16 24 S15 25 S14 26 S13 27 S12 28 S11 29 S10 30 S9 31 S8 32 S7 33 S6 34 S5 35 S4 36 S3 37 S2 38 S1 39 S0 40 CC0 41 CC1 42 V1 43 V2 44 V3 45 V4 46 PB4 47 PB0 48 PB1 49 VDD 50 PB2 51 PB3 52 VSS 53 PA0 54 PA1 55 PA2 56 PA3 57 PA4 58 PA5 59 PA6 60 PA7 61 OSC0 62 OSC1 63 RESETB 64 XIN 65 XOUT 66 C0 67 C1 68 C2 69 C3 70 C4 71 C5 72 C6 73 C7 74 U1 CL3116V032 C0C1C2C3C4C5C6C7 C8 C9 C10 C11 C12 C13 S2 S3S4S5S6S7S8S9S10S11S12S13S14S15S16S17S18S19 S20 S21 S22 S23 S24 S25 S26 S27 S28 S29 S30 S31 X1 32.768KHz C1 104P C2 104P C3 104P C4 104P C5 104P C6 104P C7 104P VDD S1 KEY S2 VolUP S3 VolDN S4 ENTER S5 AUP S6 ADN S7 ON/OFF Q1 2SC3904 LED1 TS-532YG-B LED2 503SAC R1 2.2K R4 56R R5 100R SW1 TC-106 BAT1 4.5V OUT 1 GND 3 IN 2 U2 AIC1734-33PXA OUT 1 GND 3 IN 2 U3 HT7024A C14 10uF TXD LED R6 100K VDD C13 10uF VDDV+ LO VDD LED LCD RD1752 RD1752TX-1 LCD 2006/2/7 PB3 RX 51K C10 20P C11 20P R10 10R VCC C8 104P C9 104P C12 104P TC-0402 TC-0402 TC-0402 TC-0402 TC-0402 TC-0403 TX-GND RX-VCC REV:1.2 1 2 3 4 J1 VCC TXD PB3 C15 104P S32 S33 D1 1N4148

SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: CRS Electronic (Shenzhen) Co., Ltd. FCC ID: T8ODOGG001 Cover Sheet Test Report Product Name: Power Dogg Model No.: Power Dogg FCC ID: T8ODOGG001 Applicant: CRS Electronic (Shenzhen) Co., Ltd. Fangmapu, Gui Hua Village, Guanlan, Shen Zhen Date Received: 5/09/2006 Date Tested: 5/09/2006 SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: CRS Electronic (Shenzhen) Co., Ltd. FCC ID: T8ODOGG001 TABLE OF CONTENTS TABLE OF CONTENTS APPLICANT: CRS Electronic (Shenzhen) Co., Ltd. FCC ID: T8ODOGG001 TEST REPORT CONTAINING: PAGE 1...........TEST EQUIPMENT LIST PAGE 5-6.........RADIATION INTERFERENCE TEST DATA PAGE 7-8.........OCCUPIED BANDWIDTH AND PLOTS EXHIBIT INCLUDED: PAGE 1...........BLOCK DIAGRAM PAGE 2...........SCHEMATIC PAGE 3...........USERS MANUAL PAGE 4...........LABEL SAMPLE PAGE 5...........LABEL LOCATION PAGE 6...........EXTERNAL PHOTOGRAPHS PAGE 7...........INTERNAL PHOTOGRAPHS PAGE 8...........OPERATIONAL DESCRIPTION PAGE 9...........TEST SET UP PHOTOGRAPHS SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: CRS Electronic (Shenzhen) Co., Ltd. FCC ID: T8ODOGG001 Page 1 of 6 EMC Equipment List Equipment Manufacturer Model No.Serial No.Last Cal. Cal. Interval EMI Test Receiver ROHDE&SCHWARZ ESCS30 100307 Mar 20,2006 1 Year LISN ROHDE&SCHWARZ ESH3-Z5 100305 Mar 20,2006 1Year Pulse Limiter ROHDE&SCHWARZ ESH3-Z2 100305 Mar 20,2006 1Year 50Ω Coaxial Switch ANRITSU CORP MP59B 6200283933 Mar 20,2006 1 Year Spectrum Analyzer ANRITSU MS2651B 6200238856 Mar 20,2006 1 Year Bilog Antenna SCHWARZBECK VULB 9163 9163-194 Mar 20,2006 1 Year 50Ω Coaxial Switch ANRITSU CORP MP59B 620028393 3 Mar 20,2006 1 Year Cable Resenberger N/A NO.1 Mar 20,2006 1 Year Cable SCHWARZBECK N/A NO.2 Mar 20,2006 1 Year Cable SCHWARZBECK N/A NO.3 Mar 20,2006 1 Year DC Power Filter DuoJi DL2°30B N/A N/A N/A Single Phase Power Line Filter DuoJi FNF 202B30 N/A N/A N/A 3 Phase Power Line Filter DuoJi FNF 402B30 N/A N/A N/A AC Power Source California Instruments 5001iX-400 55689 Mar 20,2006 1Year Test analyzer California Instruments PACS-1 72254 Mar 20,2006 1Year ESD Tester HAEFELY PESD 1610 H4001552 Mar 20,2006 1 Year Signal Generator IFR 2032 203002/100 Mar 20,2006 1 Year Amplifier A&R 150W1000 301584 NCR NCR Dual Directional Coupler A&R DC6080 301508 Mar 20,2006 1 Year Power Head A&R PH2000 301193 Mar 20,2006 1 Year Power Meter A&R PM2002 302799 Mar 20,2006 1 Year Field Monitor A&R FM5004 300329 Mar 20,2006 1 Year Field Probe A&R FP5000 300221 Mar 20,2006 1 Year EMCPRO System Thermo RO-BASE 0403271 Mar 20,2006 1 Year Capacitive Clamp Thermo PRO-CCL 0403272 Mar 20,2006 1 Year EMCPRO System Thermo PRO-BASE 0403271 Mar 20,2006 1 Year Coupler decoupler for telecom lines Thermo CM-TEL-CD 0403273 Mar 20,2006 1 Year Signal Generator IFR 2032 203002/100 Mar 20,2006 1 Year Amplifier A&R 150W1000 301584 NCR NCR EMCPRO System Thermo PRO-BASE 0403271 Mar 20,2006 1 Year SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: CRS Electronic (Shenzhen) Co., Ltd. FCC ID: T8ODOGG001 Page 2 of 6 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of SHENZHEN MOST ELECTRONICS CO., LTD. The EUT was transmitting a test signal during the testing. POWER LINE CONDUCTED INTERFERENCE: The test procedure used was ANSI Standard C63.4-2003 using a 50ｕH LISN. Both Lines were observed. The bandwidth of the receiver was 10kHz with an appropriate sweep speed. The ambient temperature of the EUT was 25 °C with a humidity of 58%. RADIATION INTERFERENCE: The test procedure used was ANSI Standard C63.4-2003 using a ANRITSU spectrum analyzer with a pre-selector. The analyzer was calibrated in dB above a micro volt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz up to 1 GHz and 1 MHz with a video BW of 3 MHz above 1 GHz. The ambient temperature of the EUT was 25 °Cwith a humidity of 58%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Pre-selector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The EUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The EUT was placed in the center of the table (1.5m side). The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSI Standard C63.4-2003 10.1.7 with the EUT 40 cm from the vertical ground wall. SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: CRS Electronic (Shenzhen) Co., Ltd. FCC ID: T8ODOGG001 Page 3 of 6 APPLICANT: CRS Electronic (Shenzhen) Co., Ltd. FCC ID: T8ODOGG001 NAME OF TEST: RADIATION INTERFERENCE RULES PART NUMBER: 15.249, 15.209 REQUIREMENTS: FIELD STRENGTH of Fundamental: FIELD STRENGTH of Harmonics S15.209 902-928 MHZ 2.4-2.4835 GHz 94 dBuV/m @3m 54 dBuV/m @3m 30 -88 MHz 40 dBuV/m @3M 88 - 216 MHz 43.5 216 - 960 MHz 46 AB…

Text truncated - open the document above for the full version.

APPLICANT: CRS Electronic (Shenzhen) Co., Ltd. FCC ID: T8ODOGG001
