T8QTD-1000ATMPS Transmitter

TPMS User Manual WIRELESS TIRE MONITOR SYSTEM MODLE: TD-1000A SPECIFICATION FREQUENCY RANGE: 433.92MHz MODULATE: ASK CIRCUIT SHAPE: SAW DATE RATE: 8K bps Supply voltage: 3V DC OPERATING TEMPERATURE: -20 °C - 85 °C INPUT CURRENT 3V DC: 6mA OUTPUT POWER: < 5dbm Dimensions: .20MM * H 22MM Operation method : 1.Fasten the launcher and cover opening 2.Pack battery CR1632 into 3.Install and lock it in the tire device mouth 4.Completion FCC Information: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co-located or operating to conjunction with any other antenna or transmitter. JOSN ELECTRONIC CO., LTD 9F-5, No4, Lane 609, Sec.5, Chongsin Rd., Sanchong City, Taipei County, 241 Taiwan R.O.C Tel: 886-2-29993820 Fax: 886-2-22787178

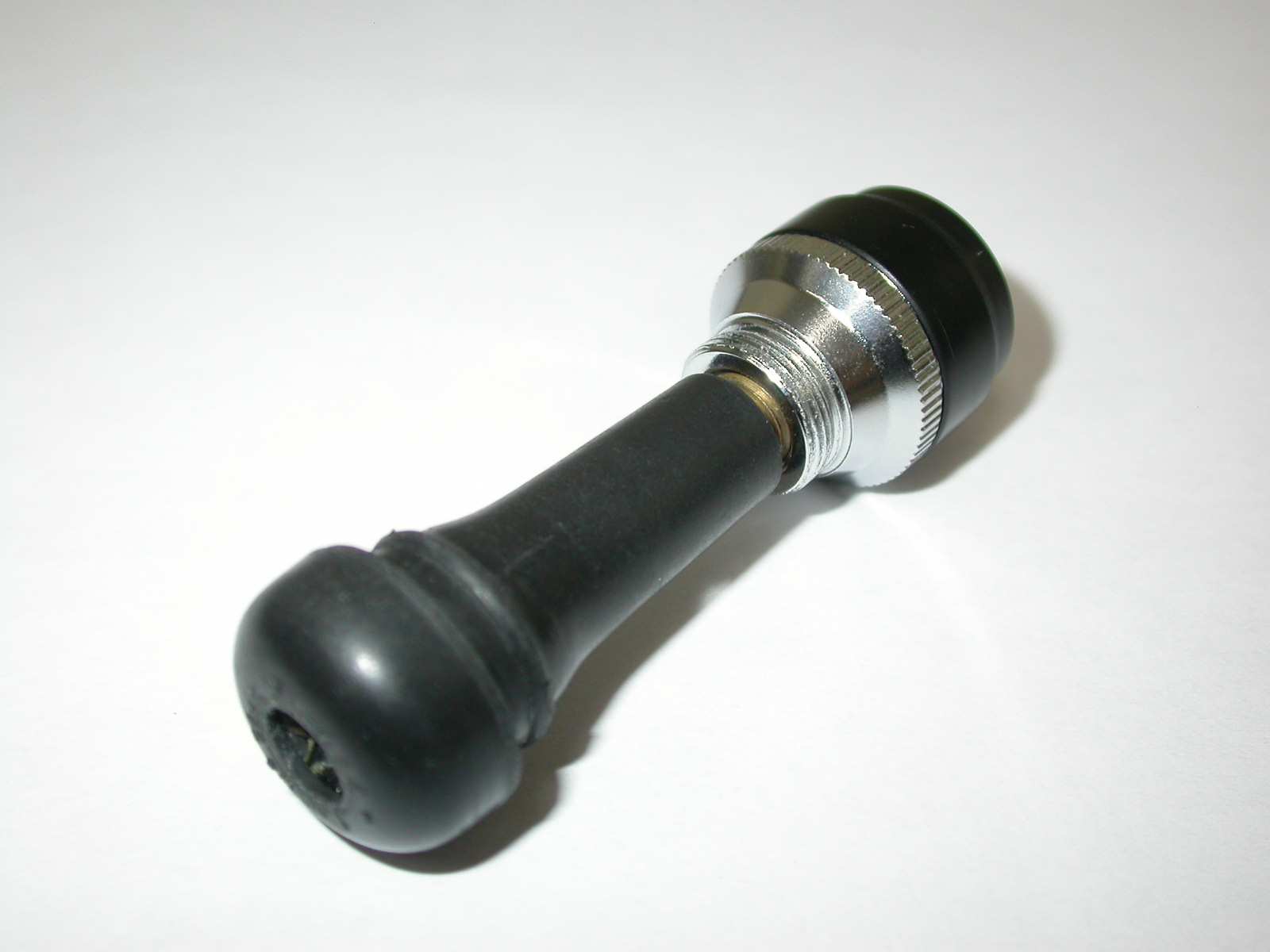

ETC Report No.: 06-04-MAS-230-01 Page A1 of A1 FCC ID.: T8QTD-1000A ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

FCC ID LABLE & LOCATION TPMS TD-1000A V 1.6 2

ETC Report No.: 06-04-MAS-230-01 Page B1 of B3 FCC ID.: T8QTD-1000A ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT ETC Report No.: 06-04-MAS-230-01 Page B2 of B3 FCC ID.: T8QTD-1000A 3. Inside View 3 of EUT 4. Inside View 4 of EUT ETC Report No.: 06-04-MAS-230-01 Page B3 of B3 FCC ID.: T8QTD-1000A 5. Front view of PCB 6. Rear view of PCB

ETC Report No. : 06-04-MAS-230-01 Sheet 1 of 24 Sheets FCC ID.: T8QTD-1000A Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: 06-04-MAS-230-01 Client: JOSN ELECTRONIC CO., LTD Product: TPMS TRANSMITTER Model: TD-1000A FCC ID: T8QTD-1000A Manufacturer/supplier: JOSN ELECTRONIC CO., LTD Date test item received: 2006/04/25 Date test campaign completed: 2006/05/15 Date of issue: 2006/05/17 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 24 pages Total number of pages of photos: External photos 1 pages Internal photos 3 pages Setup photos 2 pages Test Engineer Checked By Approved By Jeng De Hsu James Joe Hsieh ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WENMING RD., LESHAN TSUEN, GUISHAN SHIANG, TAOYUAN COUNTY, TAIWAN 33383, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 ETC Report No. : 06-04-MAS-230-01 Sheet 2 of 24 Sheets FCC ID.: T8QTD-1000A Rev. No 1.0 Client : JOSN ELECTRONIC CO., LTD Address : 9F-5, No. 4, Lane 609, Sec 5, Chongsin Rd., Sanchong City, Taipei County, 241 Taiwan R.O.C Manufacturer : JOSN ELECTRONIC CO., LTD Address : 9F-5, No. 4, Lane 609, Sec 5, Chongsin Rd., Sanchong City, Taipei County, 241 Taiwan R.O.C EUT : TPMS TRANSMITTER Trade name : JOSN Model No. : TD-1000A Power Source : 3V DC Regulations applied : FCC 47 CFR, Part 15 Subpart C (2005) The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following: 1 ISO9001: TüV Product Service 2 ISO/IEC 17025: BSMI, CNLA, DGT, NVLAP, CCIBLAC, UL, Compliance 3 Filing: FCC, Industry Canada, VCCI 4 MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through CNLA 5 FCC Registration Number: 90588, 91094, 91095 NVLAP Lab Code 200133-0 ETC Report No. : 06-04-MAS-230-01 Sheet 3 of 24 Sheets FCC ID.: T8QTD-1000A Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ......................................................................................................................................4 1.1 PRODUCT DESCRIPTION................................................................................................................................................. 4 1.2 CHARACTERISTICS OF DEVICE: ...................................................................................................................................... 4 1.3 TEST METHODOLOGY.................................................................................................................................................... 4 1.4 TEST FACILITY............................................................................................................................................................... 4 2. DEFINITION AND LIMITS........................................................................................................................................5 2.1 DEFINITION.................................................................................................................................................................... 5 2.2 RESTRICTED BANDS OF OPERATION............................................................................................................................... 5 2.3 LIMITATION.................................................................................................................................................................... 6 2.4 LABELING REQUIREMENT.............................................................................................................................................. 7 2.5 USER INFORMATION....................................................................................................................................................... 7 3. RADIATED EMISSION MEASUREMENT..............................................................................................................8 3.1 APPLICABLE STANDARD................................................................................................................................................. 8 3.2 MEASUREMENT PROCEDURE......................................................................................................................................... 8 3.3 TEST DATA.................................................................................................................................................................. 10 3.4 FIELD STRENGTH CALCULATION.................................................................................................................................. 13 3.5 RADIATED TEST EQUIPMENT....................................................................................................................................... 13 3.6 MEASURING INSTRUMENT SETUP................................................................................................................................. 19 4. BANDWIDTH OF EMISSION............................................................................................................…

Text truncated - open the document above for the full version.

ETC Report No.:06-04-MAS-230-01 Sheet 1 of 2 Sheets FCC ID.: T8QTD-1000A Radiated Measurement Photos x-axis ETC Report No.:06-04-MAS-230-01 Sheet 2 of 2 Sheets FCC ID.: T8QTD-1000A y-axis
