T8RDP22Vehicle diagnostic system with Bluetooth connectivity

DataPlug Model DP2.2-488 Rev.04 SUMMARY 1 Revision of the Manual........................................................................................3 INTRODUCTION.....................................................................................................4 2 LEGEND OF THE SYMBOLS USED..................................................................5 3 SAFETY RULES .................................................................................................7 3.1 Glossary...................................................................................................................7 3.2 General Rules...........................................................................................................7 3.3 Operator Safety........................................................................................................8 3.4 Vehicle Safety...........................................................................................................8 3.5 Device Safety.........................................................................................................10 4 ENVIRONMENTAL INFORMATION.................................................................12 5 OPERATION OF THE RADIO DEVICES..........................................................13 6 REGULATORY INFORMATION........................................................................14 7 DataPlug............................................................................................................19 8 DESCRIPTION..................................................................................................20 9 TECHNICAL FEATURES .................................................................................21 10 LOCATION OF THE DIAGNOSTIC SOCKET.................................................23 11 INSTALLATION AND CONFIGURATION.......................................................24 11.1 Installation............................................................................................................24 11.2 Configuration........................................................................................................26 11.2.1 Display unit's Bluetooth not active..............................................................................26 11.2.2 Display unit's Bluetooth active....................................................................................26 12 USE.................................................................................................................27 13 POWER SUPPLY ...........................................................................................28 14 BLINK CODES................................................................................................29 15 MAINTENANCE..............................................................................................30 16 TROUBLESHOOTING....................................................................................31 1 2 DATAPLUG TECHNICAL MANUAL 1 Revision of the Manual This document is the technical manual for the product: DataPlug Document Review Number: 04 Date of Issue: 31/01/2023 3 INTRODUCTION Dear Customer, We would like to thank you for choosing a TEXA product for your workshop. We are certain that you will get the greatest satisfaction from it and receive a great deal of help in your work. Please read through the instructions in this manual carefully and keep it for future reference. Reading and understanding the following manual will help you to avoid damage or personal injury caused by improper use of the product. TEXA S.p.A reserves the right to make any changes deemed necessary to improve the manual for any technical or marketing requirement; the company may do so at any time without prior notice. This product is intended to be used exclusively by technicians specialised in the Automotive industry. Reading and understanding the information in this manual cannot replace adequate specialised training in this field. The sole purpose of the manual is to illustrate the functioning of the product sold. It is not intended to offer technical training of any kind and technicians will therefore carry out any interventions under their own responsibility and will be accountable for any damage or personal injury caused by negligence, carelessness, or inexperience, regardless of the fact that a TEXA S.p.A. tool has been used following the information contained in this manual. Any additions to this manual, useful in describing the new versions of the program and the new functions associated to it, may be sent to you through our TEXA technical bulletin service. This manual is to be considered an essential part of the product to which it refers. If it is resold, the original buyer is therefore required to forward the manual to the new owner. Reproduction, partial or whole, of this manual in any form without written authorisation by the manufacturer is strictly forbidden. The original manual was written in Italian, every other language is a translation of the original manual. © copyright and database rights 2015.The material contained in this document is protected by the copyright and database rights. All rights reserved according to Law and international agreements. 4 2 LEGEND OF THE SYMBOLS USED Some of the symbols indicated below may not be used in the manual. Toxic material hazardLaser beam hazard Explosive material hazardLow temperature danger - freezing Electric shock hazardGeneral Risk Electromagnetic field hazardObligation to read the instructions Flammable material hazardSafety glasses required Hot surface hazardProtective gloves required Corrosive substance hazardProtective clothing required Risk of noise level above 80 dB(A)Respiratory protection required Moving Parts Risk Disconnect mains plug from electrical outlet Risk of crushing handsDo not wet the device Floor level obstacle warning This is not a safety symbol. It indicates a hazardous situation which, if not avoided…

Text truncated - open the document above for the full version.

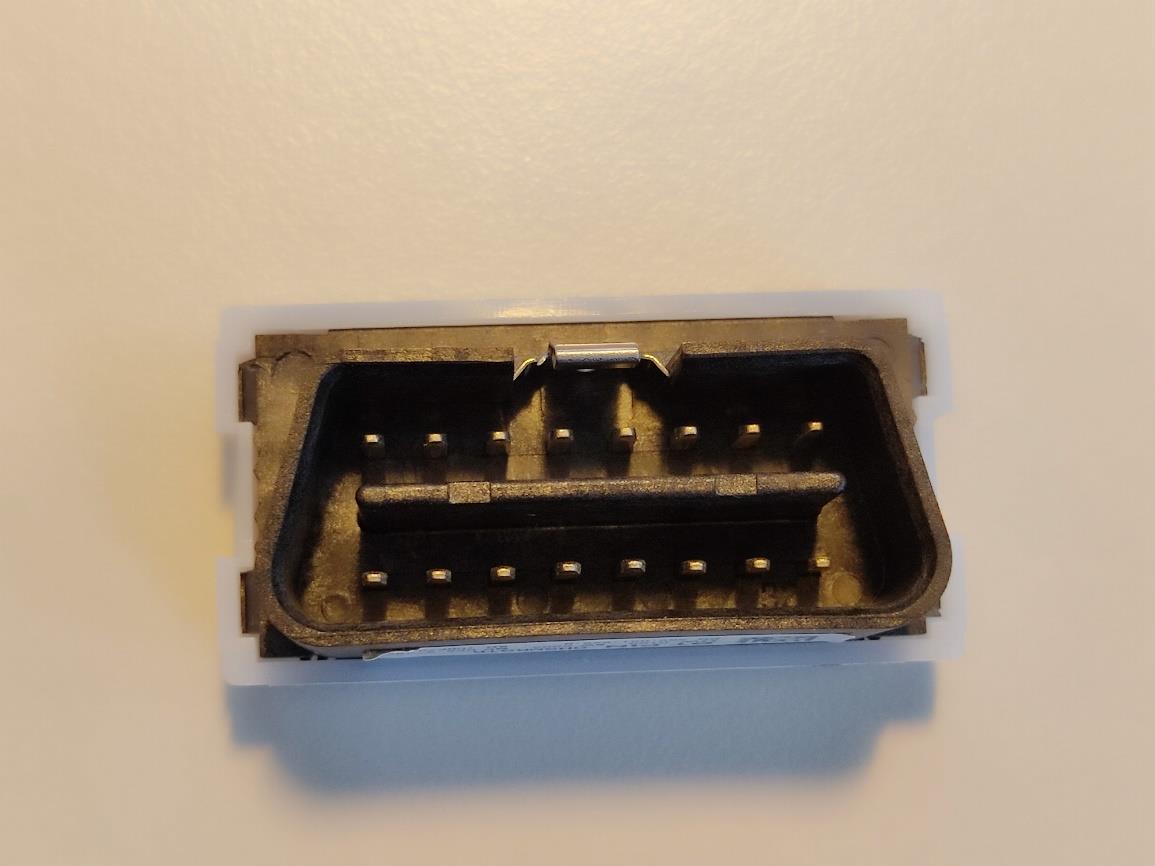

Title Rev DataPlug External photos 00 All rights reserved. No part of this document may be reproduced or distributed in any form or by any means without prior written permission of Texa S.p.A. eTruck-EXTERNAL PHOTOS-00 Page 1 of 4 DATAPLUG 2.2 Title Rev DataPlug External photos 00 All rights reserved. No part of this document may be reproduced or distributed in any form or by any means without prior written permission of Texa S.p.A. eTruck-EXTERNAL PHOTOS-00 Page 2 of 4 Title Rev DataPlug External photos 00 All rights reserved. No part of this document may be reproduced or distributed in any form or by any means without prior written permission of Texa S.p.A. eTruck-EXTERNAL PHOTOS-00 Page 3 of 4 Title Rev DataPlug External photos 00 All rights reserved. No part of this document may be reproduced or distributed in any form or by any means without prior written permission of Texa S.p.A. eTruck-EXTERNAL PHOTOS-00 Page 4 of 4

Title Rev DataPlug 2.2 Label 00 All rights reserved. No part of this document may be reproduced or distributed in any form or by any means without prior written permission of Texa S.p.A. eTruck-EXTERNAL PHOTOS-00 Page 1 of 4 LABEL Title Rev DataPlug 2.2 Label 00 All rights reserved. No part of this document may be reproduced or distributed in any form or by any means without prior written permission of Texa S.p.A. eTruck-EXTERNAL PHOTOS-00 Page 2 of 4 Title Rev DataPlug 2.2 Label 00 All rights reserved. No part of this document may be reproduced or distributed in any form or by any means without prior written permission of Texa S.p.A. eTruck-EXTERNAL PHOTOS-00 Page 3 of 4 Label for PN Volkswagen Label for PN Audi Title Rev DataPlug 2.2 Label 00 All rights reserved. No part of this document may be reproduced or distributed in any form or by any means without prior written permission of Texa S.p.A. eTruck-EXTERNAL PHOTOS-00 Page 4 of 4 Visualisation of pad printing and label positioning on the product

Title Rev DataPlug 2.2 Internal photos 00 All rights reserved. No part of this document may be reproduced or distributed in any form or by any means without prior written permission of Texa S.p.A. eTruck-INTERNAL PHOTOS-00 Page 1 of 5 DATAPLUG 2.2 I I I N N N T T T E E E R R R N N N A A A L L L P P P H H H O O O T T T O O O S S S Title Rev DataPlug 2.2 Internal photos 00 All rights reserved. No part of this document may be reproduced or distributed in any form or by any means without prior written permission of Texa S.p.A. eTruck-INTERNAL PHOTOS-00 Page 2 of 5 Title Rev DataPlug 2.2 Internal photos 00 All rights reserved. No part of this document may be reproduced or distributed in any form or by any means without prior written permission of Texa S.p.A. eTruck-INTERNAL PHOTOS-00 Page 3 of 5 Title Rev DataPlug 2.2 Internal photos 00 All rights reserved. No part of this document may be reproduced or distributed in any form or by any means without prior written permission of Texa S.p.A. eTruck-INTERNAL PHOTOS-00 Page 4 of 5 Title Rev DataPlug 2.2 Internal photos 00 All rights reserved. No part of this document may be reproduced or distributed in any form or by any means without prior written permission of Texa S.p.A. eTruck-INTERNAL PHOTOS-00 Page 5 of 5

Manufacturer: TEXA S.p.A. Name:Oscar Frau Product:DP2.2-488Title:Project Handler FCC ID:T8RDP22Signature: MPE limits (§1.1310) ModeFrequencyDuty CyclePower Antenna GainEIRP 1 EIRPDistancePD 2 PD Limit 3 Margin 2.1091 EIRP Limit 2.1091 EIRP MarginPD/PD Limit Worst PD/PD values to be considered MHz%dBm dBi dBmmWcm mW/cm^2 mW/cm^2 dBmWdB BLE 4 2440,01001,961,73,662,32200,000461,00033,35126027,340,00046 BT 5 2440,0100-6,181,7-4,480,36200,000071,00041,49126035,480,00007 FCC Co-Location =0,00046 < 1 1 EIRP = ( Power dBm + Antenna Gain dBi ) + 10 x Log ( Duty Cycle % / 100 ) 2 PD = EIRP / (4xπxD 2 ) 3 CFR 47 Part 1, §1.1310(e), table 1 4 See Report No. REP009237, §8.4.5 5 See Report No. REP009236, §8.4.5 Antenna (see datasheet "Datasheet_M310220.pdf") type M310221, Gain 1,7 dBi 2.1091 EIRP Limit 1.1307 (b)(3)(i)(C) exemption limit RF Source FrequencyFRλλ/2πR/(λ/2π) Threshold ERP Threshold EIRP Threshold EIRPEIRPMargin MHzMHzmmmWWmWmWdB 24400,20 0,123 0,0196 10,2 0,76800 1,260 12602,327,3 1500-10000024400,20 0,123 0,0196 10,2 0,76800 1,260 12600,435,48 0,00046

PRELIMINARY CYW20713 Single-Chip Bluetooth Transceiver and Baseband Processor Cypress Semiconductor Corporation•198 Champion Court•San Jose,CA 95134-1709•408-943-2600 Document Number: 002-14806 Rev. *C Revised Thursday, October 20, 2016 The Cypress CYW20713 is a monolithic, single-chip, Bluetooth 4.0 compliant, stand-alone baseband processor with an integrated 2.4 GHz transceiver. Manufactured using the industry's most advanced 65 nm CMOS low-power process, the CYW20713 employs the highest level of integration, eliminating all critical external components, and thereby minimizing the device’s footprint and costs associated with the implementation of Bluetooth solutions. The CYW20713 brings the latest mobile connectivity technology to automotive radio and industrial Bluetooth applications. Offering automotive Grade 3 (–40°C to +85°C) temperature performance, the CYW20713 is tested to AECQ100 environmental stress guide- lines and manufactured in ISO9001 and TS16949 certified facilities. Cypress Part Numbering Scheme Cypress is converting the acquired IoT part numbers from Broadcom to the Cypress part numbering scheme. Due to this conversion, there is no change in form, fit, or function as a result of offering the device with Cypress part number marking. The table provides Cypress ordering part number that matches an existing IoT part number. Acronyms and Abbreviations In most cases, acronyms and abbreviations are defined on first use. For a comprehensive list of acronyms and other terms used in Cypress documents, go to: http://www.cypress.com/glossary Features ■Bluetooth 4.0 + EDR compliant. ■Class 1 capable with built-in PA. ■Programmable output power control meets Class 1, Class 2, or Class 3 requirements. ■Use supply voltages up to 5.5V.Supports Cypress SmartAudio ® , wide-band speech, SBC codec, and packet loss concealment. ■Fractional-N synthesizer supports frequency references from 12 MHz to 52 MHz. ■Automatic frequency detection for standard crystal and TCXO values when an external 32.768 kHz reference clock is provided. ■Ultra-low power consumption. ■Supports serial flash interfaces. ■Available in 42-bump WLBGA and 50-ball FPBGA packages. ■ARM7TDMI-S–based microprocessor with integrated ROM and RAM. ■Supports patch RAM download without external memory. Applications ■Automotive handsfree radios ■Automotive data communication ■Industrial appliances Table 1. Mapping Table for Part Number between Broadcom and Cypress Broadcom Part NumberCypress Part Number BCM20713CYW20713 BCM20713A1KUBGCYW20713A1KUBG BCM20713A1KUFBXGCYW20713A1KUFBXG Document Number: 002-14806 Rev. *C Page 2 of 52 PRELIMINARY CYW20713 Figure 1. System Block Diagram IoT Resources Cypress provides a wealth of data at http://www.cypress.com/internet-things-iot to help you to select the right IoT device for your design, and quickly and effectively integrate the device into your design. Cypress provides customer access to a wide range of information, including technical documentation, schematic diagrams, product bill of materials, PCB layout information, and software updates. Customers can acquire technical documentation and software from the Cypress Support Community website (http://community.cypress.com/). CYW20713 Microprocessor and Memory Unit (uPU) Bluetooth Baseband Core (BBC) High-Speed Peripheral Transport Unit (PTU) Radio Transceiver TCXO LPO PCM UART GPIO Memory SPI I 2 S Document Number: 002-14806 Rev. *C Page 3 of 52 PRELIMINARY CYW20713 Contents 1. Overview ........................................................................ 4 1.1 Major Features ...................................................... 4 1.2 Block Diagram ....................................................... 6 1.3 Usage Model ......................................................... 7 2. Integrated Radio Transceiver ...................................... 8 2.1 Transmitter Path .................................................... 8 2.2 Receiver Path ........................................................ 8 2.3 Local Oscillator Generation ................................... 8 2.4 Calibration ............................................................. 8 2.5 Internal LDO Regulator ......................................... 9 3. Bluetooth Baseband Core ......................................... 10 3.1 Transmit and Receive Functions ......................... 10 3.2 Bluetooth 4.0 + EDR Features ............................ 10 3.3 Frequency Hopping Generator ............................ 10 3.4 Link Control Layer ............................................... 11 3.5 Test Mode Support .............................................. 11 3.6 Power Management Unit ..................................... 11 3.7 Adaptive Frequency Hopping .............................. 13 3.8 Collaborative Coexistence ................................... 13 3.9 Serial Enhanced Coexistence Interface .............. 14 4. Microprocessor Unit ................................................... 15 4.1 NVRAM Configuration Data and Storage ............ 15 4.2 EEPROM ............................................................. 15 4.3 External Reset ..................................................... 15 4.4 One-Time Programmable Memory ...................... 16 5. Peripheral Transport Unit .......................................... 17 5.1 PCM Interface ..................................................... 17 5.2 HCI Transport Detection Configuration ............... 19 5.3 UART Interface .................................................... 19 5.4 SPI ....................................................................... 19 6. Frequency References ............................................... 20 6.1 Crystal Interface and Clock Generation .............. 20 6.2 Crystal Oscillator ................................................. 21 6.3 External Frequency Reference ............................ 21 6.4 Frequency Selection ............................................ 23 6.5 Frequency Tri…

Text truncated - open the document above for the full version.

Part No. M310220 Wi-Fi / BT / ZigbeeCeramic Antennas 2.4 GHz Supports: Wi-Fi applications, Agriculture, Automotive, Bluetooth, Zigbee, WLAN, Smart Home, Healthcare, Digital Signage DATASHEET Part No. M310220 Product: Wi-Fi/Bluetooth Ceramic Antennas 11/15/2018Proprietary www.ethertronics.com Electrical Specifications Typical performance on 40 x 60 mm PCB Mechanical Specifications & Ordering Part Number KEY BENEFITS Stay-in-Tune IMD antenna technology provides superior RF field containment, resulting in less interaction with surrounding components. Quicker Time-to-Market By optimizing antenna size, performance and emissions, customer and regulatory specifications are more easily met. Reliability Products are the latest RoHS version compliant. Ceramic Wi-Fi / Bluetooth Antenna 2400 –2485 MHz •Embedded design •Cellular, Headsets, Tablets •Gateway, Access Point •Handheld •Telematics •Tracking •Healthcare •M2M, Industrial devices •Smart Grid •OBD-II APPLICATIONS Ordering Part NumberM310220 Size (mm)3.00 x 1.50 x1.08 MountingSurface mounted Weight (grams)0.1 Packaging Tape & Reel, M310220–1,000 pieces per reel Demo BoardM310220-01 Ethertronics’ series of Ceramic Isolated Magnetic Dipole™ (IMD) antennas deliver on the key needs of device designers for higher functionality and performance in smaller/thinner designs. These innovative antennas provide compelling advantages for Bluetooth ® enabled cell phones, media players and other mobile devices. Real-World Performance and Implementation Ceramic antennas may look alike on the outside, but the important difference is inside. Other antennas may contain simple PiFAor monopole designs that interact with their surroundings, complicating layout or changing performance with use position. Ethertronics’ antennas utilize patented IMD technology to deliver a unique size and performance combination. Greater Flexibility Ethertronics’ first-in-class IMD technology enables you to develop concept designs that are more advanced and that deliver superior performance in reception critical applications. Frequency (MHz)2400 –2485 Peak Gain1.7 dBi Average Efficiency67% VSWR Match2.0:1 max Feed Point Impedance50 ohms unbalanced PolarizationLinear Power Handling0.5 Watt CW tel +(1) 858.550.3820 | fax +(1) 858.550.3821 email: [email protected] 5501 OberlinDrive, Suite 100 San Diego, CA 92121 -USA © 2018 Ethertronics Height Antenna Dimensions Typical antenna dimensions (mm) Top View Bottom View Pin #1 PinDescription 1 Feed 2 Ground Part NumberA (mm)B (mm)C (mm) M3102203.00 ±0.21.50 ±0.21.08 ±0.1 DATASHEET | Part No. M310220 2.4 GHz Ethertronics’ Embedded Antenna Specifications Ethertronics produces a wide variety of standard and custom antennas to meet user needs. A B Pin #2 C tel +(1) 858.550.3820 | fax +(1) 858.550.3821 email: [email protected] 5501 OberlinDrive, Suite 100 San Diego, CA 92121 -USA © 2018 Ethertronics VSWR, Efficiency Plots Typical performance on 40 x 60 mm PCB VSWREfficiency Antenna Radiation Patterns Typical performance on 40 x 60 mm PCB Measured @ 2440 MHz 2.4 GHz Ethertronics’ Embedded Antenna Specifications Ethertronics produces a wide variety of standard and custom antennas to meet user needs. Frequency (MHz) Frequency (MHz) Efficiency (%) VSWR Y X Y Z X Z 1 2 3 4 5 2400241024202430244024502460247024802490 0 10 20 30 40 50 60 70 80 90 100 2400241024202430244024502460247024802490 DATASHEET | Part No. M310220 tel +(1) 858.550.3820 | fax +(1) 858.550.3821 email: [email protected] 5501 OberlinDrive, Suite 100 San Diego, CA 92121 -USA © 2018 Ethertronics Antenna Outline 2.4 GHz Ethertronics’ Embedded Antenna Specifications Ethertronics produces a wide variety of standard and custom antennas to meet user needs. DATASHEET | Part No. M310220 Antenna Layout Typical layout dimensions (mm) P1 Antenna Outline Pin #1 Pin #2 Pin#Description 1 Feed 2 Ground Pin Descriptions Matching Network (Demo Board) ComponentValueTolerance P1 4.7pF±0.05pF P2 2.7pF±0.05pF P2 50Ω Transmission line *Actual matching values depend on customer design •Additional VIAS: Diam. 0.2mmto be placed around antenna, (no viason transmission lines). •Via holes must be covered by solder mask tel +(1) 858.550.3820 | fax +(1) 858.550.3821 email: [email protected] 5501 OberlinDrive, Suite 100 San Diego, CA 92121 -USA © 2018 Ethertronics 2.4 GHz Ethertronics’ Embedded Antenna Specifications Ethertronics produces a wide variety of standard and custom antennas to meet user needs. DATASHEET | Part No. M310220 Antenna Layout Tips (General reference) Important, layout guidelines for correct operation of Ethertronics Ceramic Antennas. Please read guidelines below before laying out the antenna in a device. Figure 1 shows the typical antenna layout. Figure 2 shows Ethertronics’ antenna layout. ShortingpinFeedpin Antennatuningloop: •Theantennatuningloopisformedbythe PCBlayout. •Thefeedpinandshortingpinare combinedbecause itrequiresveryclose proximitytoachievemoreband-width. Figure2 Ethertronics Antenna Layout (Required) Figure1 Typical Antenna Layout Shortingpinandfeedpinaresharedin Ethertronicsceramicantennas Other Ethertronics tel +(1) 858.550.3820 | fax +(1) 858.550.3821 email: [email protected] 5501 OberlinDrive, Suite 100 San Diego, CA 92121 -USA © 2018 Ethertronics Antenna Demo Board Typical layout dimensions (mm) Part NumberA (mm)B (mm)C (mm) M310220-0160.040.030.0 A B A DATASHEET | Part No. M310220 2.4 GHz Ethertronics’ Embedded Antenna Specifications Ethertronics produces a wide variety of standard and custom antennas to meet user needs. C
