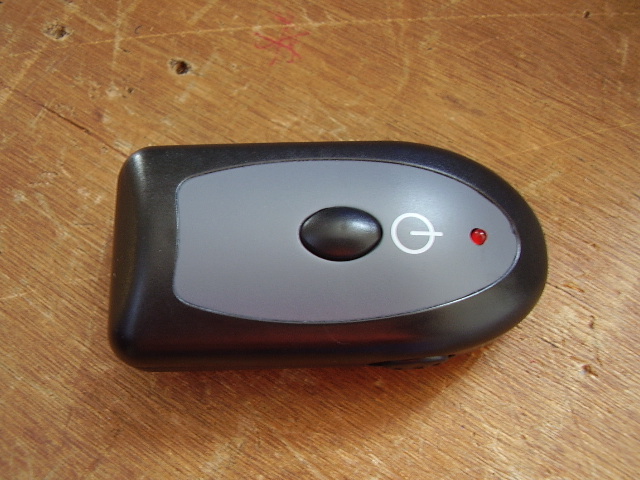

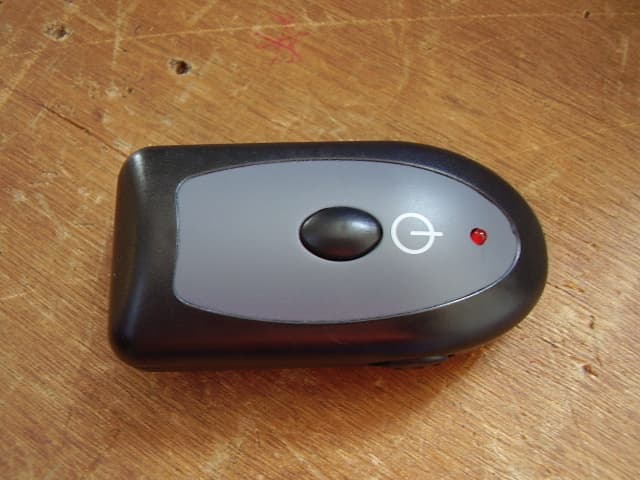

T991584008584 PROFLAME G Fire Remote Control Transmitter

9.957.033 00 2 584 PROFLAME G FIRE TRANSMITTER USE AND INSTALLATION INSTRUCTIONS Read the instructions before use. This control must be installed in accordance with the rules in force. The SIT 584 PROFLAME G Fire Transmitter is a device that allows, when used with the 584 PROFLAME G Fire Receiver and in conjunction with the Combination Gas Control, to command appliances like fireplaces and log sets. With the 584 PROFLAME G Fire Transmitter it is possible to turn the appliance on and off. The 584 PROFLAME G Fire Transmitter is the Remote Control that commands the Receiver. See Fig. 1. Moving the side slider in the direction of the transmission light it is also possible to disconnect the electric supply of the internal batteries (child safety feature). English- 4 2 2 ENGLISH ON /OFF Key Side slider Fig. 1: 584 PROFLAME G Fire Transmitter Transmission light IMPORTANT The 584 PROFLAME G Fire Transmitter is integrating part of the 584 PROFLAME G System, which is composed of: • 584 PROFLAME G Fire Transmitter • 584 PROFLAME G Fire Receiver The 584 PROFLAME G Fire Transmitter is designed and realized to be used exclusively with the 584 PROFLAME G Fire Receiver. Please use this Installation Manual in conjunction with the 584 PROFLAME G Fire System, for complete installation instructions. 3 Supply voltage4.5 V (Three AAA batteries) Ambient temperature ratings0 - 60 °C (32 - 140 °F) Radio frequency315 MHz TECHNICAL DATA CAUTION Property Damage Hazard. Excessive heat can cause property damage The fireplace can stay ignited for many hours. Take care to turn off the fireplace if it is unattended by adult people. Do not leave the Remote Control where children can reach it. Check the functionality of the Remote Control The Remote Control is powered by three AAA 1.5 V batteries in the proper compartment with the correct polarity; see Fig. 2. The correct power of the Remote Control can be checked observing the presence of the red light when ON/OFF button is pressed; see Fig. 1. ENGLISH Fig. 2 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USERS'S AUTHORITY TO OPERATE THE EQUIPMENT. FCC NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, this is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and Receiver. •Connect the equipment into an outlet on a circuit different from that to which the Receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. 4 ENGLISH

SIT la precisa spa 35129 Padova - Viale dell’Industria, 31/33 - ITALY - Tel. +39 049 8293111 Fax +39 049 8070093 www.sitgroup.it e-mail: [email protected] P.IVA / C.F. / Reg. Imprese di PD n. 02072110287 Società che esercita la direzione e il coordinamento: Findest srl SIT la precisa spa CONFIDENTIALITY FORM Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 April 17, 2007 Gentkemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 peraining to confidential material. SIT LA PRECISA S.p.A. would like the following documents regarding this submission for FCC ID: T991584008 to be kept confidential. 1. Schematic 2. Functional Blocks Schematic 3. Operational Description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Antonio Vendramini

Independent Testing Laboratory TÜV Rheinland Appointed Laboratory Accredited by PTT Ministry Competent Body CMC Centro Misure Compatibilità S.r.l. - Via dell’Elettronica, 12/C - 36016 Thiene (VI) - ITALY - tel./fax +39 0445 367702 http://www.cmclab.it e-mail: [email protected] REF. C07060103 Page 1 of 1 EXTERNAL PHOTO Mod. 1584008

Applicant : Sit la Precisa S.p.A. FCCID : T991584008 EUT top view EUT bottom view EUT open bottom view Applicant : Sit la Precisa S.p.A. FCCID : T991584008 Main Board Component Side inside whole view main board component side main board solder side Applicant : Sit la Precisa S.p.A. FCCID : T991584008 The label must be a stick-on paper label. The label on these products must be permanently affixed to the product and readily visible at the time of purchase and must the last expected lifetime of equipment not readily detachable. proposed label and location on EUT bottom

Independent Testing Laboratory TÜV Rheinland Appointed Laboratory Accredited by PTT Ministry Competent Body CMC Centro Misure Compatibilità S.r.l. - Via dell’Elettronica, 12/C - 36016 Thiene (VI) - ITALY - tel./fax +39 0445 367702 http://www.cmclab.it e-mail: [email protected] REF. C07060104 Page 1 of 2 INTERNAL PHOTO Mod. 1584008 Independent Testing Laboratory TÜV Rheinland Appointed Laboratory Accredited by PTT Ministry Competent Body CMC Centro Misure Compatibilità S.r.l. - Via dell’Elettronica, 12/C - 36016 Thiene (VI) - ITALY - tel./fax +39 0445 367702 http://www.cmclab.it e-mail: [email protected] REF. C07060104 Page 2 of 2

Independent Testing Laboratory TÜV Rheinland Appointed Laboratory Accredited by PTT Ministry Competent Body CMC Centro Misure Compatibilità S.r.l. - Via dell’Elettronica, 12/C - 36016 Thiene (VI) - ITALY - tel./fax +39 0445 367702 http://www.cmclab.it e-mail: [email protected] Test report R07060101 Rev. 1.0 Order M070601 page 1 of 18 TEST REPORT nr. R07060101 Electromagnetic Compatibility (EMC) Test item Description .................... : TRANSMITTER UNIT Trademark ..................... : SIT LA PRECISA Model/Type ................... : 1584008 Test Specification Standard ........................ : FCC Rules & Regulations, Title 47 (2005) Part 15 paragraph(s) : 203, 204,207, 209 and 231 Client’s name ............... : SIT LA PRECISA S.p.A. Address ......................... : Viale dell'industria, 31/33 - 35129 Padova (PD) - ITALY Manufacturer’s name. : Same as client Address ......................... : -- Report Tested by ....................... : G. Gandini - Technician Approved by ................. : R. Beghetto - Laboratory Manager Date of issue .................. : 04.06.07 Contents ........................ : 18 pages This test report shall not be reproduced except in full without the written approval of CMC. The test results presented in this report relate only to the item tested. CMC Centro Misure Compatibilità S.r.l. Via dell’Elettronica, 12/C 36016 Thiene (VI) Test report R07060101 Rev. 1.0 Order M070601 page 2 of 18 Index 1. SUMMARY ............................................................................................................................................................. 3 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ................................................................................. 4 2.1 TEST SITE .............................................................................................................................................................. 4 3. TESTING AND SAMPLING ................................................................................................................................. 4 4. OPERATIVE CONDITIONS ................................................................................................................................ 4 5. PHOTOGRAPH(S) OF EUT ................................................................................................................................. 5 6. EQUIPMENT LIST ................................................................................................................................................ 8 7. MEASUREMENT UNCERTAINTY .................................................................................................................. 10 8. REFERENCE DOCUMENTS ............................................................................................................................. 10 9. DEVIATION FROM TEST SPECIFICATION ................................................................................................. 11 10. TEST CASE VERDICTS ..................................................................................................................................... 11 11. RESULTS .............................................................................................................................................................. 11 11.1 ANTENNA REQUIREMENTS ............................................................................................................................. 12 11.2 RADIATED EMISSION 30-1000 MHZ .............................................................................................................. 13 11.3 SPURIOUS EMISSION 1-10 GHZ ..................................................................................................................... 14 11.4 BANDWIDTH OF EMISSION .............................................................................................................................. 15 12. GRAPHS AND TABLES ...................................................................................................................................... 16 CMC Centro Misure Compatibilità S.r.l. Via dell’Elettronica, 12/C 36016 Thiene (VI) Test report R07060101 Rev. 1.0 Order M070601 page 3 of 18 1. Summary Emission: FCC Rules & Regulations, Title 47 Test specifications Environmental Phenomena Tests sequence Result Part 15.203 and 15.204 Antenna Requirement 1 Complies Part 15.207 Conducted Emission N.A. (+) Part 15.209 and 15.231 Radiated Emission 2 Complies Part 15.209 and 15.231 Bandwidth of emission 3 Complies (+) Apparatus with 4,5Vdc of power supply from internal battery The Test Report was given to the Client representatives for necessary documentation of ratification of the tested equipment and it is valid for the FCC certification. CMC Centro Misure Compatibilità S.r.l. Via dell’Elettronica, 12/C 36016 Thiene (VI) Test report R07060101 Rev. 1.0 Order M070601 page 4 of 18 2. Description of Equipment under test (EUT) Power supply ......................................................................... : 4,5Vdc from internal battery Type of equipment ............................................................... : ; Transmitter Unit … Receiver Unit … Fixed station ; Portable station … Mobile station Receiver class ........................................................................ : -- Working Frequency ............................................................... : 315 MHz Number of channels .............................................................. : -- Channel separation ............................................................... : -- Modulation ............................................................................ : -- Extreme conditions ................................................................ : -- Maximum transmitter output power .................................... : -- Information on antenna ........................................................ :; Integrated … Extern … Other…
