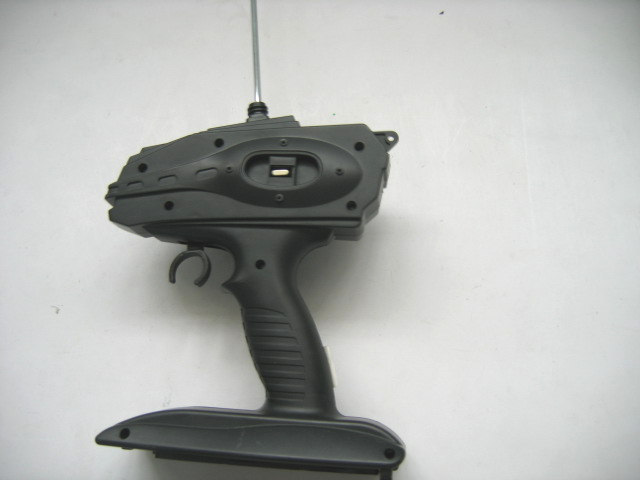

T9E-WD2868Remote Control Car Controller(s)

Function of interchangeable HT-2868-7OR3 Function of interchangeable WX-FJZ-RB : 1. When the TX at forward switch, RX motor move clockwise – forward. There are 3 different speeds: BACKWARD, FORWARD, TURBO. 1. When the TX at backward switch, RX motor move counter-clockwise – backward. There are 2 different speeds: FORWARD, TURBO. 2. When the TX at LEFT switch, RX receive the signal and turn left. 3. When the TX at RIGHT switch, RX receive the signal and turn right

Report No.: SZEMO060400671RFF Page: 1 of 10 FCC ID: T9E-WD2868 Authorized Signature: Robinson Lo Laboratory Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. Member of the SGS Group (SGS SA) SGS-CSTC Standards Technical Services Ltd. No.198 Kezhu Road, Science Town Economic& Technology Development District Guangzhou, China 510663 Telephone: +86 (0) 20 8215 5555 Fax: +86 (0) 20 8207 5059 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 556682 TEST REPORT Application No. : SZEMO060400671RF(SGS SZ NO.: SZTYR060400734/EL) Applicant: Manufacturer: Experience Enterprises Woddon Industrial Limited FCC ID: T9E-WD2868 Fundamental Frequency : 27.145MHz Equipment Under Test (EUT): Name: Remote Control Cars Model No.: Labelled Age Grading: Country of Origin: Country of Destination: WD2868A/WD2868B/WD2868C/WD2868D/WD2868E ♣ For ages over 3 China USA ♣ Please refer to section 2 of this report which indicates which item was actually tested and which were electrically identical. Standards: FCC PART 15, SUBPART C : 2006 Section 15.227 Date of Receipt: 14 April 2006 Date of Test: 14 to 20 April 2006 Date of Issue: 09 May 2006 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID: T9E-WD2868 Report No.: SZEMO060400671RFF Page: 2 of 10 SGS-CSTC Standards Technical Services Ltd. 2 Test Summary Test Test Requirement Stanadard Paragraph Result Radiated Emission (30MHz to 1000MHz) FCC PART 15 :2006 Section 15.227 and PASS * Occupied Bandwidth FCC PART 15 :2006 Section 15.215 and PASS Tx: In this whole report Tx (or tx) means Transmitter. Rx: In this whole report Rx (or rx) means Receiver. RF: In this whole report RF means Radiated Frequency. Item No.: WD2868A/WD2868B/WD2868C/WD2868D/WD2868E Only the item LITTLE BIRD was tested, since the electrical circuit design, layout, component used and internal wiring were identical for the above items, with only difference being the outer decoration and colours. * The EUT passed the RE test after modification detailed below. 1, Add two 104pF capacitances to the power supply poles and connect them to the ground. 2, Add a 22pF capacitance to the crystal. 3, Add a 471pF capacitance to the crystal and connect it to the ground. 4, Add a 102pF capacitance to the base electrode of the audion and connect it to the ground. FCC ID: T9E-WD2868 Report No.: SZEMO060400671RFF Page: 3 of 10 SGS-CSTC Standards Technical Services Ltd. 3 Contents Page 1 COVER PAGE...........................................................................................................................................1 2 TEST SUMMARY....................................................................................................................................................2 3 CONTENTS..............................................................................................................................................................3 4 GENERAL INFORMATION....................................................................................................................................4 4.1 CLIENT INFORMATION.......................................................................................................................................4 4.2 DETAILS OF E.U.T............................................................................................................................................4 4.3 DESCRIPTION OF SUPPORT UNITS...................................................................................................................4 4.4 TEST LOCATION................................................................................................................................................4 4.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER..................................................................................4 4.6 TEST FACILITY..................................................................................................................................................5 5 TEST RESULTS......................................................................................................................................................6 5.1 TEST INSTRUMENTS..........................................................................................................................................6 5.2 E.U.T. OPERATION...........................................................................................................................................6 5.3 TEST PROCEDURE & MEASUREMENT DATA....................................................................................................6 5.3.1 Radiated Emissions...................................................................................................................................6 5.3.2 Occupied Bandwidth................…
