T9NFLF0814T5 Low-Profile Linkable Fluorescent Lamp Fixture

Mini Fluorescent Lamp Fixture User Manual To customer: Thanks for purchasing our products, please read the Manual carefully before install the fixtures. Warning: Install according to the Manual and don’t disassemble or modify the fixture to avoid electric shock or destroying the fixture. Attention: 1. Don’t install the fixture on such places as right pictures. 2. Operating Voltage: 110~130VAC/60Hz. 3. Don’t use the fixture in high temperature or damp places. 4. Professional Electrician is needed for safety, maintaining and checking fixture. 5. Turn off the power immediately if there are some abnormities for the fixture, then contact with the Sales. Parts and Installation Instruction. Attention: To disconnect the power before installation to escape electric shock. 1. According to the database and sketch map, to fix the two pieces Fixing Clip on the ceiling by M4 screw. 2. As per the sketch map, to push the bracket 3. Plug the tube into the base holder, then turn into the Fixing Clips correctly. (When undo 90clockwise or anticlockwise. When change the fixture, hold the bracket by hands, then the tube, hold the tube by hands, take off after pull on the contrary direction.) turning 90clockwise or anticlockwise. 4. Plug the Power Cord into the Fixture Housing when single-Fixture used, when Multi-Fixtures used, you can connect the Fixtures with Connection.(Please don’t connect over 5 lamp POWER(W)L(mm) 24/14/13 40050 39/21 70050 54/28 100050 35 130050 08 20030 Fixtures for your safety.) Fixture Specification Model Voltage F(Hz)Power(w)Current(A)Power Factor Tube EDFT5-108L-MEO 120VAC 60 8 0.14 0.5 T5-35W EDFT5-113L-MFO 120VAC 60 13 0.22 0.5 T5-35W EDFT5-114L-MAO120VAC 60 14 0.24 0.5 T5-14W T5 low-profile linkable Fluorescent Lam Fixture This device complies with part 18 of the FCC Rules. 1, Before commissioning this oven please read this instruction manual and keep it carefully. 2, There must be more than 30cm high space necessary above the top surface of oven. 3, Do not repair the oven yourself, please consult an authorized expert. 4, The contents of feeding bottles and bay food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns. 5, Check the oven and the cable regularly for damage. If there is any kind of damage, the oven should not be used. Warning: 1) Fragile products, handling with care. 2) Only operating in the range of 110-130VAC/60HZ Voltage. 3) Use indoor only. Never use it where water may drop in the lamp or where the atmosphere is humid. 4) Don’t use the fixture in high temperature. 5) Don’t place or use it where the child can touch it. 6) Always turn off the switch when installing, replacing or cleaning the fixture. 7) Turn off the power immediately if there are some abnormities for the fixture, then contact service agent or a similarly qualified person in order to avoid a hazard. 8) Professional Electrician is needed for safety, maintaining and checking fixture. 9) This product complies with Part 18 of the FCC Rules but may cause interference to televisions, radios, wireless remote control or maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30MHz.If interference occurs, move product away from the device or plug either into a different outlet. Note: THE MANUFACTURER IS NOT RESPONSIBLEFOR ANY RADIO OR TV. INTERFERENCE CAUSED BY UNAUTHORIZATED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFACTIONNS COULD VOID THE USER AUTHORITY TO OPERATE THIS EQUIPMENT .

External Photos EDFT5-108L-MEO: EUT-Top View EDFT5-108L-MEO: EUT-Bottom View EDFT5-113L-MFO: EUT-Top View EDFT5-113L-MFO: EUT-Bottom View EDFT5-114L-MAO: EUT-Top View EDFT5-114L-MAO: EUT-Bottom View

ID Label Label FCC ID: T9NFLF0814

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label Location Model: EDFT5-108L-MEO Model: EDFT5-113L-MFO Model: EDFT5-114L-MAO

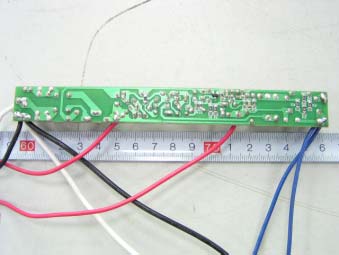

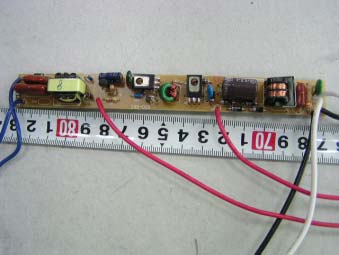

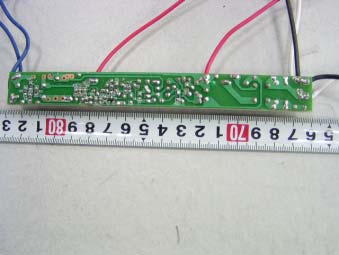

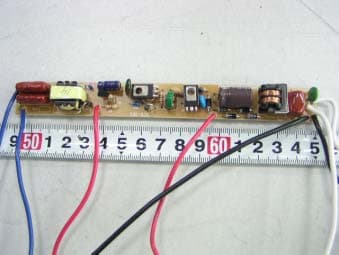

Internal Photos EDFT5-108L-MEO: EUT-Uncovered View EDFT5-108L-MEO: EUT-Inside View EDFT5-108L-MEO: EUT-PCB Top View EDFT5-108L-MEO: EUT-PCB Bottom View EDFT5-113L-MFO: EUT-Uncovered View EDFT5-113L-MFO: EUT-Inside View EDFT5-113L-MFO: EUT-PCB Top View EDFT5-113L-MFO: EUT-PCB Bottom View EDFT5-114L-MAO: EUT-Uncovered View EDFT5-114L-MAO: EUT-Inside View EDFT5-114L-MAO: EUT-PCB Top View EDFT5-114L-MAO: EUT-PCB Bottom View

PRODUCT T5 Fluorescent Lamp Ballast MODEL EBT5-108L DATE 2006-3-8 COMPONENT MANUFACTURE R MODEL RATINGS UL FILE NO. 1 Resistor CR 30/0.25W 2 Resistor Chien tung electronics(SZ) co., ltd CR 47K/0.25W 3 SMD Resistor 0805 100K 4 SMD Resistor 0805 180K 5 SMD Resistor 1206 100K 6 SMD Resistor 0805 5.6K 7 SMD Resistor 0805 100 8 SMD Resistor 0805 0 9 SMD Capacitance Fenghua adanced technology co.,ltd 0805 100nF/50V 10 Capacitance CL21 104/250V 11 Capacitance CL11 223/100V 12 Capacitance CL21 104/250V 13 Capacitance Shenzhen sheng xin capacitor co., ltd CBB81 822/1KV 14 Capacitance Shengzhen yanxin electronics co.,ltd CT81 102/1KV 15 Electrolyse Capacitance GD11GH 6.8uF/200V, 105 16 Electrolyse Capacitance Hunan aihua technology group PSR 10uF/50V,105 17 diode IN4007 1A/700V 18 diode IN4937 1A/600V 19 diode IN5819 1A/400V 20 DB3 Changzhou galary electrical co ltd DB3 2A/32V 21 transistor HF13003B 2A/400V 22 Silicon Controllecl Rectifier Shenzhen Hufeng industry co ltd XL0840 1A/400V 23 Turn toroide T2 9*5*3 6:3:6 24 Inductor T1 UU9.8 10mH 25 Inductor T3 Shenzhen shensco pholighting co ltd ED18 2.8-3.0mH 26 transistor BC817 0.4A/45V PRODUCT T5 Fluorescent Lamp Ballast MODEL EBT5-108L DATE 2006-3-8 COMPONENT MANUFACTURER MODEL RATINGS UL FILE NO. 27 PCB Wingshing electronic & PCB Ltd SCO-005 YS-1B E190407 28 fuse Xc electronic (shenzhen)corp ltd 3S-NN# 2A/250V E249609 29 Wire Tai-I electrinc wire & cable co ltd UEW MW-75C,130 E85640 30 Bobbin Shanghai European –asian synthetic material co ltd KE3386B BK,150 E176036 31 Tubing Shenzhen woer Heat -shrinkable material co ltd RSFR-X 125,black E203950 32 Insulated wire 1015 AWG20#,Black, White 33 Insulated wire Dongguan guneetal electric wire & cable factory 1015 AWG24#,Red, Blue E204204 34 Insulating Tape Dongguan yahua sticking jape co.,ltd YL,130 W=5mm E24353 35 Transient voltage surge suppressors Song long electronics co ltd07D241K E171541 PRODUCT T5 Fluorescent Lamp Ballast MODEL EBT5-113L, EBT5-114L DATE 2006-3-8 COMPONENT MANUFACTURE R MODEL RATINGS UL FILE NO. 1 Resistor CR 0.33/1W Resistor CR 12/0.25W 2 Resistor Chien tung electronics(SZ) co., ltd CR 47K/0.25W 3 SMD Resistor 0805 100K 4 SMD Resistor 0805 150K 5 SMD Resistor 1206 100K 6 SMD Resistor 0805 5.6K 7 SMD Resistor 0805 100 8 SMD Resistor 0805 0 9 SMD Capacitance 0805 100nF/50V 10 SMD Capacitance Fenghua adanced technology co.,ltd 0805 10nF/50V 11 Capacitance CL21 224/400V 12 Capacitance CL11 223/100V 13 Capacitance CBB21 224/400V 14 Capacitance Shenzhen sheng xin capacitor co., ltd CBB81 472/1KV 15 Capacitance Shengzhen yanxin electronics co.,ltd CT81 681/1KV 16 Electrolyse Capacitance GD11GH 10uF/200V, 105 17 Electrolyse Capacitance Hunan aihua technology group PSR 10uF/50V,105 18 diode IN4007 1A/700V 19 diode IN4937 1A/600V 20 diode IN5819 1A/400V 21 DB3 Changzhou galary electrical co ltd DB3 2A/32V 22 transistor HF13003 3A/400V 23 Silicon Controllecl Rectifier Shenzhen Hufeng industry co ltd XL0840 1A/400V 24 Turn toroide T2 9*5*3 6:1:6 25 Inductor T1 UU9.8 10mH 26 Inductor T3 Shenzhen shensco pholighting co ltd ED18 1.6-1.8mH 27 transistor BC817 0.4A/45V PRODUCT T5 Fluorescent Lamp Ballast MODEL EBT5-113L, EBT5-114L DATE 2006-3-8 COMPONENT MANUFACTURER MODEL RATINGS UL FILE NO. 28 PCB Wingshing electronic & PCB Ltd SCO-005 YS-1B E190407 29 fuse Xc electronic (shenzhen)corp ltd 3S-NN# 2A/250V E249609 30 Wire Tai-I electrinc wire & cable co ltd UEW MW-75C,130 E85640 31 Bobbin Shanghai European –asian synthetic material co ltd KE3386B BK,150 E176036 32 Tubing Shenzhen woer Heat -shrinkable material co ltd RSFR-X 125,black E203950 33 Insulated wire 1015 AWG20#,Black, White 34 Insulated wire Dongguan guneetal electric wire & cable factory 1015 AWG24#,Red, Blue E204204 35 Insulating Tape Dongguan yahua sticking jape co.,ltd YL,130 W=5mm E24353 36 Transient voltage surge suppressors Song long electronics co ltd07D241K E171541

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 18 EMI MEASUREMENT AND TEST REPORT For SHENZHEN SHENSCO PHOLIGHTING TECH CO., LTD Building L, Jingtie Industry Park, Heao. Henggang, Longgang, shenzhen, China FCC ID: T9NFLF0814 August 1, 2006 This Report Concerns: Original Report Equipment Type: T5 Low-Profile Linkable Fluorescent Lamp Fixture Test Engineer: Louise Lu Report Number: RSZ06042782 Test Date: April 30, 2006 Reviewed By: Boni Baniqued Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, GuangDong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 SHENZHEN SHENSCO PHOLIGHTING TECH CO., LTD FCC ID: T9NFLF0814 Report # RSZ06042782 Page 2 of 15 FCC Part 18 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 O BJECTIVE ...................................................................................................................................................................3 R ELATED S UBMITTAL ( S )/G RANT ( S ).............................................................................................................................3 T EST M ETHODOLOGY ..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 EXTERNAL I/O CABLE.................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 CONDUCTED EMISSION...........................................................................................................................................6 MEASUREMENT UNCERTAINTY....................................................................................................................................6 EUT SETUP..................................................................................................................................................................6 EMI TEST RECEIVER SETUP........................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 TEST RESULTS SUMMARY............................................................................................................................................7 TEST DATA..................................................................................................................................................................8 P LOT ( S ) OF T EST D ATA ................................................................................................................................................9 SHENZHEN SHENSCO PHOLIGHTING TECH CO., LTD FCC ID: T9NFLF0814 Report # RSZ06042782 Page 3 of 15 FCC Part 18 Report GENERAL INFORMATION Product Description for Equipment Under Test (EUT) The SHENZHEN SHENSCO PHOLIGHTING TECH CO., LTD ’s model: EDFT5-108L-MEO, EDFT5-113L-MFO, EDFT5-114L-MAO, or the “EUT” as referred to in this report is a T5 Low-Profile Linkable Fluorescent Lamp Fixture which measures approximately: EDFT5-108L-MEO: 31.5 cm L x 2.3 cm W x 4.0 cm H EDFT5-113L-MFO: 54.4 cm L x 2.3 cm W x 4.0 cm H EDFT5-114L-MAO: 51.5 cm L x 2.3 cm W x 4.0 cm H rated input voltage: AC 120V/60Hz. * The test data gathered are from production sample, serial number: 0604229 provided by the manufacturer, we received EUT on 2006-4-27. Objective The following test report is prepared on behalf of SHENZHEN SHENSCO PHOLIGHTING TECH CO.,LTD in accordance with Part 2, Subpart J, and Part 18, Subparts A, B and C of the Federal Communication Commissions rules and regulations. The objective of the manufacturer is to determine compliance with FCC Part 18 limits. Related Submittal(s)/Grant(s) No related submittal(s). Test Methodology All measurements contained in this report were conducted with MP-5, FCC Methods of Measurements of Radio Noise Emissions from ISM Equipment, February 1986. All measurements were performed at Bay Area Compliance Lab Corp. (ShenZhen). The radiated testing was performed at an antenna-to-EUT distance of 3 meters. Test Facility The Test site us…
