T9NSEMSCE01Self Balasted Lamps

USER MANUAL 1. CAUTION: Risk of electric shock, Use in dry location only Do not Use where directly exposed to water Not for use with dimmers. Not for use in totally enclosed recessed fixtures Not intended for use with emergency exit fixtures or emergency lights To prevent the risk of fire or product damage ,do not use with d immers, Electronic timers , photocells or touch style lamps, Do not use in totally enclosed of recessed fixtures. Contains mercury, dispose according to local, state, or federal laws. 2. These lamps comply with Federal Energy Efficiency Labeling requirements. 3. FCC statement: This Product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.15-30 MHz. This device complies with Part 18 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT

S S h h e e n n Z Z h h e e n n S S h h e e n n s s c c o o P P h h o o l l i i g g h h t t i i n n g g T T e e c c h h C C o o . . , , L L t t d d Add：Building L,Jingtie Industry Park,Heao Henggang, Longgang,Shenzhen,China Tel ： +86-755-28626192（28625190） Fax：+86-755-28626179 Post Code：518115 Http：//www.pholighting.com E-mail: hszhe @ 163.com Date: August.02,2006 Federal Communications Commission Authorization and Evaluation Division FCC ID: T9N SEMSCE01 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant thereby Requests confidential treatment of information accompanying this Application as outlined Below: 1. Schematics 2. Block Diagram 3. Operational Description 4. Component Parts list The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to is competitors. The Applicant understands that pursuant to Rule 0.457,disclosure of this Application and All accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Robin/Manager Engineer Dep. S S h h e e n n Z Z h h e e n n S S h h e e n n s s c c o o P P h h o o l l i i g g h h t t i i n n g g T T e e c c h h C C o o . . , , L L t t d d

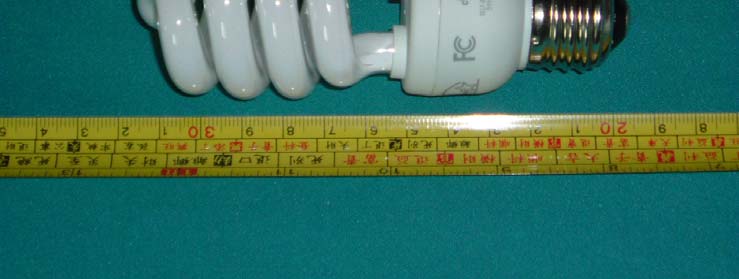

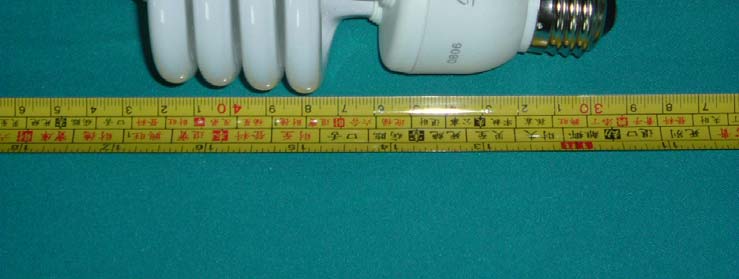

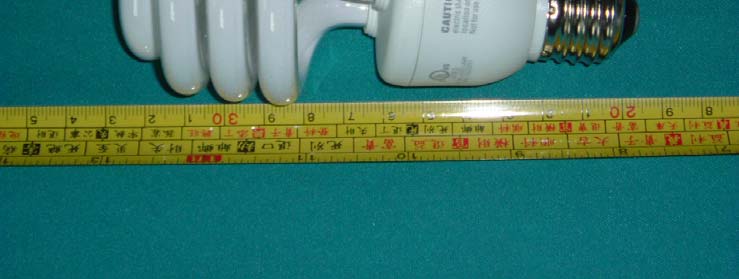

EUT PHOTOGRAPHS EUT-Front View （For SCE-26W Model） EUT-Front View （For SCE-23W Model） EUT-Front View （For SCE-20W Model） EUT-Front View （For SEM-13W Model） EUT-Front View （For SEM-9W Model）

FCC PRODUCT LABELING AND WARNIGN STATEMENT Proposed FCC Label format: FCC ID: T9NSEMSCE01 Specifcations: Text is black or white in color and is left justified, Label are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed FCC Label Location: Dimension : 20mm*10mm FCC Warning statement: This device complies with Part 18 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Model: SCE-23W 120V 60Hz 0.39A FCC ID:T9NSEMSCE01

INTERNAL PHOTOGRAPHS Inside of EUT (For model SCE-26W) Front view of PCBA (For model SCE-26W) Back view of PCBA (For model SCE-26W) Inside of EUT (For model SCE-23W) Front view of PCBA (For model SCE-23W) Back view of PCBA (For model SCE-23W) Inside of EUT (For model SCE-20W) Front view of PCBA (For model SCE-20W) Back view of PCBA (For model SCE-20W) Inside of EUT (For model SEM-13W) Front view of PCBA (For model SEM-13W) Back view of PCBA (For model SEM-13W) Inside of EUT (For model SEM-9W) Front view of PCBA (For model SEM-9W) Back view of PCBA (For model SEM-9W)

670 National Avenue, Mountain View, CA 94043 Tel. (650) 988-0900 Fax (650) 988-6647 www.ecmg-global.com EMI Test Report On Model Name: SELF-BALLASTED LAMP Model Number: SEM-9W / SEM-13W / SCE-20W / SCE-23W / SCE-26W Brand Name: SHENSCO FCC ID: T9NSEMSCE01 Prepared for Shenzhen Shensco Pholighting Tech Co., Ltd According to FCC Part 18 Industrial,Scientific,And Medical Equipment Test Report #: SHE-0608-5177-FCC Prepared by: Ivan Wen QC Manager: Paul Chen Test Report Released by: 2006 ,August 8 ⎯⎯⎯⎯⎯⎯⎯⎯ ⎯⎯⎯⎯⎯⎯⎯ Paul Chen Date t NVLAP Lab code: 200068-0 ISO/IEC 17025:1999, ISO 9002:1994 List of Attached Files Exhibit Type File Description File Name 731 Form 731 Form T9NSEMSCE01_731 form.pdf Test Report Test Report T9NSEMSCE01_Test report.pdf Operational Description Technical Description T9NSEMSCE01_operational description.pdf External Photos External Photos T9NSEMSCE01_External Photos.pdf Internal Photos Internal Photos T9NSEMSCE01_Internal Photos.pdf Block Diagram Block Diagram T9NSEMSCE01_Block Diagram.pdf Schematics Circuit Diagram T9NSEMSCE01_Schematics.pdf ID Label&Location Label Artwork and Location T9NSEMSCE01_Label & Location.pdf User Manual User Manual T9NSEMSCE01_User Manual.pdf Test setup photos Test setup photos T9NSEMSCE01_Test Setup Photos.pdf Test Location Tests performed at Shenzhen Electronic Products Quality Test Center in a Certified ANSI Semi-Anechoic Chamber and Shielded Room performed testing. Test Site Location: Electronic Testing Building Shahe Road, Xili, Nanshan District Shenzhen 518055, P.R. China. Tel: 86-755-26703698 Fax: 86-755-26627238 Registration Number: 261032 Accreditation Bodies EMC Compliance Management Group is a fully accredited Test Laboratory for ITE, ISM, MIL-STD and Telecommunications Products. In compliance with the site registration requirements of Section 2.948 of the FCC Rules to perform EMI measurements for the general public. FCC Registration #: 894293. Accredited by the National Voluntary Laboratory Accreditation Program for the specific scope of accreditation under Lab Code # 200068-0. Table of Contents GOVERNMENT DISCLAIMER NOTICE __________________________ 1 REPRODUCTION CLAUSE _____________________________________ 1 OPINIONS AND INTERPRETATIONS ___________________________ 1 STATEMENT OF MEASUREMENT UNCERTAINTY_______________ 1 ADMINISTRATIVE DATA ______ERROR! BOOKMARK NOT DEFINED. EUT DESCRIPTION ___________ERROR! BOOKMARK NOT DEFINED. TEST SUMMARY ______________________________________________ 4 TEST MODE JUSTIFICATION __________________________________ 5 EQUIPMENT MODIFICATION __________________________________ 5 EUT SAMPLE PHOTOS ________________________________________ 6 TEST SYSTEM DETAILS _______________________________________ 7 CONFIGURATION OF TESTED SYSTEM ________________________ 8 ATTACHMENT 1 - CONDUCTED EMISSION TEST RESULTS_____ 9 FCC Test Report #: SHE-0602-5177-FCC Prepared for SHENZHEN SHENSCO PHOLIGHTING TECH CO., LTD Prepared by EMC Compliance Management Group Page 1 of 17 Government Disclaimer Notice When government drawing, specification, or other data are used for any purpose other than in connection with a definitely related government procurement operation, the United States Government thereby incurs no responsibility nor any obligation whatsoever; and the fact that the Government may have formulated, furnished, or in any way supplied the said drawing, specifications, or other data, is not to be regarded by implication or otherwise in any manner licensing the holder or any other person or corporation, or conveying any rights or permission to manufacture, use, or sell patented invention that may in any way be related thereto. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. Reproduction Clause Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from EMC Compliance Management Group, 670 National Ave., Mountain View, CA 94043. Opinions and Interpretations This test report relates to the abovementioned equipment under test (EUT). Without the permission of EMC Compliance Management Group Test Lab this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. The manufacturer has sole responsibility of continued compliance of the device. Statement of Measurement Uncertainty The data and results referenced in the document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. FCC Test Report #: SHE-0602-5177-FCC Prepared for SHENZHEN SHENSCO PHOLIGHTING TECH CO., LTD Prepared by EMC Compliance Management Group Page 2 of 11 Administrative Data Test Sample : Self-Ballasted Lamp Model Numbers : SEM-9W / SEM-13W / SCE-20W / SCE-23W / SCE-26W Model Tested : SCE-23W Brand Name : Shensco FCC ID : T9NSEMSCE01 Date Tested : 2006, March 9 th Applicant : Shenzhen Shensco Pholighting Tech Co., Ltd. Building L, Jingtie Industry Park, Heao, Henggang, Longgang, Shenzhen, China. Telephone : 86-755-28626192 Fax : 86-755-28626179 Manufacturer : Shenzhen Shensco Pholighting Tech Co., Ltd. Building L, Jingtie Industry Park, Heao, Henggang, Longgang, Shenzhen, China. EUT Description Shenzhen Shensco Pholighting Tech Co., Ltd.,model tested SCE-23W (referred to as the EUT in this report) is a Self-Ballasted Lamp. FCC Test Report #: SHE-0602-5177-FCC Prepared for SHENZHEN SHENSCO PHOLIGHTING TECH CO., LTD Prepared by EMC Compliance Management Group Page 3 of 11 Type of Deriver The models of SEM-9W, SEM-13W, SCE-20W, SCE-23W are similar products, they have the same function PCB &circuit, except for the power. The models of SCE-23W, SCE-26W are the same products, they are named differently on…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS 1 ．Set-up Photo of Conducted Emission test:
