TANAAGH70W-73WWireless Electronic Game Call With Remote

All About Game, Inc.

Click to zoom

Application Details

Equipment Class: DSC - Part 15 Security/Remote Control Transmitter
Date of Grant: Jun 13, 2006
Application Purpose: Original Equipment
Date of Application: Jun 13, 2006
Equipment Note: Wireless Electronic Game Call With Remote
Frequency Range: 315.00000000 - 315.00000000
Company: All About Game, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

• O nly adults s hould ins tall and replac e batteries . • Do not rec harge non-rec hargeable batteries . • R emove dead or exhaus ted batteries . • Ins ert batteries c orrec tly. Matc h pos itive and negative s igns . • T he s upply terminals are not to be s hort- c irc uited. • Do not us e rec hargeable batteries . • Do not mix alkaline, s tandard (c arbon- zinc ), or rec hargeable (nic kel- c admium) batteries . • Do not mix old and new batteries . • O nly the batteries of the s ame or equivalent type rec ommended to be us ed. • Do not dis pos e batteries in a fire; they may explode. • Dis pos e of batteries s afely. N O T E :T he manufac turer is not res pons ible for any radio or T V interferenc e c aus ed by unauthorized modific ations to this equipment. S uc h modific ations c ould void the us er authority to operate the equipment. N O T E : T his equipment has been tes ted and found to c omply with the limits for a C las s B digital devic e, purs uant to P art 15 of the F C C R ules . T hes e limits are des igned to provide reas onable protec tion agains t harmful interferenc e in a res idential ins tallation. T his equipment generates , us es , and c an radiate radio frequenc y energy and, if not ins talled and us ed in ac c ordanc e with the ins truc tions , may c aus e harmful interferenc e to radio c ommunic ations . H owever, there is no guarantee that interferenc e will not oc c ur in a partic ular ins tallation. If this equipment does c aus e harmful interferenc e to radio or televis ion rec eption, whic h c an be determined by turning the equipment off and on, the us er is enc ouraged to try to c orrec t the interferenc e by one or more of the following meas ures : • R eorient or reloc ate the rec eiving antenna. • Increas e the s eparation between the equipment and rec eiver. • C onnec t the equipment into an outlet on a c irc uit different from that to whic h the rec eiver is c onnec ted. • C ons ult the dealer or an experienc ed radio T V tec hnic ian for help. BAT T ERY S A F E T Y IN F O R MA T IO N T he Wireles s G ame C all requires three AAA (L R 03) batteries , not inc luded. BAT T ERY IN F O R MA T IO N T he R emote requires three A13G (L R 44) button c ells , not inc luded WIRELESS ELECTRONIC GAME CALL WITH REMOTE #AAGH70W / 71W / 72W / 73W INSTRUCTION

Block Diagram

Application No.: HM156613 Date: 12 June 2006 FCC ID: TANAAGH70W-73W Circuit Description The 315 MHz crystal oscillator drives the base of Q1 the final/buffer amplifier. The modulation provided by IC. The output of Q1 has the matching network consisting of L2 and C1 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source There is no external antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 4.5 Volt (“AG13” size battery x 3) primary battery. Operation Descriptions The transmitter is a remote control switch operating at 315MHz band. The transmitter is powered by a 4.5 battery (AG13 x 3) and the transmitting frequency is crystal controlled. The operation is achieved by different combinations of form pulse modulating signal on the 315MHz carrier frequency. Remarks: The transmitter is a 5 Button transmitter. The EUT continues to transmit while Button is being pressed. It is Pluses transmitter, Modulation by IC; and type is Pulse modulation.

Block Diagram

TX BLOCK DIAGRAM A Key B Key C Key D Key E Key IC编码 IC Code Part 变频振荡部分 HF OSC. Part 娈频放大及调制部分 HF AMP.& Modulat ion 选频部分 Select Frequency Part 315MH Z天线发射部分 Antenna Emittin g.Part

Cover Letter(s)

DOC-FCC009 4/14/2005 Page 1 of 2 FEDERAL COMMUNICATIONS COMMISSION - FCC FORM 731 APPLICATION FOR EQUIPMENT AUTHORIZATION Approved by OMB 3060 - 0934 Expires 02/28/2005 Item 1. Applicant's complete, legal business name: All About Game, Inc. Item 2. Applicant's mailing address Line 1: 8915N. Pioneer Road, Line 2: P.O.Box: City: Peoria State: IL Country (if foreign address): U.S.A. Zip/Postal Code: 61615 Item 3. FCC ID: Grantee code: TAN Equipment Product Code (14 characters maximum): AAGH70W-73W Item 4. Person at the applicant's address to receive grant or for contact: First Name: KC Mail Stop: Last Name: Lee Telephone: 852 26661807 Ext: Title: Manager E-mail: [email protected] Fax No: Item 5. Instead of Applicant, the original Grant is authorized to be mailed to: The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Tai Po Industrial Estate, N.T., Hong Kong. Contact: KC Lee E-mail: [email protected] Item 6. Technical Contact: Firm Name: The Hong Kong Standards and Testing Centre Ltd. Telephone: 852 26661807 Ext: Fax No: 852 2665 0848 First Name: KC Middle Initial: Last Name: Lee Address Line 1: 10 Dai Wang Street, P.O.Box: Address Line 2: Tai Po Industrial Estate City: Country (if foreign address):Hong Kong Zip/Postal Code: E-mail: [email protected] Item 7. Non-Technical Contact: Firm Name: The Hong Kong Standards and Testing Centre Ltd. Telephone: 852 26661807 Ext: Fax No: 852 2665 0848 First Name: KC Middle Initial: Last Name: Lee Address Line 1: 10 Dai Wang Street, P.O.Box: Address Line 2: Tai Po Industrial Estate City: Country (if foreign address):Hong Kong Zip/Postal Code: E-mail: [email protected] Item 8. * Does this application include a request for confidentiality for any portion(s) of the data contained in this application pursuant to 47 CFR § 0.459 of the Commission Rules? If "Yes" see instructions. (please mark as appropriate) x No Item 9. Does the applicant request that the Commission defer grant of this application pursuant 47 CFR § 0.457(d)(1)(ii)? (See instructions) If so, specify date when grant may be issued (MM/DD/YYYY format): Item 10. * Equipment Class: DSC * Description of Product as it is Marketed: Part 15 Security / Remote Control Transmitter (NOTE: Wireless Electronic Game Call With Remote) Item 11. * Application is for: (please mark as appropriate) x Original Equipment (See instructions) Ο Change in identification of presently authorized equipment: Original FCC ID: Grant Date (MM/DD/YYYY format): Ο Class II permissive change or modification of presently authorized equipment (See instructions) Item 12. Is the equipment in this application: * (a) a composite device subject to an additional equipment authorization? * (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? If either of the above questions is answered "Yes" complete section 12(c). Ο Yes x No Ο Yes x No DOC-FCC009 4/14/2005 Page 2 of 2 (c) The related application: Ο has been granted under the FCC ID listed to the right Ο is in the process of being filed under the FCC ID listed to the right Ο is pending with the FCC under the FCC ID listed to the right FCC ID Item 13. Name of test firm and contact person on file with the FCC, if different from applicant or contact person: Firm Name: The Hong Kong Standards & Testing Centre Ltd. Last Name: KC Telephone 26661852 Ext Fax No. 26650848 E-mail: [email protected] Item 14. Enter any text that you would like to appear at the bottom of the Grant of Equipment Authorization. Read each certification carefully before answering and signing this application Equipment Specifications: Rule Part Frequency Range (MHz) Power (W) Frequency Tolerance and Units Emission Designator Note Codes 15 315 WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTITUTION PERMIT (U.S. CODE, TITLE 47, SECTION 312(a)(1)), AND/OR FORFEITURE (U.S. CODE, TITLE 47, SECTION 503). Item 15. *SECTION 5301 (ANTI-DRUG ABUSE) CERTIFICATION: The applicant must certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Does the applicant or authorized agent so certify? x Yes Ο No Item 16. APPLICANT/AGENT CERTIFICATION: I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. IN accepting a Grant of Equipment Authorization issued by the FCC as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC's technical requirements. Authorizing an agent to sign this application, is done solely at the applicant's discretion; however, the applicant remains responsible for all statements in this application. If an agent has signed this application on behalf of the applicant, a written letter of authorization which includes information to enable the agent to respond to the above section 5301 (Anti-Drug Abuse) Certification statement has been provided by the applicant. It is understood that the letter of authorization must be submitted to the FCC upon request, and that the FCC reserves the right to contact the applicant directly at any time. * Si…

Text truncated - open the document above for the full version.

Cover Letter(s)

Date: June 5, 2006. Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 USA Dear Sirs, Re.: Letter of Appointment This is the letter of authorization to accept our appointment of The Hong Kong Standards and Testing Centre Ltd. as agent for All About Game, Inc., 8915 N. Pioneer Road, Peoria, IL 61615, U.S.A. to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with Certification of the following product of All About Game, Inc. Product name : Wireless Electronic Game Call with remote Model : AAGH70W Additional Model number: AAGH71, AAGH72W, AAGH73W This authorization will expire one year from the date of this letter. Yours sincerely, ________________________ Susan J. Hayes Vice President, Operations All About Game, Inc. 8915 N. Pioneer Road, Peoria, IL 61615 p 309-691-2930 f 309-691-2931

Cover Letter(s)

Date: June 5, 2006. The Hong Kong Standards and Testing Centre Ltd., 10 Dai Wang Street, Taipo Industrial Estate, Taipo, N.T., Hong Kong. Attn.: Mr. Patrick Wong Dear Sir, Re. : Letter of Attestation This equipment has been tested in accordance with the requirements contained in the appropriate Commission Regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that the equipment complies with the appropriate standards. Each unit manufactured, imported or marketed, as defined in the Commission’s regulations, will conform to the samples tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made by the Hong Kong Standards and Testing Centre Ltd., 10 Dai Wang Street, Taipo Industrial Estate, Taipo, N.T., Hong Kong. Yours sincerely, ________________________ Susan J. Hayes Vice President, Operations All About Game, Inc. 8915 N. Pioneer Road, Peoria, IL 61615 p 309-691-2930 f 309-691-2931

External Photos

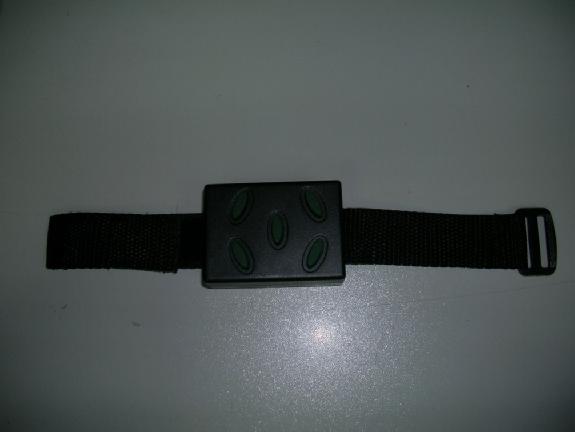

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

ID Label/Location Info

PAGE 1 OF 1 FCC ID: TANAAGH70W-73W MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

Operational Description

Parts List/Tune Up Info

制表：liweitian鑫华润电子有限公司 Shen Zhen shi Xin Hua Run Plastic lectronics CO.LTD 2006.06.01 一. TX Portion BOM:PART NODescriptionQty/PCSLocation备注 1CRYSTAL 315MHz+/-75KHz TO-391SW1 2RED WIRE 0.8X0.12X7X1 1/2"1VDD 3BLACK WIRE 0.8X0.12X7X1 1/2"1VSS 4Antena 25.5T X 0.6X5.0mm1ANT 5PCB1 (TX ) 16.5X14.5X1.0mm FR4 H/H1 6 PCB2 (Key) 41X58X1.2mm 94HB 1/01 7SMD IC SCTX2B SO-161IC1 8SMD audion 2SC4226 RF25 SOT-23 NEC1Q1 9SMD audion 2SC1623 (L6) NEC SOT-231Q2 10 SMD resistor 5.6K Ohm +/-5% 1/10W 08051R2 11 SMD resistor 27K Ohm +/-5% 1/10W 08051R3 12 SMD resistor 270K Ohm +/-5% 1/10W 08051R1 13 SMD capacitor 0.1UF 16V +80-20% 08051C1 14 SMD capacitor 27PF 16V +/-0.25% 08081C3 15 SMD capacitor 8PF 16V +/-0.25% 08051C2 16 SMD capacitor 3PF 16V +/-0.25% 08051C4 173PIN connector 2.54mm1 18 Battery contact （AG13） +ve1 19 Battery contact （AG13） -ve1 RF SOUND ELECTROM BOM REV：01

Schematics

H&R PRODUCTS MANUFACTORY LTD . 00 H&R REV. 00 SCALE: MATERIAL: COLOR: FINISHING: USEAGE: 1 PCS CLIENT: APPROVALS DRAWING: CHECKBY: APPROVED: PARTS NAME: DATE Additional model NO: ITEMNAME: PARTS NO:SHEET 1 OF 1 REVDESCRIPTIONDATEAPPROVED LiWeiTian schematic LK1 RK2 BK3 FK4 TK5 R1 220K 1 2 3 4 5 6 78 9 10 11 12 13 14 IC1:SCTX-2B SW R3 62 Ohm R2 27K R4 5.6K Q2 9014(L6) Q1 SC4226(R25) C2 8P C3 3P L2 DC4.5V "LR44"X3PCS VDD VDD SW==315MHZ L2==PCB C1 0.1UF 1 2 31 23 RIGHTB TESTB GND BACKWARDB FORWARDB TURBOB SCSO VDD PC O S C 0 O S C 1 FOSC LEFTB SW Wireless electonic game call with remote AAGH71W,AAGH72W,AAGH73W 2006.06.01 C3 27P TX:Remote Coutloller Model NO:AAGH70W

Test Report

STC Test Report Date : 2006-06-09 Page 1 of 19 No. : HM156613 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant: All About Game, Inc. 8915 N. Pioneer Road, Peoria IL 61615, U.S.A. Description of Samples: Model name: WIRELESS ELECTRONIC GAME CALL WITH REMOTE Model no.: AAGH70W Brand name: ALL ABOUT GAME FCC ID: TANAAGH70W-73W Date Samples Received: 2006-05-11 Date Tested: 2006-05-18 to 2006-06-05 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- LEE Kam Chuen, EMD For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2006-06-09 Page 2 of 19 No. : HM156613 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 19 Content Page 2-3 of 19 1.0 General Details 1.1 Test Laboratory Page 4 of 19 1.2 Applicant Details Page 4 of 19 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 19 Description of EUT operation 1.4 Date of Order Page 5 of 19 1.5 Submitted Samples Page 5 of 19 1.6 Test Duration Page 5 of 19 1.7 Country of Origin Page 5 of 19 2.0 Technical Details 2.1 Investigations Requested Page 7 of 19 2.2 Test Standards and Results Summary Page 7 of 19 3.0 Test Results 3.1 Emission Page 8-12 of 19 3.2 Bandwidth Measurement Page 13-14 of 19 STC Test Report Date : 2006-06-09 Page 3 of 19 No. : HM156613 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 15 of 19 Appendix B Duty Cycle Correction During 100 msec Page 16-17 of 19 Appendix C Periodic Operation Page 18 of 19 Appendix D Photographs Page 19-19 of 19 STC Test Report Date : 2006-06-09 Page 4 of 19 No. : HM156613 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant All About Game, Inc. 8915 N. Pioneer Road, Peoria IL 61615, U.S.A. Manufacturer SHENZHEN XINHUARUN PLASTIC & ELECTRONIC CO., LTD. BLOCK G, 2ND INDUSTRY AREA, SHEN KEN VILLAGE, HENG GANG TOW, LONG GANG, SHENZHEN STC Test Report Date : 2006-06-09 Page 5 of 19 No. : HM156613 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Product: WIRELESS ELECTRONIC GAME CALL WITH REMOTE Manufacturer: SHENZHEN XINHUARUN PLASTIC & ELECTRONIC CO., LTD. Brand Name: ALL ABOUT GAME Model Number: AAGH70W Additional Model Number: AAGH71W, AAGH72W, AAGH73W Rating: 4.5Vd.c (“AG13” button cell x 3) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is an All About Game, Inc., WIRELESS ELECTRONIC GAME CALL WITH REMOTE. The transmitter is a 5 button transmitter. The EUT continues to transmit while button is being pressed. It is pulses transmitter, modulation by IC; and type is pulses modulation. 1.4 Date of Order 2006-05-11 1.5 Submitted Sample(s): 2 Samples per model 1.6 Test Duration 2006-05-18 to 2006-06-05 1.7 Country of Origin China STC Test Report Date : 2006-06-09 Page 6 of 19 No. : HM156613 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15:2005 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Str…

Text truncated - open the document above for the full version.

Test Setup Photos

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
