TANAAGH92Treestand/Blind Locator

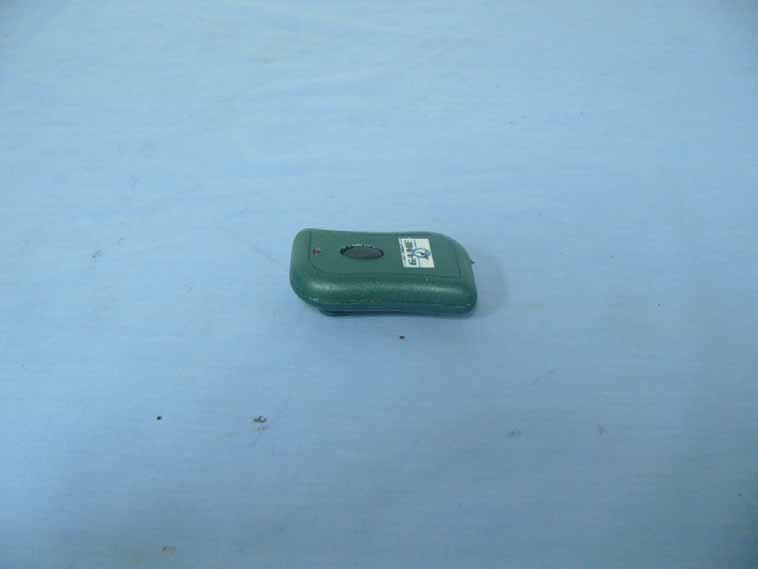

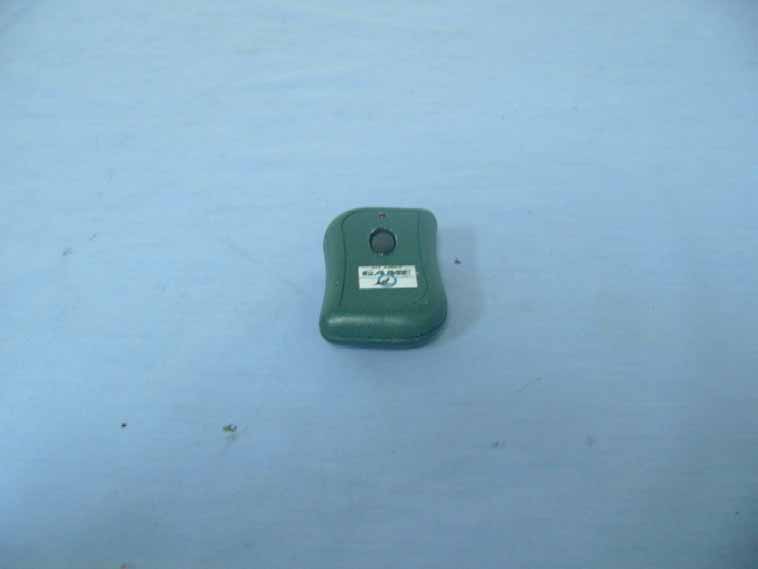

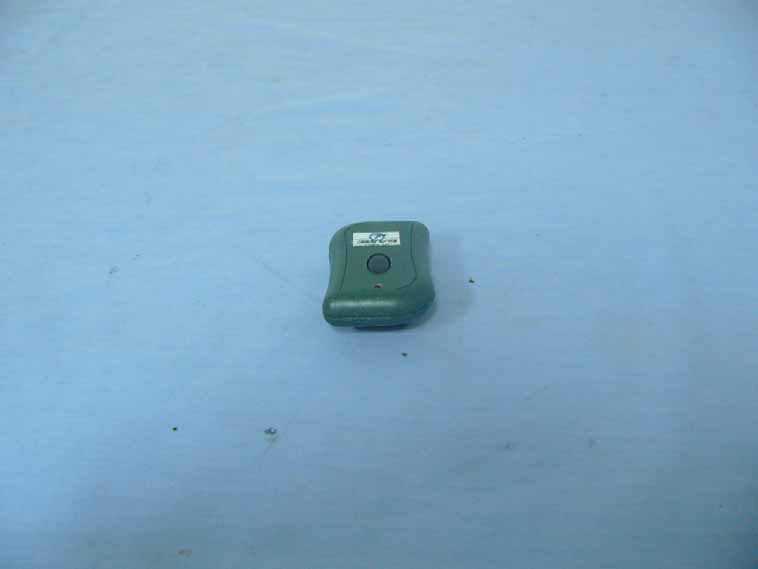

All About Game, Inc. 6818 N. Frostwood Parkway • Peoria, IL 61615 • USA (309) 691-2930 • www.allaboutgame.com Made in China AAGH92 Treestand/Blind Locator Setup and Use 1. Unscrew back of locator. 2. Install 3 “AAA” batteries. Be sure batteries are installed in the correct orientation. 3. Using the ring on back of locator light, hang the locator light in desired area. 4. To light the locator, push button on supplied remote within 100 yards of locator light. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. "This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation."

LABEL LOCATION FCC ID: TANAAGH92

Compliance Certification Services (Shenzhen) Inc. Report No: SZ050817B06-RP FCC ID: TANAAGH92 Date of Issue: September 12, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 23 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Treestand/Blind Locator Model: AAGH92 Trade Name: Prepared for ALL ABOUT GAME, INC. 6818 N. FROSTWOOD PARKWAY, PEORIA, IL 61615, U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. NO. 6, JINAO INDUSTRIAL PARK, NO. 35 JUKENG ROAD, DASHUIKENG VILLAGE, GUANLAN TOWN, BAOAN DISTRICT, SHENZHEN, CHINA TEL: 86-755-28055000 FAX: 86-755-28055221 LAB CODE:200577-0 Compliance Certification Services (Shenzhen) Inc. Report No: SZ050817B06-RP FCC ID: TANAAGH92 Date of Issue: September 12, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 LABORATORY ACCREDITATIONS AND LISTING....................................................................... 8 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 6.1 SETUP CONFIGURATION OF EUT.............................................................................................. 9 6.2 SUPPORT EQUIPMENT.............................................................................................................. 9 7. FCC PART 15.231 REQUIREMENTS...................................................................................... 10 7.1 20 DB BANDWIDTH .......................................................................................................... 10 7.2 LIMIT OF TRANSMISSION TIME.............................................................................................. 12 7.3 DUTY CYCLE ..................................................................................................................... 14 7.4 RADIATED EMISSIONS........................................................................................................... 17 7.5 POWERLINE CONDUCTED EMISSIONS.................................................................................... 22 Compliance Certification Services (Shenzhen) Inc. Report No: SZ050817B06-RP FCC ID: TANAAGH92 Date of Issue: September 12, 2005 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: ALL ABOUT GAME, INC. 6818 N. FROSTWOOD PARKWAY, PEORIA, IL 61615, U.S.A. Equipment Under Test: Treestand/Blind Locator Tr a d e N a m e : Model: AAGH92 Date of Test: August 17-September 12, 2004 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and Part 15.231. The test results of this report relate only to the tested sample identified in this report. Reviewed and Approved by Clinton Kao Manager of the Engineering Dept. Compliance Certification Services (ShenZhen) Inc. Compliance Certification Services (Shenzhen) Inc. Report No: SZ050817B06-RP FCC ID: TANAAGH92 Date of Issue: September 12, 2005 Page 4 Rev. 00 2. EUT DESCRIPTION Product Treestand/Blind Locator Trade Name Model Number AAGH92 Model Difference N/A Power Supply Powered by battery (Rating: 12Vdc) Frequency Range 315 MHz Antenna Designation PCB Antenna Remark: This submittal(s) (test report) is intended for FCC ID: TANAAGH92 filing to comply with Section 15.207, 15.209 and 15.231 of the FCC Part 15, Subpart C Rules. Compliance Certification Services (Shenzhen) Inc. Report No: SZ050817B06-RP FCC ID: TANAAGH92 Date of Issue: September 12, 2005 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 (2001) and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.231. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a mann…
