TAZ2827Balance Board for WiiTM

Balance Board for Wii™ console User Manual The contents of this package include: •1 Balance Board for Wii™; •4 AA batteries; •User instruction manual; Features: • Fully compatibility with all Wii Fit games; • Built-in sensors for all motion-sensing control game play; • Wireless connection to Wii™ console up to 10 feet; • A LCD display for addition function units; • Build in electronic weighing-scale unit, include both kg and pound unit of weight; • Build in timer unit of game play time; • Excellent ergonomic design crafted; Function Diagram: How to use: The Balance Board is designed to be used with a Wii console and a Wii Remote or Wii Remote and Nunchuk™ (Not include). *The Balance Board connection (Synchronization) • Open the battery compartment on the underside of the Balance Board and insert 4 AA batteries, please ensuring correct polarity; • Connect power and turn on the Wii TM console; • Press the SYNC. button once respectively in the Balance Board and Wii console to Synchronize; •When the Power LED lights up from flash status, Synchronization is success. •The Balance Board is ready to use. * SET Button and CLEAR Button: •SET Button: Press the SET button to change addition function modes of the Balance Board; The Balance Board is a Weighing-scale(kg) mode when it is powered up, Press the "SET" button continuously, the function modes will be changed in following cycle: Weighing-scale (kg) ——> Weighing-scale (lb) ——> Game play timer (ST) ——> Motion Counter (Cou) ——> Calorie Expenditure(Cal)——>Weighing-scale(kg) •CLEAR Button: Press CLEAR button to clear the previous data to zero in current mode. *How to weigh (As a Weighing-scale): • Press SET button to change the Balance Board to Weighing-scale mode (kg) or Weighing-scale mode (lb), There is data “0” displayed in the LCD display; •Get on Foot/Hand area of the Balance Board and keep your body steadily; • When the data value is locked from flash status in the LCD display, this data value is your weight. * Game play Timer mode(ST): •The Game play Timer will automatic run when power is on, So your game play time will always be recorded. •Press SET key to check you played game time. • The Game play Timer will automatic be reset when lost power or enter sleep mode. Standby mode(Power saving): Standby mode • The Balance Board will automatically enter standby mode if not in use for a period of time. To exit standby mode for recall, simply press POWER button in the back side of the Balance Board. Troubleshooting Tips: The Balance Board is not working: • The Balance Board may be in standby mode (refer to Standby Mode Instructions) • Change the batteries in the Balance Board • Ensure the Balance Board is properly synchronized with the Wii™ console • Refer to the Wii™ console Instruction Manual for more troubleshooting tips Caution: 1.To prevent fire or shock hazard, do not expose this unit to rain or moisture. Do not use the product close to wet, excessive moisture environment, such as swimming pools, bathtubs, or sinks, etc. 2.To avoid electrical shock, do not disassemble. Refer servicing to qualified personnel only. 3.The product should be operated only from the power source indicated on the unit. If you are not sure of the type of electrical power supplied to your home, contact your local power company. 4.Never push objects of any kind, other than authorized items, into the product as they may touch dangerous voltage points or short out parts that could result in fire or electrical shock. 5.Stop using this unit immediately if you begin to feel tired or if you experience discomfort or pain in your hands and/or arms while operating the product. If the condition persists, consult a doctor. 6.Do not attempt to operate the unit in any way except with your hands. 7.The vibration function of this product (if available) can aggravate injuries. Switch off or do not use the vibration function of the product if you have any ailment of the bones or joints of your hands or arms. 8.Avoid prolonged use of this product. Take breaks every 30 minutes. 9. Route all cords so that they are not likely to be walked on or tripped over. Make sure that cords are not placed in positions or areas where they may become pinched or damaged. Do not wrap this cord around any part of anyone's body. 10.Do not allow children to play with cords. 11.This product contains small parts that may cause choking if swallowed. Not intended for use by children under 3 years of age. 12. Do not overload wall outlets or extension cords beyond their capacity, since doingso can cause fire or electric shock. 13.Seizures: Stop playing and consult a doctor if you or your child have any of the following symptoms during playing the video games: Convulsions Loss of awareness Involuntary movements Eye or muscle twitching Altered vision Disorientation NOTE: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment FCC ID: TAZ2827 MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try…

Text truncated - open the document above for the full version.

Front Electronics (H.K.) Ltd. Rm 2919, Asia Trade Centre, 79 Lei Muk Road, Kwai Chung, New Territories, Hong Kong Authority letter Date: 2010-07-20 FCC ID: TAZ2827 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: WORLD STANDARDIZATION CERTIFICATION & TESTING CO., LTD. Laboratory is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Stan Segal Rm 2919, Asia Trade Centre, 79 Lei Muk Road, Kwai Chung, New Territories, Hong Kong Tel: +852-24202588 Fax: +852-24215788 E-mail: [email protected]

Front Electronics (H.K.) Ltd. Rm 2919, Asia Trade Centre, 79 Lei Muk Road, Kwai Chung, New Territories, Hong Kong Confidentiality Date: 2010-07-20 FCC ID: TAZ2827 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Thank you. Regards, Rm 2919, Asia Trade Centre, 79 Lei Muk Road, Kwai Chung, New Territories, Hong Kong Tel: +852-24202588 Fax: +852-24215788 E-mail: [email protected]

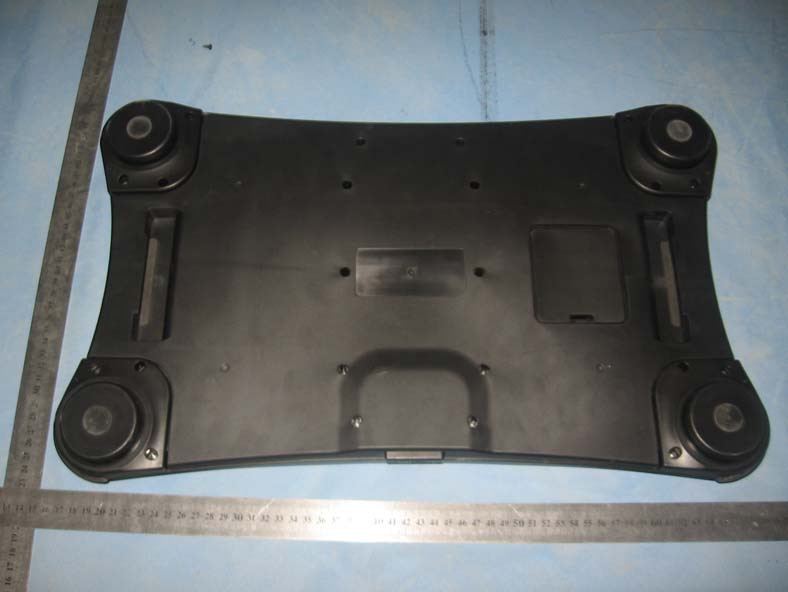

FCC ID: TAZ2827 EXTERIOR PHOTOGRAPHS

FCC ID: TAZ2827 Label Location on EUT Label: FCC ID: TAZ2827 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. MADE IN CHINA

FCC ID: TAZ2827 INTERIOR PHOTOGRAPHY

Circuit Principle description: This Balance Board controller is used for Wii TM console. The Balance Board communicates with Wii TM console by wireless technology. The frequency range of wireless transceiver is 2.402 GHZ to 2480MHZ, It work in Frequency-Hopping Spread Spectrum mode. Modulation type for MSK. The system clock is 12MHZ,Use a PCB antenna. In the Balance Board, Main chip GH7610 receives all game control data and wireless communicates with Wii TM console by wireless module GH2705A. The system clock is 12 MHZ, a 4xAA power supply. Four Weight Sensor receive weight signal and send to Signal Amplifier(SGM8922). Signal Amplifier enhance the signal and send them to MCU(GH7160). Then the MCU convert different Weight signal to game control signal and send them to wireless module(GH2705A) for wireless communicates with Wii TM console, also, the MCU send the signal to LCD display for weight, timer and other display. In same time the Balance Board receives game signal from Wii TM console, such as game LED indicator and wireless connect signal.

FCC ID: TAZ2827 Page 1 FCC ID TEST REPORT for Balance Board for Wii MODEL: 2827 FCC ID: TAZ2827 Test Report Number: WSCT10070220E Issued Date:July 28, 2010 Issued for Front Electronics (H.K.) Ltd. Rm 2919, Asia Trade Centre, 79 Lei Muk Road, Kwai Chung, New Territories, Hong Kong Issued By: WORLD STANDARDIZATION CERTIFICATION & TESTING CO., LTD. 1-2/F, DaChong Science&Technology Building, No.28 of Tonggu Road, Nanshan District, ShenZhen.PRC TEL: +86-755-26996192 FAX: +86-755-26996253 Note: This report shall not be reproduced except in full, without the written approval of World Standardization Certification& Testing CO., LTD. This document may be altered or revised by World Standardization Certification& Testing CO., LTD. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report reference No.:WSCT10070220E Issued:July 28, 2010 Revised:None TRF No.:FCC PART 15C-15.249/A0 Page 2 of 27 FCC ID: TAZASD766 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. Revision History Of Report Rev. Issue No. Revisions Effect Page Revised By 00 WSCT10070220E Initial Issue ALL Kallen Wang Report reference No.:WSCT10070220E Issued:July 28, 2010 Revised:None TRF No.:FCC PART 15C-15.249/A0 Page 3 of 27 FCC ID: TAZASD766 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. TABLE OF CONTENTS 1 TEST CERTIFICATION.............................................................................................. 4 3 EUT DESCRIPTION ....................................................................................................... 6 4 TEST METHODOLOGY ............................................................................................. 7 4.1. DECISION OF FINAL TEST MODE...................................................................................... 7 4.2. EUT SYSTEM OPERATION ................................................................................................. 7 5 SETUP OF EQUIPMENT UNDER TEST.................................................................... 8 5.1. DESCRIPTION OF SUPPORT UNITS ................................................................................. 8 5.2. CONFIGURATION OF SYSTEM UNDER TEST .................................................................. 8 6 FACILITIES AND ACCREDITATIONS ...................................................................... 9 6.1. FACILITIES ........................................................................................................................... 9 6.2. ACCREDITATIONS .............................................................................................................. 9 6.3. MEASUREMENT UNCERTAINTY........................................................................................ 9 7 TEST REQUIREMENTS........................................................................................... 10 7.1. CONDUCTED EMISSION MEASUREMENT...................................................................... 10 7.2. RADIATION EMISSION TEST............................................................................................ 12 7.3. 20DB BANDWIDTH TEST .................................................................................................. 19 7.4. BAND EDGE TEST.............................................................................................................21 8. ANTENNA REQUIREMENT ........................................................................................ 27 Report reference No.:WSCT10070220E Issued:July 28, 2010 Revised:None TRF No.:FCC PART 15C-15.249/A0 Page 4 of 27 FCC ID: TAZASD766 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. 1 TEST CERTIFICATION Product: Balance Board for Wii Model: 2827 Applicant: Front Electronics (H.K.) Ltd. Rm 2919, Asia Trade Centre, 79 Lei Muk Road, Kwai Chung, New Territories, Hong Kong Factory: Alliance Sales & Distribution Inc. Shenzhen Representative Office Rm. 505,5/F, Fu Er Yuan Jian Business Center, Zone 25, Baoan District, Shenzhen, China Trade Mark: N/A Tested: July 20~27, 2010 Test Voltage: DC 6.0 V Applicable Standards: FCC Part 15:Subpart C ANSI C63.4:2003 Deviation from Applicable Standard None The above equipment has been tested by World Standardization Certification & Testing Co., Ltd., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Davis zhou Date: 2010-07-28 (Davis zhou) Check By: Date: 2010-07-28 (Kelly Wu) Approved By: Date: 2010-07-28 (Kallen Wang) Report reference No.:WSCT10070220E Issued:July 28, 2010 Revised:None TRF No.:FCC PART 15C-15.249/A0 Page 5 of 27 FCC ID: TAZASD766 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. 2 TEST RESULT SUMMARY Standard Item Result Conducted emission Test N/A Radiation Emission Test PASS 20dB bandwidth Test PASS FCC Part 15 Subpart C: Clause 15.249 Band Edge Test PASS Note: 1. The test result judgment is decided by the limit of test standard 2. The information of measurement uncertainty is available upon the customer’s request. Report reference No.:WSCT10070220E Issued:July 28, 2010 Revised:None TRF No.:FCC PART 15C-15.249/A0 Page 6 of 27 FCC ID: TAZASD766 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. 3 EUT DESCRIPTION Product Balance Board for Wii Trade Mark N/A Model 2827 Ap…

Text truncated - open the document above for the full version.

FCC ID: TAZ2827 TEST SETUP PHOTOGRAPHY Radiation Emission:
