TAZASD123PS3 2.4G Wireless Controller

ICON Wireless Controller For PS®3 Congratulations on your purchase of the ICON 2.4GHz Wireless Controller for the PS®3. The contents of this package include: 1 – ICON 2.4GHz Wireless Controller For PS®3 1 – ICON Receiver Dongle 1 – ICON USB Charge Cable (.8m) 1 – Warranty Card 1 – User Manual Function Diagram Features * 2.4GHz Wireless Technology 2.4GHz wireless technology allows you to play up to 10 meters away from the PS®3 console. Enjoy the freedom of playing your favourite game completely untethered. * Multiplayer Connect up to seven wireless controllers at one time for multiplayer action. In order to avoid conflicts between multiple working controllers, each controller is issued its own unique ID. *Battery and Charging The built-in Lithium battery lasts up to 30 hours on a single charge. Use the USB cable (included) to charge the controller with the PS®3 console or a PC. Please be aware that the PS®3 console or PC must be powered on during charging. NOTE - Do not use a charge voltage greater than DC 5V. *LED Charge Indicator Charging: Red LED will flash slowly Fully Charged: Red LED will glow solid Low Battery: Red LED flash quickly *Sleep (Power Saving) Mode: The controller has a built-in a Sleep (Power Saving) Mode that will activate under the following conditions: a) When the controller is not synchronized with the receiver and the controller has remained inactive for more than 30 seconds; b) When the controller is synchronized with the receiver and the controller has remained inactive for 5 minutes The Player Indicator LED will turn off when sleep mode is activated. Simply press the "HOME" button to wake the controller from sleep mode and press the "HOME" button again to active the wireless connection. *Compatibility The controller is compatible with all PS®3 consoles and most PS®3 games. However, the controller does not feature SIXAXIS and/or RUMBLE . 2.4GHz Wireless Connection (Synchronization) 1. Turn on the PS®3 console 2. Plug the receiver dongle into an available USB port on the PS®3 console 3. Press the "HOME" button on the controller to synchronize the controller with the PS®3 console. (If the connection is successful, the light will glow solid blue. If the connection is unsuccessful, the light will continue to flash) An automatic connection will now be established between the controller and the receiver when the PS®3 console is powered on. Simply press the "HOME" button to active the connection. WARNING • Read, understand and follow all instructions, cautions and warnings listed in this manual and in the Playstation Operations Manual. Failure to follow instructions could result in personal injury or damage to the console. • The controller must be used with care to avoid injury. The manufacturer will not be liable for injuries resulting from improper use of the controller. • If you have any physical conditions, consult with a physician before using the controller. • Stop using this product and consult a doctor if you or your child have any of the following symptoms: Convulsions, Loss of Awareness, Involuntary movements, Eye or Muscle Twitching, Altered Vision and/or Disorientation. • Stop using this product immediately if you begin to feel tired or if you experience discomfort or pain in your hands and/or arms while operating the product. If the condition persists, consult a doctor. • The vibration function of this product (if available) can aggravate injuries. Switch off or do not use the vibration function of the product if you have any ailment of the bones or joints of your hands or arms. • Avoid prolonged use of this product. Take breaks every 30 minutes. • Route all cords so that they are not likely to be walked on or tripped over. Make sure that cords are not placed in positions or areas where they may become pinched or damaged. Do not wrap the cord around any part of anyone's body. • Do not allow children to play with cords. • Do not use additional attachments other than those recommended or provided by the manufacturer unless otherwise specified. • Do not submerse the controller in water or expose the controller to heavy moisture. • Do not operate the controller in or near water. • Do not operate the controller with wet hands. • Do not use the controller in any way other than its intended use. • Do not use the controller if damaged in any way. • Do not disassemble any part of the controller. • This product contains small parts that may cause choking if swallowed. Not intended for use by children under 3 years of age. • Keep away from areas where dirt or liquid can get into the controller. • Keep away from direct sunlight and extreme temperatures. • Store in areas away from dust and humidity. • Use a dry cloth to clean the controller; never use chemicals. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. MODIFICATIONS WILL VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an e…

Text truncated - open the document above for the full version.

1234 A B C D 4321 D C B A Part No. Prepared By DateApproved By Qi Yong 2010-01-10 File No. WF-PIE-042/A FRONT ELECTRONIC CO., LTD. TITLE Rev: A01 Model No. Block Diagram For PS3 2.4G Wireless Controller MTF0300TX MCU Indicator Charge LED CHANNEL LEDs I/O Keys I/O I/O 4054 Charge Battery LI-ION Power I/O I/O Power Transmitter(Controller) USB Power XC6206P_302PR XC6206P_302PR Power Manager Power Power I/OI/O Oscillator Crystal 12MHz MAR105C 2.4G Wireless Module Power I/O PCB ANTENNA Modulation:MSK 2402-2480MHZ I/O Crystal 26MHz Oscillator CC2500 Single Chip 2.4G Transceiver 50Ohm 123456 A B C D 654321 D C B A Y1 12M C9 22p C9 22p K3 Right K2 Up K8 R1 K1 Left K5 L2 K4 Down K12 Cross K11 Circle K10 Triangle K9 Square S4 Select S2 Menu S3 Start S5 L3 S7 R3 R4 4.7K AD_CH0 AD_CH1 AD_CH2 AD_CH3 AD_CH4 AD_CH5 R1 2.7K C15 10uF K7 R2 K6 L1 C11 100p AD_CH4 R5 4.7K C10 100p 3D_CLK3D_DAT A - + M1 L_M Q1 8050 Vbat R8 22 R2 2.7K D2 4148 C5 104 LMotorRMotor A - + M2 R M Q2 8050 R7 22 R3 2.7K D1 4148 C2 104 Vbat AD_CH6 S8 Turbo AD_CH0AD_CH1AD_CH2AD_CH3 Up-GND Right-VCC_O GDO2 4 SO/GDO1 5 SCLK 6 SI 7 VCC 8 GDO0 2 CS 1 GND 3 2mm GND 9 CON1 MAR105C_1 SDA CLK C4 104 A0 1 A1 2 A2 3 GND 4 SDA 5 SCL 6 WP 7 VCC 8 U6 24LC01A/02 5V R18 82K R17 NC LED4 LED R14 1K LED3 LED R13 1K LED2 LED R12 1K LED1 LED R11 1K LED3 LED2 LED1 LED0 3D_CLK 3D_DAT 3.0V 3.0V 3.0V 3.0V 3.0V AK_L1AK_L2AK_DownAK_RightAK_UpAK_LeftAK_Cross AK_Triangle AK_L1AK_L2AK_DownAK_RightAK_UpAK_LeftAK_CrossAK_Cricle AK_Triangle AK_SquareAK_R1AK_R2 AD_CH5 AK_Square AK_R1 AK_R2 K_SelectK_Start K_Menu K_L3 K_L3 K_R3 K_Start K_Select K_Menu K_Turbo K_Turbo K_R3 LED0 LED1 LED2 LED3 L_Motor R_Motor AK_Cricle S6 Clear K_Clear R6 10K LED5 Charge LED R22 1K C13 47uF C3 104 GND 1 VI 2 VO 3 U1 XC6206P_302PR C1 104 C12 100uF 3.0V ChargeSTA1 VCHK BAT1 3.7V 5V 1 D- 2 D+ 3 GND 4 J1 USB_PLUG Vbat 5V R19 2K C17 2.2U ChargeSTA1 R21 10K /CHRG 1 GND 2 BAT 3 PROG 5 Vcc 4 U2 LTC4054 5V R15 NC 3.0V RF module 1 2 3 4 5 6 7 JP1 CON7 Vout L_VR1 R_VR1 LXLYRXRY Q3 8550 VCC_3.0V AD_Enable AD_Enable 3.0V C6 102P C7 102P C14 102P C16 102P GND 1 VCC 2 ADC7 3 ADC6 4 MPB009 3D_SENSOR MODULE SIZE:9*9mm U3 MPB009 PIN38/VPP PIN40+PIN41 PIN3/A0 PIN6/A3 PIN4/A1 PIN5/A2 3.0V PIN39+PIN44 CLK SDA C18 104P R20 10K 3.V R16 560R SW1 Reset K_R3 R10 100K R9 82K VCHK P86/A14 1 P87/A15 2 P50/A0 3 P51/A1 4 P52/A2 5 P53/A3 6 P54/A4 7 P55/A5 8 P56/A6 9 P57/A7 10 P70/VREF 11 P71 12 P72 13 P73 14 P74 15 P75 16 VSS 17 P60 18 P62/SDI 20 P63/SDO 21 P64/SCK 22 P65/SCS 23 P66/TX 24 P67/TX 25 P90/PWM1 26 P91/PWM2 27 P92/SDI 28 P93/SDO 29 P94/SCK 30 P95/SS 31 P96 32 P97 33 PA0 34 PA1 35 PA2 36 PA3/INT 37 PA4/VPP 38 PA5/EPOR_N 39 P61 19 VDD 40 VDDL 41 OSCI/PA6 42 OSCO/PA7 43 VSS 44 P80/A8 45 P81/A9 46 P82/A10 47 P83/A11 48 P84/A12 49 P85/A13 50 U5 MTF0300(li-ion)_TX CHK CHK R NC C19 104 GND 1 VCC 2 Z4.5 3 ZOUT 4 MPB015B G_SENSOR MODULE SIZE:10.5*10mm TOP GND 5 VCC 6 Z4.5 7 ZOUT 8 Y X U4 MPB015B AD_CH6 Vout AD_CH6VoutGND Part No.Prepared ByDateApproved By Qi Yong2010-01-10 File No. WF-PIE-042/A FRONT ELECTRONIC CO., LTD. TITLE Rev: A01 Model No. Circuit Diagram For PS3 2.4G Wireless Controller(TX) FEL-2808

Front Electronics (H.K.) Ltd. Rm 2919, Asia Trade Centre, 79 Lei Muk Road, Kwai Chung, New Territories, Hong Kong Authority letter Date: 2010-03-20 FCC ID: TAZASD123 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: WORLD STANDARDIZATION CERTIFICATION & TESTING CO., LTD. Laboratory is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Stan Segal Rm 2919, Asia Trade Centre, 79 Lei Muk Road, Kwai Chung, New Territories, Hong Kong Tel: +852-24202588 Fax: +852-24215788 E-mail: [email protected]

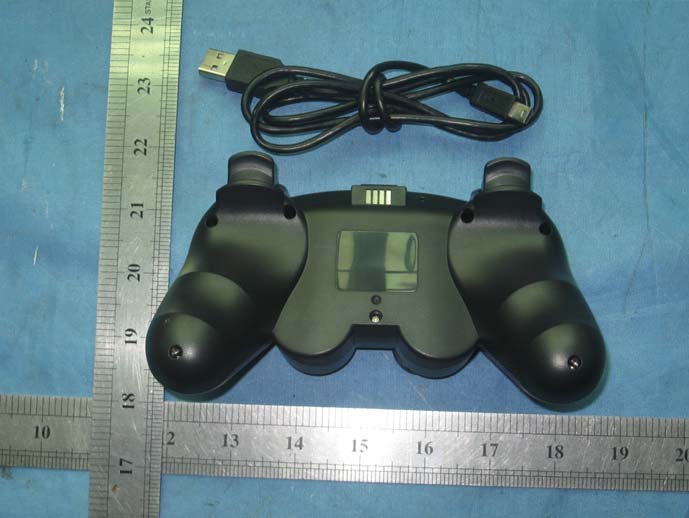

FCC ID: TAZASD123 EXTERIOR PHOTOGRAPHS

FCC ID: TAZASD123 Label Location on EUT Label: FCC ID: TAZASD123 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. MADE IN CHINA

FCC ID: TAZASD123 INTERIOR PHOTOGRAPHY

Circuit Principle description: This 2.4G wireless conroller used for PS3 console. The controller communicates with PS3 console by main chip MTF0300RX of the Dongle and MTF0300TX for the controller, The communication between the Dongle and the Controller use a true single chip 2.4 GHz RF transceiver module in each other. The 2.4GHz RF transceiver module Frequency range is 2.402 GHZ to 2480MHZ, They are working in Frequency-Hopping Spread Spectrum mode. Modulation type for MSK. The max power out at 1dbm for game data communication from Controller to Dongle, For the module, The system clock is 26MHZ,Use a PCB antenna, impedance matching at 2.4GHZ band, Wireless communications distance up to 15 meters. For the Controller,The main chip MTF0300TX processes all game control data to 2.4GHZ module for sending to Dongle.The system clock is 12 MHZ, Build in a Li-ion battery with USB charging circuit for power supply, Charging by USB port with DC5V. when charging by USB,the product can’t normanl operation. LDO output DC3.0 V used for the main system.

123456 A B C D 654321 D C B A Y1 12M C9 22p C9 22p K3 Right K2 Up K8 R1 K1 Left K5 L2 K4 Down K12 Cross K11 Circle K10 Triangle K9 Square S4 Select S2 Menu S3 Start S5 L3 S7 R3 R4 4.7K AD_CH0 AD_CH1 AD_CH2 AD_CH3 AD_CH4 AD_CH5 R1 2.7K C15 10uF K7 R2 K6 L1 C11 100p AD_CH4 R5 4.7K C10 100p 3D_CLK3D_DAT A - + M1 L_M Q1 8050 Vbat R8 22 R2 2.7K D2 4148 C5 104 LMotorRMotor A - + M2 R M Q2 8050 R7 22 R3 2.7K D1 4148 C2 104 Vbat AD_CH6 S8 Turbo AD_CH0AD_CH1AD_CH2AD_CH3 Up-GND Right-VCC_O GDO2 4 SO/GDO1 5 SCLK 6 SI 7 VCC 8 GDO0 2 CS 1 GND 3 2mm GND 9 CON1 MAR105C_1 SDA CLK C4 104 A0 1 A1 2 A2 3 GND 4 SDA 5 SCL 6 WP 7 VCC 8 U6 24LC01A/02 5V R18 82K R17 NC LED4 LED R14 1K LED3 LED R13 1K LED2 LED R12 1K LED1 LED R11 1K LED3 LED2 LED1 LED0 3D_CLK 3D_DAT 3.0V 3.0V 3.0V 3.0V 3.0V AK_L1AK_L2AK_DownAK_RightAK_UpAK_LeftAK_Cross AK_Triangle AK_L1AK_L2AK_DownAK_RightAK_UpAK_LeftAK_CrossAK_Cricle AK_Triangle AK_SquareAK_R1AK_R2 AD_CH5 AK_Square AK_R1 AK_R2 K_SelectK_Start K_Menu K_L3 K_L3 K_R3 K_Start K_Select K_Menu K_Turbo K_Turbo K_R3 LED0 LED1 LED2 LED3 L_Motor R_Motor AK_Cricle S6 Clear K_Clear R6 10K LED5 Charge LED R22 1K C13 47uF C3 104 GND 1 VI 2 VO 3 U1 XC6206P_302PR C1 104 C12 100uF 3.0V ChargeSTA1 VCHK BAT1 3.7V 5V 1 D- 2 D+ 3 GND 4 J1 USB_PLUG Vbat 5V R19 2K C17 2.2U ChargeSTA1 R21 10K /CHRG 1 GND 2 BAT 3 PROG 5 Vcc 4 U2 LTC4054 5V R15 NC 3.0V RF module 1 2 3 4 5 6 7 JP1 CON7 Vout L_VR1 R_VR1 LXLYRXRY Q3 8550 VCC_3.0V AD_Enable AD_Enable 3.0V C6 102P C7 102P C14 102P C16 102P GND 1 VCC 2 ADC7 3 ADC6 4 MPB009 3D_SENSOR MODULE SIZE:9*9mm U3 MPB009 PIN38/VPP PIN40+PIN41 PIN3/A0 PIN6/A3 PIN4/A1 PIN5/A2 3.0V PIN39+PIN44 CLK SDA C18 104P R20 10K 3.V R16 560R SW1 Reset K_R3 R10 100K R9 82K VCHK P86/A14 1 P87/A15 2 P50/A0 3 P51/A1 4 P52/A2 5 P53/A3 6 P54/A4 7 P55/A5 8 P56/A6 9 P57/A7 10 P70/VREF 11 P71 12 P72 13 P73 14 P74 15 P75 16 VSS 17 P60 18 P62/SDI 20 P63/SDO 21 P64/SCK 22 P65/SCS 23 P66/TX 24 P67/TX 25 P90/PWM1 26 P91/PWM2 27 P92/SDI 28 P93/SDO 29 P94/SCK 30 P95/SS 31 P96 32 P97 33 PA0 34 PA1 35 PA2 36 PA3/INT 37 PA4/VPP 38 PA5/EPOR_N 39 P61 19 VDD 40 VDDL 41 OSCI/PA6 42 OSCO/PA7 43 VSS 44 P80/A8 45 P81/A9 46 P82/A10 47 P83/A11 48 P84/A12 49 P85/A13 50 U5 MTF0300(li-ion)_TX CHK CHK R NC C19 104 GND 1 VCC 2 Z4.5 3 ZOUT 4 MPB015B G_SENSOR MODULE SIZE:10.5*10mm TOP GND 5 VCC 6 Z4.5 7 ZOUT 8 Y X U4 MPB015B AD_CH6 Vout AD_CH6VoutGND Part No.Prepared ByDateApproved By Qi Yong2010-01-10 File No. WF-PIE-042/A FRONT ELECTRONIC CO., LTD. TITLE Rev: A01 Model No. Circuit Diagram For PS3 2.4G Wireless Controller(TX) FEL-2808 1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 17-Mar-2010 Sheet of File: Y:\MAR105P\MAR105P v15\MAR105PV15.ddb Drawn By: SCLK 1 SO(GDO1) 2 GDO2 3 DVDD 4 DCOUPL 5 GDO0 6 CSn 7 XOSC-Q1 8 AVDD 9 XOSC_Q2 10 AVDD 11 RF_P 12 RF_N 13 AVDD 14 AVDD 15 GND 16 RBIAS 17 DGUARD 18 GND 19 SI 20 U1 VDD C51 100nF X1 26Mhz C8122pF C10122pF R171 56k C121 100pF C131100P C132 1.0pF C1221.0pF C1241.5pF L131 1.2nH L1211.2nH C141 10 0nF VCC 1 SI 2 SCLK 3 SO/GDO1 4 GDO2 5 GND 6 GDO0 7 CS 8 OSCO 9 19.125 mm 12 mm MAR105P 1 C181 1 0nF C151 1nF C91 100pF (24 02 ~24 8 0MHz)

FCC ID: TAZASD123 Page 1 FCC ID TEST REPORT for PS3 2.4G Wireless Controller MODEL: ASD123/FEL-2808 FCC ID: TAZASD123 Test Report Number: WSCT10030060E-1 Issued Date: April 08, 2010 Issued for Front Electronics (H.K.) Ltd. Rm 2919, Asia Trade Centre, 79 Lei Muk Road, Kwai Chung, New Territories, Hong Kong Issued By: WORLD STANDARDIZATION CERTIFICATION & TESTING CO., LTD. 1-2/F, DaChong Science&Technology Building, No.28 of Tonggu Road, Nanshan District, ShenZhen.PRC TEL: +86-755-26996192 FAX: +86-755-26996253 Note: This report shall not be reproduced except in full, without the written approval of World Standardization Certification& Testing CO., LTD. This document may be altered or revised by World Standardization Certification& Testing CO., LTD. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report reference No.:WSCT10030060E-T Issued: April 8, 2010 Revised:None TRF No.:FCC PART 15C-15.249/A0 Page 2 of 31 FCC ID: TAZASD123 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. Revision History Of Report Rev. Issue No. Revisions Effect Page Revised By 00 WSCT10030060E-1 Initial Issue ALL Kallen Wang Report reference No.:WSCT10030060E-T Issued: April 8, 2010 Revised:None TRF No.:FCC PART 15C-15.249/A0 Page 3 of 31 FCC ID: TAZASD123 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. TABLE OF CONTENTS 1 TEST CERTIFICATION.............................................................................................. 4 3 EUT DESCRIPTION ....................................................................................................... 6 4 TEST METHODOLOGY ............................................................................................. 7 4.1. DECISION OF FINAL TEST MODE...................................................................................... 7 4.2. EUT SYSTEM OPERATION ................................................................................................. 7 5 SETUP OF EQUIPMENT UNDER TEST.................................................................... 8 5.1. DESCRIPTION OF SUPPORT UNITS ................................................................................. 8 5.2. CONFIGURATION OF SYSTEM UNDER TEST .................................................................. 8 6 FACILITIES AND ACCREDITATIONS ...................................................................... 9 6.1. FACILITIES ........................................................................................................................... 9 6.2. ACCREDITATIONS .............................................................................................................. 9 6.3. MEASUREMENT UNCERTAINTY........................................................................................ 9 7 TEST REQUIREMENTS........................................................................................... 10 7.1. CONDUCTED EMISSION MEASUREMENT...................................................................... 10 7.2. RADIATION EMISSION TEST............................................................................................ 12 7.3. 20DB BANDWIDTH TEST .................................................................................................. 19 7.4. BAND EDGE TEST.............................................................................................................22 Report reference No.:WSCT10030060E-T Issued: April 8, 2010 Revised:None TRF No.:FCC PART 15C-15.249/A0 Page 4 of 31 FCC ID: TAZASD123 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. 1 TEST CERTIFICATION Product: PS3 2.4G Wireless Controller Model: ASD123/FEL-2808 Applicant: Front Electronics (H.K.) Ltd. Rm 2919, Asia Trade Centre, 79 Lei Muk Road, Kwai Chung, New Territories, Hong Kong Factory: Alliance Sales & Distribution Inc. Shenzhen Representative Office Rm. 505,5/F, Fu Er Yuan Jian Business Center, Zone 25, Baoan District, Shenzhen, China Trade Mark: N/A Tested: March 04 ~ April 08, 2010 Test Voltage: DC 3.7V Applicable Standards: FCC Part 15:Subpart C ANSI C63.4:2003 Deviation from Applicable Standard None The above equipment has been tested by World Standardization Certification & Testing Co., Ltd., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Eric Yang Date: 2010-04-08 (Eric Yang) Check By: Date: 2010-04-08 (Kelly Wu) Approved By: Date: 2010-04-08 (Kallen Wang) Report reference No.:WSCT10030060E-T Issued: April 8, 2010 Revised:None TRF No.:FCC PART 15C-15.249/A0 Page 5 of 31 FCC ID: TAZASD123 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. 2 TEST RESULT SUMMARY Standard Item Result Conducted emission Test N/A Radiation Emission Test PASS 20dB bandwidth Test PASS FCC Part 15 Subpart C: Clause 15.249 Band Edge Test PASS Note: 1. The test result judgment is decided by the limit of test standard 2. The information of measurement uncertainty is available upon the customer’s request. Report reference No.:WSCT10030060E-T Issued: April 8, 2010 Revised:None TRF No.:FCC PART 15C-15.249/A0 Page 6 of 31 FCC ID: TAZASD123 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. 3 EUT DESCRIPTION Product PS3 2.4G Wireless Controller Trade Mark N/A Model ASD123/FEL-2808 Applicant Front Electronics (H.K…

Text truncated - open the document above for the full version.

FCC ID: TAZASD123 TEST SETUP PHOTOGRAPHY Radiation Emission:
