TAZASD123RPS3 2.4G Wireless Controller

Front Electronics (H.K.) Ltd.

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Apr 08, 2010
Application Purpose: Original Equipment
Date of Application: Apr 08, 2010
Equipment Note: PS3 2.4G Wireless Controller
Frequency Range: 2402.00000000 - 2480.00000000
Company: Front Electronics (H.K.) Ltd.
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

ICON Wireless Controller For PS®3 Congratulations on your purchase of the ICON 2.4GHz Wireless Controller for the PS®3. The contents of this package include: 1 – ICON 2.4GHz Wireless Controller For PS®3 1 – ICON Receiver Dongle 1 – ICON USB Charge Cable (.8m) 1 – Warranty Card 1 – User Manual Function Diagram Features * 2.4GHz Wireless Technology 2.4GHz wireless technology allows you to play up to 10 meters away from the PS®3 console. Enjoy the freedom of playing your favourite game completely untethered. * Multiplayer Connect up to seven wireless controllers at one time for multiplayer action. In order to avoid conflicts between multiple working controllers, each controller is issued its own unique ID. *Battery and Charging The built-in Lithium battery lasts up to 30 hours on a single charge. Use the USB cable (included) to charge the controller with the PS®3 console or a PC. Please be aware that the PS®3 console or PC must be powered on during charging. NOTE - Do not use a charge voltage greater than DC 5V. *LED Charge Indicator Charging: Red LED will flash slowly Fully Charged: Red LED will glow solid Low Battery: Red LED flash quickly *Sleep (Power Saving) Mode: The controller has a built-in a Sleep (Power Saving) Mode that will activate under the following conditions: a) When the controller is not synchronized with the receiver and the controller has remained inactive for more than 30 seconds; b) When the controller is synchronized with the receiver and the controller has remained inactive for 5 minutes The Player Indicator LED will turn off when sleep mode is activated. Simply press the "HOME" button to wake the controller from sleep mode and press the "HOME" button again to active the wireless connection. *Compatibility The controller is compatible with all PS®3 consoles and most PS®3 games. However, the controller does not feature SIXAXIS and/or RUMBLE . 2.4GHz Wireless Connection (Synchronization) 1. Turn on the PS®3 console 2. Plug the receiver dongle into an available USB port on the PS®3 console 3. Press the "HOME" button on the controller to synchronize the controller with the PS®3 console. (If the connection is successful, the light will glow solid blue. If the connection is unsuccessful, the light will continue to flash) An automatic connection will now be established between the controller and the receiver when the PS®3 console is powered on. Simply press the "HOME" button to active the connection. WARNING • Read, understand and follow all instructions, cautions and warnings listed in this manual and in the Playstation Operations Manual. Failure to follow instructions could result in personal injury or damage to the console. • The controller must be used with care to avoid injury. The manufacturer will not be liable for injuries resulting from improper use of the controller. • If you have any physical conditions, consult with a physician before using the controller. • Stop using this product and consult a doctor if you or your child have any of the following symptoms: Convulsions, Loss of Awareness, Involuntary movements, Eye or Muscle Twitching, Altered Vision and/or Disorientation. • Stop using this product immediately if you begin to feel tired or if you experience discomfort or pain in your hands and/or arms while operating the product. If the condition persists, consult a doctor. • The vibration function of this product (if available) can aggravate injuries. Switch off or do not use the vibration function of the product if you have any ailment of the bones or joints of your hands or arms. • Avoid prolonged use of this product. Take breaks every 30 minutes. • Route all cords so that they are not likely to be walked on or tripped over. Make sure that cords are not placed in positions or areas where they may become pinched or damaged. Do not wrap the cord around any part of anyone's body. • Do not allow children to play with cords. • Do not use additional attachments other than those recommended or provided by the manufacturer unless otherwise specified. • Do not submerse the controller in water or expose the controller to heavy moisture. • Do not operate the controller in or near water. • Do not operate the controller with wet hands. • Do not use the controller in any way other than its intended use. • Do not use the controller if damaged in any way. • Do not disassemble any part of the controller. • This product contains small parts that may cause choking if swallowed. Not intended for use by children under 3 years of age. • Keep away from areas where dirt or liquid can get into the controller. • Keep away from direct sunlight and extreme temperatures. • Store in areas away from dust and humidity. • Use a dry cloth to clean the controller; never use chemicals. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. MODIFICATIONS WILL VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an e…

Text truncated - open the document above for the full version.

Block Diagram

1234 A B C D 4321 D C B A MAR105C 2.4G Wireless Module MTF0300RX MCU USB Power Power I/O PCB ANTENNA Indicator Link LED Part No. Prepared By DateApproved By Qi Yong 2010-01-10 File No. WF-PIE-042/A FRONT ELECTRONIC CO., LTD. TITLE Rev: A01 Model No. Block Diagram For PS3 2.4G Wireless Controller PowerI/O I/O I/O Receiver(Dongle) D+ D- D+ D-I/OI/O Oscillator Crystal 12MHz 2402-2480MHZ I/O Crystal 26MHz Oscillator CC2500 Single Chip 2.4G Transceiver 50Ohm Modulation:MSK 1234 A B C D 4321 D C B A C12 10uF 5V Stored cc2500 address R1 10ohm USB interface A0 1 A1 2 A2 3 GND 4 SDA 5 SCK 6 WP 7 VCC 8 U3 24C01A/02 V1.8 VCC C6 104 SCK SDA C1 104 C7 22 C8 22 VCC Y1 12M VP 0 R5 1M TS NC R2 101 PROG Program interface GND PIN2 PIN1 PIN67 PIN68 PIN69 PIN70 VCC PIN54 PIN43 1 2 3 4 5 6 7 8 9 10 J2 CON10 5VVCC VCC VCC VCC C11 104 VCC C3 104 VCC C13 10uF C9 104 OP4 OP3 OP2 OP1 D+ D- VCC 1 SI 2 SCLK 3 SO/GDO1 4 GDO2 5 GND 6 GDO0 7 CS 8 OSCO 9 19.125 mm 12 mm U1 MAR105P VCC CC2500_SI CC2500_SCK CC2500_SO CC2500_GDO2 CC2500_CS VCC CC2500_CS CC2500_GDO2 CC2500_SCKCC2500_SOCC2500_SI SCK SDA R4 10K D1 LINK_LED R3 1K VCC S1 K_LINK C10 4.7uF D- D+ 1 2 3 4 5 J1 CON5 VDDPHY 34 VDDSAR 25 VDDOSC 42 PLLGND 28 OSCI 43 OSCO 44 VPP 54 P30/RXD 66 P31/TXD 65 P32/INT0 64 VDDIO 5 GNDIO 7 P33/INT1 63 P10/T2 52 P11/T2EX 51 VDDV5 31 USB_DP 36 USB_DM 35 GNDPHY 37 LDOV33 33 PLLGND 41 LDOV18 30 AGND 27 VDDV5 32 P20/A8 8 P21/A9 9 P22/A10 10 P23/A11 11 P24/A12 12 P25/A13 13 P26/A14 14 P27/A15 15 P40/A0 16 P41/A1 17 P42/A2 18 P43/A3 19 P44/A4 20 P45/A5 21 P46/A6 22 P47/A7 23 AVREF 26 P12 50 P13 49 P14 48 P15/PWM0 47 P16/PWM1 46 P17/PWM2 45 P34/T0 62 P35/T1 61 P36/RXD 60 P37/TXD 59 P00 67 P01/SCK 68 P02/SDI 69 P03/SDO 70 P04 1 P05/SCK 2 P06/SDI 3 P07/SDO 4 PROG 53 VDDIO 24 GND 58 PLLVDD 40 VDDV18 55 VDDV33 56 OSCSEL 6 AGND 29 GND 38 VDDV18 39 DGND 57 U2 MTF0300_RX VCC V18 V18 V18 Part No.Prepared ByDateApproved By Qi Yong 2010-01-10 File No. WF-PIE-042/A FRONT ELECTRONIC CO., LTD. TITLE Rev: A01 Model No. Circuit Diagram For PS3 2.4G Wireless Controller(RX) FEL-2808 1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 17-Mar-2010 Sheet of File: Y:\MAR105P\MAR105P v15\MAR105PV15.ddb Drawn By: SCLK 1 SO(GDO1) 2 GDO2 3 DVDD 4 DCOUPL 5 GDO0 6 CSn 7 XOSC-Q1 8 AVDD 9 XOSC_Q2 10 AVDD 11 RF_P 12 RF_N 13 AVDD 14 AVDD 15 GND 16 RBIAS 17 DGUARD 18 GND 19 SI 20 U1 VDD C51 100nF X1 26Mhz C8122pF C10122pF R171 56k C121 100pF C131100P C132 1.0pF C1221.0pF C1241.5pF L131 1.2nH L1211.2nH C141 10 0nF VCC 1 SI 2 SCLK 3 SO/GDO1 4 GDO2 5 GND 6 GDO0 7 CS 8 OSCO 9 19.125 mm 12 mm MAR105P 1 C181 1 0nF C151 1nF C91 100pF (24 02 ~24 8 0MHz)

Cover Letter(s)

Front Electronics (H.K.) Ltd. Rm 2919, Asia Trade Centre, 79 Lei Muk Road, Kwai Chung, New Territories, Hong Kong Authority letter Date: 2010-03-20 FCC ID: TAZASD123R American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: WORLD STANDARDIZATION CERTIFICATION & TESTING CO., LTD. Laboratory is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Stan Segal Rm 2919, Asia Trade Centre, 79 Lei Muk Road, Kwai Chung, New Territories, Hong Kong Tel: +852-24202588 Fax: +852-24215788 E-mail: [email protected]

External Photos

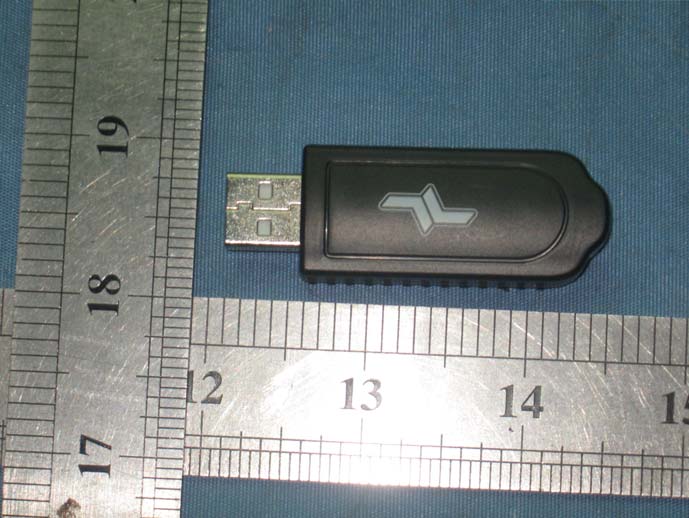

FCC ID: TAZASD123R EXTERIOR PHOTOGRAPHS

ID Label/Location Info

FCC ID: TAZASD123R Label Location on EUT Label: FCC ID: TAZASD123R

Internal Photos

FCC ID: TAZASD123R INTERIOR PHOTOGRAPHY

Operational Description

Circuit Principle description: This 2.4G wireless conroller used for PS3 console. The controller communicates with PS3 console by main chip MTF0300RX of the Dongle and MTF0300TX for the controller, MTF0300RX communicate with PS3 console by USB port of PS3 console. The communication between the Dongle and the Controller use a true single chip 2.4 GHz RF transceiver module in each other. The 2.4GHz RF transceiver module Frequency range is 2.402GHZ to 2480MHZ, They are working in Frequency-Hopping Spread Spectrum mode. Modulation type for MSK. For the dongle,The main chip MTF0300RX receives all game control data by 2.4GHZ module and communicate with PS3 console by USB port. The system clock is 12 MHZ, a 5V power supply and data communications by USB of PS3 console, A LDO output DC3.0V used for the main system.

Schematics

1234 A B C D 4321 D C B A C12 10uF 5V Stored cc2500 address R1 10ohm USB interface A0 1 A1 2 A2 3 GND 4 SDA 5 SCK 6 WP 7 VCC 8 U3 24C01A/02 V1.8 VCC C6 104 SCK SDA C1 104 C7 22 C8 22 VCC Y1 12M VP 0 R5 1M TS NC R2 101 PROG Program interface GND PIN2 PIN1 PIN67 PIN68 PIN69 PIN70 VCC PIN54 PIN43 1 2 3 4 5 6 7 8 9 10 J2 CON10 5VVCC VCC VCC VCC C11 104 VCC C3 104 VCC C13 10uF C9 104 OP4 OP3 OP2 OP1 D+ D- VCC 1 SI 2 SCLK 3 SO/GDO1 4 GDO2 5 GND 6 GDO0 7 CS 8 OSCO 9 19.125 mm 12 mm U1 MAR105P VCC CC2500_SI CC2500_SCK CC2500_SO CC2500_GDO2 CC2500_CS VCC CC2500_CS CC2500_GDO2 CC2500_SCKCC2500_SOCC2500_SI SCK SDA R4 10K D1 LINK_LED R3 1K VCC S1 K_LINK C10 4.7uF D- D+ 1 2 3 4 5 J1 CON5 VDDPHY 34 VDDSAR 25 VDDOSC 42 PLLGND 28 OSCI 43 OSCO 44 VPP 54 P30/RXD 66 P31/TXD 65 P32/INT0 64 VDDIO 5 GNDIO 7 P33/INT1 63 P10/T2 52 P11/T2EX 51 VDDV5 31 USB_DP 36 USB_DM 35 GNDPHY 37 LDOV33 33 PLLGND 41 LDOV18 30 AGND 27 VDDV5 32 P20/A8 8 P21/A9 9 P22/A10 10 P23/A11 11 P24/A12 12 P25/A13 13 P26/A14 14 P27/A15 15 P40/A0 16 P41/A1 17 P42/A2 18 P43/A3 19 P44/A4 20 P45/A5 21 P46/A6 22 P47/A7 23 AVREF 26 P12 50 P13 49 P14 48 P15/PWM0 47 P16/PWM1 46 P17/PWM2 45 P34/T0 62 P35/T1 61 P36/RXD 60 P37/TXD 59 P00 67 P01/SCK 68 P02/SDI 69 P03/SDO 70 P04 1 P05/SCK 2 P06/SDI 3 P07/SDO 4 PROG 53 VDDIO 24 GND 58 PLLVDD 40 VDDV18 55 VDDV33 56 OSCSEL 6 AGND 29 GND 38 VDDV18 39 DGND 57 U2 MTF0300_RX VCC V18 V18 V18 Part No.Prepared ByDateApproved By Qi Yong 2010-01-10 File No. WF-PIE-042/A FRONT ELECTRONIC CO., LTD. TITLE Rev: A01 Model No. Circuit Diagram For PS3 2.4G Wireless Controller(RX) FEL-2808 1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 17-Mar-2010 Sheet of File: Y:\MAR105P\MAR105P v15\MAR105PV15.ddb Drawn By: SCLK 1 SO(GDO1) 2 GDO2 3 DVDD 4 DCOUPL 5 GDO0 6 CSn 7 XOSC-Q1 8 AVDD 9 XOSC_Q2 10 AVDD 11 RF_P 12 RF_N 13 AVDD 14 AVDD 15 GND 16 RBIAS 17 DGUARD 18 GND 19 SI 20 U1 VDD C51 100nF X1 26Mhz C8122pF C10122pF R171 56k C121 100pF C131100P C132 1.0pF C1221.0pF C1241.5pF L131 1.2nH L1211.2nH C141 10 0nF VCC 1 SI 2 SCLK 3 SO/GDO1 4 GDO2 5 GND 6 GDO0 7 CS 8 OSCO 9 19.125 mm 12 mm MAR105P 1 C181 1 0nF C151 1nF C91 100pF (24 02 ~24 8 0MHz)

Test Report

FCC ID: TAZASD123 Page 1 FCC ID TEST REPORT for PS3 2.4G Wireless Controller MODEL: ASD123/FEL-2808 FCC ID: TAZASD123R Test Report Number: WSCT10030060E-2 Issued Date: April 09, 2010 Issued for Front Electronics (H.K.) Ltd. Rm 2919, Asia Trade Centre, 79 Lei Muk Road, Kwai Chung, New Territories, Hong Kong Issued By: WORLD STANDARDIZATION CERTIFICATION & TESTING CO., LTD. 1-2/F, DaChong Science&Technology Building, No.28 of Tonggu Road, Nanshan District, ShenZhen.PRC TEL: +86-755-26996192 FAX: +86-755-26996253 Note: This report shall not be reproduced except in full, without the written approval of World Standardization Certification& Testing CO., LTD. This document may be altered or revised by World Standardization Certification& Testing CO., LTD. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report reference No.:WSCT10030060E-1 Issued: April 9, 2010 Revised:None TRF No.:FCC PART 15C-15.249/A0 Page 2 of 29 FCC ID: TAZASD123 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. Revision History Of Report Rev. Issue No. Revisions Effect Page Revised By 00 WSCT10030060E-2 Initial Issue ALL Kallen Wang Report reference No.:WSCT10030060E-1 Issued: April 9, 2010 Revised:None TRF No.:FCC PART 15C-15.249/A0 Page 3 of 29 FCC ID: TAZASD123 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. TABLE OF CONTENTS 1 TEST CERTIFICATION.............................................................................................. 4 3 EUT DESCRIPTION................................................................................................... 6 4 TEST METHODOLOGY ............................................................................................. 7 4.1. DECISION OF FINAL TEST MODE...................................................................................... 7 4.2. EUT SYSTEM OPERATION ................................................................................................. 7 5 SETUP OF EQUIPMENT UNDER TEST.................................................................... 8 5.1. DESCRIPTION OF SUPPORT UNITS ................................................................................. 8 5.2. CONFIGURATION OF SYSTEM UNDER TEST .................................................................. 8 6 FACILITIES AND ACCREDITATIONS ...................................................................... 9 6.1. FACILITIES ........................................................................................................................... 9 6.2. ACCREDITATIONS .............................................................................................................. 9 6.3. MEASUREMENT UNCERTAINTY........................................................................................ 9 7 TEST REQUIREMENTS........................................................................................... 10 7.1. CONDUCTED EMISSION MEASUREMENT...................................................................... 10 7.2. RADIATION EMISSION TEST............................................................................................ 14 7.3. 20DB BANDWIDTH TEST .................................................................................................. 21 7.4. BAND EDGE TEST.............................................................................................................24 Report reference No.:WSCT10030060E-1 Issued: April 9, 2010 Revised:None TRF No.:FCC PART 15C-15.249/A0 Page 4 of 29 FCC ID: TAZASD123 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. 1 TEST CERTIFICATION Product: PS3 2.4G Wireless Controller Model: ASD123/FEL-2808 Applicant: Front Electronics (H.K.) Ltd. Rm 2919, Asia Trade Centre, 79 Lei Muk Road, Kwai Chung, New Territories, Hong Kong Factory: Alliance Sales & Distribution Inc. Shenzhen Representative Office Rm. 505,5/F, Fu Er Yuan Jian Business Center, Zone 25, Baoan District, Shenzhen, China Trade Mark: N/A Tested: March 04 ~ April 02, 2010 Test Voltage: AC 120V/60Hz Applicable Standards: FCC Part 15: Subpart C ANSI C63.4:2003 Deviation from Applicable Standard None The above equipment has been tested by World Standardization Certification & Testing Co., Ltd., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Eric Yang Date: 2010-04-09 (Eric Yang) Check By: Date: 2010-04-09 (Kelly Wu) Approved By: Date: 2010-04-09 (Kallen Wang) Report reference No.:WSCT10030060E-1 Issued: April 9, 2010 Revised:None TRF No.:FCC PART 15C-15.249/A0 Page 5 of 29 FCC ID: TAZASD123 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. 2 TEST RESULT SUMMARY Standard Item Result Conducted emission Test PASS Radiation Emission Test PASS 20dB bandwidth Test PASS FCC Part 15 Subpart C: Clause 15.249 Band Edge Test PASS Note: 1. The test result judgment is decided by the limit of test standard 2. The information of measurement uncertainty is available upon the customer’s request. Report reference No.:WSCT10030060E-1 Issued: April 9, 2010 Revised:None TRF No.:FCC PART 15C-15.249/A0 Page 6 of 29 FCC ID: TAZASD123 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. 3 EUT DESCRIPTION Product PS3 2.4G Wireless Controller Trade Mark N/A Model ASD123/FEL-2808 Applicant Front Electronics (…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: TAZASD123R TEST SETUP PHOTOGRAPHY Conducted Emission: Radiation Emission:
