TAZASD766Remote and Playchuk Mini

REMOTE & PLAYCHUK™ MINI USER MANUAL Congratulations on your purchase of the ICON Remote & Playchuk™ Mini for Wii™. The contents of this package include: •1 Remote for Wii •1 Playchuk™ for Wii •1 Wrist Strap •1 Warranty Card •1 User Manual Before using this product, please attach the wrist strap to the end of the Remote. Function Diagram: Battery Instructions: • Open the battery compartment located on the back of the Remote • Insert the 2 AAA batteries, ensuring correct polarity (see figure 2) • Close the Remote battery compartment (see figure 3) Synchronization: • Press the “POWER” button on the top left hand side of the Remote to switch it on • Synchronize the Remote with the Wii™ console o Press the “SYNC” button located on the Wii™ console (see figure 4) o Press the “SYNC” button located on the Remote (see figure 5) PUSH SYNC Standby Mode: The Remote will automatically enter standby mode when not in use for a period of time. To exit standby mode, press any button on the Remote. Playchuk™ Instructions: When game play requires the Playchuk™, please connect the Playchuk™ to the Remote using the appropriate connection slot. (see figures 6 & 7) Troubleshooting Tips: Remote not working: • Change the batteries in the Remote • Remote may be in standby mode (refer to Standby Mode Instructions) • Ensure the Remote is properly synchronized with the Wii™ console • Refer to the Wii™ console Instruction Manual for more troubleshooting tips Playchuk™ not working: • Ensure the Playchuk™ is properly connected to the Remote (refer to Playchuk™ Instructions) • Refer to the Wii™ console Instruction Manual for more troubleshooting tips WARNING: We recommend taking fifteen‐minute breaks for every hour played. If, at any time, you feel joint pain in your hands, wrists, elbows or elsewhere, stop playing until the symptoms disappear and see your doctor. USE THE WRIST STRAP. Game play can involve rapid or vigorous motion. Please use the wrist strap to prevent losing your grip on the controller and causing damage to the Remote or surrounding objects, or injury to other people. WEAR THE WRIST STRAP WHEN ONE IS PROVIDED. • Make sure all players use the wrist strap and that the strap is secure. • When sharing a Remote between multiple players, make sure each person uses the wrist strap properly. • Wearing the wrist strap will prevent you from accidentally dropping or throwing the Remote during game play, which could damage the Remote or surrounding objects, or cause injury to other people. DO NOT LET GO OF THE CONTROLLER DURING GAME PLAY. • Read the Instruction booklet for the game you are playing and follow all game control instructions for correct use of the Remote or accessory controllers. • Hold the Remote securely and avoid excessive motion, as it may cause you to let go of the Remote and may break the wrist strap. • If your hands become moist, stop and dry your hands. ALLOW ADEQUATE ROOM AROUND YOU DURING GAME PLAY. 1. Stay at least three (3) feet away from the television. 2. As you may move around during game play, make sure objects and other people are out of your range of movement or arm motion to prevent damage or injury. Important Safeguards & Precautions: • This unit is for indoor use only • Do not expose to dust, direct sunlight, wet weather conditions, high humidity, high temperature • Do not expose the unit to splashing, dripping rain or moisture • Do not immerse in liquid • Do not disassemble • Do not use if the equipment is damaged • Never carry the unit by the cable • For external cleaning, use a soft, clean, cloth only NOTE: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment FCC ID: TAZASD766 MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) may not cause harmful interference, and (2) must accept any interference received, including interference that may cause undesired operation. ©2010 Alliance Sales & Distribution, Inc. All Rights Reserved. All other trademarks, brands and names are the property of their respective owners. TÉLÉCOMMANDE ET MANUEL DE L’UTILISATEUR PLAYCHUK MC Toutes nos félicitations pour avoir acheté la télécommande ICON et Playchuk MC pour Wii MC . Cet emballage comprend : 1 – Télécommande pour Wii MC 1 – Playchuk pour Wii MC 1 – Dragonne 1 – Carte de garantie 1 – Manuel de l’utilisateur Avant d’utiliser ce produit, veuillez fixer la dragonne à l’extrémité de la télécommande. Diagramme de Fonction : Insertion des piles : • Ouvrir le compartiment des piles situé à l’arrière de la télécommande. • Insérer 2 piles AA en veillant à ce que la polarité soit conforme (figure 2). • Fermer le compartiment des piles de la télécommande (figure 3). Synchronisation : • Appuyer sur le bouton « POWER » dans le coin supérieur gauche de la télécommande pour la mettre en marche. • Synchroniser la télécommande avec la console Wii MC . o Appuyer sur le bouton « SYNC » situé sur la console (figure 4). o Appuyer sur le bouton « SYNC » situé sur la télécommande (figure 5). Mode attente : La télécommande passe immédiatement au mode attente lorsqu’elle n’est pas utilisée pendant un certain temps. Pour quitter le mode attente, appuyer sur n’importe quel bouton de la télécommande. Mode d’emploi de Playchuk MC : Lorsque Playchuk MC est nécessaire pour jouer, le raccorder à la télécommande en l’insérant dans la fente prévue à cet effet (figures 6 et 7). Dépannage : La télécommande ne fonctionne pas : • Changer les piles de la télécommande. • La télécommande peut être en mode attente (voir les consignes relatives au mode attente). • Veiller à ce que la télécommande soit bien synchronisée avec la console Wii MC . • Lire le manuel de l’utilisateur de la console Wii MC pour obtenir d’autres conseils de dépannage. Playchuk MC ne fonctionne pas : • Veiller à ce que Playchuk MC soit bien raccordé à la télécommande (voir le mode d’emploi de Playchuk…

Text truncated - open the document above for the full version.

Front Electronics (H.K.) Ltd. Rm 2919, Asia Trade Centre, 79 Lei Muk Road, Kwai Chung, New Territories, Hong Kong Authority letter Date: 2010-06-11 FCC ID: TAZASD766 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: WORLD STANDARDIZATION CERTIFICATION & TESTING CO., LTD. Laboratory is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Stan Segal Rm 2919, Asia Trade Centre, 79 Lei Muk Road, Kwai Chung, New Territories, Hong Kong Tel: +852-24202588 Fax: +852-24215788 E-mail: [email protected]

Front Electronics (H.K.) Ltd. Rm 2919, Asia Trade Centre, 79 Lei Muk Road, Kwai Chung, New Territories, Hong Kong Confidentiality Date: 2010-06-11 FCC ID: TAZASD766 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Thank you. Regards, Rm 2919, Asia Trade Centre, 79 Lei Muk Road, Kwai Chung, New Territories, Hong Kong Tel: +852-24202588 Fax: +852-24215788 E-mail: [email protected]

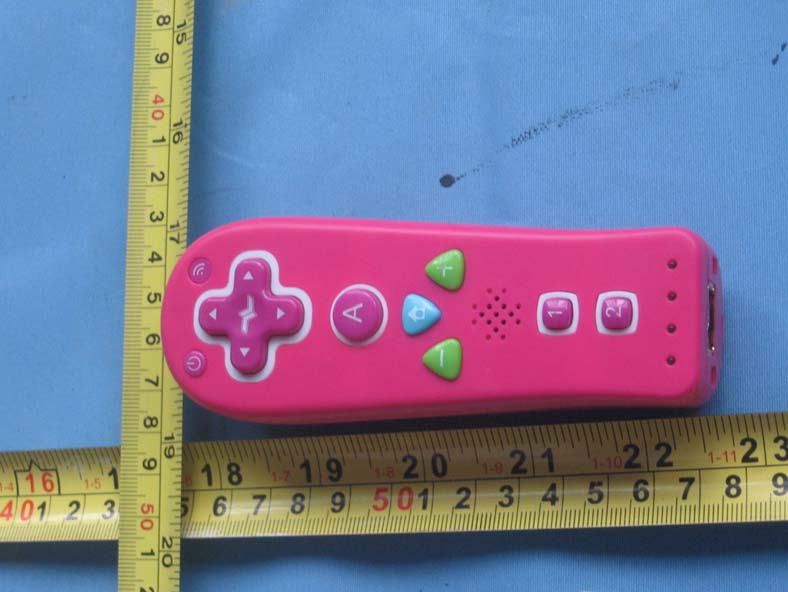

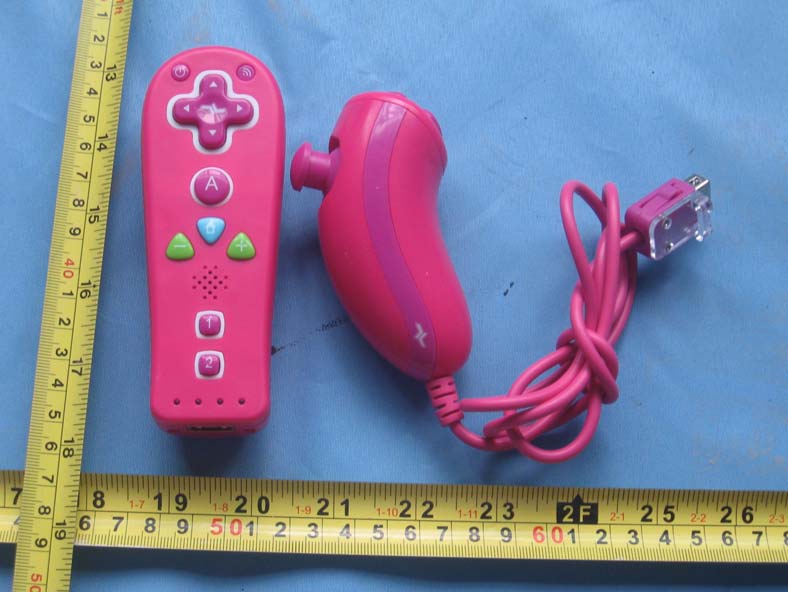

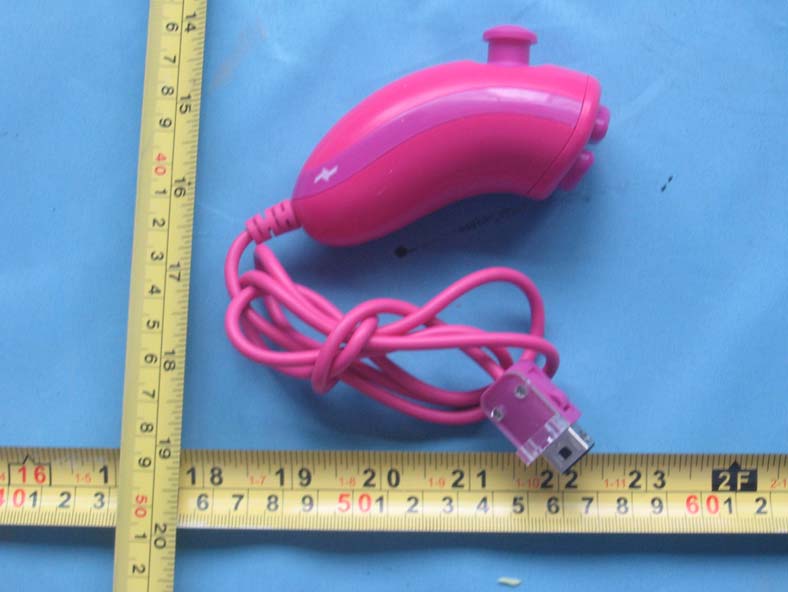

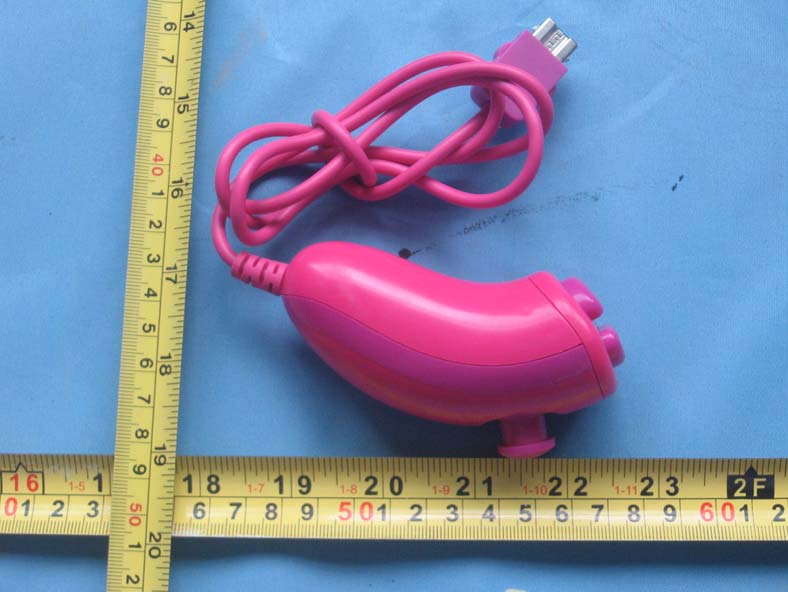

FCC ID: TAZASD766 EXTERIOR PHOTOGRAPHS

FCC ID: TAZASD766 Label Location on EUT Label: FCC ID: TAZASD766 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. MADE IN CHINA

FCC ID: TAZASD766 INTERIOR PHOTOGRAPHY

Circuit Principle description: This Remote and Playchuk Mini controller kit is used for Wii TM console. The Remote communicates with Wii TM console by wireless technology, and communicates with Playchuk with a cable. The frequency range of wireless transceiver is 2.402 GHZ to 2480MHZ, It work in Frequency-Hopping Spread Spectrum mode. Modulation type for MSK. The system clock is 24MHZ,Use a PCB antenna, Wireless communications distance up to 20 feet. In Remote, Main chip GH2703A receives all game control data and communicates with Wii TM console wireless. The system clock is 24 MHZ, a 2xAAA power supply. In the playchuk, It powered from Remote with a cable. The motion sensor chip convert different motion to game control signal to GH8220(MCU), GH8220(MCU) receives game control signal from keys , motion sensor and anolog stick , then it sends all of the game control signal to Remote by a cable. The Remote receives game control signal from motion sensor , keys, and signal of Playchuk to communicates with Wii TM console by wireless for a game play in the Wii TM console. In same time the Remote receives game signal from Wii TM console, such as game audio and LED indicator.

FCC ID: TAZASD766 Page 1 FCC ID TEST REPORT for Remote and Playchuk Mini MODEL: ASD766/FEL-2813/FEL-2814 FCC ID: TAZASD766 Test Report Number: WSCT10060174E Issued Date:June 23, 2010 Issued for Front Electronics (H.K.) Ltd. Rm 2919, Asia Trade Centre, 79 Lei Muk Road, Kwai Chung, New Territories, Hong Kong Issued By: WORLD STANDARDIZATION CERTIFICATION & TESTING CO., LTD. 1-2/F, DaChong Science&Technology Building, No.28 of Tonggu Road, Nanshan District, ShenZhen.PRC TEL: +86-755-26996192 FAX: +86-755-26996253 Note: This report shall not be reproduced except in full, without the written approval of World Standardization Certification& Testing CO., LTD. This document may be altered or revised by World Standardization Certification& Testing CO., LTD. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report reference No.:WSCT10060174E Issued:June 23, 2010 Revised:None TRF No.:FCC PART 15C-15.249/A0 Page 2 of 30 FCC ID: TAZASD766 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. Revision History Of Report Rev. Issue No. Revisions Effect Page Revised By 00 WSCT10060174E Initial Issue ALL Kallen Wang Report reference No.:WSCT10060174E Issued:June 23, 2010 Revised:None TRF No.:FCC PART 15C-15.249/A0 Page 3 of 30 FCC ID: TAZASD766 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. TABLE OF CONTENTS 1 TEST CERTIFICATION.............................................................................................. 4 3 EUT DESCRIPTION ....................................................................................................... 6 4 TEST METHODOLOGY ............................................................................................. 7 4.1. DECISION OF FINAL TEST MODE...................................................................................... 7 4.2. EUT SYSTEM OPERATION ................................................................................................. 7 5 SETUP OF EQUIPMENT UNDER TEST.................................................................... 8 5.1. DESCRIPTION OF SUPPORT UNITS ................................................................................. 8 5.2. CONFIGURATION OF SYSTEM UNDER TEST .................................................................. 8 6 FACILITIES AND ACCREDITATIONS ...................................................................... 9 6.1. FACILITIES ........................................................................................................................... 9 6.2. ACCREDITATIONS .............................................................................................................. 9 6.3. MEASUREMENT UNCERTAINTY........................................................................................ 9 7 TEST REQUIREMENTS........................................................................................... 10 7.1. CONDUCTED EMISSION MEASUREMENT...................................................................... 10 7.2. Radiation Emission Test ..................................................................................................... 12 7.3. 20dB bandwidth test ........................................................................................................... 21 7.4. Band edge test .................................................................................................................... 24 8. ANTENNA REQUIREMENT ........................................................................................ 30 Report reference No.:WSCT10060174E Issued:June 23, 2010 Revised:None TRF No.:FCC PART 15C-15.249/A0 Page 4 of 30 FCC ID: TAZASD766 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. 1 TEST CERTIFICATION Product: Remote and Playchuk Mini Model: ASD766/FEL-2813/FEL-2814 Applicant: Front Electronics (H.K.) Ltd. Rm 2919, Asia Trade Centre, 79 Lei Muk Road, Kwai Chung, New Territories, Hong Kong Factory: Alliance Sales & Distribution Inc. Shenzhen Representative Office Rm. 505,5/F, Fu Er Yuan Jian Business Center, Zone 25, Baoan District, Shenzhen, China Trade Mark: N/A Tested: June 09~15, 2010 Test Voltage: DC 3.0 V Applicable Standards: FCC Part 15:Subpart C ANSI C63.4:2003 Deviation from Applicable Standard None The above equipment has been tested by World Standardization Certification & Testing Co., Ltd., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Eric Yang Date: 2010-06-23 (Eric Yang) Check By: Date: 2010-06-23 (Kelly Wu) Approved By: Date: 2010-06-23 (Kallen Wang) Report reference No.:WSCT10060174E Issued:June 23, 2010 Revised:None TRF No.:FCC PART 15C-15.249/A0 Page 5 of 30 FCC ID: TAZASD766 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. 2 TEST RESULT SUMMARY Standard Item Result Conducted emission Test N/A Radiation Emission Test PASS 20dB bandwidth Test PASS FCC Part 15 Subpart C: Clause 15.249 Band Edge Test PASS Note: 1. The test result judgment is decided by the limit of test standard 2. The information of measurement uncertainty is available upon the customer’s request. Report reference No.:WSCT10060174E Issued:June 23, 2010 Revised:None TRF No.:FCC PART 15C-15.249/A0 Page 6 of 30 FCC ID: TAZASD766 This report shall not be reproduced except in full, without the written approval of World Standardization Certification & Testing CO., LTD. …

Text truncated - open the document above for the full version.

FCC ID: TAZASD123 TEST SETUP PHOTOGRAPHY Radiation Emission:
