TB7DXTOY16271649GToy RC Boxing Robots

27.145MHz Transmitter Block Diagram U2

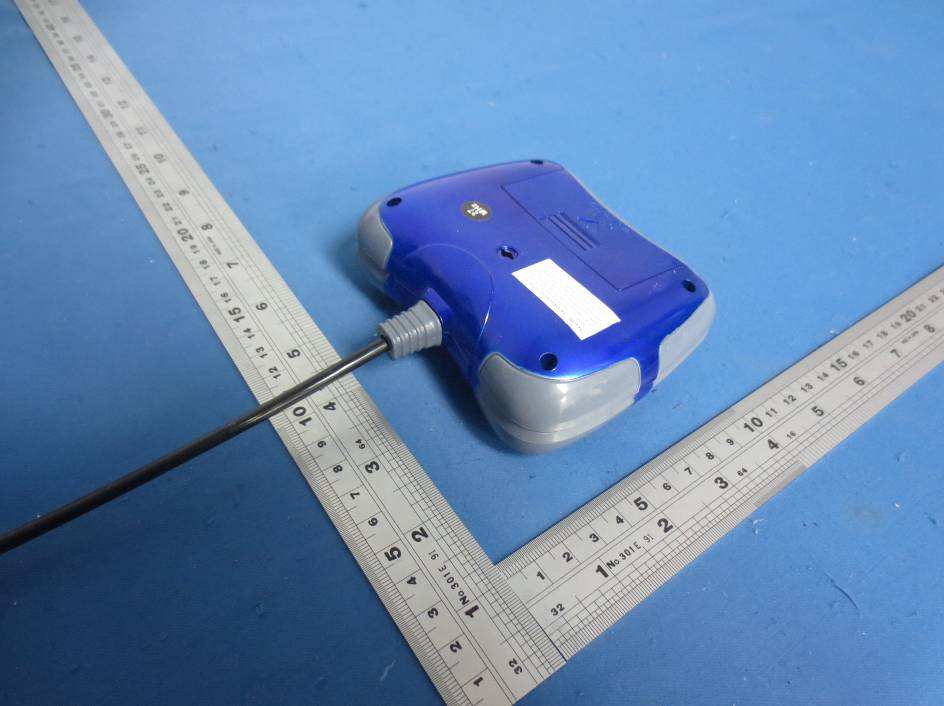

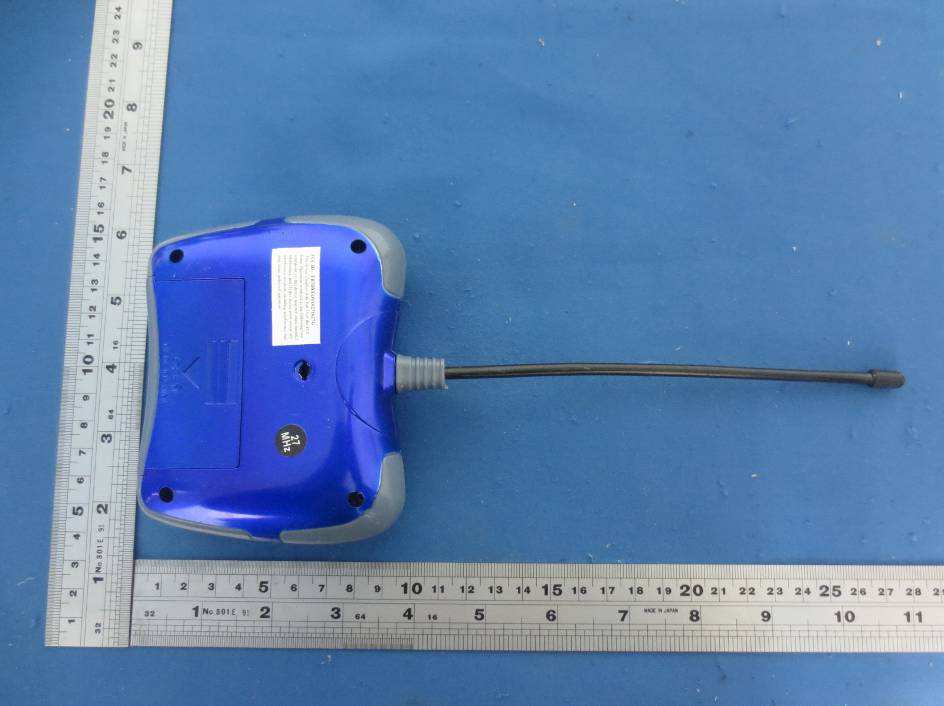

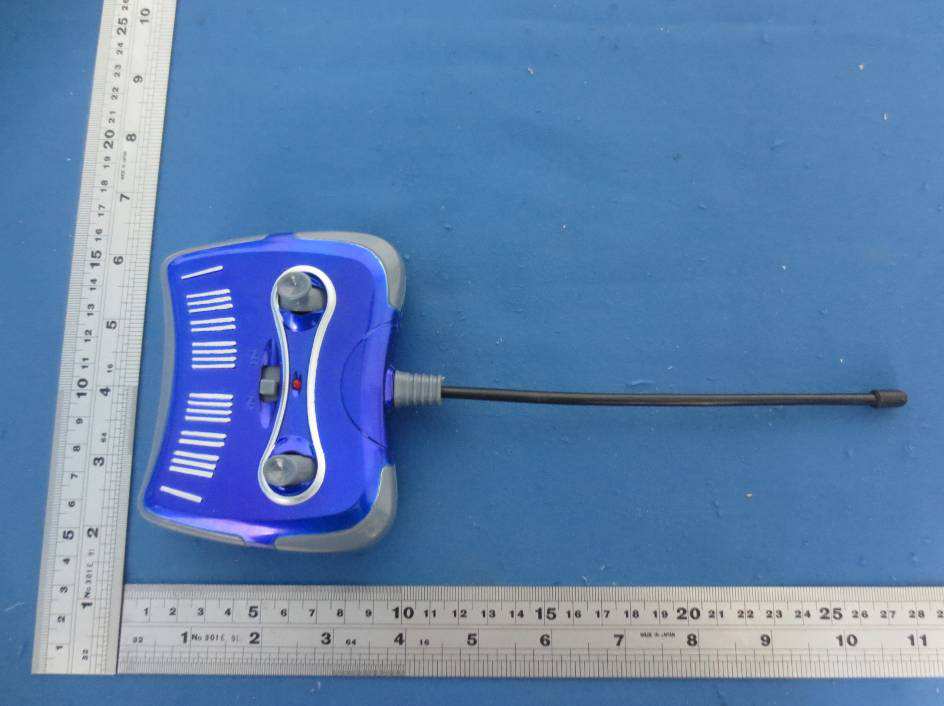

External Photos

Label Artwork and Location Label Size: 31mm (W) x 15mm (H) FCC ID： ：： ：TB7DXTOY16271627G This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

Technical description Description Function Component Antenna Transmit modulated RF signal ANT Filter Suppression of spurious emissions L5, C9 RF IC Generate code signal to modulator U2 Oscillator Generate 27.145 MHz carrier X2, Q4 RF power amplifier and modulator Modulate the carrier and amplify the modulated RF signal Q3 Antenna Type: Integral antenna with plastic enclosure Antenna Gain: 0dBi Modulation Type: Pulse modulation The nominal conducted output power specified: -45.00dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -47.25dBm (+/- 3dB)

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a Toy RC Boxing Robots operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by one 9.0V 6F22 size battery. For more detail information pls. refer to the user manual. Antenna Type: Integral antenna with plastic enclosure Antenna Gain: 0dBi The nominal conducted output power specified: -45.00dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -47.25dBm (+/- 3dB) Modulation Type: Pulse modulation According to the KDB 447498: The worst-case peak radiated emission for the EUT is 49.9dBμV/m at 3m in the frequency 27.145MHz The EIRP = [(FS*D) ^2 / 30] mW= -45.33dBm The ERP = EIRP – 2.15 = -47.48 dBm which is within the production variation. The maximun conducted output power specified is -42dBm =0.00006mW The source- based time-averaging conducted output power = 0.00006* Duty Cycle mW= 0.000037 mW < 0.00006 mW The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 = 371.2 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The duration of one cycle = 16.72ms Effective period of the cycle = 480μs x 10 + 1.36ms x 4 = 10.24ms DC = 10.24ms / 16.72ms = 0.6124 or 61.24% FCC ID: TB7DXTOY16271627G

Transmitter Circuit Diagram R5 18K R8 1M 27.145MHz NC NC
