TB7DXTOYS11187849Toy-R/C Truck

User Manual Trade name: Toy – R/C Truck Model number: 1637888 (111878) Remote-controller’s battery installation 1) Realease the cover of battery box 2) Install 9V battery into battery compartment according to the right poles 3) Close the cover of the battery box Car battery installation 1) Use lock drive to remove the cover of the battery compartment which is back of the car; 2) Install 5×AA batteries into battery compartment according to the right poles; 3) Close the cover of the battery compartment; 4) Lock the cover with screw driver again. Use instruction 1) Turn the power switch of car-boby to “ON” position; 2) The light on controller will be on; When the light is turning dimmer, the batteries are to be replaced; 3) Operate the handle of the controller, the car can move Forward and Backward clockwise. After play, turn the power switches to “OFF” position. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment such modifications could void the user authority to operate the equipment. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Legal Company Name: Innovage LLC Address: 19511 Pauling，Foothill Ranch CA ， USA 92610 Phone: 949-587-9207

Block Diagram Filter RF power amplifier and Modulator Oscillator 49.860MHz Encoder Control key 49.86MHz ANT U1, 128KHZ

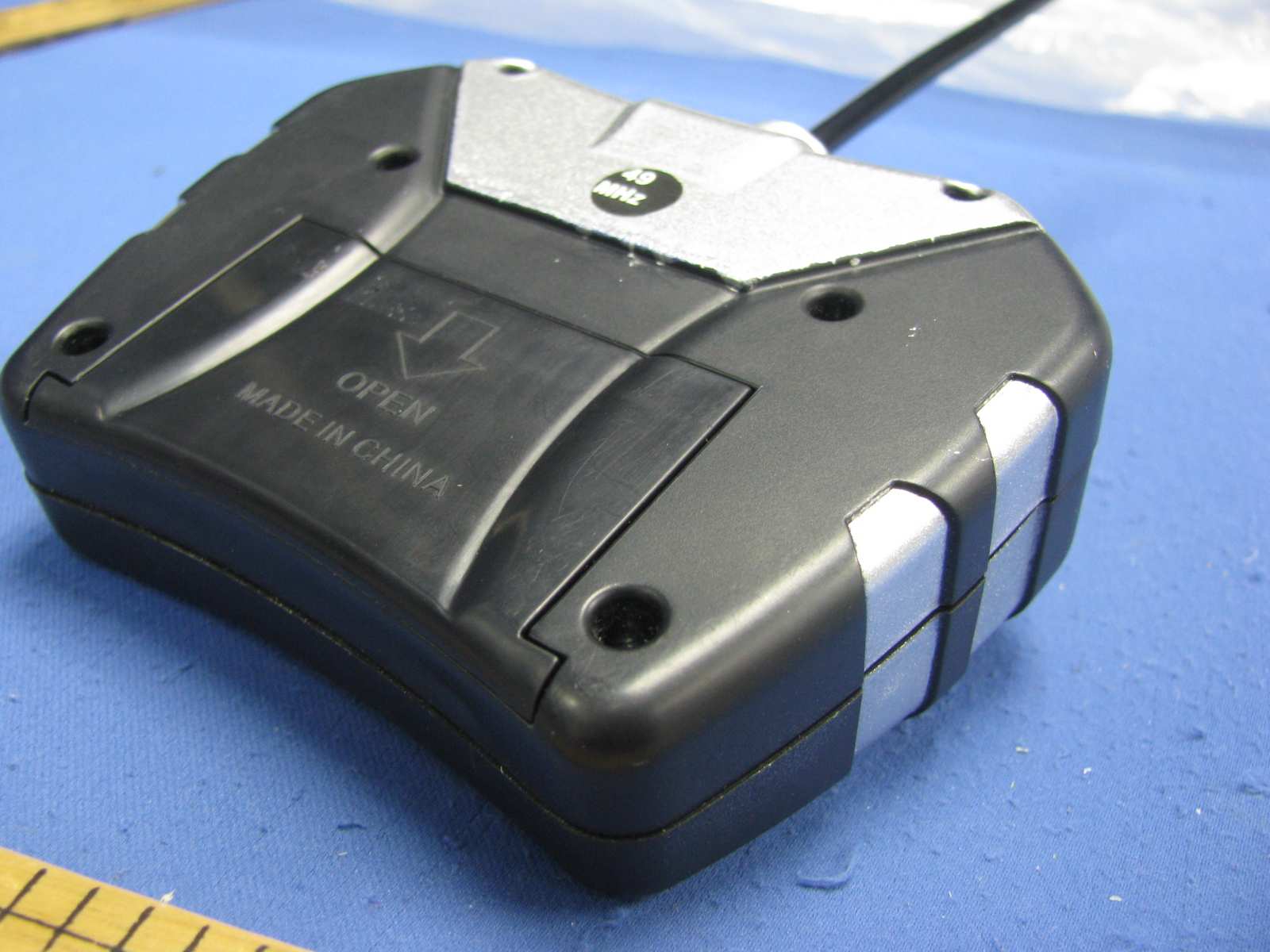

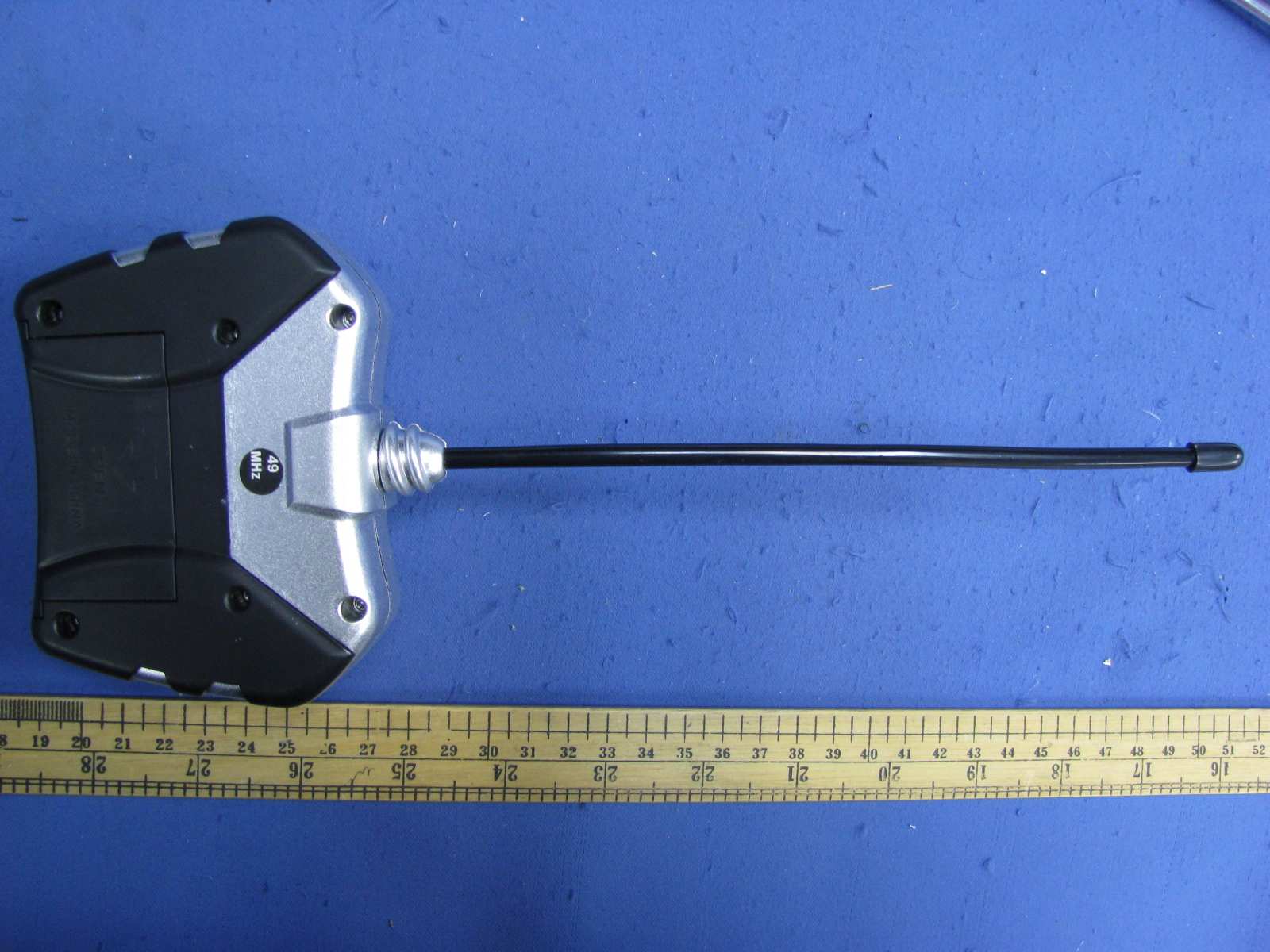

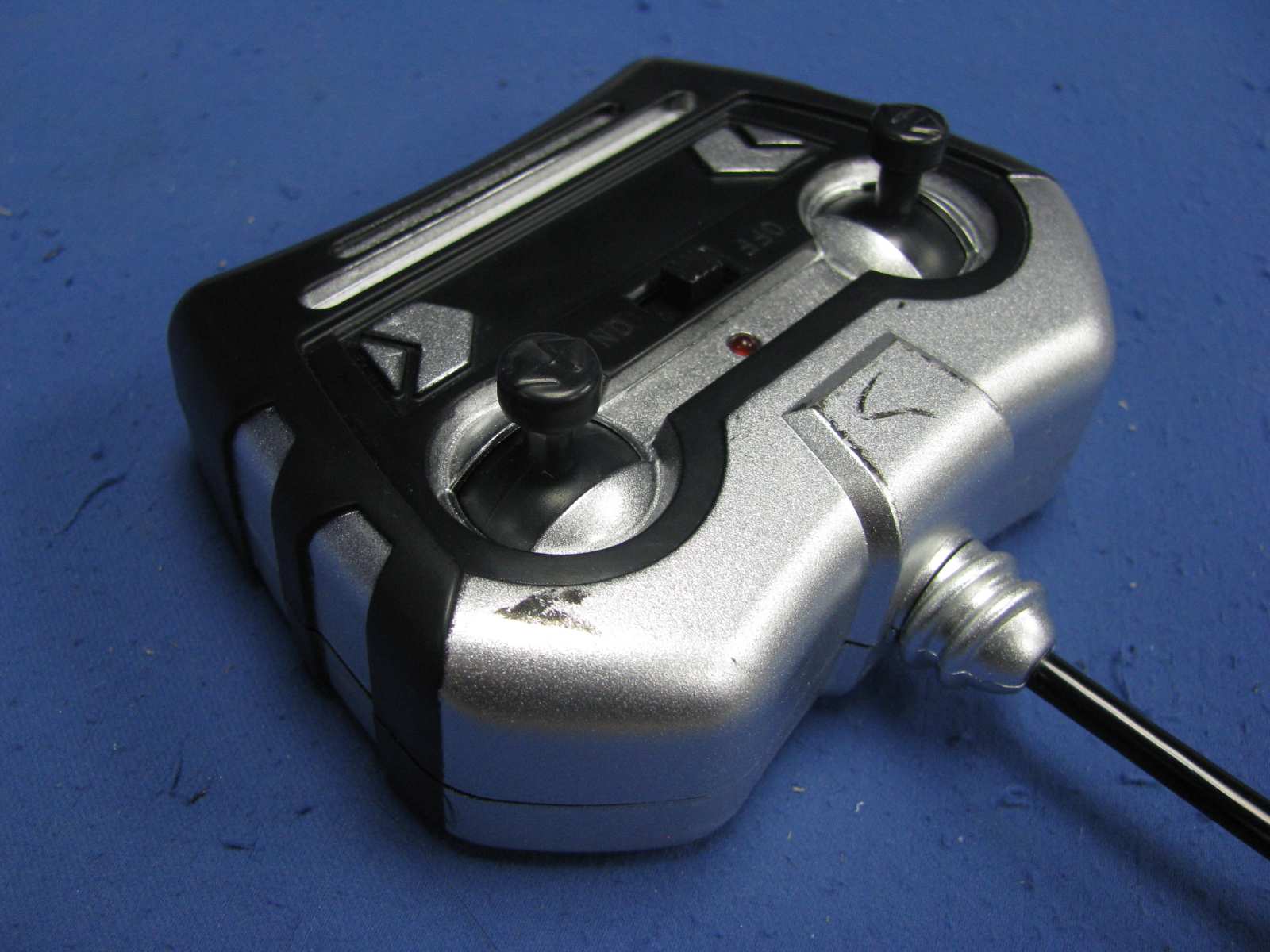

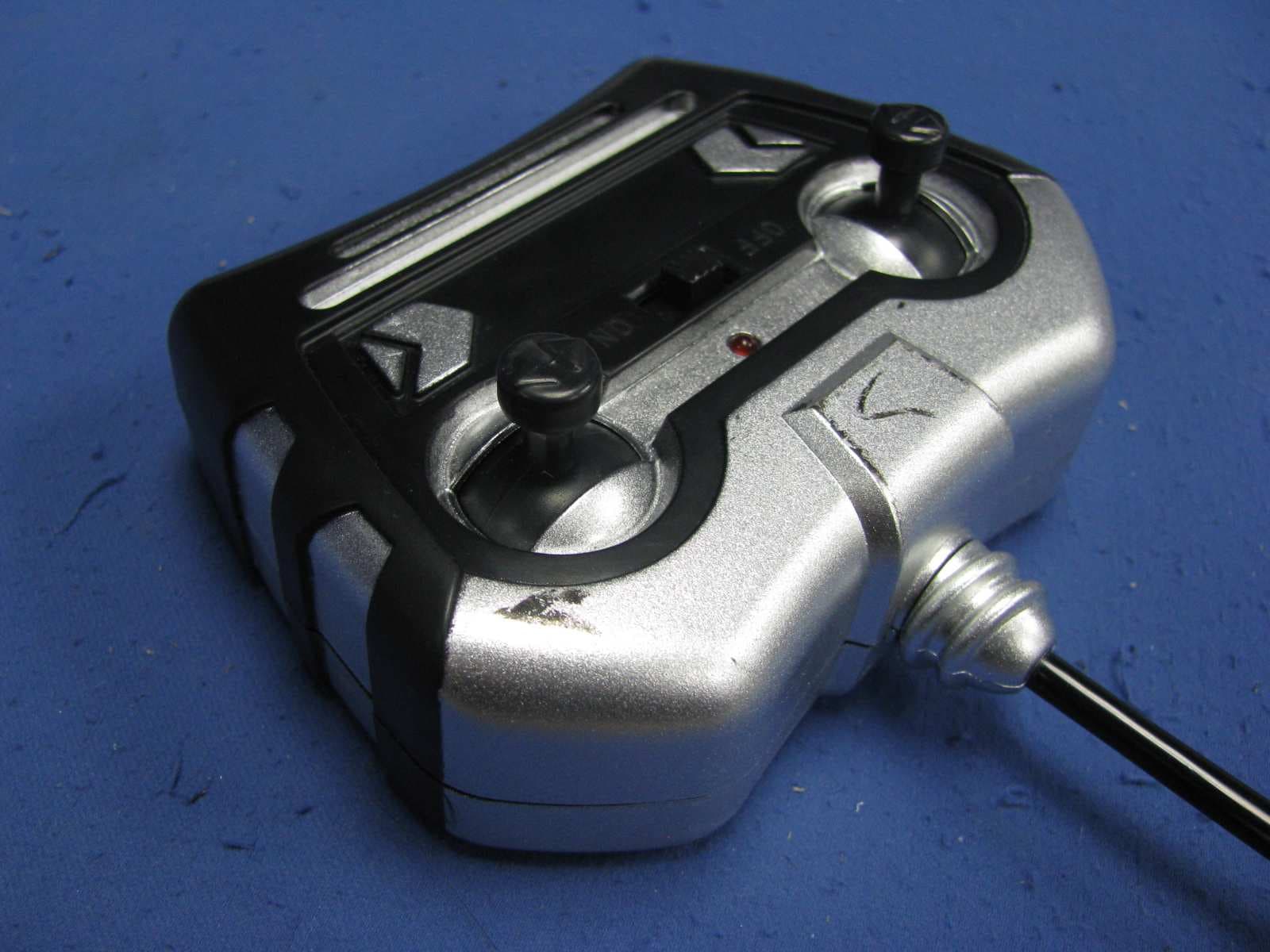

External Photos

Label Artwork and Location

Internal Photos

Technical description Description Function Component Antenna Transmit modulated RF signal ANT Filter Suppression of spurious emissions L3, C6, CA RF power amplifier and modulation Modulate the carrier and amplify the modulated RF signal Q2 Oscillator Generate 49.860MHz carrier Y1, Q1 Encoder IC Generate code signal to modulator U1 Type of antenna: Internal antenna Type of modulation: Pulse modulation

49.86MHz SM6136B Q1

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TRF No.: FCC IC_C_a Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 TEST REPORT Report No.: SZ11010053-1 Shantou Chenghai Dongxin Plastic Toys Co., Ltd Application For Certification (FCC ID: TB7DXTOYS11187849) Transmitter Prepared and Checked by: Approved by: Billy Li Project Engineer Shawn Xing Assistant Manager Date: January 8, 2011 INTERTEK TESTING SERVICES Report No.: SZ11010053-1 FCC ID: TB7DXTOYS11187849 TRF No.: FCC IC_C_a i GENERAL INFORMATION Shantou Chenghai Dongxin Plastic Toys Co., Ltd MODEL: 1637888(111878) FCC ID: TB7DXTOYS11187849 Grantee: Shantou Chenghai Dongxin Plastic Toys Co., Ltd Grantee Address: Crossing, Fengxin san Rd. Laiwu Rd. Changhai District, Chenghai, Shantou, Guangdong Province, China Contact Person: Xieli Cai Tel: +8675486382683 Fax: +8675486383768 e-mail: N/A Manufacturer: Shantou Chenghai Dongxin Plastic Toys Co., Ltd Manufacturer Address: Crossing, Fengxin san Rd. Laiwu Rd. Changhai District, Chenghai, Shantou, Guangdong Province, China Model: 1637888(111878) Type of EUT: Transmitter Description of EUT: Toy - R/C Truck Serial Number: N/A FCC ID : TB7DXTOYS11187849 Date of Sample Submitted: January 5, 2011 Date of Test: January 8, 2011 Report No.: SZ11010053-1 Report Date: January 8, 2011 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: SZ11010053-1 FCC ID: TB7DXTOYS11187849 TRF No.: FCC IC_C_a ii SUMMARY OF TEST RESULT SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD Model: 1637888(111878) FCC ID: TB7DXTOYS11187849 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses an Integral antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: SZ11010053-1 FCC ID: TB7DXTOYS11187849 TRF No.: FCC IC_C_a iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software.................................................................................. 2 2.3 Special Accessories ......................................................................................... 2 2.4 Equipment Modification .................................................................................... 2 2.5 Measurement Uncertainty................................................................................. 2 2.6 Support Equipment Lis…

Text truncated - open the document above for the full version.

Radiated Photos
