TB7DXTOYS13841449Toy RC Baja Truck

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

Block Diagram Filter RF power amplifier and Modulator Oscillator 49.860MHz Encoder Control key 49.860MHz ANT U1 128KHz

2012-7-3

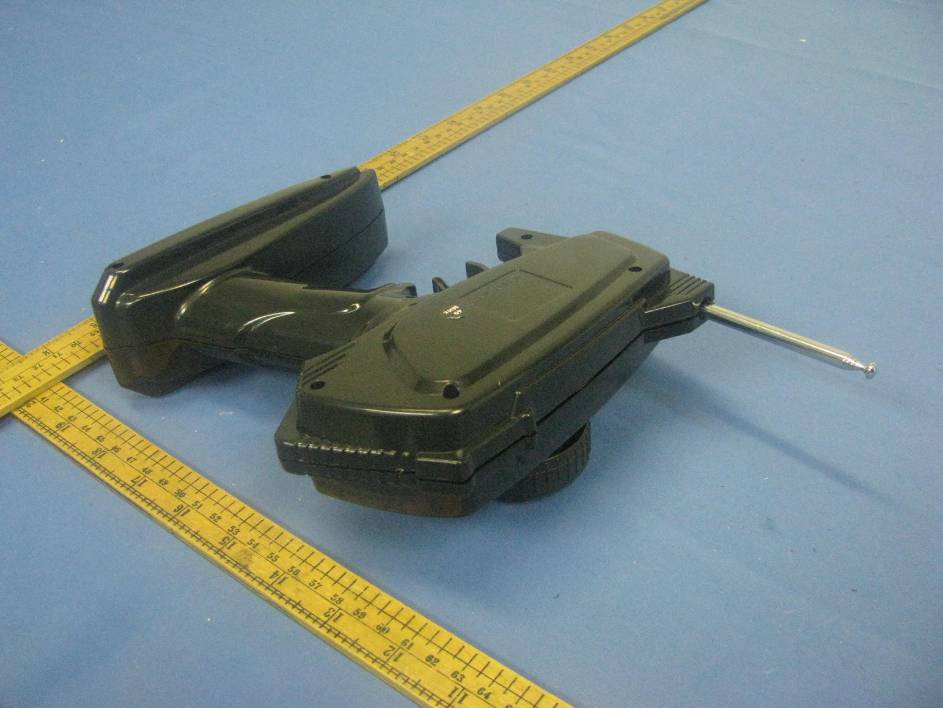

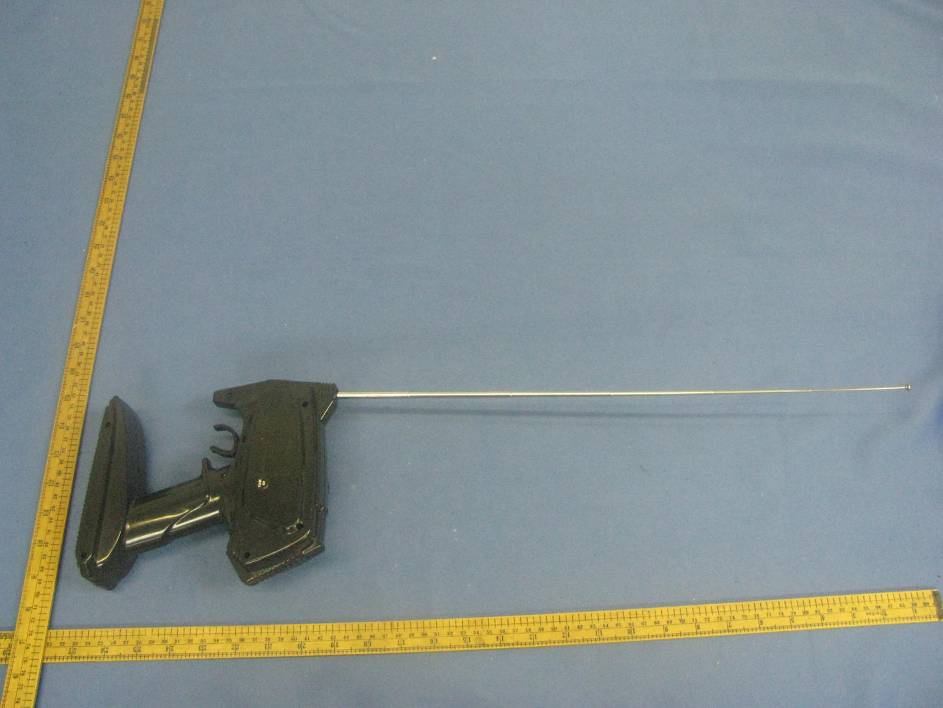

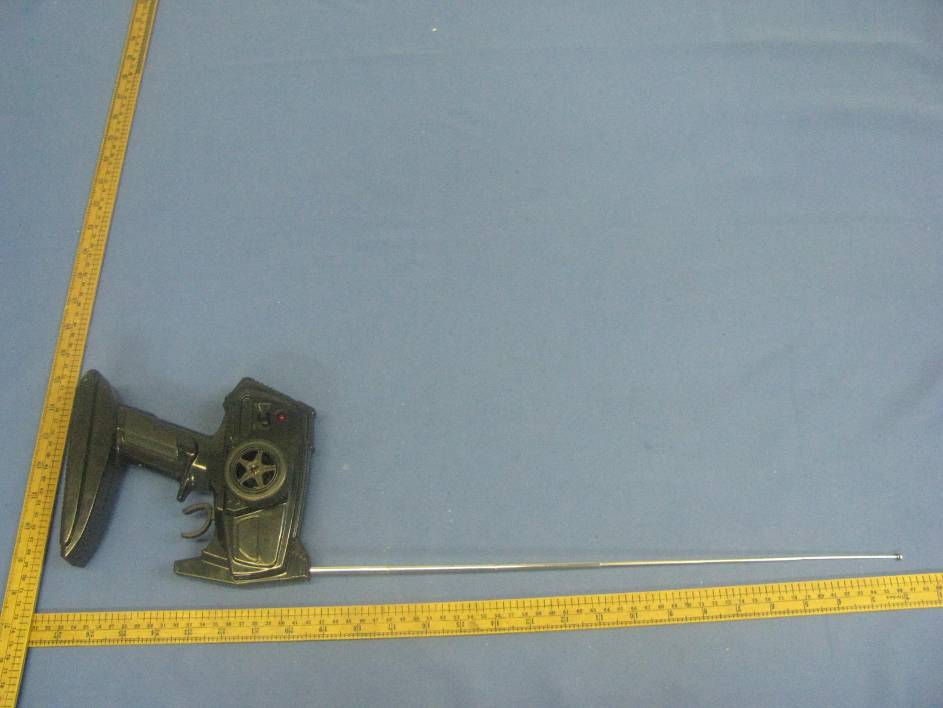

External Photos

Label Artwork and Location

Internal Photos

Technical description Description Function Component Antenna Transmit modulated RF signal ANT Filter Suppression of spurious emissions L1, C1 RF power amplifier and modulation Modulate the carrier and amplify the modulated RF signal Q1 Oscillator Generate 49.860 MHz carrier X1, Q2 Encoder IC Generate code signal to modulator U1 Type of antenna: telescope antenna with unique antenna connector Type of modulation: Pulse modulation

ANT C1 * X1 * RIGHTB 1 TESTB 2 GND 3 BACKW 4 FORW 5 TUROB 6 SC 7 LEFTB 14 FOSC 13 OSC1 12 OSC0 11 PC 10 VDD 9 SO 8 U1 IC/TX-2 L1 * LED1 Q1 8050D R1 22K SW1 SW-PB C2 * C3 27P Q2 945P L3 * L2 5.6uH R2 RES C4 * R4 RES R5 220R R6 2.2K R3 200K SW2 SW-PB SW3 SW-PB SW4 SW-PB VCC 9V C6 104 C5 104 2 3 1 S1 SW-SPDT DZ 3.9V C1: 27M49M C2: C4: L1: L3: 151 471 18P 8.2uH 5.6uH X127.145MHz 101 101 3.3uH 1.0uH 49.860MHz 22p

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Shantou Chenghai Dongxin Plastic Toys Co., Ltd Application For Certification FCC ID: TB7DXTOYS13841449 Product Description: Toy RC Baja Truck Model: 1646472(138414) Transmitter Report No.: SZ12070484-1 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-11] Prepared and Checked by: Approved by: Sign on file Chris Chen Engineer Billy Li Supervisor Date: 7 August 2012 INTERTEK TESTING SERVICES Report No.: SZ12070484-1 FCC ID: TB7DXTOYS13841449 TRF No.: FCC 15C_TX_b i GENERAL INFORMATION Shantou Chenghai Dongxin Plastic Toys Co., Ltd. Model: 1646472(138414) FCC ID: TB7DXTOYS13841449 Grantee: Shantou Chenghai Dongxin Plastic Toys Co., Ltd Grantee Address: Crossing, Fengxin san Rd. Laiwu Rd. Changhai District, Chenghai, Shantou, Guangdong, China Contact Person: Licai Xie Tel: 86-754-6383868 Manufacturer: Shantou Chenghai Dongxin Plastic Toys Co., Ltd Manufacturer Address: Crossing, Fengxin san Rd. Laiwu Rd. Changhai District, Chenghai, Shantou, Guangdong, China Model: 1646472(138414) Type of EUT: Transmitter Description of EUT: Toy RC Baja Truck Serial Number: N/A FCC ID : TB7DXTOYS13841449 Date of Sample Submitted: 24 July 2012 Date of Test: 7 August 2012 Report No.: SZ12070484-1 Report Date: 7 August 2012 Environmental Conidtions: Temperature: +10 to +40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: SZ12070484-1 FCC ID: TB7DXTOYS13841449 TRF No.: FCC 15C_TX_b ii SUMMARY OF TEST RESULT Shantou Chenghai Dongxin Plastic Toys Co., Ltd. Model: 1646472(138414) FCC ID: TB7DXTOYS13841449 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a telescope antenna with unique antenna connector which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: SZ12070484-1 FCC ID: TB7DXTOYS13841449 TRF No.: FCC 15C_TX_b iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software.................................................................................. 2 2.3 Special Accessories ......................................................................................... 2 2.4 Equipment Modification ..................…

Text truncated - open the document above for the full version.

Radiated Photos
