TB7DXTOYS3348149EToy RC Bumper Car Set

49.86MHz Transmitter Block Diagram U 1 49.86MHz

April 11, 2014 Vice General Manager

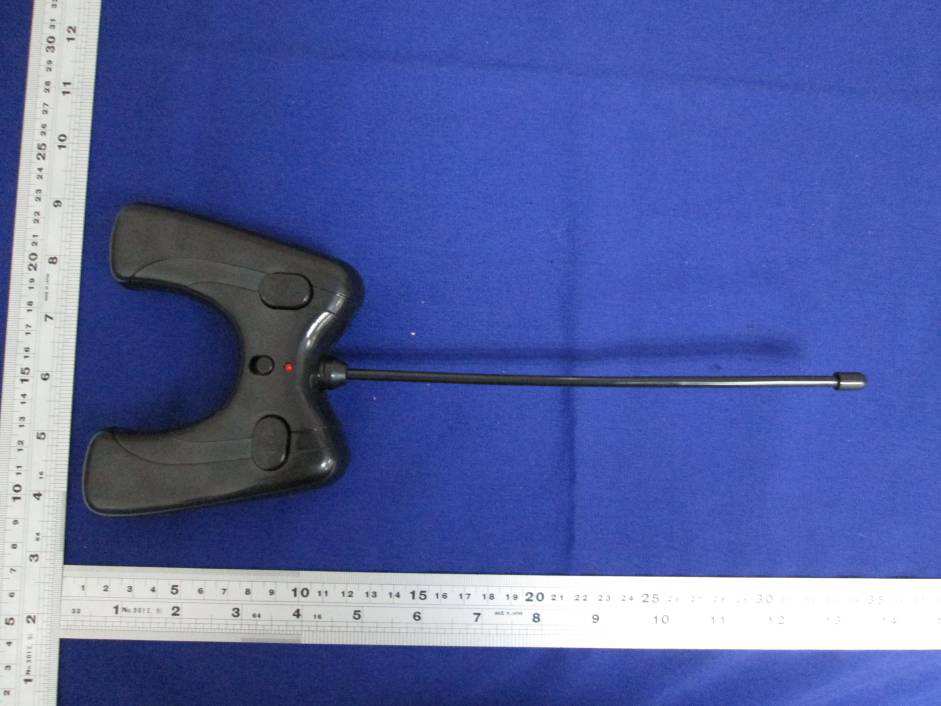

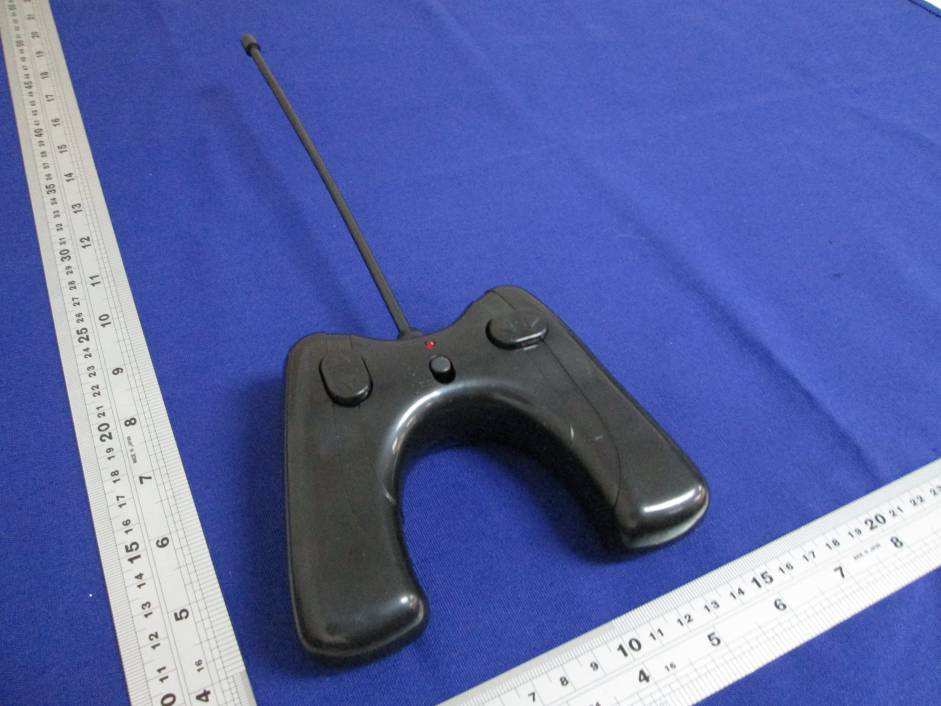

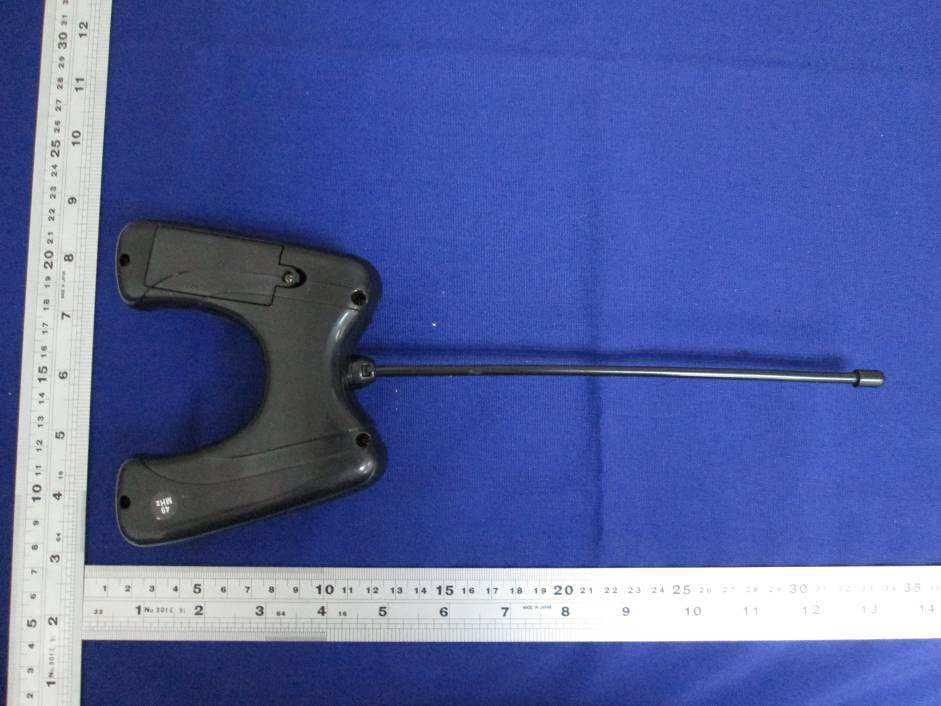

External Photos

Label Artwork and Location

Internal Photos

Technical description Description Function Component Antenna Transmit modulated RF signal ANT Filter Suppression of spurious emissions L1, C2 RF IC Generate code signal to modulator U1 Oscillator Generate 49.86 MHz carrier X1, Q1 RF power amplifier and modulator Modulate the carrier and amplify the modulated RF signal Q2 Antenna Type: Integral antenna with plastic enclosure Antenna Gain: 0dBi Modulation Type: Pulse modulation The nominal conducted output power specified: -16.0dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -18.15dBm (+/- 3dB)

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a Toy RC Bumper Car Set operating at 49.860 MHz which is controlled by a crystal. The EUT is powered by two 1.5V AAA size batteries. For more detail information pls. refer to the user manual. Antenna Type: Integral antenna with plastic enclosure Antenna Gain: 0dBi The nominal conducted output power specified: -16.0dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -18.15dBm (+/- 3dB) Modulation Type: Pulse modulation According to the KDB 447498: T he worst-case peak radiated emission for the EUT is 78.4dBμV/m at 3m in the frequency 49.860MHz The EIRP = [(FS*D) ^2 / 30] mW= -16.83dBm The ERP = EIRP – 2.15 = -18.98 dBm which is within the production variation. The maximun conducted output power specified is -13dB m = 0.05mW The source- based time-averaging conducted output power = 0.05 * Duty Cycle mW < 0.1 mW The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 = 308.6 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The duration of one cycle = 17.04ms Effective period of the cycle = 480μs x 10 + 1.44ms x 4 = 10.56ms DC = 10.56ms / 17.04ms = 0.6197 or 61.97% FCC ID: TB7DXTOYS3348149E

Transmitter Circuit Diagram NC 270R NC NC 49.860MHz

Ref 10.5 dBmAtt 20 dB * * Offset 0.5 dB A LVL RBW 3 MHz VBW 3 MHz CLRWR 3DB SGL *1 PK Center 49.86 MHz10 ms/ SWT 100 ms -80 -70 -60 -50 -40 -30 -20 -10 0 10 Date: 18.APR.2014 15:39:21 Ref 10.5 dBmAtt 20 dB * * Offset 0.5 dB A LVL RBW 3 MHz VBW 3 MHz CLRWR 3DB SGL Center 49.86 MHz3 ms/ SWT 30 ms *1 PK -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -1.71 dBm 4.020000 ms 1 Delta 1 [T1 ] 0.03 dB 17.040000 ms Date: 18.APR.2014 15:41:05 Ref 10.5 dBmAtt 20 dB * * Offset 0.5 dB A LVL RBW 3 MHz VBW 3 MHz CLRWR 3DB SGL Center 49.86 MHz3 ms/ SWT 30 ms *1 PK -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -1.52 dB m 15.840000 ms 1 Delta 1 [T1 ] -0.17 dB 1.440000 ms Date: 18.APR.2014 15:41:47 Ref 10.5 dBmAtt 20 dB * * Offset 0.5 dB A LVL RBW 3 MHz VBW 3 MHz CLRWR 3DB SGL Center 49.86 MHz3 ms/ SWT 30 ms *1 PK -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -1.55 dBm 11.160000 ms 1 Delta 1 [T1 ] -0.18 dB 480.000000 μs Date: 18.APR.2014 15:42:34

Ref 10.5 dBmAtt 20 dB ** Offset 0.5 dB A LVL Center 49.86 MHzSpan 100 kHz10 kHz/ * 3DB RBW 1 kHz SWT 100 ms * VBW 3 kHz * 1 PK VIEW -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -1.18 dBm 49.862200000 MHz 2 Delta 2 [T1 ] -43.79 dB -52.200000000 kHz 3 Delta 3 [T1 ] -42.86 dB 47.800000000 kHz Date: 18.APR.2014 15:37:05 Start 49.81 MHz 10 KHz/ Stop 49.91 MHz

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6 F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD Application For Certification FCC ID: TB7DXTOYS3348149E Toy RC Bumper Car Set Model: DX2014E Transmitter Report No.: GZHH00150437-001 W e hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-13] Prepared and Checked by: Approved by: Sign on file Jimmy Wen Assistant Engineer Andy Yan Project Engineer Date: April 25, 2014 INTERTEK TESTING SERVICES Report No.:GZHH00150437-001 FCC ID: TB7DXTOYS3348149E TRF No.: FCC 15C_TX_b i GENERAL INFORMATION SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD MODEL: DX2014E FCC ID: TB7DXTOYS3348149E Grantee: SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD Grantee Address: Crossing, Fengxin San Rd., Laiwu Rd., Changhai District, Chenghai, Shantou, Guangdong Province China Contact Person: Licai Xie Tel: 86-754-6383868 Manufacturer: SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD Manufacturer Address: Crossing, Fengxin San Rd., Laiwu Rd., Changhai District, Chenghai, Shantou, Guangdong Province China Model: DX2014E Type of EUT: Transmitter Description of EUT: Toy RC Bumper Car Set Serial Number: N/A FCC ID : TB7DXTOYS3348149E Date of Sample Submitted: April 11, 2014 Date of Test: April 25, 2014 Report No.: GZHH00150437-001 Report Date: April 25, 2014 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.:GZHH00150437-001 FCC ID: TB7DXTOYS3348149E TRF No.: FCC 15C_TX_b ii SUMMARY OF TEST RESULT SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD MODEL: DX2014E FCC ID: TB7DXTOYS3348149E TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 1 5.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 1 5.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 1 5.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 1 5.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses an Integral antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.:GZHH00150437-001 FCC ID: TB7DXTOYS3348149E TRF No.: FCC 15C_TX_b iii Table of Contents 1.0 General Description.......................................................................................1 1.1 Product Description..........................................................................................1 1.2 Related Submittal(s) Grants..............................................................................1 1.3 Test Methodology.............................................................................................1 1.4 Test Facility......................................................................................................1 2.0 System Test Configuration ............................................................................2 2.1 Justification ......................................................................................................2 2.2 EUT Exercising Software............…

Text truncated - open the document above for the full version.

Radiated Photos
