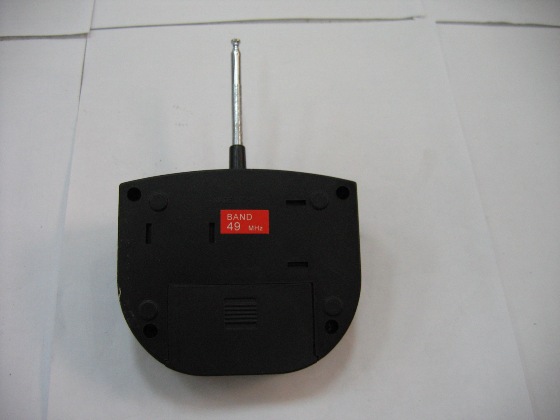

Instruction manual Remote-controllerβs battery installation 1realease the cover of battery box 2Install two AA batteries into battery compartment according to the right poles 3Close the cover of the battery box Car battery installation 1use screw drive to remove the cover of the battery compartment which is under the bottom of the car ; 2Install four AA batteries into battery compartment according to the right poles 3close the cover of the battery compartment 5lock the cover with screw driver again. Use instruction (1)Turn the power switch of controller and car-body to βONβ position; (2)The light on controller will be on; When the light is turning dimmer and dimmer, the batteries are to be replaced; (3)Operate the handle of the controller, the car can move forward/backward/left/right; The head- light and tail-light will also light. (4)After play, turn the power switches to βOFFβ position. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT.
83002 β 9.6V Dub City TX Block Diagram Buffer Modulated Amplifier Oscillator (Carrier) Modulator Driver (TX-2C IC) Battery DC9V 49.86MHz Crystal Antenna
FCC ID Label Sample FCC ID: TB7DXTOYS50349 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Assortment No: 83002 Project: 9.6V Dub City Radio Control Car Frequency: 49.86 MHz Rev: 00 CIRCUIT DESCRIPTION IN TRANSMIT MODE: After TX unit is switched βONβ and press either K1, K2, K3 or K4 the transmit frequency is oscillated by X101 and mixed with the encoded signal from SO port (pin8) of U2 by Q101 then coupled through T101 to antenna. The low pass filter made up of C108, T101 & C109, which is connected to the antenna. A 9V Alkaline Battery supplies energy. IN RECEIVE MODE: The receiver part is using a Supper regenerator circuit and Q1 is the Supper regenerator & detector, D1 is the precision voltage regulator, U1 is the signal decoder. Q5, 6, is the tunnels of the motor driver. JK1, JK2 (Relay) is the power control of the Forward / Backward motor. Q13, 14, 15 & 16 is the current driver of the left/right motor. Energy is supplied by 9.6V rechargeable battery. ANTENNA GROUND CIRCUITRY This unit makes use of an external 20-inch rod antenna, the antenna is inductively coupled, the unit relies on the Ground trace of the circuit board. No external ground is provided. A 9V alkaline battery supplies energy.
T Report No.: GLEMO050501446RFF(I) Page : 1 of 13 FCC ID : TB7DXTOYS50349 Authorized Signature: Kent Hsu Laboratory Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. Member of the SGS Group (SGS SA) SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 TEST REPORT Application No. : GLEMO050501446RF Applicant : SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD. FCC ID : TB7DXTOYS50349 Fundamental Frequency : 49.860MHz Equipment under Test (EUT): Name : Toy β R/C Race Car(49MHz) Model : # 1602343 Customer PO No.: DSM5003 Standards : FCC PART 15, SUBPART C : 2004 Section 15.235 Date of Receipt : 26 May 2005 Date of Test : 27 May to 20 June 2005 Date of Issue : 21 June 2005 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID.: TB7DXTOYS50349 Report No.: GLEMO050501446RFF(I) Page : 2 of 13 SGS-CSTC Standards Technical Services Ltd. 2 Test Summary Test Test Requirement Stanadard Paragraph Result Radiated Emission (30MHz to 1000MHz) FCC PART 15 :2004 Section 15.235 PASS β Occupied Bandwidth FCC PART 15 :2004 Section 15.235 PASS Remark: β The EUT passed Radiated Emission test after the modification as shown as the below: 1. Added one capacitor as the below: (C101: 10PF). Please refer the section 6 of this report and circuit diagram for the detail. FCC ID.: TB7DXTOYS50349 Report No.: GLEMO050501446RFF(I) Page : 3 of 13 SGS-CSTC Standards Technical Services Ltd. 3 Contents Page 1 COVER PAGE ...........................................................................................................................................1 2 TEST SUMMARY ....................................................................................................................................... 2 3 CONTENTS ................................................................................................................................................ 3 4 GENERAL INFORMATION........................................................................................................................ 4 4.1 CLIENT INFORMATION........................................................................................................................... 4 4.2 DETAILS OF E.U.T. ............................................................................................................................... 4 4.3 DESCRIPTION OF SUPPORT UNITS......................................................................................................... 4 4.4 TEST LOCATION.................................................................................................................................... 4 4.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER........................................................................... 4 4.6 TEST FACILITY...................................................................................................................................... 5 5 TEST RESULTS ......................................................................................................................................... 6 5.1 TEST INSTRUMENTS.............................................................................................................................. 6 5.2 E.U.T. OPERATION...............................................................................................................................6 5.3 TEST PROCEDURE & MEASUREMENT DATA............................................................................................ 6 5.3.1 Radiated Emissions ....................................................................................................................... 6 5.3.2 Occupied Bandwidth...................................................................................................................... 9 5.3.3 Photographs - Radiated Emission Test Setup in Chamber......................................................... 10 6 PHOTOGRAPHS - EUT CONSTRUCTIONAL DETAILS...................................................................11-13 FCC ID.: TB7DXTOYS50349 Report No.: GLEMO050501446RFF(I) Page : 4 of 13 SGS-CSTC Standards Technical Services Ltd. 4 General Information 4.1 Client Information Applicant: SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD. Address of Applicant: Crossing, Fengxin san Rd. Laiwu Rd. Changhai District, Shantou Guangdong China. 4.2 Details of E.U.T. Product Name: Toy β R/C Race Car ( Transmitter Part) Model: # 1602343 Customer PO No.: DSM5003 Power Supply: 3V DC (2 x βAAβ Size Batteries) for the transmitter. Power Cord: N/A- 4.3 Description of Support Units The EUT was tested as an iβ¦
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 49.86 MHz - 49.86 MHz | - |

TOY RC TRUCK
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
TOY RC TRUCK
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
TOY RC DINOSAUR
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter

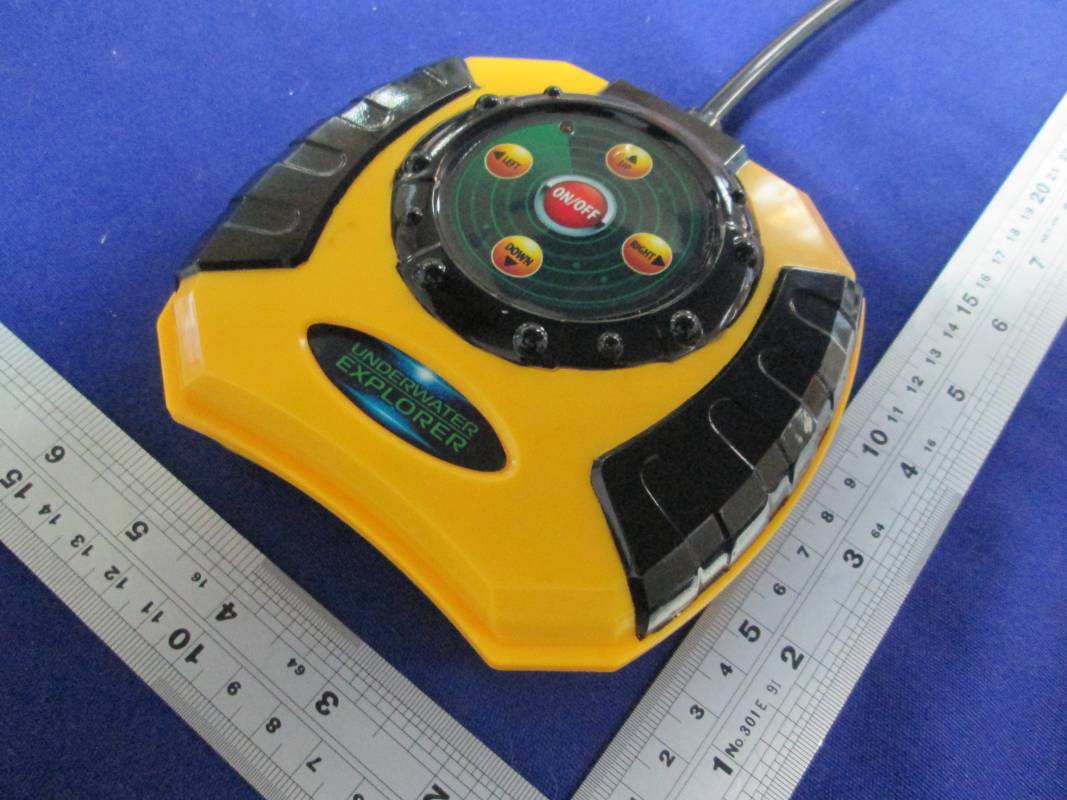

TOY RC UNDERWATER EXPLORER
