TB7DXTOYS5192727MHz Radio Transmitter

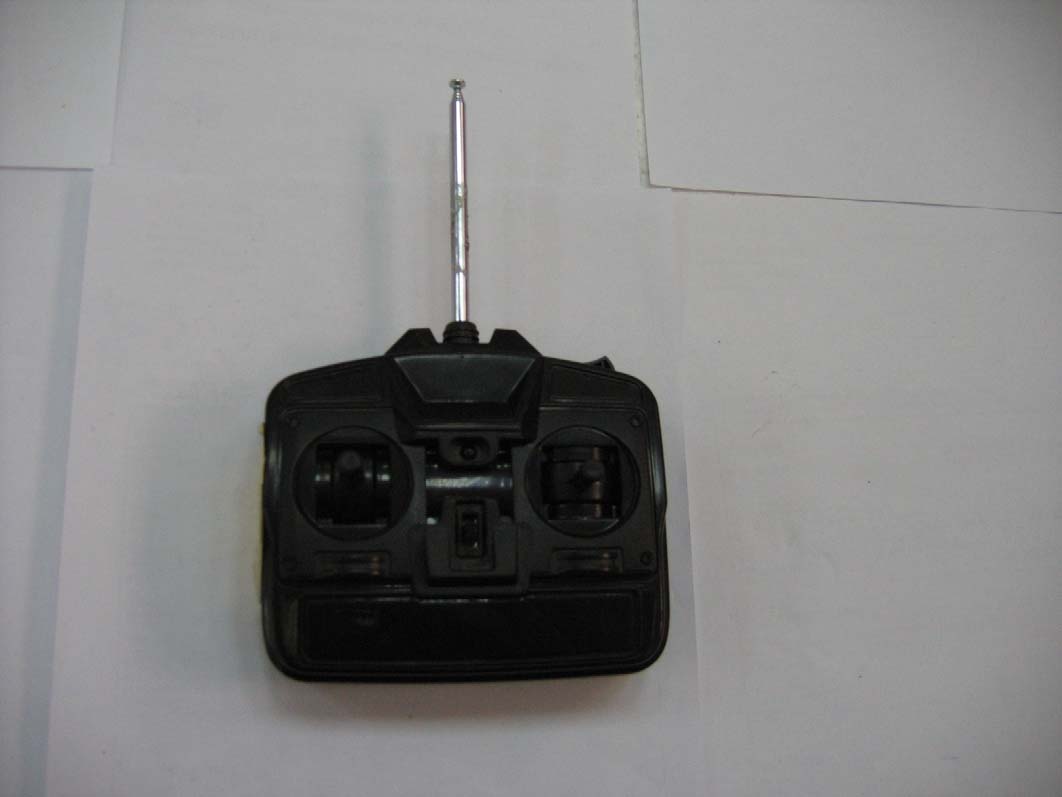

Instruction Manual Remote-controller’s battery installation 1）realease the cover of battery box 2）Install a 9V 6F22ND battery into battery compartment according to the right poles 3）Close the cover of the battery box Car battery installation 1） Turn the lock screw of the battery compartment off right position; 2） Remove the cover of the battery compartment ; 2）Install six AA batteries into battery compartment according to the right poles 3）close the cover of the battery compartment; 5）lock the cover again Use instruction (1)Turn the power switch of controller and car-body to “ON” position; (2)The light on controller will be on. When the light is turning dimmer and dimmer, the batteries are to be replaced; (3)Operate the handle of the controller, the car can move forward/backward, roll left/right or stop. (4)After play, turn the power switches to “OFF” position. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT.

Transmitter: 、 Instruction Coding circuit Quatz vibrating circuit LC filter Amplifying circuit antenna

FCC ID Label Sample FCC ID: TB7DXTOYS51927 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID Location

Transmitter: When press the control key forward/backward/right-ward/left-ward, the instruction were input to the coding circuit; The coded signal is amplified together with high frequency vibration signal; After LC filter, the signal is transmit by the antenna.

Report No.: GLEMO050702137RFF(I) Page : 1 of 11 FCC ID : TB7DXTOYS51927 Authorized Signature: Kent Hsu Laboratory Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. Member of the SGS Group (SGS SA) SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 TEST REPORT Application No. : GLEMO050702137RF Applicant : SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD. FCC ID : TB7DXTOYS51927 Fundamental Frequency : 27.145MHz Equipment under Test (EUT): Name : Toy – R/C Cyclone Stunt (27.145MHz) Item No.: : #1603105 Customer PO No.: DSM5681 Standards : FCC PART 15, SUBPART C : 2004 Section 15.227 Date of Receipt : 26 July 2005 Date of Test : 26 July to 9 August 2005 Date of Issue : 11 August 2005 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID.: TB7DXTOYS51927 Report No.: GLEMO050702137RFF(I) Page : 2 of 11 FCC ID : TB7DXTOYS51927 SGS-CSTC Standards Technical Services Ltd. 2 Test Summary Test Test Requirement Stanadard Paragraph Result Radiated Emission (30MHz to 1000MHz) FCC PART 15 :2004 Section 15.227 PASS ① Occupied Bandwidth FCC PART 15 :2004 Section 15.215 PASS Remark: ①The EUT passed Radiated Emission test after the modification as shown as the below: 1. Added three capacitors as below: C101: 30PF, C102: 0.01μF, C103: 82PF. FCC ID.: TB7DXTOYS51927 Report No.: GLEMO050702137RFF(I) Page : 3 of 11 FCC ID : TB7DXTOYS51927 SGS-CSTC Standards Technical Services Ltd. 3 Contents Page 1 COVER PAGE ...........................................................................................................................................1 2 TEST SUMMARY....................................................................................................................................................2 3 CONTENTS..............................................................................................................................................................3 4 GENERAL INFORMATION...................................................................................................................................4 4.1 CLIENT INFORMATION....................................................................................................................................... 4 4.2 DETAILS OF E.U.T............................................................................................................................................ 4 4.3 DESCRIPTION OF SUPPORT UNITS................................................................................................................... 4 4.4 TEST LOCATION................................................................................................................................................ 4 4.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER.................................................................................. 4 4.6 TEST FACILITY................................................................................................................................................... 5 5 TEST RESULTS......................................................................................................................................................6 5.1 TEST INSTRUMENTS.......................................................................................................................................... 6 5.2 E.U.T. OPERATION........................................................................................................................................... 6 5.3 TEST PROCEDURE & MEASUREMENT DATA..................................................................................................... 6 5.3.1 Radiated Emissions...................................................................................................................................6 5.3.2 Occupied Bandwidth..........................................................................................................................10-11 FCC ID.: TB7DXTOYS51927 Report No.: GLEMO050702137RFF(I) Page : 4 of 11 FCC ID : TB7DXTOYS51927 SGS-CSTC Standards Technical Services Ltd. 4 General Information 4.1 Client Information Applicant: SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD. Address of Applicant: Crossing, Fengxin San Rd. Laiwu Rd. Chenghai District, Shantou, Guangdong, China. 4.2 Details of E.U.T. Product Name: Toy – R/C Cyclone Stunt (27.145MHz) Item No.: #1603105 Power Supply: 9V DC (1 x ‘6F22’ Battery) for the Tx Power Cord: N/A- 4.3 Description of Support Units The EUT was tested as an independent unit: a 27MHz radio transmitter. 4.4 Test Location All tests were perf…
