TB7DXTOYS619727R/C MonsterSpin Car

User Manual Trade name: R/C MonsterSpin Car Model number: 6197 Remote-controller’s battery installation 1) Release the cover of battery box 2) Install 9V battery into battery compartment according to the right poles 3) Close the cover of the battery box Car battery installation 1) Unlock the battery cover of the battery compartment which is back of the car; 2) Install 4×AA batteries into battery compartment according to the right poles; 3) Close the cover of the battery compartment; 4) Lock the battery cover. Use instruction 1) Turn the power switch of car-body to “ON” position; 2) When the user control the control stick, the LED light will be turn on; When the light is turning dimmer, the batteries are to be replaced; 3) Operate the handle of the controller, the car can move forward, backward, turning left and right direction with spinning. After play, turn the power switches of car-body to “OFF” position. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment such modifications could void the user authority to operate the equipment. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Legal Company Name: Innovage LLC Address: 19511 Paulifornia，Foothill Ranch CA ， USA 92610 Phone: 949-587-9207

Block Diagram 9V battery U1 Encoder Y1 27.145MHz Crystal Oscillator Q1 RF Modulator K2-K5 Control sticks x 2 K1 spinning button D3 3.3V Zener Diode Q2 RF Amplifier 27.145MHz Matching Network

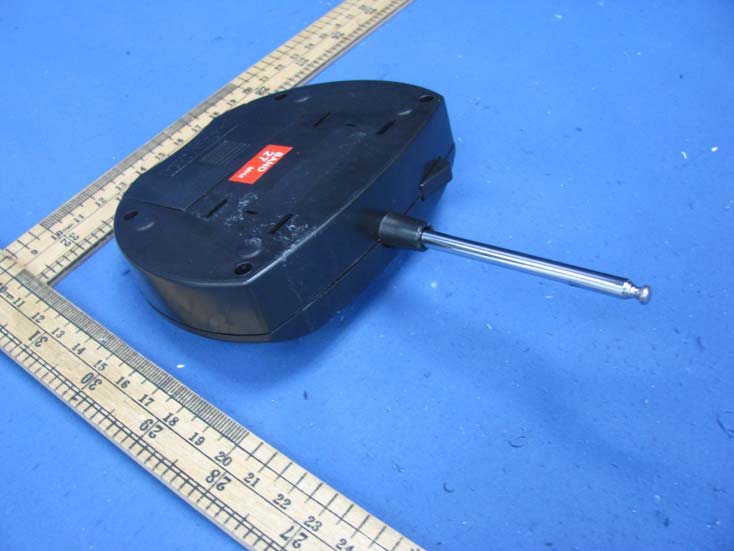

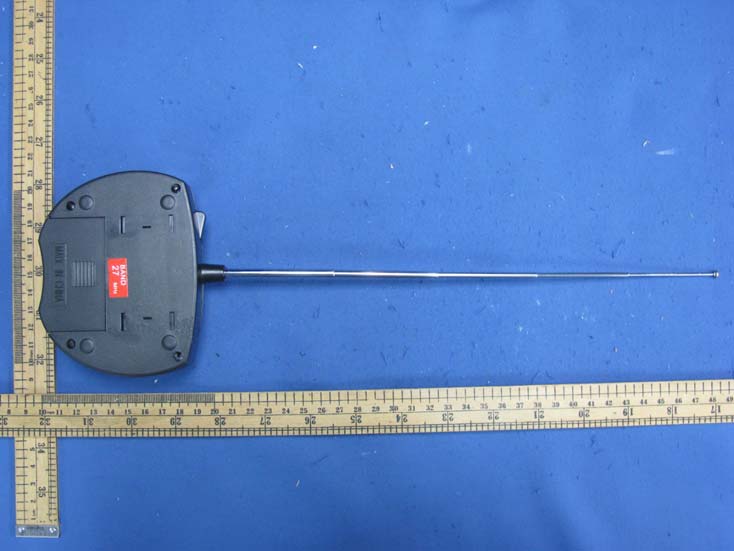

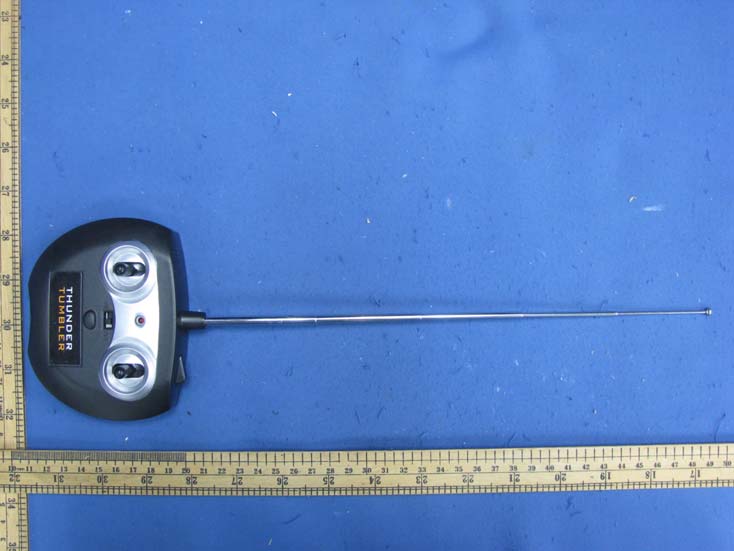

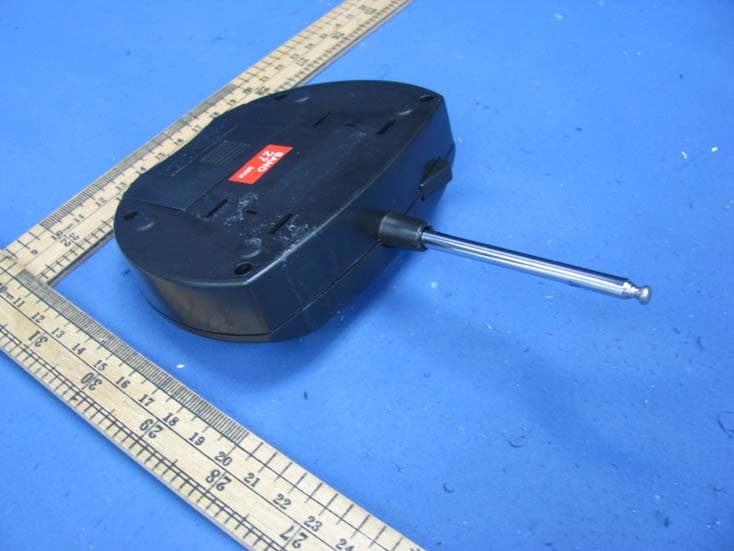

INTERTEK TESTING SERVICES FCC ID: TB7DXTOYS619727 Report No.: SZ10070379-1 Equipment Photographs Model: 6197 (External) INTERTEK TESTING SERVICES FCC ID: TB7DXTOYS619727 Report No.: SZ10070379-1 Equipment Photographs Model: 6197 (External)

FCC ID：TB7DXTOYS619727 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 40mm 15mm

INTERTEK TESTING SERVICE Report No.: SZ10070379-1 Equipment Photographs Model : 6197 (Internal) FCC ID: TB7DXTOYS619727 INTERTEK TESTING SERVICE Report No.: SZ10070379-1 Equipment Photographs Model : 6197 (Internal) FCC ID: TB7DXTOYS619727 INTERTEK TESTING SERVICE Report No.: SZ10070379-1 Equipment Photographs Model : 6197 (Internal) FCC ID: TB7DXTOYS619727

FCC ID: TB7DXTOYS619727 Technical Description : The brief circuit description is listed as follows : - U1 and associated circuit act as Encoder and MCU. - Y1 and associated circuit act as 27.145 MHz Oscillator. - Q1 and associated circuit act as RF modulator. - Q2 and associated circuit act as RF Amplifier. - C6, L3 act as Antenna Matching Network. - K1 – K5 and associated circuit act as Co ntrol Keys. Antenna Used : Telescope-type antenna (with unique antenna connector) Modulation Type: Pulse Modulation.

123456 A B C D 6 54321 D C B A Title NumberRevisionSize B Date:14-Jun-2010Sheet of File:E:\ 设计图 \wtu p\ 东信遥控玩具 .DDBDrawn By: R1200K K1 1 2 3 4 5 6 78 9 10 11 12 13 14 U1 K4 TX-2 R6 8.2k R4 150K R5 100R Q1 945 Q2 1213 L1 3.3uH L2 5.6uH L3 4.7uH C2 104 C322P C668 Y1 27.145MHZ E1 ANT VCC (DC9V) R2 560R C1 203 K5 D3 3.3V C5 331 K3 K2 C4 5p S1 SW-SPST D1 1N4148 D2 1N4148 R3 560R D4 LED XD-4103T27M(SCH)

Ref -20 dBmAtt 10 dB * CLRWR B 3DB RBW 3 MHz VBW 3 MHz Center 27.145 MHz10 ms/ SWT 100 ms SGL 1 AP -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 1 Marker 1 [T1 ] -30.72 dBm 40.400000 ms 1 Delta 1 [T1 ] -0.00 dB 18.200000 ms Ref -20 dBmAtt 10 dB * CLRWR B 3DB RBW 3 MHz VBW 3 MHz SGL Center 27.145 MHz2.5 ms/ SWT 25 ms 1 AP -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 1 Marker 1 [T1 ] -26.65 dBm 2.650000 ms 1 Delta 1 [T1 ] 0.01 dB 18.250000 ms Ref -20 dBmAtt 10 dB * CLRWR B 3DB RBW 3 MHz VBW 3 MHz SGL Center 27.145 MHz2.5 ms/ SWT 25 ms 1 AP -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 1 Marker 1 [T1 ] -26.68 dBm 6.700000 ms 1 Delta 1 [T1 ] 0.02 dB 500.000000 μs Ref -20 dBmAtt 10 dB * CLRWR B 3DB RBW 3 MHz VBW 3 MHz SGL Center 27.145 MHz2.5 ms/ SWT 25 ms 1 AP -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 1 Marker 1 [T1 ] -26.66 dBm 12.800000 ms 1 Delta 1 [T1 ] -0.01 dB 1.500000 ms

Ref -10 dBmAtt 0 dB ** A * RBW 10 kHz VBW 30 kHz SWT 100 ms 3DB 32 kHz/Start 26.96 MHzStop 27.28 MHz 1 PK MAXH * -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 1 Marker 1 [T1 ] -26.90 dBm 27.144960000 MHz 2 Delta 2 [T1 ] -38.96 dB -184.960000000 kHz 3 Delta 3 [T1 ] -34.83 dB 135.040000000 kHz

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TRF No.: FCC IC_C_a Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 TEST REPORT Report No.: SZ10070379-1 Shantou Chenghai Dongxin Plastic Toys Co., Ltd. Application For Certification (Original Grant) (FCC ID: TB7DXTOYS619727) Transmitter Prepared and Checked by: Approved by: Billy Li Project Engineer Shawn Xing Assistant Manager Date: August 3, 2010 INTERTEK TESTING SERVICES Report No.: SZ10070379-1 FCC ID: TB7DXTOYS619727 TRF No.: FCC IC_C_a i GENERAL INFORMATION Shantou Chenghai Dongxin Plastic Toys Co., Ltd. MODEL: 6197 FCC ID: TB7DXTOYS619727 Grantee: Shantou Chenghai Dongxin Plastic Toys Co., Ltd. Grantee Address: Crossing, Fengxin san Rd., Chenghai District, Chenghai, Shantou, Guangdong Province, China. Contact Person: Xieli Cai Tel: +8675486382683 Fax: +8675486383768 e-mail: N/A Manufacturer: N/A Manufacturer Address: N/A Brand Name: N/A Model: 6197 Type of EUT: Transmitter Description of EUT: R/C MonsterSpin Car Serial Number: N/A FCC ID: TB7DXTOYS619727 Date of Sample Submitted: July 28, 2010 Date of Test: July 30, 2010 Report No.: SZ10070379-1 Report Date: August 3, 2010 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: SZ10070379-1 FCC ID: TB7DXTOYS619727 TRF No.: FCC IC_C_a ii SUMMARY OF TEST RESULT Shantou Chenghai Dongxin Plastic Toys Co., Ltd. MODEL: 6197 FCC ID: TB7DXTOYS619727 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a Telescope-type antenna (with unique antenna connector) which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: SZ10070379-1 FCC ID: TB7DXTOYS619727 TRF No.: FCC IC_C_a iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software.................................................................................. 2 2.3 Special Accessories ......................................................................................... 2 2.4 Equipment Modification .................................................................................... 2 2.5 Measurement Uncertainty................................................................................. 2 2.6 Support Equipment List and Description .........................................................…
