TB7DXTOYS619749R1Toy RC Monster Spinning car/Thunder

FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:



Reorient or relocate the receiving antenna.



Increase the separation between the equipment and receiver.



Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.



Consult the dealer or an experienced radio/TV technician for help. User Manual 1645854

Block Diagram Filter RF power amplifier and Modulator Oscillator 49.860MHz Encoder Control key 49.860MHz ANT IC1 128KHz

2012-2-10

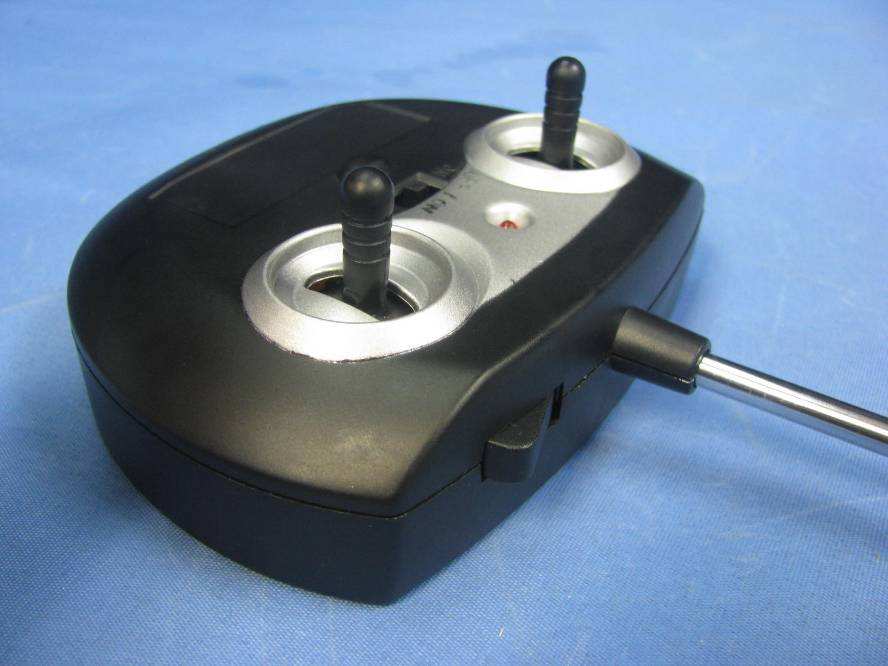

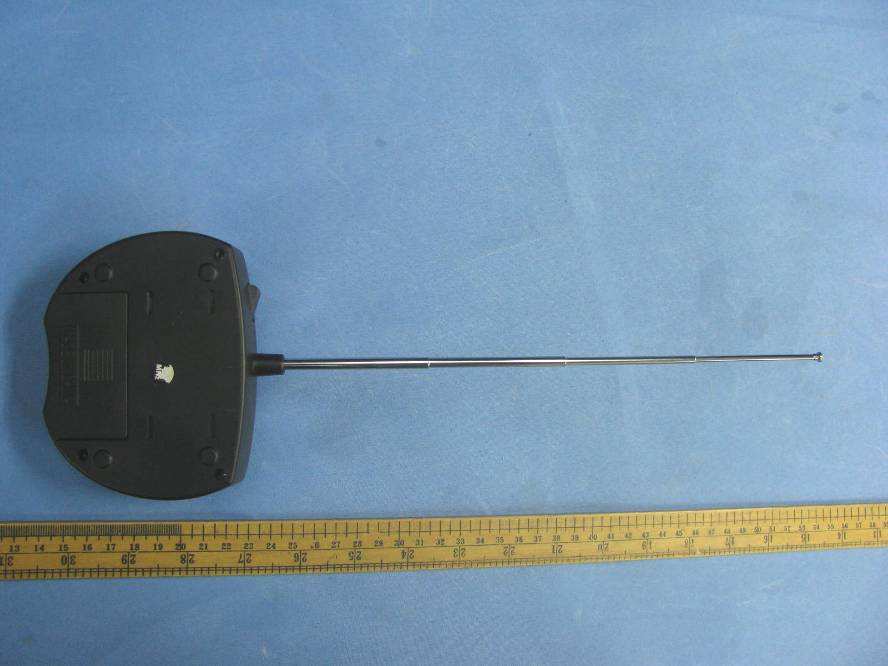

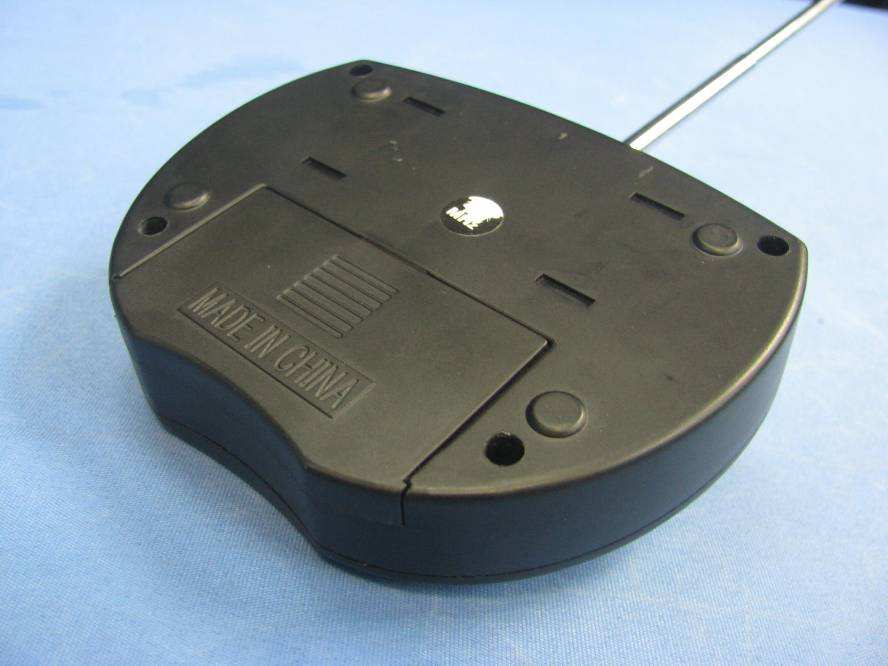

External Photos

Label Artwork and Location FCC ID:TB7DXTOYS619749R1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Label size: Label size: Label size: Label size: 30 3030 30* ** *12 1212 12 mm mm mm mm

Internal Photos

Technical description Description Function Component Antenna Transmit modulated RF signal ANT Filter Suppression of spurious emissions L1, C3, C9 RF power amplifier and modulation Modulate the carrier and amplify the modulated RF signal Q1 Oscillator Generate 49.860MHz carrier TX1, Q2 Encoder IC Generate code signal to modulator IC1 Type of antenna: Telescope antenna with unique antenna connector Type of modulation: Pulse modulation

1234 A B C D 4 321 D C B A ANT C9 22P C5 47P C4 22P R2 10K R3 240K VCC+9V LEFTB RIGHTB BACKWARDB FORWARDB R4 3.3K Q2 1815Y Q1 2222 COMPANY: MODEL NO: MODEL NAME: TITLE: DRAWING NO:REV: CODE: SIZE: SHEET: DEZIGN: CHECKED: APPROVED: L2 2.2UH C12 22P R3 330R C8 104 L1 2.2UH TX1 49.860MHz R2 0R C3 2P C11 22P R1 47K TX-49MHZ 1 2 3 4 5 6 78 9 10 11 12 13 14 IC1 HEADER 7X2 L3 1.0UH C10 104 LED C6 33P D1 3V3 F/B D1 4148 D2 4148 BATTERY SW PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TRF No.: FCC IC_C_a Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 TEST REPORT Report No.: SZ12010277-1 SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD Application For Certification (FCC ID: TB7DXTOYS619749R1) Transmitter Prepared and Checked by: Approved by: Billy Li Team Leader Shawn Xing Manager Date: February 13, 2012 INTERTEK TESTING SERVICES Report No.: SZ12010277-1 FCC ID: TB7DXTOYS619749R1 TRF No.: FCC IC_C_a i GENERAL INFORMATION SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD MODEL: 1645854 FCC ID: TB7DXTOYS619749R1 Grantee: SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD Grantee Address: Crossing, Fengxin san Laiwu Rd. Chenghai, Shantou, Guangdong, China Contact Person: Licai Xie Tel: 86-754-6383868 Manufacturer: SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD Manufacturer Address: Crossing, Fengxin san Laiwu Rd. Chenghai, Shantou, Guangdong, China Model: 1645854 Type of EUT: Transmitter Description of EUT: Toy RC Monster Spinning car/Thunder Serial Number: N/A FCC ID : TB7DXTOYS619749R1 Date of Sample Submitted: January 19, 2012 Date of Test: February 13, 2012 Report No.: SZ12010277-1 Report Date: February 13, 2012 Environmental Conidtions: Temperature: +10 to +40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: SZ12010277-1 FCC ID: TB7DXTOYS619749R1 TRF No.: FCC IC_C_a ii SUMMARY OF TEST RESULT SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD Model: 1645854 FCC ID: TB7DXTOYS619749R1 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a dedicated antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: SZ12010277-1 FCC ID: TB7DXTOYS619749R1 TRF No.: FCC IC_C_a iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software.................................................................................. 2 2.3 Special Accessories ......................................................................................... 2 2.4 Equipment Modification .................................................................................... 2 2.5 Measurement Uncertainty................................................................................. 2 2.6 Support Equipment List and Description ...........................................................3 3.0 Emission Results .......…

Text truncated - open the document above for the full version.

Radiated Photos
