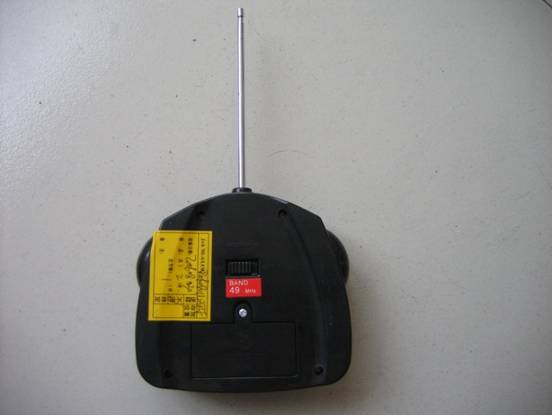

TB7DXTOYS74749Toy R/C Truck with Music

As type error in original report, please refer to below correct test data. Now we have revised page 8 of test report. Amendment report downloaded to web site.

Report No.: GLEMR060801122RFI Page : 1 of 9 FCC ID : TB7DXTOYS74749 Authorized Signature: Jerry Chen Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. Member of the SGS Group (SGS SA) SGS-CSTC Standards Technical Services Ltd. No.198 Kezhu Road, Science Town Economic& Technology Development District Guangzhou, China 510663Telephone: Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 TEST REPORT Application No. : GLEMR060801122RF Applicant : SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD. FCC ID : TB7DXTOYS74749 Fundamental Frequency : 49.860MHz Equipment under Test (EUT): Name : TOY-RC STUNT TRUCK W/MUSIC (49.860MHz) Model : #7847 (Customer PO Number : DSM7847) Standards : FCC PART 15, SUBPART C : 2004 Section 15.235 Date of Receipt : 23 August 2006 Date of Test : 29 to 30 August 2006 Date of Issue : 01 September 2006 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID.: TB7DXTOYS74749 Report No.: GLEMR060801122RFI Page : 2 of 9 FCC ID : TB7DXTOYS74749 SGS-CSTC Standards Technical Services Ltd. 2 Test Summary Test Test Requirement Stanadard Paragraph Result Radiated Emission (30MHz to 1000MHz) FCC PART 15 :2006 Section 15.235 PASS Occupied Bandwidth FCC PART 15 :2006 Section 15.235 PASS Remark: The tests were applied to Transmitter part. FCC ID.: TB7DXTOYS74749 Report No.: GLEMR060801122RFI Page : 3 of 9 FCC ID : TB7DXTOYS74749 SGS-CSTC Standards Technical Services Ltd. 3 Contents Page 1 COVER PAGE ...........................................................................................................................................1 2 TEST SUMMARY ....................................................................................................................................... 2 3 CONTENTS ................................................................................................................................................ 3 4 GENERAL INFORMATION........................................................................................................................ 4 4.1 CLIENT INFORMATION........................................................................................................................... 4 4.2 DETAILS OF E.U.T. ............................................................................................................................... 4 4.3 DESCRIPTION OF SUPPORT UNITS......................................................................................................... 4 4.4 TEST LOCATION.................................................................................................................................... 4 4.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER........................................................................... 4 4.6 TEST FACILITY...................................................................................................................................... 5 5 TEST RESULTS ......................................................................................................................................... 6 5.1 TEST INSTRUMENTS.............................................................................................................................. 6 5.2 E.U.T. OPERATION...............................................................................................................................7 5.3 TEST PROCEDURE & MEASUREMENT DATA............................................................................................ 7 5.3.1 Radiated Emissions ....................................................................................................................... 7 5.3.2 Occupied Bandwidth...................................................................................................................... 9 FCC ID.: TB7DXTOYS74749 Report No.: GLEMR060801122RFI Page : 4 of 9 FCC ID : TB7DXTOYS74749 SGS-CSTC Standards Technical Services Ltd. 4 General Information 4.1 Client Information Applicant: SHANTOU CHENGHAI DONGXIN PLASTIC TOYS CO., LTD. Address of Applicant: Crossing Fengxin San Rd.,.Laiwu Rd.,.Chenghai District, Shantou, Guangdong China 4.2 Details of E.U.T. Product Name: TOY-RC STUNT TRUCK W/MUSIC (49.860MHz) Model: #7847 (Customer PO Number : DSM7847) Power Supply: DC 9V (1 x ‘6F22’ Size Battery) for Tx; DC 10V (Valve Regulated Lead Acid Battery) for Rx. Power Cord: N/A- 4.3 Description of Support Units The EUT was tested as an independent unit: a 49MHz radio transmitter. 4.4 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou EMC Laboratory, No.198 Kezhu Road, Science Town Economic& Technology Development District Guangzhou, China 510663 Tel: +86 20 82155555 Fax: +86 20 82075059 No tests …
