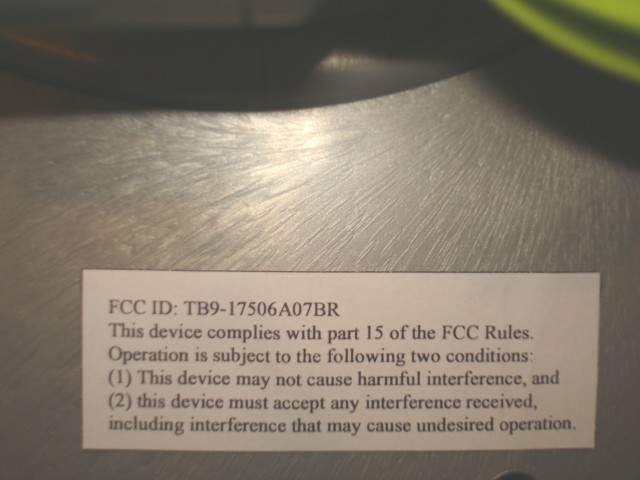

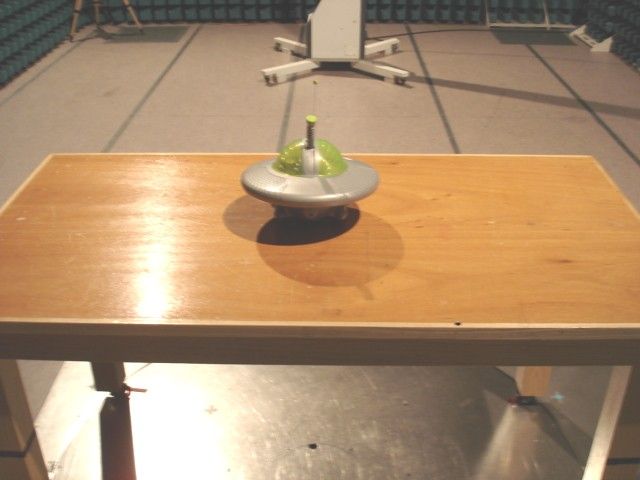

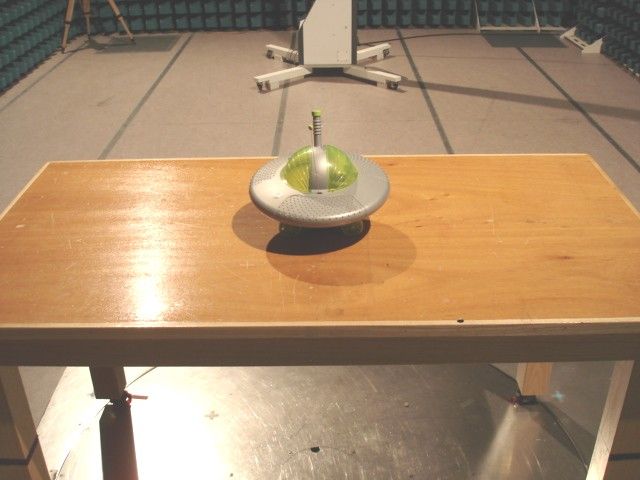

TB9-17506A07BRR/C SOAKER

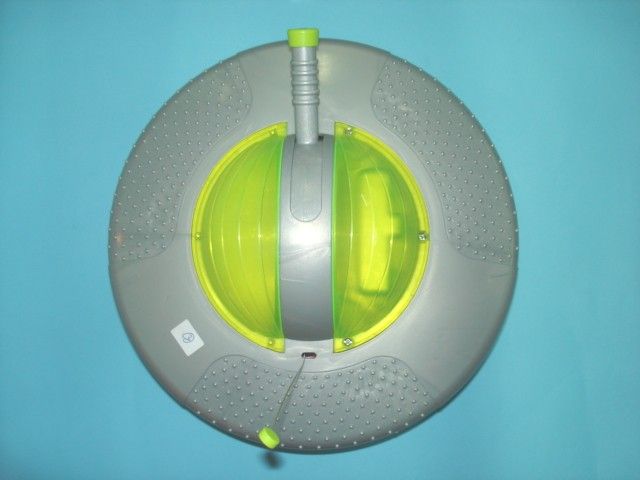

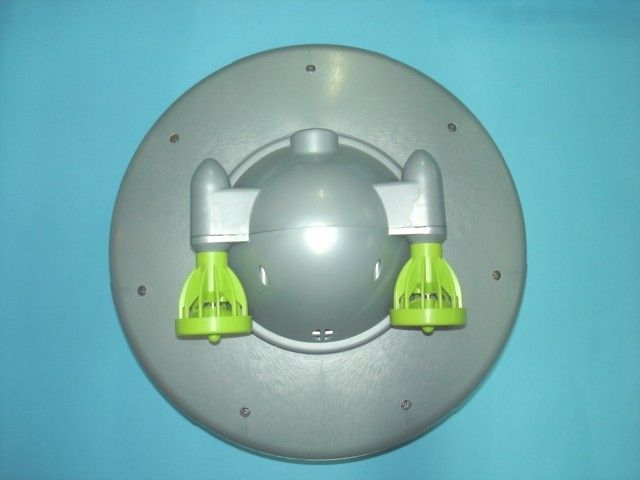

Ages 8 and up Models: 17506, 17507 Available in both Metallic Silver/Green - 49MHz (A) & Metallic Silver/Orange - 49MHz (B) When using 2 R/C Water Soakers together, make sure they are not the same color to prevent crossing signals. R/C Water Soaker has full-function, and its battery operated radio controller navigates movement around the pool, elevates the shooting nozzle, and controls the soaking stream! It has a shooting distance of approximately 20 feet.The controller is water resistant up to 3 feet deep. This allows you to swim along and control your Soaker from below the surface of the water. It has underwater range of approximately 6 feet and a transmitter range of approximately 50 feet above the surface of the water. Transmitter uses: 1-9V alkaline battery (not included) R/C Water Soaker uses: 4-AA alkaline batteries (not included) or rechargeable NiMH battery (included with charger) INSTALLING BATTERIES No assembly is required before first time use. Battery installation is required. HOW TO INSTALL / CHANGE BATTERIES R/C WATER SOAKER CONTROLLER 1.To open use phillips screwdriver to loosen the 3 screws on the battery compartment cover and lift the cover to remove it. 2.Put one 9V alkaline battery in the compartment. Make sure that (+) and (-) poles are positioned properly. 3.Replace the battery cover and secure it with screws. Note: When the transmitter’s range decreases, replace its battery. R/C WATER SOAKER 1. When installing new batteries, make sure that the power is in the off position on the R/C Water Soaker. Turn power off by pressing the button located between the two propellers. The light next to the on/off switch will light up if the power is still on. 2. To open, use Phillips screwdriver and loosen 3 screws on plastic covering, labeled BATTERY COMPARTMENT. Once loosened, lift the plastic cover to remove it. 3. After plastic covering is removed, use Phillips screwdriver to loosen 3 screws on the battery compartment cover and lift cover to remove it. 4. Take out the battery compartment box from the battery compartment. 5. Place 4-AA alkaline batteries or 6.0V rechargeable battery into the battery box. 6. Depending on which battery source you are using: plug either the AA battery box connector or the 6.0V rechargeable battery connector into the R/C Water Soaker connector, as shown. 7. Make sure battery and connector are secure in the battery compartment. 8. Replace battery compartment cover and secure with screws, making sure wires are not pinched by the cover. 9. Replace plastic covering and secure with screws. WARNING: Item can swim into deep water. Always keep children in sight within quick and easy reach when they are in the water. Do not allow children to play where water is too deep for their swimming ability. Do not aim or shoot water at eyes or face. Use of goggles is recommended while playing. NOT RECOMMENDED FOR CHILDREN UNDER 8 YEARS OF AGE. AS WITH ALL ELECTRIC PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED DURING HANDLING AND USE TO PREVENT ELECTRIC SHOCK. INPUT: 120V AC, 60Hz, 6W OUTPUT: 8V DC, 200 mA, 1.6 VA THIS PRODUCT IS DESIGNED FOR SWIMMING POOLS ONLY CAUTION: For safety, children playing with this toy should be supervised by an ADULT, as with any products designed to be used in or around water. To maintain good performance and control, make sure that your R/C Water Soaker is operated at depths that do not exceed 6 feet. CAUTION - ELECTRIC TOY: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Comments or Assistance? Please call 1-800-889-7946 Outside the U.S.A. please call 757-460-1156 SWIMWAYS CORP. 5816 Ward Ct. Virginia Beach, Virginia 23455 www.swimways.com Items #17506, 17507 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. Consult the dealer or an experienced radio/TV technician for help. HOW TO CHARGE/RECHARGE NiMH BATTERY 1. Insert charger plug into side of the rechargeable battery. 2. Plug in the power supply into the 115V-120V wall socket. 3. New NiMH battery pack is not charged before shipping. Charge for 12 hours before 1st use. 4 hours, thereafter. Note: Any batteries purchased for use in this toy may pose a hazard to children. Please check safety notice supplied with batteries before use. Make sure the battery is completely dry before recharging. Warning: Dispose of batteries promptly and properly; do not bury or burn them. HELPFUL HINTS • Fragile! Handle with care. Do not drop! Do not drop in water. • Do not pick up R/C Water Soaker by antenna or shooting nozzle. • Do not try to forcefully adjust the shooting nozzle. It is controlled by IC chip. • Do not leave on the floor to avoid stepping or falling on the R/C Water Soaker a…

Text truncated - open the document above for the full version.

BLOCK DIAGRAM FOR 06008 Antenna F&B Motor Serve RF Amplifier(Q1) (Q11,Q12,Q13,Q14,Q15,Q16) F&B Motor (Q17,Q18,Q19,Q20,Q21,Q22) (M2&M3) Super regenerative Signal Detector(Q2) Amplifying & Integer Decoder(U2) Cannon U &D Motor Serve Cannon U&D Motor 49.86MHz (Q3,Q4) (Q5,Q6,Q7,Q8,Q9,Q10) (M1) Shoot Water Motor Serve Shoot Water Motor (Q23,Q24) (M4) Trade Name: Radio Control Soaker (Receiver) Model Number: 06008

Operation Description R/C soaker The R/C Soaker is powered by 9V battery. There are two forward /backward stick, one cannon up/down and one shooting button on the EUT. When the two forward or backward stick pushed once it will transmit a radio signal for receiver go forward or backward. When the press up or down stick pushed once, it will transmit a radio signal for cannon up or down. When press the shooting button, it will transmit a radio signal for shooting water. Refer to the transmitter circuit design, the circuit description is listed as below:
 U1 and associate circuit act as encoder.
Y1, Q2 and associate circuit act as oscillator.

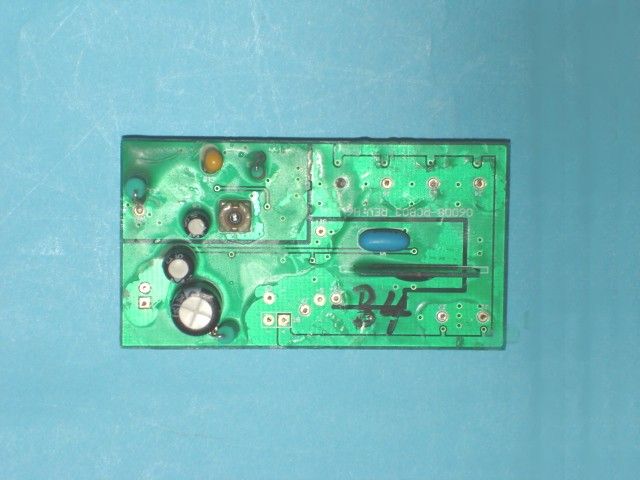

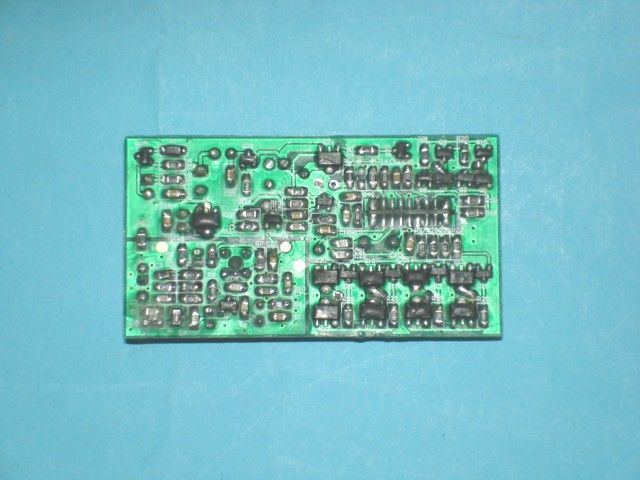

 Q3 and associate circuit act as amplifier. Refer to the receiver circuit design, the circuit description is listed as below:
 U2 and associate circuit act as encoder.
 Q2 and associate circuit act as self oscillate.
 Q3,Q4 and associate circuit act as amplifier.

1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA PERPARED BY DATE DETAIL OF CHANGE REV A TitleSize Document Number Rev Date Sheet KADER INDUSTRIAL CO., LTD. R/C SOAKER 49.86MHz B H1 2006-11-02 1 of 1 06008-50000.SCH02 ISSUED : CHECKED : APPROVED : VDD L4220uH C46PF C910pFC11472 C104.7uF C647uF L33.9uH R79.1KR9620 R62K R8150K R102k C5103 C7103 L20.4uH R151K VCC C812pF C17100UF C16104 VDD Y14MHZ C2222pFC2122pF Q19018 R412K R139KR251K R310K R5330 C2102 C3103 C16PF ANT L12.7uH Q179014 Q19882 Q20882 Q189014 Q21772 Q22772 R29100 R28100 R271K R261K VCC C25104 Q21815 GND 1 Vin 2 Vout 3 U1AIC1734-33 R13330K R126.8K C12102 R1433K R112.2M C24470uF VCC1 VDD R1647K M3 C35104 C37104C36104 L94.7uHL104.7uH Q39014 Q49014 C14102 C18102 C13104 P52 1 P53 2 TCC 3 RESET 4 VSS 5 P60 6 P61 7 P62 8 P63 9 P64 10 P65 11 P66 12 P67 13 VDD 14 XOUT 15 XIN 16 P50 17 P51 18 U2EM78156E C19104 Q119014 Q13882 Q14882 Q129014 Q15772 Q16772 R25100 R24100 R231K R221K VCC M2 C32104 C34104C33104 L74.7uHL84.7uH Q59014 Q78050 Q88050 Q69014 Q98550 Q108550 R21100 R20100 R191K R181K VCC M1 C29104 C31104C30104 L54.7uHL64.7uH BT6V SW R00 C20104 Z13.9V D1LED R321K R33220 Q259014 VCC1 VDD B 10K A10K ORID VCC R301K Q24772 Q239014 R31100 M4 C38104 C40104C39104 L114.7uHL124.7uH S2 S1 VDD R1747K C23104 F1&B1 F2&B2 CANNON SHOOT J1J2 J3J4 J5J6 J7J8 VDD R3547K C15104 Q268550 R341.8K C42104 C41104
